To close the liftgate, pull down on the handle, then
firmly shut the liftgate. Don’t drive with the liftgate
open, even slightly. See“Engine Exhaust”
in the Index.
A light on your instrument panel will warn you if the
liftgate is not completely closed (see “Liftgate Ajar
Warning Light”
in the Index).
2-
It can be dangerous to drive with the liftgate
open because carbon monoxide
(CO) gas can
come into your vehicle. You can’t see or smell
CO. It can cause unconsciousness and even death.
If you must drive with the liftgate open or if electrical
wiring or other cable connections must
pass through
the seal between the body and the liftgate:
0 Make sure all windows are shut.
lhrn the fan on your heating or cooling
system to
its highest speed with the setting
on BI-LEV (Bi-Level) or
UPPER. That will
force outside air into your vehicle. See
“Comfort Controls” in the Index.
If you have air outlets on or under the
instrument panel, open them all the way.
See “Engine Exhaust” in the Index.
ProCarManuals.com

Ttrrn Signal and Lane Change Indicator
The turn signal has two upward (for right) and two
downward (for left) positions. These positions allow you
to signal a turn or a lane change.
To signal a turn, move the lever all the way up or down.
When the turn
is finished, the lever will return automatically.
An arrow on the instrument panel will flash in the
direction of the turn or lane change.
To signal a lane change, just raise or lower the lever
until the arrow starts to flash. Hold it there until you
complete your lane change. The lever will return by
itself when you release it.
As you signal a turn or a lane change, if the arrows don’t
flash but just stay on, a signal bulb may be burned out
and other drivers won’t
see your turn signal.
If a bulb
is burned out, replace it to help avoid an
accident. If
the arrows don’t go on at all when you
signal a turn, check for burned-out bulbs and check the
fuse (see “Fuses and Circuit Breakers’’ in the Index).
If you have a trailer towing option with added wiring for
the trailer lamps,
a different turn signal flasher is used.
With this flasher installed, the signal indicator will flash
even
if a turn signal bulb is burned out. Check the front
and rear turn signal lamps regularly
to make sure they
are working.
Headlamp High/Low Beam Changer
To change the headlamps
from high to low beam, or
low to high, simply pull the
turn signal lever all the way
toward you. Then release it.
When the high beams are on, a light on the instrument
cluster will also be on.
ProCarManuals.com

Safety Belt Reminder Light
When the key is turned to RUN or START, a chime will
come on for about eight seconds to remind people
to
fasten their safety belts, unless the driver’s safety belt is
already buckled.
The safety belt light will
also come on and stay
on
until the driver’s belt
is buckled.
Air Bag Readiness Light
There is an air bag readiness light on the instrument
panel, which shows the words AIR BAG. The system
checks the air bag’s electrical system for malfunctions.
The light tells you if there is an electrical problem. The
system check includes the air bag sensors, the air bag
module, the wiring and the diagnostic module.
For more
information
on the air bag system, see “Air Bag” in
the Index.
AIR BAG
You will see this light flash
for a few seconds when
you
turn your ignition to RUN
or START. Then the light
should go out. This means
the system is ready.
If the air bag readiness light doesn’t come on when you
start your vehicle,
or stays on, or comes on when you
are driving, your air bag system may not work properly.
Have your vehicle serviced right away.
ProCarManuals.com

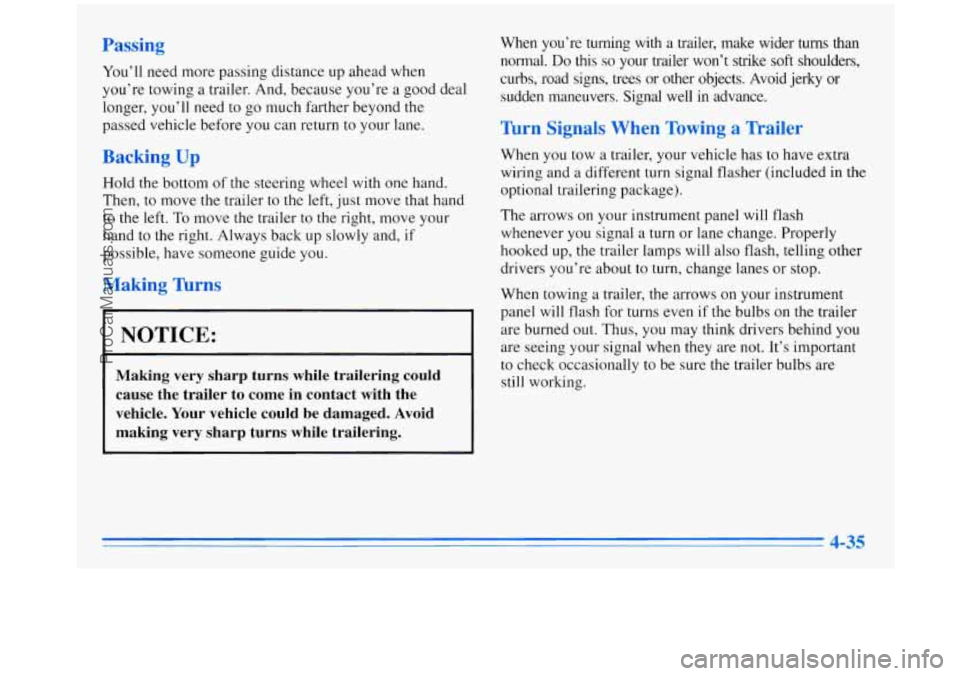

Passing
You’ll need more passing distance up ahead when
you’re towing a trailer. And, because you’re a good deal
longer, you’ll need to go much farther beyond the
passed vehicle before you can return to your lane.
Backing Up
Hold the bottom of the steering wheel with one hand.
Then, to move the trailer to the left, just move that hand
to the left. To move the trailer to the right, move your
hand to
the right. Always back up slowly and, if
possible, have someone guide you.
Making Tbms
Making very sharp turns while trailering could
cause the trailer to come in contact with the
vehicle. Your vehicle could be damaged. Avoid
making very sharp turns while trailering.
When you’re turning with a trailer, make wider turns than
normal.
Do this so your trailer won’t strike soft shoulders,
curbs, road signs, trees or other objects. Avoid jerky or
sudden maneuvers. Signal well
in advance.
Turn Signals When Towing a Trailer
When you tow a trailer, your vehicle has to have extra
wiring and a different turn signal flasher (included in the
optional trailering package).
The arrows on your instrument panel will flash
whenever you signal a turn or lane change. Properly
hooked up, the trailer lamps will also flash, telling other
drivers you’re about to turn, change lanes or
stop.
When towing a trailer, the arrows on your instrument
panel will flash for turns even
if the bulbs on the trailer
are burned out. Thus, you may think drivers behind you
are seeing your signal when they are not. It’s important
to check occasionally to be sure the trailer bulbs are
still working.
4-35
ProCarManuals.com

3. Twist the L-shaped bulb assembly counterclockwise
one-sixth
of a turn until the flanges align with the
slots in the retainer ring.
4. Pull out the bulb assembly.
5. Disconnect the bulb wiring harness from the bulb assembly by lifting the plastic locking tab.
6. Snap a new bulb assembly into the wiring harness.
7. Replace the bulb assembly by reversing Step 3.
8. Replace the bulb housing and the two black knobs.
Front Parking/lbrn Signal Lamps
1. Remove the headlamp assembly as described in
“Headlamps.”
2. Remove the lamp socket furthest inboard by
pinching the lever
and turning counterclockwise.
3. After replacing the bulb, line up the flanges on the
socket with
the slots in the headlamp capsule.
4. Push and turn the socket one-sixth of a
turn clockwise.
Front Sidemarker
1. From behind the front bumper, remove the lamp
socket
from the lamp assembly by twisting
counterclockwise.
2. With the bulb replaced, insert the lamp socket into
the lamp assembly and turn clockwise.
6-30
ProCarManuals.com

NOTICE:
Don’t add anything electrical to your Oldsmobile
unless you check with your retailer
first. Some
electrical equipment can damage your vehicle and the damage-wouldn’t be covered by your
warranty. Some add-on electrical equipment
can keep other components from working as
they should.
Headlamp Wiring
The headlamp wiring is protected by a circuit breaker in
the lamp switch. An electrical overload will cause the
lamps to go on and
off, or,in some cases to remain off.
If this happens, have your headlamp system checked
right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and a fuse.
If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools.
If
the overload is caused by some electrical problem, be
sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers in the circuit breakerhelay panel protect
the power windows and other power accessories. When
the current load is too heavy, the circuit breaker opens and closes, protecting
the circuit until the problem
is fixed.
6-52
ProCarManuals.com

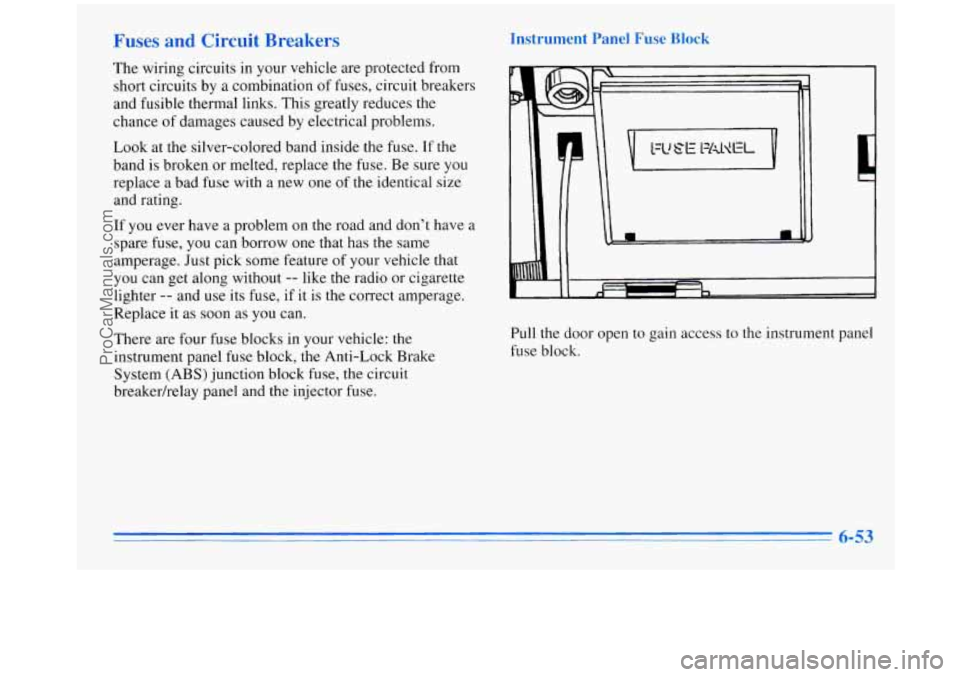

Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses, circuit breakers
and fusible thermal links. This greatly reduces the
chance of damages caused by electrical problems.
Look at the silver-colored band inside the fuse.
If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one
of the identical size
and rating.
If you ever have a problem on
the road and don’t have a
spare fuse,
you can borrow one that has the same
amperage. Just pick some feature
of your vehicle that
you can get along without
-- like the radio or cigarette
lighter
-- and use its fuse, if it is the correct amperage.
Replace it as
soon as you can.
There are four fuse blocks in your vehicle: the
instrument panel fuse block,
the Anti-Lock Brake
System
(ABS) junction block fuse, the circuit
breakerhelay panel and the injector fuse.
I
Instrument Panel Fuse Block
1
L 9
Pull the door open to gain access to the instrument panel
fuse block.
6-53
ProCarManuals.com

FogLamps .................................... 2-49
Foreign Countries. Fuel
........................... 6-3
Four-Way Manual Seat
........................... 1 - I
FrontDoor ..................................... 2-3
Front Sidemarker Lamp Bulb Replacement
........... 6-30
FrontTowing
................................... 5-9
Front Turn Signal Lamp Bulb Replacement
.......... 6-30
Fuel
.......................................... 6-2
Filling Your Tank
.............................. 6-4
Gage
....................................... 2-83
In Foreign Countries
........................... 6-3
Fuses and Circuit Breakers
....................... 6-53
Gages Engine Coolant Temperature
.................... 2-76
Engine Oil Pressure
........................... 2-80
Fuel
....................................... 2-83
Speedometer
................................. 2-71
Tachometer
.................................. 2-71
Voltmeter
................................... 2-74
Garage Door Opener
............................ 2-54
Gear Positions. Automatic Transaxle
................ 2-27
GloveBox
.................................... 2-57
Gross Axle Weight Rating
........................ 4-27
Gross Vehicle Weight Rating
...................... 4-27
GAWR
....................................... 4-27
GVWR
....................................... 4-27 Halogen
Bulbs
................................ 6-29
Hazard Warning Flashers
.......................... 5-1
Head Restraints ................................. 1-4
Headlamps
.................................... 2-48
Bulb Replacement
............................ 6-29
HighLow Beam Changer
...................... 2-40
OnReminder
................................ 2-48
Wiring
..................................... 6-52
Hearing Impaired. Customer Assistance
.............. 8-3
Heating
........................................ 3-3
High-Beam Headlamps
.......................... 2-40
Highway Hypnosis
.............................. 4-21
Hill and Mountain Roads
......................... 4-21
Hitches. Trailer
................................. 4-33
Hood Checking Things Under
......................... 6-6
Prop
........................................ 6-7
Release
...................................... 6-6
Horn ......................................... 2-38
Hydroplaning
.................................. 4-17
Ignition Positions
.............................. 2-23
Illuminated Entry
.......................... 2- 1 1. 2-50
Inflation. Tire
.................................. 6-36
Inflator. Air
................................... 2-66
Injector Fuse
................................... 6-57
Inside Daymight Rearview Mirror
................. 2-52
ProCarManuals.com
