Resynchronizing Your Remote Transmitter
Your Remote Lock Control System uses a continually
changing code for increased security. Normally, the
receiver
in your vehicle will keep track of this
changing code.
Loss of synchronization will occur if the transmitter
is activated more than
256 times while out of range
of the vehicle.
Loss of synchronization will occur after the battery
replacement if the transmitter is immediately
activated more than
16 times while out of range of
the vehicle.
If your key chain transmitter has stopped working, you
may need to resynchronize the transmitter to the vehicle
receiver. To do this, press the
LOCK and UNLOCK
buttons together and hold for at least seven seconds or
until the horn sounds if equipped with Content Theft
Deterrent. Check the transmitter operation.
Switchbanks
There are two sets of switchbanks located in the front of
the vehicle, The switches will vary with the options that
are on your vehicle. It
is useful to become familiar with
them since they are used frequently while operating
the vehicle.
Overhead Console Switchbank
This switchbank is located in the overhead console. The
switches that you may find
in this switchbank are the
Interior Lights Override, Power Sliding Door Override,
Power Sliding
Door, Power Rear Quarter Windows and
Sunroof.
If your vehicle does not have some of the
options controlled by these switches, there
will be a
blank button
in its place.
For more information, please see each of these features
in the Index.
2-12
ProCarManuals.com

To program features, your vehicle must be in the
programming mode. Follow these steps:
f FUSE USAGE CHART
10 TISIG 15 SIR io IGN 1 10 PSD
I N- I PWH WTJOmR 30 111 PWR QTR VENT RR HVAC FRT MED HVAC BLWR Low’ SUNROOF HVACIDRL
VENT
25 20 M FRT WPR WSHR SWC ACCY MALLIRADIOIDIC RH WPR WSHR BCM PRGRM
PWR SEAT/ HAZARD
15 STOP LAMP
20 10 2u PWR LOCK ABS MDL BAi7 RR PWR SCKT FRT HVAC HI 20 2 ABS SOL SWC BACK LIGHT
( For More information, See Owner’s Manual Printed in 10250877
1. The Content Theft Deterrent system (if equipped)
must be disarmed.
2. Remove the BCM PRGRM fuse from the instrument
panel fuse block.
3. Turn the ignition switch to ACCESSORY.
4. You will hear two to four chimes, depending upon
the features that you have.
You can now program your choices.
Leaving Programming Mode
To get out of programming mode, just turn the key from
the ACCESSORY position to OFF and put the BCM
PRGRM fuse back into the instrument panel fuse block.
Delayed Illumination and Exit Lighting
Your vehicle comes with this feature set in Mode 4. This
means that:
0 The interior lamps will stay on for a while after all
the doors and the liftgate are closed.
0 The interior lamps will come on and stay on for a
while whenever you remove the key from the ignition.
2-42
ProCarManuals.com

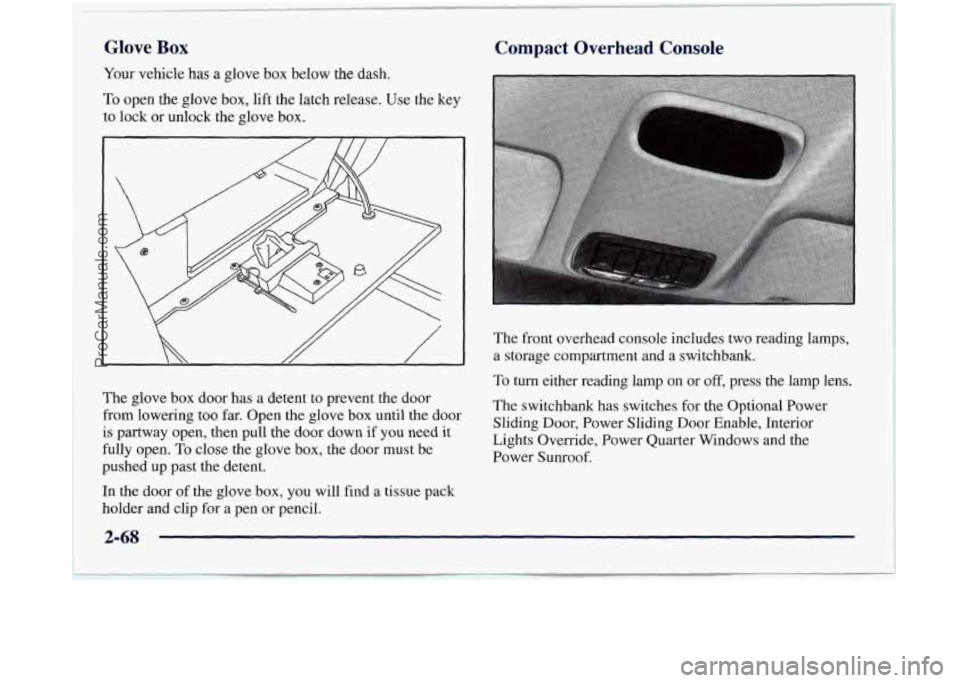

Glove Box
Your vehicle has a glove box below the dash.
To open the glove box, lift the latch release. Use the key
to lock or unlock the glove box.
The glove box door has a detent to prevent the door
from lowering too far. Open the glove box until the door
is partway
open, then pull the door down if you need it
fully open.
To close the glove box, the door must be
pushed up past the detent.
In the door of the glove
box, you will find a tissue pack
holder and clip for a pen or pencil.
Compact Overhead Console
I
The front overhead console includes two reading lamps,
a storage compartment and a switchbank.
To turn either reading lamp on or off, press the lamp lens.
The switchbank has switches for the Optional Power
Sliding Door, Power Sliding Door Enable, Interior
Lights Override, Power Quarter Windows and the
Power Sunroof.
ProCarManuals.com

NOTICE:
When using the accessory power outlet:
0 Maximum load of any electrical equipment
should not exceed
20 amps.
Be sure to turn off any electrical equipment
when not in use. Leaving electrical
equipment on for extended periods can
drain your battery.
To replace the cover on the rear outlet,
line up the tabs
at the back of the cover and
put the cover in place. Push
down the tab to secure the cover.
Power Sunroof (Option)
The sunroof has a sun shade to let in light without
opening the sunroof. Slide the shade back to open.
The power sunroof button
is on the fir right of the
overhead console switchbank. The sunroof has two
positions,
vent and full open. Press the
symbol on the
bottom
of the rocker switch
to open the sunroof
to the
vent position. To close the
sunroof from
the vent
position, press the ribbed
top part
of the button.
To
fully open the sunroof,
first open
it to the vent
position
as described above.
Press the symbol on the bottom of the button again and the
sunroof will slide all the way back.
To close the sunroof
from the
fully open position, press the ribbed top part of
the button and hold it down until the sunroof is closed.
If the sunshade is not already opened, it will open when
the sunroof
is opened to vent or full open.
I NOTICE:
The optional sunroof panel is not designed to be
removed. It is made to open and close but to
remain attached to the vehicle.
2-85
ProCarManuals.com

/ -.
FUSE USAGE CHART
BREAKERS
ELEC PRNDL RR DEFOG ELC
HEADlAMP
20
10 CRUISE 10 TlSlG 15 SIR 10 IGN 1 10 PSD
10 25
‘a 25
25 PWR OTR VENT RR HVAC FR$~~~~~~w’ SUNROOF HVAC/DRL
10
20 10
PIM WDQ/RR 2 10 M 20 FRT WPR WSHR SWC ACCY MALURADIO/DC RR WPR WSHR BCM PRGRM -- I PWGiAT, I HAZARD 15 STOP LAMP 15
L 20 PWR LOCK RR PWR SCKT ABS MOL BATT 20 10
FRT HVAC HI 20 2 K ABS SOL SWC BACK LIGHT
For More Information, See Owner’s Manual . Printed in 10250877 /
CIRCUIT BREAKERS
FRT HVAC
HI BLWR ......... Blower Motor Resistor
HEADLAMP
...... DRL Control Module,
Headlamp Dimmer Switch and
Headlamp Switch
PWR SEATFSD
... 6-way Power Seat(s) and Rear
Side Door Actuator Motor
PWR WDO/RR VENT
............ Front Power Windows
FUSES
ABS MDL BATT ... Electronic Brake Traction
ABS
SOL ......... LH and RH Front Brake
ABS/TCS
IGN ..... Electronic Brake Control Relay
BCM
PRGRM ..... Body Control Module (BCM)
CIGARDLC
...... Cigarette Lighter and Data
CRUISE
.......... Cruise Control Module, Switch
CTSY LAMP
...... BCM
DRL
............. DRL Control Module
ELC
............. Electronic Level Control (ELC)
Air Compressor and ELC Relay
ELEC PRNDL
..... Instrument Cluster to PRNDL
Indicators Control Module
(EBTCM)
Solenoid Valve
and EBTCM
Link Connector (DLC)
and Release Switch
FRT HVAC
LOW/MED BLWR
. Heater-A/C Control
FRT PWR SCKT
... Front Electric Accessory Plug
Housing
Motor and Switch
FRT
WPR/WSHR
. . Windshield Wiper/Washer
HAZARD
......... Turn Signal Switch
6-58
ProCarManuals.com

FUSES
HVAC/DRL ....... Air Recirculation Motor, DRL
IGN
1 ...........
MALL/RADIO/DIC Control Module, Heater-A/C
Control,
Temperature Door
Actuator (Front) and Rear
Window Defogger Relay
ELC Sensor, BCM, Electronic
Brake Control Indicator Lamp
Driver Module, Instrument
Panel Cluster, Rear Side Door
Actuator Motor, Rear Window
Wiperwasher and
Multifunction Switch (Foglamp
Switch/TCS Enable Switch)
and Stoplamp/Torque Converter
Clutch (TCC) Switch
BCM, Driver Information
Display, Radio and Radio Rear
Speaker Amplifier
PCM
............. IGN MAIN Relay and PCM
PSD
............. Rear Side Door Actuator Motor
PWR LOCK
....... BCM
PWR MIRROR
.... Power Remote Control
Mirror Switch
FUSES
PWR QTR VENT . . Interior Lamps and
Multifunction Switch
(Power
Vent Switch)
RR HVAC ........ Rear Blower Motor,
Rear Heater-A/C Control,
and Temperature Door
Actuator (Rear)
RR
DEFOG ....... Rear Window Defogger Relay
RR PWR SCKT .... Rear Electric Accessory Plug
Housing
Rear Window Wiper/Washer
and Multifunction Switch
(Rear Window Wiper/Washer
Switch)
Control Module
RR WPR/WSHR
... Rear Window Wiper Motor,
SIR
.............. Inflatable Restraint
STOP LAMP ...... Stoplamp Switch to Stoplamps
SUNROOF
........ Sunroof Control Module
SWC ACCY
....... Steering Wheel Radio
SWC BACKLIGHT
. Steering Wheel Radio Control
T/SIG ............ Turn Signal Switch
Control
Switches
Switches (Illumination)
6-59
ProCarManuals.com

Net. ~onvenimzrrce ............................. -2-76
New Vehicle "Break-In" ......................... 2-24
Night Vision ................................... 4-16
Nt~@af ....................................... 2-32
Odometer .................................... 2-9 1
Odometer. Trip
................................. 2-91
Off-RoadRecovery
............................. 4-13
Oil. Engine
.............................. 2.102. 6.10
Oil Pressure Light
............................. 2-102
Overhead Console
.............................. 2-69
Driver Information Center
...................... 2-7 1
Garage Door Opener Compartment
............... 2-69
Sunglasses Compartment
....................... 2-7 1
Overhead Console Switchbank
.................... 2- 12
Overheated Engine Protection
..................... 5- 12
Overheating Engine
............................. 5- 12
Owner Checks and Services
....................... 7-37
Owner Publications. Ordering
..................... 8- 10
Paint Spotting. Chemical ........................ 6-53
Park Automatic Transaxle
.......................... 2-3 1
Shifting Into
................................. 2-36
Shifting Out of
............................... 2-38
AtNight
.................................... 2-25
Brake
...................................... 2-35
Parking Brake Mechanism Check
....................... 7-40
Over Things That
Bum ........................ 2-39
With a Trailer
................................ 4-37
Passing
....................................... 4-13
Periodic Maintenance Inspections
.................. 7-41
Pollen Filter
................................... 6-16
Power Accessory Outlet
............................. 2-84
DoorLocks
................................... 2-5
Option Fuses
................................ 6-56
Rear Quarter Windows
......................... 2-51
Remote Control Mirror
........................ 2-66
Seat
......................................... 1-3
Steering
.................................... 4-11
Sunroof
..................................... 2-85
Windows
................................... 2-50
Power Steering Fluid
............................ 6-24
Howtocheck
............................... 6-25
Whattouse
................................. 6-25
Whentocheck
............................... 6-25
Pregnancy. Use
of Safety Belts .................... 1-42
Problems on the Road
............................ 5-1
Publications. Service and Owner
................... 8-10
Lots
....................................... 2-25
Passenger Position
.............................. 1-43
Radiator
..................................... 5-19
Radiator Pressure Cap
........................... 6-24
Radio Reception
................................ 3-27
9-8
ProCarManuals.com

Servicing Your Air Bag-Equipped Oldsmobile ........ 1-48
Sheet Metal Damage
............................ 6-52
Automatic Transaxle
.......................... 2-3 1
Intopark
.................................... 2-36
Outofpark
.................................. 2-38
Shifting
. Shoulder Belt Height
Adjuster ..................... 1-36
SideAshtrays
.................................. 2-82
Side Convenience Net
........................... 2-78
Signaling Turns
................................ 2-53
Skidding
...................................... 4-15
Sound Equipment. Adding
........................ 3-28
Specifications and Capacities
...................... 6-62
Specifications. Engine
........................... 6-63
Speech Impaired. Customer Assistance
............... 8-4
Speedometer
................................... 2-91
SplitBenchSeat
................................ 1-18
Adjusting
................................... 1-19
Folding or Reclining the Seatback
................ 1 - 18
Removing
................................... 1-20
Replacing
................................... 1-22
Stains. Cleaning
................................ 6-48
Starter Switch Check
............................ 7-39
Starting Your Engine
............................ 2-28
Stem
........................................ 5-13
Steering
...................................... 4-11
Column Park Lock Check
...................... 7-40
Spare
Tire. Compact
............................. 5-32
SRS
......................................... 1-43 In Emergencies
............................... 4-
12
Power
...................................... 4-11
Tips
........................................ 4-11
Wheel Controls
.............................. 3-26
Wheel. Tilt
.................................. 2-52
StorageBin
.................................... 2-74
Storage Compartments
........................... 2-67
Frontseat
................................... 2-76
Sunglasses
.................................. 2-71
Storage. Vehicle
................................ 6-30
Stuck: In Sand. Mud. Ice or Snow
.................. 5-33
Sunvisors
.................................... 2-83
Sunroof
....................................... 2-85
Supplemental Restraint System
.................... 1-43
Switchbanks
................................... 2-12
Symbols. Vehicle
.................................. v
Storing a Flat or Spare Tire ....................... 5-31
Tachometer .................................. 2-92
Taillamp Bulb Replacement
....................... 6-37
TapePlayerCare
............................... 3-28
Temperature Knob. Climate Control System
........... 3-2
Theft
......................................... 2-25
Theft-Deterrent Feature. CD Player
................ 3-24
THEFTLOCK
................................. 3-24
Thermostat
.................................... 6-24
Third Gear
.................................... 2-33
9-11
ProCarManuals.com
