Page 110 of 436
~ NOTICE:
Be
sure there are no overhead obstructions, such
as a garage door, before you open the liftgate.
You could slam the liftgate into something and
break the glass.
To close the liftgate, pull down on the handle, then
firmly shut
the liftgate. Don’t drive with the liftgate
open, even slightly. See“Engine Exhaust” in the Index.
A light on your instrument panel will warn you if the
liftgate is not completely closed (see “Door Ajar
Warning Light” in the Index).
It can be dangerous to drive with the liftgate
open because carbon monoxide (CO) gas can
come into your vehicle. You can’t see or smell
CO. It can cause unconsciousness and even death.
If you must drive with the liftgate open or if
electrical wiring or other cable connections
must pass through the seal between the body
and the liftgate:
Make sure all windows are shut.
Turn the fan on your heating or cooling
system to its highest speed with the setting
on bi-level (outside air button
is pressed).
That
will force outside air into your vehicle.
See “Comfort Controls”
in the Index.
0 If you have air outlets on or under the
instrument panel, open them all the way.
See “Engine Exhaust” in the Index.
2-22
ProCarManuals.com
Page 141 of 436
Turn Signal and Lane Change Indicator
The turn signal has two upward (for right) and two
downward (for left) positions. These positions allow you
to signal a turn or
a lane change.
To signal a turn, move the lever all the way up or down.
When the turn is finished, the lever will return automatically.
An arrow on the instrument panel will flash in the
direction of the turn or lane change.
To signal a lane change, just raise or lower the lever
until the arrow starts to flash. Hold it there until you
complete your lane change. The lever will return by
itself when
you release it.
As you signal a turn or a lane change, if the arrow
flashes faster than normal, a signal bulb may be burned
out and other drivers won’t see your turn signal.
If a bulb is burned out, replace it to help avoid an
accident. If the arrows don’t go on at all when you
signal
a turn, check for burned-out bulbs and check the
fuse (see “Fuses and Circuit Breakers”
in the Index).
If you have a trailer towing option with added wiring for
the trailer lamps, the signal indicator will flash at a
normal rate even
if a turn signal bulb is burned out.
Check the front and rear turn signal lamps regularly to
make sure
they are working.
Turn Signal Reminder Chime
If either turn signal is left on for more than 3/4 of a mile,
a chime will sound to let the driver know to turn it off.
If you need to leave the signal on for more than 3/4 of a
mile, turn off the signal and then turn it back on.
Headlamp HigWLow Beam Changer
To change the headlamps from high to low beam, or low
to high, simply pull
the turn signal lever all the way
toward you. Then release it.
When the high beams
are on, this light on the
instrument cluster will
also be on.
2-53
ProCarManuals.com
Page 182 of 436
Air Bag Readiness Light
There is an air bag readiness light on the instrument
panel, which shows a deployed air bag. The system
checks the air bag’s electrical system for malfunctions.
The light tells you if there is an electrical problem. The
system check includes
the air bag sensors, the air bag
module, the wiring and the diagnostic module. For
more information on the air bag system, see “Air Bag”
in the Index.
This light will come on
when you start your engine,
and it will tlash for a few
seconds. Then the light
should
go out. This means
the system
is ready.
If
the air bag readiness light stays on after you start the
engine or comes
on when you are driving, your air bag
system may not work properly. Have your vehicle
serviced right away. The air
bag readiness light should flash for a few
seconds when you turn the key to
RUN. If the light
doesn’t come on then, have
it fixed so it will be ready to
warn you if there is a problem.
Charging System Indicator Light
1+1
The charging system light
will come on when you turn
on the ignition as a check to
show you it is working. It
will remain on as long as
the engine is
not running.
It should go out once the engine is running. If it stays
on, or comes on while you are driving, you may have a
problem with the charging system. It could indicate that
you have problems with a generator drive belt, or
another electrical problem. Have
it checked right away.
Driving while this light is on could drain your battery.
If you must drive a short distance with the light on, be
certain to turn
off all your accessories, such as the radio
and air conditioner.
ProCarManuals.com
Page 263 of 436
Turn Signals When Towing a Trailer
When you tow a trailer, your vehicle has to have extra
wiring and a different turn signal flasher.
The arrows on your instrument panel will flash
whenever you signal a turn or lane change. Properly
hooked up, the trailer lamps will also flash, telling other
drivers you’re about to turn, change lanes or stop.
When towing a trailer, the arrows on your instrument
panel will flash for turns even if
the bulbs on the trailer
are burned out. Thus, you may think drivers behind you
are seeing your signal when
they are not. It’s important
to check occasionally to be sure the trailer bulbs are
still working.
Driving On Grades
Reduce speed and shift to a lower gear befure you start
down a long or steep downgrade.
If you don’t shift
down, you might have to use your brakes
so much that
they would get hot and
no longer work well.
On a long uphill grade, shift down and reduce your
speed to around
45 mph (70 km/h) to reduce the
possibility of engine and transaxle overheating.
If you are towing a trailer that weighs more than
1,000 lbs.
(454 kg), you may prefer to drive in
THIRD
(3) instead of AUTOMATIC OVERDRIVE (D)
(or, as
you need to, a lower gear). This will minimize
heat build-up and extend the life of your transaxle.
Parking on Hills
You really should not park your vehicle, with a trailer
attached, on a
hill. If something goes wrong, your rig
could start to move. People can be injured, and both
your vehicle and the trailer can be damaged.
But
if you ever have to park your rig on a hill, here’s
how to do it:
1.
2.
3.
4.
5.
Apply your regular brakes, but don’t shift into
PARK
(P) yet.
Have someone place chocks under
the trailer wheels.
When
the wheel chocks are in place, release the
regular brakes
until the chocks absorb the load.
Reapply the regular brakes. Then apply your parking
brake, and then shift
to PARK (P).
Release the regular brakes.
4-37
ProCarManuals.com
Page 354 of 436

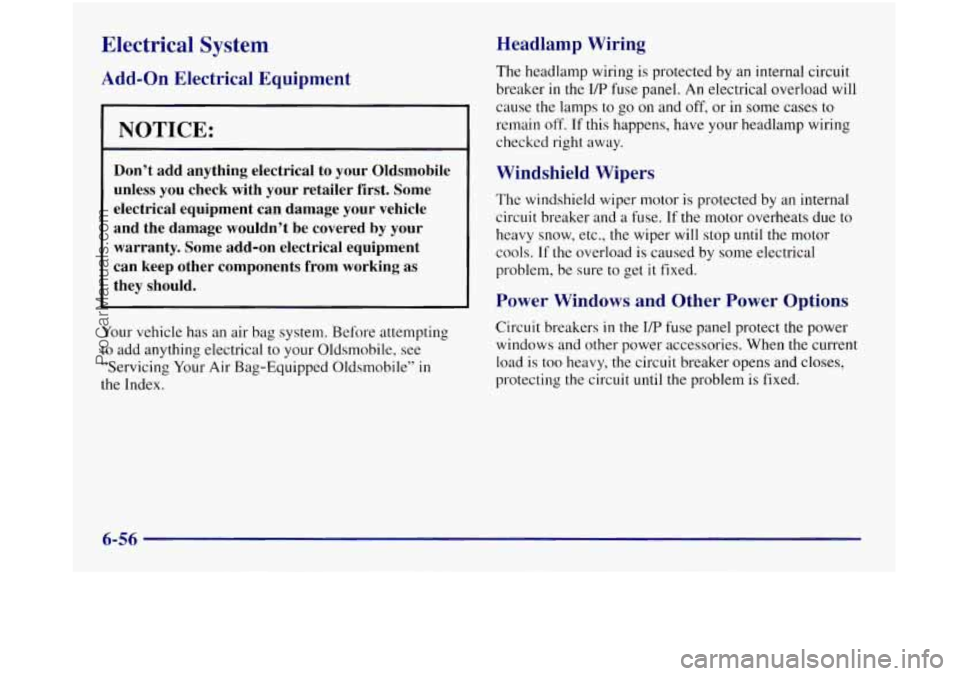

Electrical System
Add-on Electrical Equipment
NOTICE:
Don’t add anything electrical to your Oldsmobile
unless you check with your retailer first. Some
electrical equipment can damage your vehicle
and the damage wouldn’t be covered by your
warranty. Some add-on electrical equipment
can keep other components
from working as
they should.
Your vehicle has an air bag system. Before attempting
to add anything electrical to your Oldsmobile, see
“Servicing Your Air Bag-Equipped Oldsmobile”
in
the Index.
Headlamp Wiring
The headlamp wiring is protected by an internal circuit
breaker
in the I/P fuse panel. An electrical overload will
cause the lamps
to go on and off, or in some cases to
remain off.
If this happens, have your headlamp wiring
checked right away.
Windshield Wipers
The windshield wiper motor is protected by an internal
circuit breaker and a fuse. If the motor overheats due to
heavy snow, etc., the wiper will stop
until the motor
cools. If the overload is caused by some electrical
problem, be sure
to get it fixed.
Power Windows and Other Power Options
Circuit breakers in the I/P fuse panel protect the power
windows and other power accessories. When
the current
load is too heavy,
the circuit breaker opens and closes,
protecting the circuit until
the problem is fixed.
6-56
ProCarManuals.com
Page 355 of 436

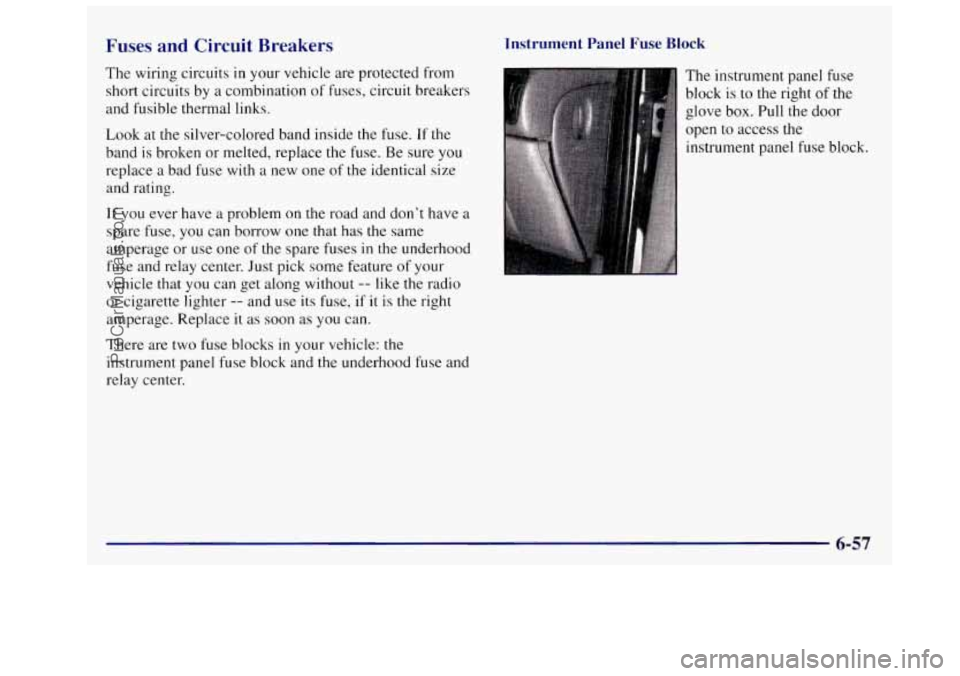

Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses, circuit breakers
and fusible thermal links.
Look at the silver-colored band inside the fuse. If the
band
is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical size
and rating.
If you ever have a problem on the road and don’t have a
spare fuse,
you can borrow one that has the same
amperage
or use one of the spare fuses in the underhood
fuse and relay center. Just pick some feature of your
vehicle that you can get along without
-- like the radio
or cigarette lighter -- and use its fuse, if it is the right
amperage. Replace it as soon as you can.
There are two fuse blocks in your vehicle: the
instrument panel fuse block and the underhood fuse and
relay center.
Instrument Panel Fuse Block
The instrument panel fuse
block
is to the right of the
glove box. Pull the door
open to access the
instrument panel fuse block.
ProCarManuals.com
Page 425 of 436
Finish Damage ................................. 6-52
FirstGear
..................................... 2-34
Flashers. Hazard Warning
......................... 5-2
Flat Tire. Changing
............................. 5-22
Fluid Capacities
................................ 6-62
Fluids and Lubricants
............................ 7-43
FogLamps
.................................... 2-60
Folding Driver's Seatback
......................... 1-3
Foreign Countries. Fuel ........................... 6-4
FrontDoor
..................................... 2-4
Front Parking/Turn Signal Lamp Bulb Replacement
.... 6-34
Front Seat Storage Bin
........................... 2-75
Front Seat Storage Net
........................... 2-76
Front Sidemarker Lamp Bulb Replacement
........... 6-36
FrontTowing
.................................. 5-10
Fuel .......................................... 6-3
Filling Your Tank
.............................. 6-5
Gage ...................................... 2-105
In Foreign Countries ........................... 6-4
Fuses and Circuit Breakers ....................... 6-57
Gages Engine Coolant Temperature
.................... 2-98
Fuel
...................................... 2-105
Speedometer ................................. 2-9 1
Tachometer .................................. 2-92
Garage Door Opener Compartment
................. 2-69
Gear Positions. Automatic Transaxle
................ 2-3 I
GAWR ....................................... 4-29 GloveBox
.................................... 2-68
Gross Axle Weight Rating
........................ 4-29
Gross Vehicle Weight Rating
...................... 4-29
GVWR
....................................... 4-29
Halogen Bulbs
................................ 6-31
Hazard Warning Flashers
.......................... 5-2
Head Restraints ................................. 1-6
Headlamps
.................................... 2-59
Bulb Replacement ............................ 6-31
High/Low Beam Changer
...................... 2-53
OnReminder
................................ 2-59
Wiring
..................................... 6-56
Hearing Impaired, Customer Assistance
.............. 8-4
Heating
........................................ 3-4
High-Beam Headlamps
.......................... 2-53
Highway Hypnosis
.............................. 4-22
Hill and Mountain Roads ......................... 4-23
Hitches, Trailer
................................. 4-34
Hood
Checking Things Under ......................... 6-7
Prop
........................................ 6-8
Release ...................................... 6-8
Horn ......................................... 2-51
Hydroplaning
.................................. 4-19
Ignition Positions
.............................. 2-26
Illuminated Entry
............................... 2-62
9-5
__ . .- ~
ProCarManuals.com
Page 433 of 436
Turn SignalMultifunction Lever ................... 2-52
Turn Signals When Towing a Trailer
................ 4-37
Underbody Flushing Service
..................... 7-40
Underbody Maintenance
......................... 6-53
Underhood Fuse and Relay Center
................. 6-60
Vehicle Control
...................................... 4-6
Dimensions
................................. 6-63
Identification Number
......................... 6-55
Loading
.................................... 4-29
Storage
..................................... 6-30
Ventilation System
............................... 3-4
Ventilation Tips
............................... 3-5
Visor Vanity Mirrors
............................ 2-83
Visors. Sun
.................................... 2-83
Damage
Warnings
.............................. iv
warning Devices
............................... 5-3
Warning Lights. Gages and Indicators
............... 2-92 Washer Fluid. Windshield
........................ 6-26
Washing Your Vehicle
........................... 6-51
Weatherstrips
.................................. 6-50
Wheel
Alignment
.................................. 6-44
Nut Torque
............................. 5.30. 6.62
Replacement
................................. 6-44
Used Replacement
............................ 6-45
Wrench
..................................... 5-25
Windows
..................................... 2-50
Power
...................................... 2-50
Power Rear Quarter
........................... 2-51
SideLatches
................................. 2-51
Windshield Washer
............................. 2-54
Fluid
.................................. 2.54. 6.26
Fluid Level Check
............................ 7-37
Rear
....................................... 2-55
Rear
....................................... 2-55
Blade Replacement ........................... 6-38
Fuses
...................................... 6-56
Winter Driving
................................. 4-25
Windshield Wiper
.............................. 2-54
Wiring. Headlamp
.............................. 6-56
Wrench. Wheel
................................. 5-25
9-13
ProCarManuals.com
