battery replacement OLDSMOBILE SILHOUETTE 1998 Owners Manual

Remote Lock Control (Option)
If your vehicle has this option, you can lock and unlock
your doors and the liftgate from about
3 feet (1 m) up to
30 feet (9 m) away using the remote lock control
transmitter supplied with your vehicle.
Your remote lock control system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada. This
device complies with Part
15 of the FCC Rules.
Operation is subject to
the following two conditions:
(1) this device may not cause harmful interference,
and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device complies with RSS-2
10 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation
of
the device.
Changes or modifications to this system by other than an
authorized service facility could void authorization to use this equipment.
This system has a range
of about 3 feet (1 m) up to
30 feet (9 m). At times you may notice a decrease in
range. This is normal for any remote keyless entry
system. If the transmitter does not work or if you have
to stand closer to your vehicle for the transmitter to
work, try this:
Check to determine if battery replacement or
synchronization is necessary. See the instructions
that follow.
2-8
ProCarManuals.com

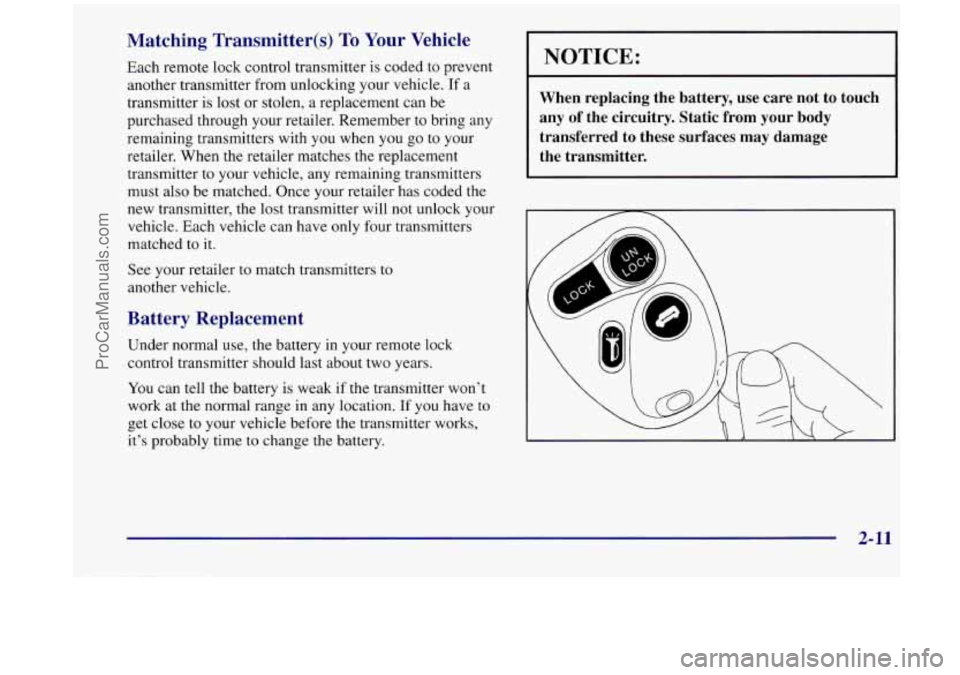

Matching Transmitter(s) To Your Vehicle
Each remote lock control transmitter is coded to prevent
another transmitter from unlocking your vehicle.
If a
transmitter is lost or stolen, a replacement can be
purchased through your retailer. Remember to bring any
remaining transmitters with you when you go
to your
retailer. When the retailer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your retailer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have only four transmitters
matched to it.
See your retailer to match transmitters
to
another vehicle.
Battery Replacement
Under normal use, the battery in your remote lock
control transmitter should last about two years.
You can tell the battery is weak if the transmitter won’t
work at the normal range in any location. If
you have to
get close to your vehicle before the transmitter works,
it’s probably time to change the battery.
I NOTICE:
When replacing the battery, use care not to touch
any
of the circuitry. Static from your body
transferred to these surfaces may damage the transmitter.
2-11
ProCarManuals.com

Replacing the Battery in the
Remote Transmitter
1. Insert a flat object like a dime into the slot on
the side of the transmitter and twist to separate
the halves.
2. Gently pry the battery out of the transmitter. Do not
use the metal flanges to “pop out” the battery.
3. Replace the battery.
4. Reassemble the transmitter. Make sure the halves are
snapped together tightly
so water will not get in.
5. Check the transmitter operation. If needed,
follow the instructions on resynchronizing your
remote transmitter.
Resynchronizing Your Remote Transmitter
Your remote lock control system uses a continually
changing code for increased security. Normally, the
receiver in your vehicle will keep track of this
changing code.
Loss of synchronization will occur if the transmitter
is activated more than
256 times while out of range
of the vehicle.
Loss of synchronization will occur after the battery
replacement if the transmitter is immediately
activated more than
16 times while out of range of
the vehicle.
If your remote lock control transmitter has stopped
working, you may need to resynchronize the transmitter
to
the vehicle receiver. To do this, press the LOCK and
UNLOCK buttons together and hold for at least seven seconds
or until the horn sounds if equipped with Content
Theft-Deterrent. Check the transmitter operation.
2-12
ProCarManuals.com

Section 6 Service and Appearance Care
Here you will find information about the care of your vehicle. This section begins with service and fuel information,
and then it shows how to check important fluid and lubricant levels. There
is also technical information about your
vehicle, and a part devoted to its appearance care.
6-2 6-3
6-7
6-8
6-1
1
6-15
6- 16
6-18
6-2 1
6-24
6-26
6-27
6-30
6-3 1
6-38 Service
Fuel
Filling a Portable Fuel Container
Checking Things Under the Hood
Engine Oil
Air Cleaner
Passenger Compartment Air Filter
Replacement
Automatic Transaxle Fluid
Engine Coolant Radiator Pressure Cap
Windshield Washer Fluid
Brakes
Battery
Bulb Replacement
Windshield Wiper Blade Replacement 6-39
6-47
6-47
6-50
6-53
6-53
6-54
6-55
6-56
6-64
6-64
6-64
6-65
6-65
6-65 Tires
Appearance Care
Cleaning the Inside
of Your Vehicle
Cleaning the Outside of Your Vehicle
Underbody Maintenance
Chemical Paint Spotting
Appearance Care Materials Chart
Vehicle Identification Number (VIN)
Electrical System
Replacement Bulbs Capacities and Specifications
Engine Specifications
Vehicle Dimensions
Normal Maintenance Replacement Parts
Air Conditioning Refrigerants
6-1
ProCarManuals.com

Brake Adjustment
Every time you apply the brakes, with or without the
vehicle moving, your brakes adjust for wear.
Replacing Brake System Parts
The braking system on a modern vehicle is complex.
Its many parts have to be of top quality and work well
together if the vehicle is to have really good braking.
Your vehicle was designed and tested with top-quality
GM brake parts. When you replace parts
of your braking
system
-- for example, when your brake linings wear
down and you have to have new ones put
in -- be sure
you get new approved GM replacement parts. If you
don’t, your brakes may no longer work properly. For
example,
if someone puts in brake linings that are wrong
for your vehicle, the balance between your front and
rear brakes can change
-- for the worse. The braking
performance you’ve come to expect can change in many
other ways
if someone puts in the wrong replacement
brake parts.
Battery
Every new Oldsmobile has an ACDelco Freedom@
battery. You never have to add water to one of these.
When it’s time for a new battery, we recommend
an
ACDelco Freedom battery. Get one that has the
replacement number shown on the
original battery’s label.
Vehicle Storage
If you’re not going to drive your vehicle for 25 days or more,
remove the black, negative
(-) cable from the battery. This
will help keep your battery from running down.
Batteries have acid that can burn you and gas
that can explode. You can be badly hurt if you
aren’t careful. See “Jump Starting’’ in the Index
for tips on working around a battery without
getting hurt.
Contact your retailer to learn how to prepare your
vehicle for longer storage periods.
Also, for your audio system, see “Theft-Deterrent
Fedwe’’ in the Index.
6-30
ProCarManuals.com

Section 9 Index
Accessory Idator System ....................... 2-78
Accessory Power Outlets
......................... 2-81
Adding Equipment to the Outside Of Your Vehicle
...... 6-3
Adjusting the Bucket Seats
....................... 1-16
Adjusting the Split Bench Seat
..................... 1-9
AirBag
....................................... 1-38
How Does it Restrain
.......................... 1-44
Howitworks
................................ 1-41
Location
.................................... 1-41
Readiness Light
......................... 1.40. 2.87
Servicing
................................... 1-46
What Makes it Inflate
.......................... 1-43
What Will You See After
it Inflates ............... 1-44
When Should it Inflate
......................... 1-42
Aircleaner
.................................... 6-15
Air Conditioning Refrigerants ..................... 6-65
Air Filter Replacement, Passenger Compartment ...... 6-16
Airhflator
.................................... 2-78
Alignment and Balance, Tire
...................... 6-45
Aluminum Wheels, Cleaning
...................... 6-52
Antenna, Integrated Windshield
.................... 3-27
Antifreeze
..................................... 6-21
Brakes
...................................... 4-7
Brake System Warning Light
................ 2-89, 4-7
Appearancecare
............................... 6-47
Appearance Care Materials
....................... 6-54
AirConditioning
................................ 3-3
hti-LOck Ashtray
....... ........... a.......i.. .. .i-...<.:..i.. 2-77
Audio Systems
.................................. 3-9
Automatic
Door Locks ............................ 2-6
Automatic Overdrive
............................ 2-32
Automatic Transaxle Check
....................... 7-30
Automatic Transaxle Fluid
........................ 6-18
HowtoAdd
................................. 6-20
How to Check
............................... 6-18
When to Check and Change
..................... 6-18
Automatic Transaxle Operation
.................... 2-30
Shifting
..................................... 2-30
Automatic Transaxle
Park Mechanism Check ......... 7-32
Battery
...................................... 6-30
Jump Starting
................................. 5-3
BatterySaver .................................. 2-64
BBB Auto Line
................................. 8-7
Before Leaving on a Long
Trip .................... 4-23
Better Business Bureau Mediation
................... 8-7
Blizzard
...................................... 4-28
Brake Warnings
................................ 5.3. 5.5
Adjustment
.................................. 6-30
Fluid
....................................... 6-27
Master Cylinder
.............................. 6-27
Parking
..................................... 2-34
ProCarManuals.com

Passenger Compartment Air Filter Replacement ....... 6-16
Passenger Position
.................... 1.38.1.53. 1.54
Periodic Maintenance Inspections
.................. 7-33
Accessory Outlet
............................. 2-81
DoorLocks ................................... 2-5
Option Fuses ................................ 6-56
Rear Quarter Windows
......................... 2-51
Remote Control Mirror
........................ 2-64
Sliding Door Light
............................ 2-97
Power Steering Fluid
............................ 6-25
How to Check ............................... 6-25
Pregnancy, Use of Safety Belts
.................... 1-37
Problems on the Road
............................ 5-1
Publications, Service and Owner
................... 8-10
Passing
....................................... 4-13
Power
Seat
......................................... l-3
Steering .................................... 4-11
Windows
................................... 2-50
Whattouse
................................. 6-25
Whentocheck
............................... 6-25
..................................... Radiator 5-21
Radiator Pressure Cap ........................... 6-24
Radio Reception
................................ 3-25
Radios, Steering Wheel Controls
................... 3-24
Rain, Driving In
................................ 4- 18
Cargo Lamp
................................. 2-63
Radios
....................................... 3-10
ReadingLamps
................................ 2-63
Rear AirVents
.................................... 3-8
............................... Climate Control 3-6
Comfort Controls .............................. 3-7
Fancontrol .................................. 3-6
Outside Seat Position .......................... 1-46
Safety Belt Comfort Guides
..................... 1-50
SeatAudio
.................................. 3-18
Seatpassengers
.............................. 1-47
Seats
.........,.............................. l-6
Storage ..................................... 2-71
Towing
..................................... 5-12
Window Defogger ............................. 3-5
Windshield Washer
........................... 2-55
Rearview Mirror, Inside Daymight
................. 2-64
Reclining Front Seatbacks
......................... 1-4
Recovery
Tank, Coolant .......................... 5-18
Refrigerants, Air Conditioning .................... 6-65
Compact Disc Player
.......................... 3-20
Operation
of the Power Sliding Door ............. 2-10
Remote Lock Control
............................. 2-8
Operaton
..................................... 2-9
Battery Replacement .......................... 2-11
Resynchronizing
............................. 2-12
Captain’s Chairs
.............................. 1-22
Remote
Removing Bucketseats ................................. l-16
SplitBenchSeat 1-10 .............................. Replacement
Bulbs
...................................... 6-a
Parts
....................................... 6-65
Wheel
...................................... 6-45
ProCarManuals.com
