Oldsmobile Silhouette 1999 Owner's Manuals

yellowblue
2-65
Delayed Illumination
The delayed illumination feature will continue to
illuminate the interior for 25 seconds after all doors have
been closed so that you can find your ignition and
buckle your safety belt at night. Delayed illumination
will not occur while the ignition is in RUN or
ACCESSORY. After 25 seconds have passed, the
interior lamps will slowly fade out. The lights will fade
out before the 25 seconds have passed if you:

Turn the ignition to RUN or ACCESSORY,

lock all doors using the remote lock control
transmitter (if equipped) or

lock all the doors using the power door lock switch
or the key.
To turn the Delayed Illumination feature off or on, see
ªMultifunction Alarm Locks and Lighting Choicesº in
the Index.
Exit Lighting
With exit lighting, the interior lamps will come on for
about 25 seconds whenever you remove the key from
the ignition. If you turn the ignition key to RUN or
ACCESSORY, the lamps will fade out. The lamps will
also fade out if you lock the doors with the power door
lock switch or the remote lock control transmitter
(if equipped).
When any door is opened, exit lighting is cancelled. The
interior lamps will stay on while any door or liftgate is
open, and slowly fade out when all doors and the liftgate
are closed.
The interior lamps may stay on for up to 25 seconds
after all doors have been closed if they have not been
locked. See ªDelayed Illuminationº earlier in
this section.
To turn the Exit Lighting feature off or on, see
ªMultifunction Alarm Locks and Lighting Choicesº in
the Index.

yellowblue

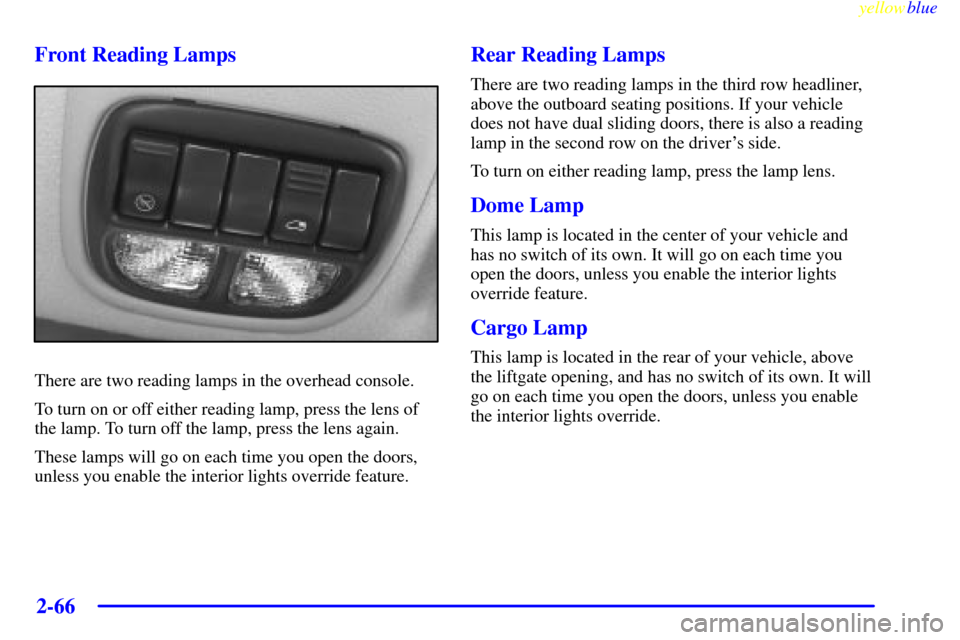

2-66 Front Reading Lamps
There are two reading lamps in the overhead console.
To turn on or off either reading lamp, press the lens of
the lamp. To turn off the lamp, press the lens again.
These lamps will go on each time you open the doors,
unless you enable the interior lights override feature.
Rear Reading Lamps
There are two reading lamps in the third row headliner,
above the outboard seating positions. If your vehicle
does not have dual sliding doors, there is also a reading
lamp in the second row on the driver's side.
To turn on either reading lamp, press the lamp lens.
Dome Lamp
This lamp is located in the center of your vehicle and
has no switch of its own. It will go on each time you
open the doors, unless you enable the interior lights
override feature.
Cargo Lamp
This lamp is located in the rear of your vehicle, above
the liftgate opening, and has no switch of its own. It will
go on each time you open the doors, unless you enable
the interior lights override.

yellowblue
2-67
Battery Saver
Your vehicle has a feature to help prevent you from
draining the battery, in case you accidentally leave the
interior lamps on. If you leave any interior lamps on
while the ignition is in LOCK or OFF, they will
automatically turn off after 10 minutes. The lamps won't
come back on again until you:

Turn the ignition to RUN or ACCESSORY,

turn the interior lamps dial all the way clockwise,
then slightly back counterclockwise; or

open (or close and reopen) a door that is closed.
NOTE: If your vehicle has less than 15 miles (25 km) on
the odometer, the battery saver will turn off the lamps
after only three minutes.
Mirrors
Inside Day/Night Rearview Mirror
To reduce glare from lights behind you, pull the lever
toward you (to the night position). To return the mirror
to the day position, push the lever away from you.
Power Remote Control Mirrors
The control on the driver's
door controls both outside
rearview mirrors.
Turn the control counterclockwise to select the driver's
side rearview mirror, or clockwise to select the
passenger's side rearview mirror. Then use the control to
adjust each mirror so that you can just see the side of
your vehicle when you are sitting in a comfortable
driving position.
If you are not adjusting either mirror, leave the control
in the center off position. This prevents moving the
mirrors accidentally once you have them adjusted.

yellowblue
2-68
Both outside mirrors can be folded forward or rearward.
In the rearward position, they will fold almost flush with
the vehicle. This feature is particularly useful in
automatic car washes.
Your mirrors have a blue tint to reduce glare while
driving at night.
Convex Outside Mirror
Your passenger's side mirror is convex. A convex
mirror's surface is curved so you can see more from the
driver's seat.
CAUTION:
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder before
changing lanes.
Heated Outside Mirrors
The left and right outside mirrors are heated when you
activate the rear window defogger. See ªRear Window
Defoggerº in the Index.
Storage Compartments
Your vehicle's large carrying capacity can store many
items. If you have the extended wheelbase version, you
can carry things as large as a 4
x 8
piece of plywood.
You can also use the floor pins that are used to attach the
seats, to secure larger loads. This section also describes
storage areas for specific items like sunglasses and cups.
Glove Box
Your vehicle has a glove box below the instrument
panel. To open the glove box, lift the latch release. Use
the key to lock or unlock the glove box.
The glove box door has a detent to prevent the door
from lowering too far. Open the glove box until the door
is partway open, then pull the door down if you need it
fully open. To close the glove box, the door must be
pushed up past the detent.
In the door of the glove box, you will find a tissue pack
holder and clip for a pen or pencil.

yellowblue
2-69

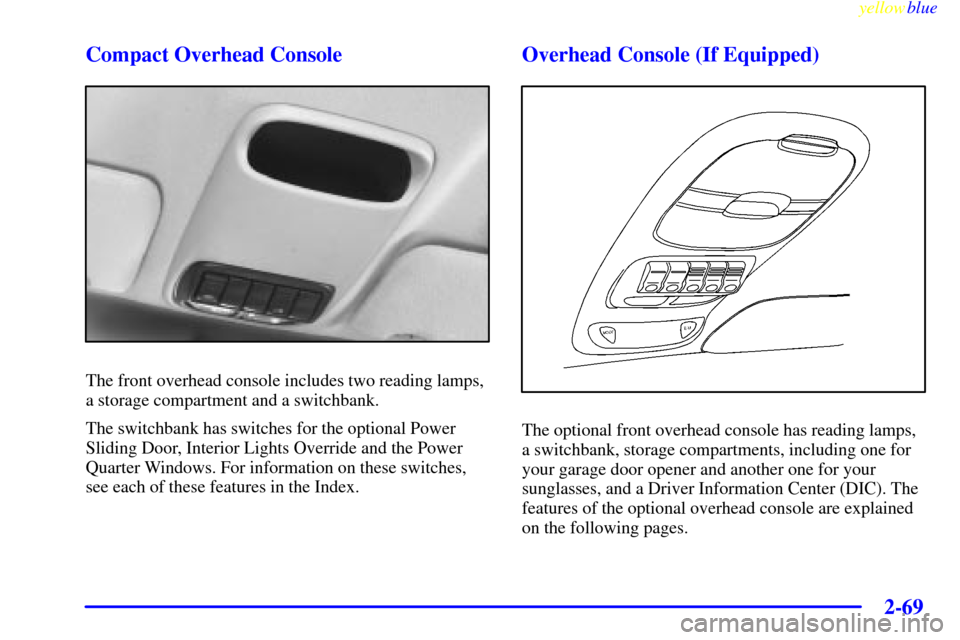

Compact Overhead Console
The front overhead console includes two reading lamps,
a storage compartment and a switchbank.
The switchbank has switches for the optional Power
Sliding Door, Interior Lights Override and the Power
Quarter Windows. For information on these switches,
see each of these features in the Index.
Overhead Console (If Equipped)
The optional front overhead console has reading lamps,
a switchbank, storage compartments, including one for
your garage door opener and another one for your
sunglasses, and a Driver Information Center (DIC). The
features of the optional overhead console are explained
on the following pages.

yellowblue
2-70
Garage Door Opener Compartment
You can store your garage door opener in the rear
compartment of your overhead console, and operate it
from this position. To install your garage door opener,
follow these instructions:
1. Open the compartment by pressing the latch forward.
Remove the piece of self
-sticking Velcro
.
2. Peel the protective backing from the Velcro and
press it firmly to the back of your garage
door opener.
3. Line up the button of the garage door opener with
one of the four buttons on the compartment door.
Make sure the garage door opener button is facing
down and press the opener firmly into place.
4. Once the opener is installed, use the black pegs inside
the compartment door to make sure the lined area on
the compartment door will contact the control button
on your garage door opener when pressed.

yellowblue
2-71
5. Add one peg at a time until your garage door opener
operates with the compartment door closed when
you press the button.Sunglasses Storage Compartment
To open the sunglasses storage compartment in the
overhead console, press the release button. Then pull the
compartment down to the full open position.

yellowblue
2-72 Storage Bin
At the base of the center instrument panel console, there
is a storage bin. To open the bin, lift the latch release
and the door will fold down.
Inside the bin, you will find a tray that slides out. Slide
the tray all the way toward the rear of the vehicle until
the tray locks onto the plastic tabs at the end of the guide
rails. The tray holds CDs or cassettes in the center area.
You can also store cassettes in the left side area. The
right side area can hold either the coinholder, which lifts
out, or another cassette. The tray can be removed for
cleaning or when you want to replace the selection of
CDs or cassettes. Slide the tray back into the storage bin
before closing the bin door. The tray can also be placed
in the glove box for locked storage if desired.Removing and Replacing the Tray
To remove the tray, slide it almost all the way out. Don't
let the tray lock over the plastic tabs at the end of the
guide rails (A). Lift the tray out of the guide rails. The
rubber mat under the tray also lifts out for cleaning.
When the rubber mat is replaced, be sure the tabs at the
back of the mat are seated in the slots at the back of the
storage bin.

yellowblue
2-73
The dividers in the tray can be removed by squeezing
the plastic tabs on the bottom of the dividers, while
pulling up. Replace the dividers by sliding them down
until the tabs click into place.
To replace the tray, line up the guides on the bottom of
the tray with the guide rails in the storage bin door. Slide
the tray back in.
Front Seat Storage Bin
The storage bin is located under the manual front
passenger's seat. To open the bin, lift the handle and
slide the drawer out.
Cupholders
There are cupholders on the inboard side of the front
passenger's seat and the right side of the second row
bench seat.
To use the cupholders, simply pull down the tray. Keep
the trays up when not in use.
Your vehicle also has cupholders on either side of the
vehicle, next to the third row seats. The seatbacks have
cupholders that can be used when the seatbacks are
folded down.
Rear Storage Compartments
Your vehicle has a storage compartment on either side of
the vehicle, next to the third row seat(s).

yellowblue
2-74 Convenience Net (Option)
The optional convenience net is designed to help keep small
loads, like grocery bags, from falling over during sharp
turns or quick stops and starts. Install the convenience net at
the rear of your vehicle, just inside the liftgate.
Attach the upper loops to the posts on either side of the
liftgate opening (the label on the net should be in the
upper left
-hand corner). Attach the lower hooks to the
metal rings on the floor.
The side of the convenience net closest to the front of
the vehicle is higher than the side closest to the liftgate.
Once you've loaded items into the net, stretch the higher
side of the net up and over the top of the load to hold it
firmly in place.
The convenience net has a maximum capacity of
100 lbs. (45 kg). It is not designed to hold larger, heavier
loads. Store such loads on the floor of your vehicle, as
far forward as you can.
When not in use, it is recommend that you take down
the convenience net to extend its life and retain its
elasticity, and to keep the rear exit clear. Store the net in
the pouch behind either front seat.
