Page 288 of 432
yellowblue
5-20
If a Tire Goes Flat
It's unusual for a tire to ªblow outº while you're driving,
especially if you maintain your tires properly. If air goes
out of a tire, it's much more likely to leak out slowly.
But if you should ever have a ªblowout,º here are a few
tips about what to expect and what to do:
If a front tire fails, the flat tire will create a drag that
pulls the vehicle toward that side. Take your foot off the
accelerator pedal and grip the steering wheel firmly.
Steer to maintain lane position, and then gently brake to
a stop well out of the traffic lane.
A rear blowout, particularly on a curve, acts much like a
skid and may require the same correction you'd use in a
skid. In any rear blowout, remove your foot from the
accelerator pedal. Get the vehicle under control by
steering the way you want the vehicle to go. It may be
very bumpy and noisy, but you can still steer. Gently
brake to a stop
-- well off the road if possible.
If a tire goes flat, the next part shows how to use your
jacking equipment to change a flat tire safely.
Changing a Flat Tire
If a tire goes flat, avoid further tire and wheel damage
by driving slowly to a level place. Turn on your hazard
warning flashers.
CAUTION:
Changing a tire can cause an injury. The vehicle
can slip off the jack and roll over you or other
people. You and they could be badly injured.
Find a level place to change your tire. To help
prevent the vehicle from moving:
1. Set the parking brake firmly.
2. Put the shift lever in PARK (P).
3. Turn off the engine.
To be even more certain the vehicle won't move,
you can put blocks at the front and rear of the
tire farthest away from the one being changed.
That would be the tire on the other side of the
vehicle, at the opposite end.
Page 290 of 432
yellowblue
5-22
A. Jack
B. Strap
C. BracketD. Wing Nut
E. Jacking Instructions
F. Bag and Tools
Remove the jack and jacking tools by loosening the
wing nut and bracket.
Separate the plastic pouch from the jack and remove the
jacking tools (folding wrench and extension) from
the pouch.A. Hoist Shaft
B. Hoist Assembly
C. RetainerD. Spare Tire
E. Extension (Chisel End)
F. Wrench
The compact spare tire is located under the vehicle,
ahead of the rear bumper. (See ªCompact Spare Tireº
later in this section for more information about the
compact spare.) Attach the wrench to the extension and
insert the chisel end on an angle through the hole in the
rear bumper and into the hoist shaft.
Then, turn the folding wrench counterclockwise to lower the
spare tire to the ground. Continue to turn the wrench so the
spare tire can be pulled out from under the vehicle.
Page 298 of 432
yellowblue

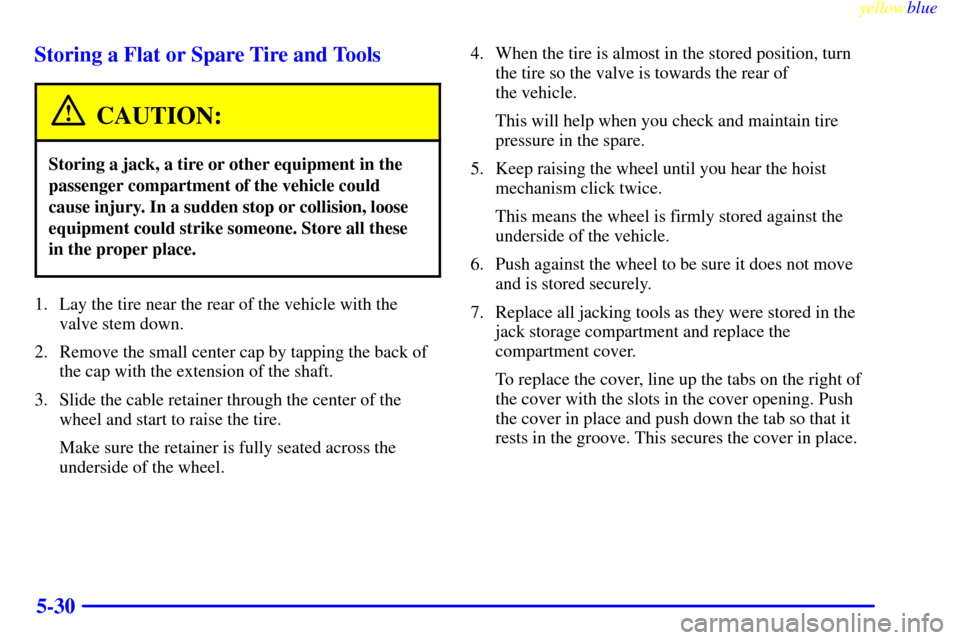

5-30 Storing a Flat or Spare Tire and Tools
CAUTION:
Storing a jack, a tire or other equipment in the
passenger compartment of the vehicle could
cause injury. In a sudden stop or collision, loose
equipment could strike someone. Store all these
in the proper place.
1. Lay the tire near the rear of the vehicle with the
valve stem down.
2. Remove the small center cap by tapping the back of
the cap with the extension of the shaft.
3. Slide the cable retainer through the center of the
wheel and start to raise the tire.
Make sure the retainer is fully seated across the
underside of the wheel.4. When the tire is almost in the stored position, turn
the tire so the valve is towards the rear of
the vehicle.
This will help when you check and maintain tire
pressure in the spare.
5. Keep raising the wheel until you hear the hoist
mechanism click twice.
This means the wheel is firmly stored against the
underside of the vehicle.
6. Push against the wheel to be sure it does not move
and is stored securely.
7. Replace all jacking tools as they were stored in the
jack storage compartment and replace the
compartment cover.
To replace the cover, line up the tabs on the right of
the cover with the slots in the cover opening. Push
the cover in place and push down the tab so that it
rests in the groove. This secures the cover in place.
