Oldsmobile Silhouette 2000 Owner's Manuals

3-24
AUTO VOL: Your system has a feature called
Speed
-Compensated Volume (SCV). With SCV, your
audio system adjusts automatically to make up for road
and wind noise as you drive. Set the volume at the
desired level. Press AUTO VOL to adjust the SCV.
AVOL will appear on the display. Each time you press
AUTO VOL, another volume setting (LOW, MEDIUM
or HIGH) will appear on the display. NONE will appear
on the display if the radio cannot find out the vehicle
speed. Then, as you drive, SCV automatically increases
the volume, as necessary, to overcome noise at any
particular speed. The volume level should always sound
the same to you as you drive. If you don't want to use
SCV, select OFF. Each volume setting allows for more
volume compensation at faster vehicle speeds.
Finding a Station
AM FM: Press this button to switch between AM, FM1
and FM2. The display shows your selection.
TUNE: Turn this knob to choose radio stations.
SEEK: Press the right arrow to tune to the next higher
station and the left arrow to tune to the next lower
station and stay there. The radio will seek to stations
with a strong signal only.PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations. You can set up to
18 stations (six AM, six FM1 and six FM2). Just:
1. Turn the radio on.
2. Press AM FM to select the band.
3. Tune in the desired station.
4. Press AUTO TONE to select the equalization that
best suits the type of station selected.
5. Press and hold one of the six numbered buttons.
The radio will beep once to confirm. Whenever you
press that numbered button, the station you set will
return and the AUTO TONE equalization that you
selected will also be automatically selected for
that button.
6. Repeat the steps for each pushbutton.

3-25
P SCAN: Press and hold one of the arrows for more
than two seconds. The radio will beep once to confirm.
Use P SCAN to listen to each of your favorite stations
stored on your pushbuttons for a few seconds. The radio
will scan through each of the stations stored on your
pushbuttons, except those stations with weak reception.
The AUTO TONE setting stored for that pushbutton will
be automatically chosen. Press P SCAN or one of the
pushbuttons again to stop scanning. SCAN will be
displayed whenever the tuner is in the P SCAN mode.
The channel number (P1
-P6) will appear with the
frequency. In FM mode, this function will scan through
the current band such as FM1 or FM2.
Setting the Tone
BASS: Press and release the P
-TYPE LIST/AUDIO knob
until BASS appears on the display. Then turn the knob
clockwise to increase bass and counterclockwise to decrease
bass. The display will show the bass level. When you use this
control, the radio's AUTO TONE setting will switch to
manual. To set bass to the middle position, select the control
and press and hold the P
-TYPE LIST/AUDIO knob. The
radio will produce one beep and set the display level to the
middle position. To set all tone and speaker controls to the
middle position, press and hold the P
-TYPE LIST/AUDIO
knob when no tone or speaker control is active. The radio will
produce one beep and display ALL with the level display in
the middle position.TREBLE: Press and release the P
-TYPE LIST/AUDIO
knob until TREB appears on the display. Turn the knob
clockwise to increase treble and counterclockwise to
decrease treble. The display will show the treble level.
When you use this control, the radio's AUTO TONE
setting will switch to manual. If a station is weak or
noisy, you may want to decrease the treble. To set treble
to the middle position, select the control and press and
hold the P
-TYPE LIST/AUDIO knob. The radio will
produce one beep and set the display level to the middle
position. To set all tone and speaker controls to the
middle position, press and hold the P
-TYPE
LIST/AUDIO knob when no tone or speaker control is
active. The radio will produce one beep and display
ALL with the level display in the middle position.
AUTO TONE: This feature allows you to choose
preset bass and treble equalization settings designed for
ROCK, NEWS, POP, JAZZ, CLASSICAL and
COUNTRY music stations. TONE and the preset
equalization setting will appear on the display when you
press AUTO TONE. Each time you press it, another
setting will appear on the display. The manual setting
allows tone control to return to the BASS and TREB
controls. Use PUSHBUTTONS and AUTO TONE
button to program AUTO TONE for station presets.

3-26
Adjusting the Speakers
BALANCE: Press and release the P
-TYPE
LIST/AUDIO knob until BAL appears on the display.
Turn the knob clockwise to move the sound to the right
speakers and counterclockwise to move the sound to the
left speakers. The middle position balances the sound
between the speakers. The display will show the speaker
balance. To set the balance to the middle position,
select the control and press and hold the P
-TYPE
LIST/AUDIO button. The radio will produce one beep
and set the display level to the middle position. To set all
tone and speaker controls to the middle position, press
and hold the P
-TYPE LIST/AUDIO knob when no tone
or speaker control is active. The radio will produce one
beep and display ALL with the level display in the
middle position.FADE: Press and release the P
-TYPE LIST/AUDIO
knob until FADE appears on the display. Turn the knob
clockwise to move the sound to the front speakers and
counterclockwise to move the sound to the rear
speakers. The middle position balances the sound
between the speakers. The display will show the speaker
balance. To set the fade to the middle position, select the
control and press and hold the P
-TYPE LIST/AUDIO
button. The radio will produce one beep and set the
display level to the middle position. To set all tone and
speaker controls to the middle position, press and hold
the P
-TYPE LIST/AUDIO knob when no tone or
speaker control is active. The radio will produce one
beep and display ALL with the level display in the
middle position.
Using RDS Mode
Your audio system is equipped with a Radio Data
System (RDS). RDS mode gives you many useful new
features. With RDS, the radio can:

Seek only to stations with the types of programs you
want to listen to,

seek to stations with traffic announcements,

receive announcements concerning local and
national emergencies, and

receive and display messages from radio stations.

3-27
RDS features are only available for use on FM stations
which broadcast RDS information. The RDS features of
your radio rely upon receiving specific RDS information
from these stations. These features will only work when
the RDS information is available. In rare cases, a radio
station may broadcast incorrect information that will
cause the radio features to work improperly. If this
happens, please contact the radio station.
When you are tuned to an RDS station, the station name
will appear on the display, instead of the frequency.
Most RDS stations provide their station name,
the time of day and a Program Type (PTY) for their
current programming.
Accessing RDS Mode:
1. Push the SEEK TYPE button or turn the P
-TYPE
LIST/AUDIO knob to display the program type list.
2. Turn the knob either clockwise or counterclockwise
to select a program type. The list is alphabetical.
3. Push SEEK TYPE button to activate search.
VOL: Turn this knob clockwise to increase volume
when RDS interrupts regular play. Turn it
counterclockwise to decrease volume.
DISP: Press this knob to recall the RDS station
being played.TRAF: Press this button to receive traffic
announcements. If the current tuned station does not
broadcast traffic announcements, the radio will seek to
a station that does. The TRAF icon will flash on the
display. When the radio finds a station that broadcasts
traffic announcements, it will stop. If no station is found,
NO TRAF will appear on the display.
When a traffic announcement comes on the tuned radio
station, you will hear it, even if the volume is muted or
a cassette tape or compact disc is playing. The TRAF
icon and TRAFFIC will appear on the display while the
traffic announcement plays. If the cassette tape or
compact disc player was being used, the tape or compact
disc will stay in the player and resume play at the point
where it stopped.
INFO: If the current station has a message, the INFO
icon will appear on the display. Press this button to see
the message. If the whole message does not appear on
the display, parts of the message will appear every three
seconds until the message is completed. To see the parts
of the message faster than every three seconds, press this
button again. A new group of words will appear on the
display. Once the complete message has been displayed,
INFO will disappear from the display until another new
message is received.

3-28
P-TYPE LIST/AUDIO: Turn this knob clockwise or
counterclockwise to select the Program Type (PTY) you
want to listen to. TYPE and a PTY will appear on the
display. See ªRadio Data System (RDS) Program Type
(PTY) Selectionsº in the Index.
SEEK TYPE: Press this button to go to a station with
the last selected PTY. TYPE and the last selected PTY
will appear on the display, if it is not already showing.
If a station with the selected PTY is not found, the radio
will return to the original station and display NONE.
If both SEEK TYPE and TRAF are on, the radio will
search for stations with traffic announcements and the
selected PTY.
ALERT!: This type of announcement warns of national
or local emergencies. You will not be able to turn off
alert announcements. ALERT! appears on the display
when an alert announcement plays. When an alert
announcement comes on the tuned radio station, you
will hear it, even if the volume is muted or a cassette
tape or compact disc is playing. If the cassette tape or
compact disc player is playing, play will stop for the
announcement and resume when the announcement
is finished.ALTERNATE FREQUENCY: This feature allows
the radio to switch to a stronger station with the same
programming. Press and hold AM
-FM for two seconds
to turn alternate frequency on. AF ON will appear on the
display. The radio may switch to stronger stations.
Press and hold AM
-FM again for two seconds to turn
alternate frequency off. AF OFF will appear on the
display. The radio will not switch to other stations.
Playing a Cassette Tape
Your tape player is built to work best with tapes that are
up to 30 to 45 minutes long on each side. Tapes longer
than that are so thin they may not work well in this
player. The longer side with the tape visible should face
to the right. If the ignition is on, but the radio is off,
the tape can be inserted and will begin playing. A tape
symbol is shown on the display whenever a tape is
inserted. If you hear nothing but a garbled sound, the
tape may not be in squarely. Press EJT to remove the
tape and start over.
While the tape is playing, use the VOL, FADE, BAL,
TREB, BASS and SEEK controls just as you do for
the radio. The display will show TAPE and an arrow
showing which side of the tape is playing.

3-29
If you want to insert a tape when the ignition is off, first
press EJT or DISP.
If CHK TAPE appears on the radio display, the tape
won't play because of an error.
CHK TAPE may be displayed when the tape is tight and
the player can't turn the tape hubs. Remove the tape.
Hold the tape with the open end down and try to turn the
right hub counterclockwise with a pencil. Turn the tape
over and repeat. If the hubs do not turn easily, your tape
may be damaged and should not be used in the player.
Try a new tape to make sure your player is
working properly.
CHK TAPE may be displayed when the tape is broken.
Try a new tape.
CHK TAPE may be displayed when the tape is wrapped
around the tape head. Attempt to get the cassette out.
Try a new tape.
If any error occurs repeatedly or if an error can't be
corrected, please contact your dealer.PREV (1): Press this button or the left SEEK arrow to
go to the previous selection on the tape if the selection
has been playing for less than 3 seconds. If the PREV
button or the left SEEK arrow is pressed and the current
selection has been playing for more than 13 seconds, it
will go to the beginning of the current selection. If the
PREV button or the left SEEK arrow is pressed and the
current selection has been playing from 3 to 13 seconds,
it will go to the beginning of the previous selection or
the beginning of the current selection, depending on the
position on the tape. SEEK and a ª
-1º will appear on
the display while the cassette player is in PREV mode.
If PREV or the left SEEK arrow is pressed additional
times or held, the radio will go to displayed number of
previous selections up to ª9º. SEEK and a negative
number will appear on the display. Your tape must have
at least three seconds of silence between each selection
for PREV to work. The sound will mute while seeking.
NEXT (2): Press this button to go to the next selection
on the tape. If you press the button more than once,
the player will continue moving forward through the
tape. SEEK and a positive number will appear on the
display. Your tape must have at least three seconds of
silence between each selection for NEXT to work.
To forward through each selection press the right SEEK
arrow. The sound will mute while seeking.

3-30
REV (3): Press this button to reverse the tape rapidly.
Press it again to return to playing speed. The radio will
play the last selected station while the tape reverses.
The station frequency and REV will appear on the
display. You may select stations during REV operation
by using TUNE, SEEK and P SCAN controls.
FWD (4): Press this button to advance quickly to
another part of the tape. Press the button again to return
to playing speed. The radio will play the last selected
station while the tape advances. The station frequency
and FWD will appear on the display. You may select
stations during FWD operation by using TUNE, SEEK
and P SCAN controls.
SIDE (5): Press this button to play the other side of the
tape. TAPE and an up or down arrow will appear on
the display.
SEEK: SEEK

is the same as NEXT, and  SEEK is
the same as PREV. If the button is held or pressed more
than once, the player will continue moving forward or
backward through the tape. SEEK and a positive or
negative number will appear on the display.
(6): Press this button to reduce background noise.
NR ON will appear on the display. Press it again to turn
Dolby off. NR OFF will appear on the display.
Dolby Noise Reduction is manufactured under a license
from Dolby Laboratories Licensing Corporation. Dolby
and the double
-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
AM FM: Press this button to play the radio when a
tape is in the player. The tape will stop but remain in
the player.
TAPE CD: With a tape in the player and the radio
playing, press this button to play a tape. Press AM FM
to return to the radio when a tape is playing. Press TAPE
CD to switch between the tape and compact disc if both
are loaded. The inactive tape or CD will remain safely
inside the radio for future listening.
EJT: Press this button located next to the cassette
slot to remove a tape. The radio will play. EJT may be
activated with the radio off. Cassette tapes may be
loaded with the radio off if this button is pressed first.

3-31
CLEAN: If this message appears on the display, the
cassette tape player needs to be cleaned. It will still play
tapes, but you should clean it as soon as possible to
prevent damage to the tapes and player. See ªCare of
Your Cassette Tape Playerº in the Index. After you clean
the player, press and hold the cassette eject button for
five seconds to reset the CLEAN indicator. The radio
display will display CLEANED to show the indicator
was reset.
Tight/Loose Tape Sensor Defeat
With the radio off and the ignition on, press and hold the
TAPE CD button to disable the tight/loose tape sensing
feature to enable play of some tape head cleaners and
portable CD adapters. The radio will display READY
and flash the cassette icon. The tight/loose tape sensing
feature will then be disabled until the next cassette eject.
Playing a Compact Disc
Insert a disc partway into the slot, label side up.
The player will pull it in. The disc should begin playing.
The display will show the CD symbol. If you want to
insert a compact disc with the ignition off, first press
DISP or EJT.If you're driving on a very rough road or if it's very hot,
the disc may not play and CHECK CD may appear on
the display. When the road becomes smooth or the
temperature returns to normal, the disc should play.
If the disc comes out, it could be that:

The disc is upside down.

It is dirty, scratched or wet.

It is very humid. (If so, wait about an hour and
try again.)
If any error occurs repeatedly or if an error can't be
corrected, please contact your dealer.
PREV (1): Press this button or the left SEEK arrow to
go to the previous track if the current selection has been
playing for less than eight seconds. If the PREV button
or the left SEEK arrow is pressed and the current
selection has been playing for more than eight seconds,
it will go to the beginning of the current selection.
TRACK and the track number will appear on the
display. If you hold the button or press it more than
once, the player will continue moving back through the
disc. The sound will mute while seeking.

3-32
NEXT (2): Press this button or the right SEEK arrow to
go to the next track. TRACK and the track number will
appear on the display. If you hold the button or the right
SEEK arrow, or press it more than once, the player will
continue moving forward through the disc. The sound
will mute while seeking.
REV (3): Press and hold this button to reverse quickly
within a track. Press and hold this button for less than
2 seconds to reverse at 6 times the normal playing
speed. Press and hold it for more than 2 seconds to
reverse at 17 times the normal playing speed. Release it
to play the passage. The display will show ET and the
elapsed time.
FWD (4): Press and hold this button to advance quickly
within a track. Press and hold this button for less than
2 seconds to advance at 6 times the normal playing
speed. Press and hold it for more than 2 seconds to
advance at 17 times the normal playing speed. Release it
to play the passage. The display will show ET and the
elapsed time.
RDM (6): Press this button to hear the tracks in random,
rather than sequential, order. RDM ON will show on the
display. RDM T and the track number will appear on the
display when each track starts to play. Press RDM again
to turn off random play. RDM OFF will appear on
the display.SEEK: Press the  SEEK button to go to the start of
the current or previous track. Press the

SEEK button
to go to the start of the next track. If either of the SEEK
buttons is held or pressed more then once, the player
will continue moving backward or forward through
the CD.
DISP: Press this button to see how long the current
track has been playing. ET and the elapsed time will
appear on the display. To change what is normally
shown on the display (track or elapsed time), press the
button until you see the display you want, then hold
the button for two seconds. The radio will produce
one beep.
AM FM: Press this button to play the radio when a
disc is in the player. The disc will stop but remain in
the player.
TAPE CD: With a CD in the player and the radio
playing, press this button to play a CD. Press AM FM to
return to the radio when a CD is playing. Press TAPE
CD to switch between the tape and compact disc if both
are loaded. The inactive tape or CD will remain safely
inside the radio for future listening.

3-33
EJT: Press this button located below the CD slot to
remove the disc. The radio will play. EJT may be
activated with either the ignition or radio off. CDs may
be loaded with the radio and ignition off if this button is
pressed first.
CAL ERR: This message is displayed when the radio
has not been calibrated properly for the vehicle. You
must return to the dealership for service.
LOCKED: This message is displayed when the
Theftlock

system has locked up. You must return to
the dealership for service.

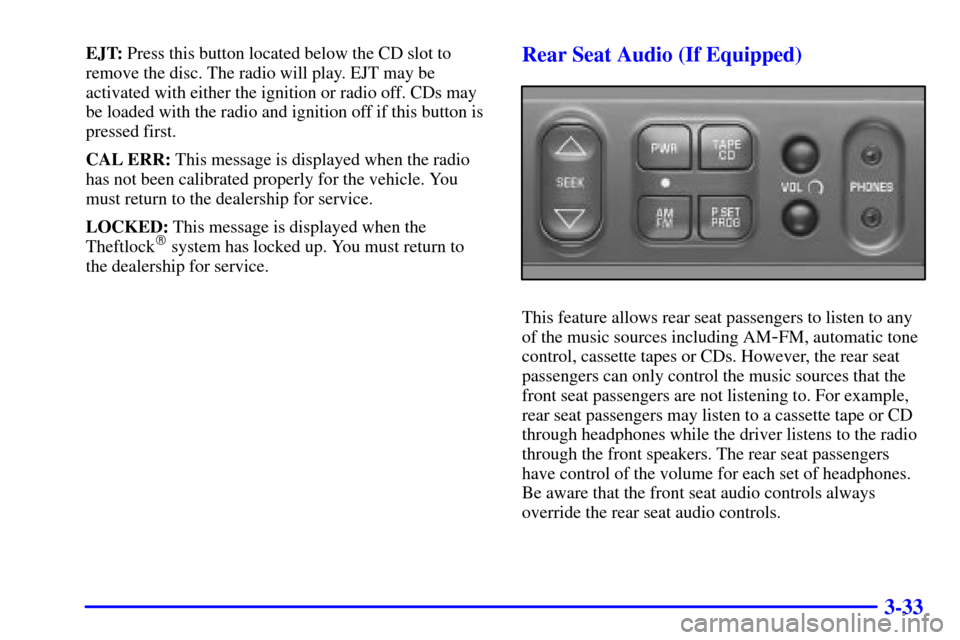

Rear Seat Audio (If Equipped)
This feature allows rear seat passengers to listen to any
of the music sources including AM
-FM, automatic tone
control, cassette tapes or CDs. However, the rear seat
passengers can only control the music sources that the
front seat passengers are not listening to. For example,
rear seat passengers may listen to a cassette tape or CD
through headphones while the driver listens to the radio
through the front speakers. The rear seat passengers
have control of the volume for each set of headphones.
Be aware that the front seat audio controls always
override the rear seat audio controls.
