Oldsmobile Silhouette 2001 Owner's Manuals

2-79
Side Convenience Nets
The side convenience nets are designed to hold smaller
items (about 8 lbs. (4 kg)) than the large convenience
net. Attach the loops to the posts on the rear side panels,
near the jack storage area.
When not in use, it is recommended that you take
down the convenience nets to extend their life and
retain their elasticity.
Front Seat Storage Net
There is a storage net that stretches between the front
seats. Pull the hooks toward the passenger's seat and
insert them into the holes.
To store the net, lift the hooks up and out of the holes.
The net does not detach from the driver's seat.
When not in use, it is recommended that you unhook the
net to extend its life and retain its elasticity.

2-80 Convenience Center (Option)
CAUTION:
If the convenience center isn't secured properly,
it can move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure to
secure the convenience center properly.
The convenience center comes with the optional
stowable seat. It provides extra storage space for the
rear of the vehicle.
To open the convenience center, pull up on the door
latch located in the front. The convenience center cover
has two automatic prop rods to hold it up and in place.
To close the convenience center cover you must pull one
of the prop rod linkages toward you while holding onto
the door latch and lower the convenience center cover
to close it.Removing the Convenience Center
1. Make sure that all items are off of the convenience
center and that it is empty.
2. Turn the hand knob counterclockwise until the
knob is loose.
3. Lift up on the hand knob to grab a hold of the
convenience center.
4. Lift up on the convenience center while pulling it
toward you and pull it out.
Replacing the Convenience Center
1. The stowable seat must be properly installed in
the vehicle. See ªStowable Seatº in the Index for
more information. If the stowable seat is not in the
vehicle with the convenience center, the convenience
center will not be locked into the correct position in
the vehicle.
2. Make sure that the convenience center is closed.
3. Lift the convenience center up and into the rear
of the vehicle.

2-81
4. Put the tray sill, located on the back of the
convenience center, in the upright position.
5. Slide the convenience center in and align it so that
the forks, located on the bottom rear of the
convenience center, slide into the seat anchors.
6. Press down on the front of the convenience center
so the center locates on the sill mounting bracket.
7. Turn the hand knob clockwise until it is tight.
8. Pull up on the convenience center to make sure
it is locked into place.The tray sill can be folded down onto the stowable seat
to close the space between the two when the stowable
seat is folded down. To do this, flip the sill plate up and
over toward the stowable seat.
The cover of the convenience center can be left in its
upright position while the vehicle is moving.
The convenience center has six hooks on the inside
cover for hanging items on. The prop rods can hold
up to 49 lbs. (21.8 kg) on the cover of the convenience
center while in its upright position.
The convenience center and the stowable seat both have
a maximum weight capacity of 400 lbs. (181.6 kg).
NOTICE:
Your warranty does not cover parts or components
that fail because of overloading.

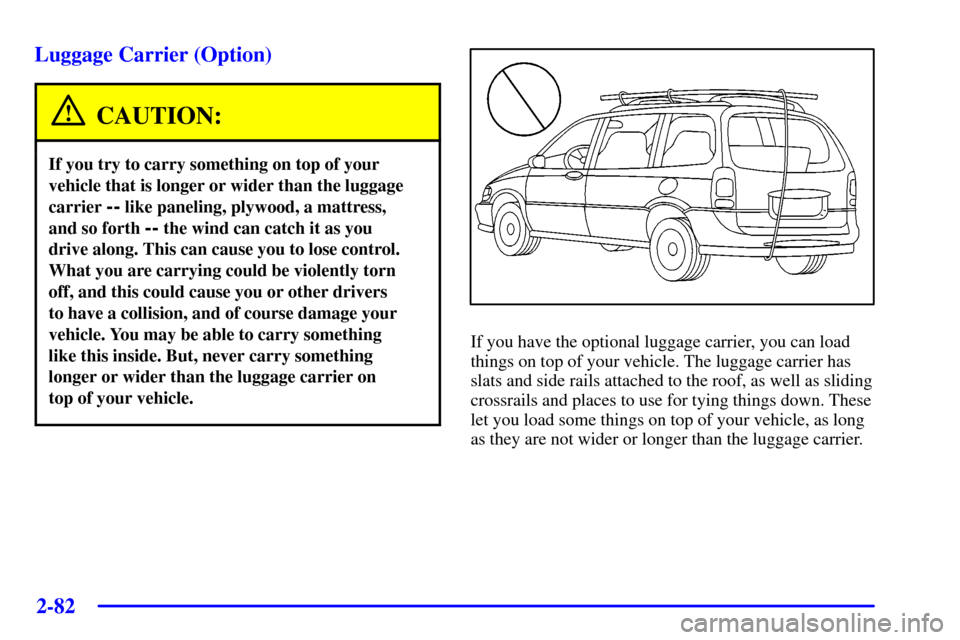

2-82 Luggage Carrier (Option)
CAUTION:
If you try to carry something on top of your
vehicle that is longer or wider than the luggage
carrier
-- like paneling, plywood, a mattress,
and so forth
-- the wind can catch it as you
drive along. This can cause you to lose control.
What you are carrying could be violently torn
off, and this could cause you or other drivers
to have a collision, and of course damage your
vehicle. You may be able to carry something
like this inside. But, never carry something
longer or wider than the luggage carrier on
top of your vehicle.
If you have the optional luggage carrier, you can load
things on top of your vehicle. The luggage carrier has
slats and side rails attached to the roof, as well as sliding
crossrails and places to use for tying things down. These
let you load some things on top of your vehicle, as long
as they are not wider or longer than the luggage carrier.

2-83
NOTICE:
Loading cargo that weighs more than 150 lbs.
(68 kg) on the luggage carrier may damage
your vehicle.
When you carry cargo on the luggage carrier
of a proper size and weight, put it on the slats,
as far forward as you can. Then slide the
crossrail up against the rear of the load, to help
keep it from moving. You can then tie it down.
Don't exceed the maximum vehicle capacity when
loading your vehicle. For more information on vehicle
capacity and loading, see ªLoading Your Vehicleº in
the Index.

2-84
To prevent damage or loss of cargo as you're driving,
check now and then to make sure the luggage carrier
and cargo are still securely fastened.
Your luggage carrier has
release knobs set in the
ends of each crossrail.
Turn the release knobs counterclockwise to unlock the
crossrails. Slide the crossrails forward or backward as
needed, to accommodate loads of various sizes.
After repositioning the crossrails, be sure to tighten the
release knobs by turning them clockwise. This will lock
the crossrails in place.
Use the tie-down loops
on the slider to help
secure large loads.
Sun Visors
To block out glare, you can swing down the visors.
You can also remove them from the center mount and
swing them to the side.
Visor Vanity Mirrors
Pull down the sun visor. Flip up the cover to expose the
vanity mirror.
Lighted Visor Vanity Mirrors (If Equipped)
Pull down the sun visor. Flip up the cover to expose the
vanity mirror. The lamps will come on when you open
the cover.

2-85
Accessory Inflator System (Option)
Your vehicle may have an air inflator. With it, you can
inflate things like air mattresses and basketballs, and
you can also use it to bring your tires up to the
proper pressure.
The air inflator is located in the rear compartment on
the driver's side. To remove the cover, pull the tab
on the cover and pull it off.
The air inflator kit is stored in the glove box. It includes
a 20
-foot (6 m) hose with an air pressure gage and
nozzle adapters.
CAUTION:
Inflating something too much can make it explode,
and you or others could be injured. Be sure to read
the inflator instructions, and inflate any object
only to its recommended pressure.

2-86
To use your air inflator system, do the following:
1. Turn the ignition key to ACCESSORY or START.
2. Attach the appropriate nozzle adapter, if required,
to the end of the hose that has the pressure gage.
3. Then attach that end of the hose to the object you
wish to inflate.
4. Remove the protective cap covering the outlet.
5. Attach the other end of the hose to the outlet.
6. Press the ON switch.If the air inflator system does not turn on, the fuse may
be blown or installed incorrectly. See ªFuses and Circuit
Breakersº in the Index or see your dealer for service.
Your air inflator will automatically shut off after about
10 minutes. To reset, press the ON switch again.
Don't run your air inflator for longer than 30 minutes
at one time. If you do, you may damage the system.
After 30 minutes, wait at least 10 minutes before
restarting the air inflator.
To turn off the inflator, do the following:
1. Press OFF and detach the hose, first from the
inflated object, then from the outlet.
2. Put the protective cap back on.
3. Place the inflator kit tools in the pouch, and store in
the glove box.
To put the cover the back, line up the tabs at the back
of the cover and put it in place. Push down the tab to
secure the cover.

2-87
Accessory Power Outlets
Accessory power outlets can be used to plug in electrical
equipment such as a cellular telephone, CB radio, etc.
Follow the proper installation instructions that are
included with any electrical equipment you install.
The front accessory power outlets are located below the
cupholders. Pull the cover down to use the accessory
power outlet. When not in use, keep the cover on.
The rear accessory power outlet is located in the rear
compartment on the driver's side. To remove the cover,
pull the tab on the cover and pull it off.To put the cover back on the rear accessory power
outlet, line up the tabs at the back of the cover and
put the cover in place. Push down the tab to secure
the cover.
When not in use, always cover the rear accessory power
outlet with the protective cap.
NOTICE:
When using the accessory power outlet:

Maximum load of any electrical equipment
should not exceed 20 amps.

Be sure to turn off any electrical equipment
when not in use. Leaving electrical
equipment on for extended periods can
drain your battery.
Certain accessory power plugs may not be compatible
to the accessory power outlet and could result in blown
vehicle or adapter fuses. If you experience a problem see
your dealer for additional information on the accessory
power plugs.

2-88
OnStar
System (If Equipped)
OnStar is a vehicle communications system that
offers a variety of services and provides a hands
-free
communication link between you and the OnStar Center.
A service subscription agreement and fee are required
in order to receive OnStar service. Services are available
24 hours a day, 7 days a week. For more information,
call 1
-888-ONSTAR-7 (1-888-667-8277).
OnStar Services Button: Press this button once
to contact an advisor who will be able to assist you with
these services. If you are not quickly connected, the
system will automatically reset and redial. This ensures
connection to the center; there is no additional action
required. Press the Call Answer/End button to cancel the
automatic redial.
Emergency Button: In an emergency situation,
press the emergency service button. Upon receiving the
call, an advisor at the center will locate your vehicle and
assess the situation. If necessary, the advisor will alert
the nearest emergency service provider.
Call ANSWER/END Button: Use this button
to answer a call. (If you are receiving a call, the audio
system will mute, and the ring will be heard). Press this
button at the end of a call to disconnect and return the
audio system to its previous settings. This button will
also cancel a call if one of the buttons is accidentally
pressed or if the automatic redial function is activated.
Volume Control: You can control the volume of the
OnStar System using either the volume control knob
on the radio or, if equipped, the steering wheel
volume control.
Telltale Light: This light will indicate the status of
the system. A solid green light will come on when you
start the vehicle to let you know that the system is on
and is ready to make or receive calls.
If the light blinks green it means that an incoming
or outgoing call is in progress. Press the Call
ANSWER/END button if you notice the light
blinking and you are not on a call.
