9. Align the pins on the bottom of the headlamp
assembly with the holes in the lamp support bracket
while placing the holes in the assembly over the
bolts where the wing nuts attach.
10. Reinstall and tighten the wing nuts.

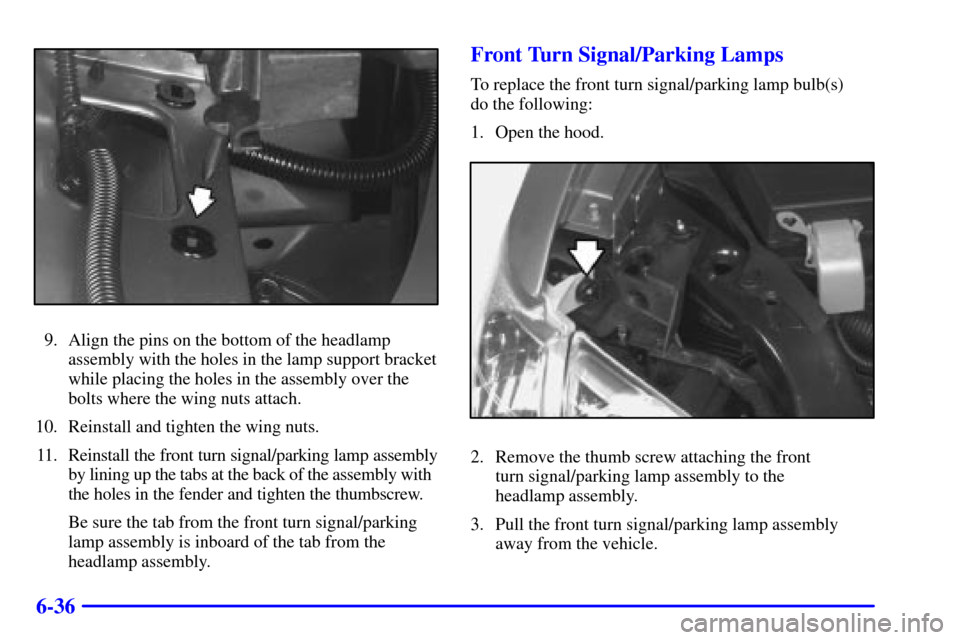

11. Reinstall the front turn signal/parking lamp assembly
by lining up the tabs at the back of the assembly with
the holes in the fender and tighten the thumbscrew.
Be sure the tab from the front turn signal/parking
lamp assembly is inboard of the tab from the
headlamp assembly.
Front Turn Signal/Parking Lamps
To replace the front turn signal/parking lamp bulb(s)
do the following:
1. Open the hood.
2. Remove the thumb screw attaching the front
turn signal/parking lamp assembly to the
headlamp assembly.
3. Pull the front turn signal/parking lamp assembly
away from the vehicle.

6-37
4. Unscrew the bulb socket from the lamp assembly by
pressing the tab while turning it counterclockwise.

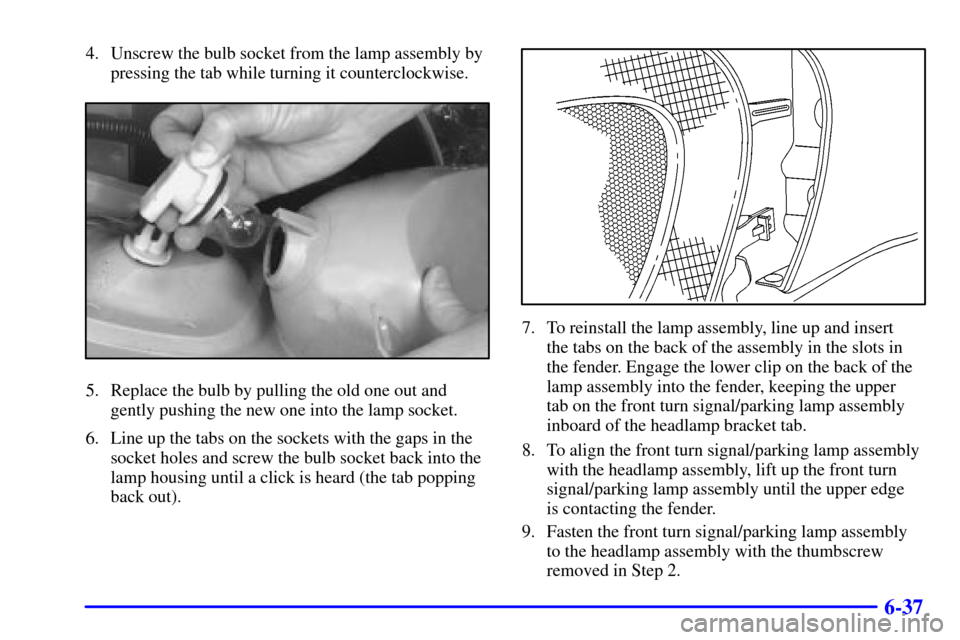

5. Replace the bulb by pulling the old one out and
gently pushing the new one into the lamp socket.
6. Line up the tabs on the sockets with the gaps in the
socket holes and screw the bulb socket back into the
lamp housing until a click is heard (the tab popping
back out).
7. To reinstall the lamp assembly, line up and insert
the tabs on the back of the assembly in the slots in
the fender. Engage the lower clip on the back of the
lamp assembly into the fender, keeping the upper
tab on the front turn signal/parking lamp assembly
inboard of the headlamp bracket tab.
8. To align the front turn signal/parking lamp assembly
with the headlamp assembly, lift up the front turn
signal/parking lamp assembly until the upper edge
is contacting the fender.
9. Fasten the front turn signal/parking lamp assembly
to the headlamp assembly with the thumbscrew
removed in Step 2.

6-38 Front Sidemarker
To replace the front sidemarker bulb(s) do the following:
1. Open the hood.
2. Remove the thumbscrew attaching the front
turn signal/parking lamp assembly to the
headlamp assembly.
3. Pull the front turn signal/parking lamp assembly

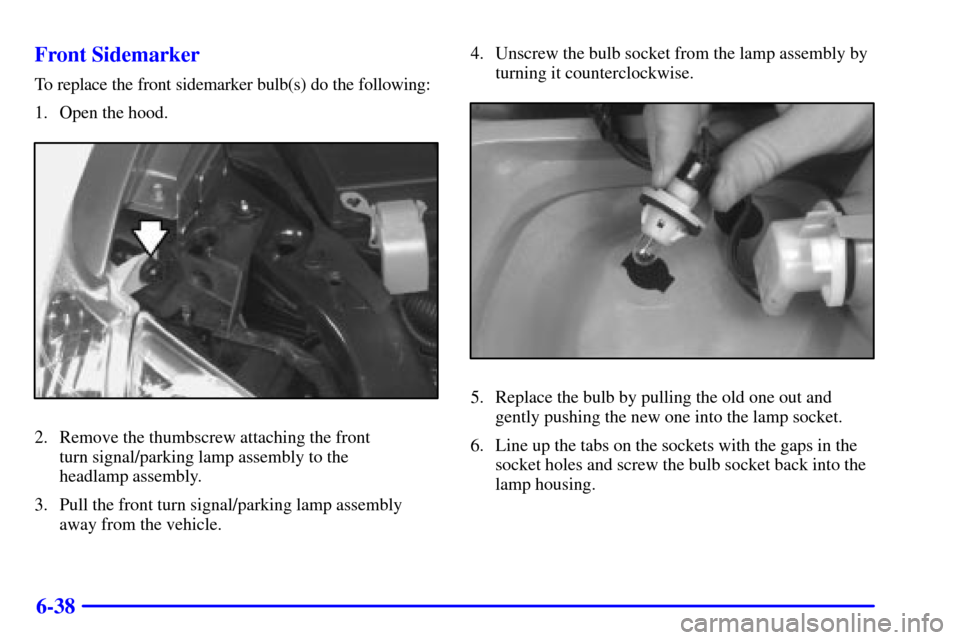

away from the vehicle.4. Unscrew the bulb socket from the lamp assembly by
turning it counterclockwise.
5. Replace the bulb by pulling the old one out and
gently pushing the new one into the lamp socket.
6. Line up the tabs on the sockets with the gaps in the
socket holes and screw the bulb socket back into the
lamp housing.

6-39
7. To reinstall the lamp assembly, line up and insert
the tabs on the back of the assembly in the slots in
the fender. Engage the lower clip on the back of the
lamp assembly into the fender, keeping the upper
tab on the front turn signal/parking lamp assembly
inboard of the headlamp bracket tab.
8. To align the front turn signal/parking lamp assembly
with the headlamp assembly, lift up the front turn
signal/parking lamp assembly until the upper edge is
contacting the fender.
9. Fasten the front turn signal/parking lamp assembly
to the headlamp assembly with the thumbscrew
removed in Step 2.
Taillamps
To replace the taillamp bulb(s) do the following:
1. Open the liftgate.
2. Remove the two screws from the taillamp housing
on the inboard side.
3. Pull off the entire taillamp housing.
The locator/retaining pins on the outboard side are
part of the lamp assembly and will remain intact
during removal.

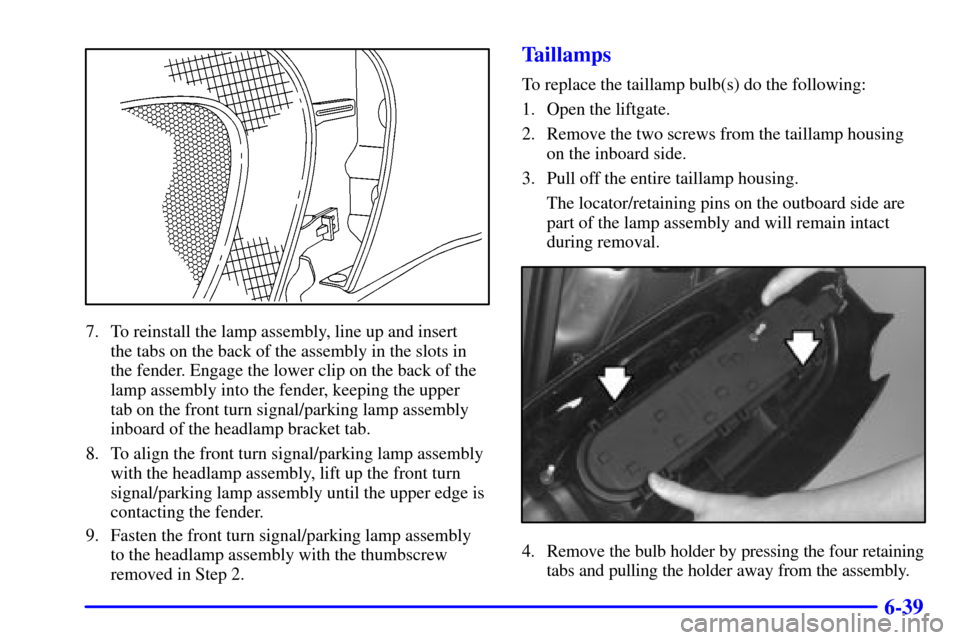

4. Remove the bulb holder by pressing the four retaining
tabs and pulling the holder away from the assembly.

6-49
Each new wheel should have the same load-carrying
capacity, diameter, width, offset and be mounted the
same way as the one it replaces.
If you need to replace any of your wheels, wheel bolts
or wheel nuts, replace them only with new GM original
equipment parts. This way, you will be sure to have the
right wheel, wheel bolts and wheel nuts for your vehicle.
CAUTION:
Using the wrong replacement wheels, wheel bolts
or wheel nuts on your vehicle can be dangerous.
It could affect the braking and handling of your
vehicle, make your tires lose air and make you
lose control. You could have a collision in which
you or others could be injured. Always use the
correct wheel, wheel bolts and wheel nuts
for replacement.
NOTICE:
The wrong wheel can also cause problems with
bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper
height, vehicle ground clearance and tire or tire
chain clearance to the body and chassis.
See ªChanging a Flat Tireº in the Index for
more information.
Used Replacement Wheels
CAUTION:
Putting a used wheel on your vehicle is
dangerous. You can't know how it's been used or
how far it's been driven. It could fail suddenly
and cause an accident. If you have to replace a
wheel, use a new GM original equipment wheel.

6-61

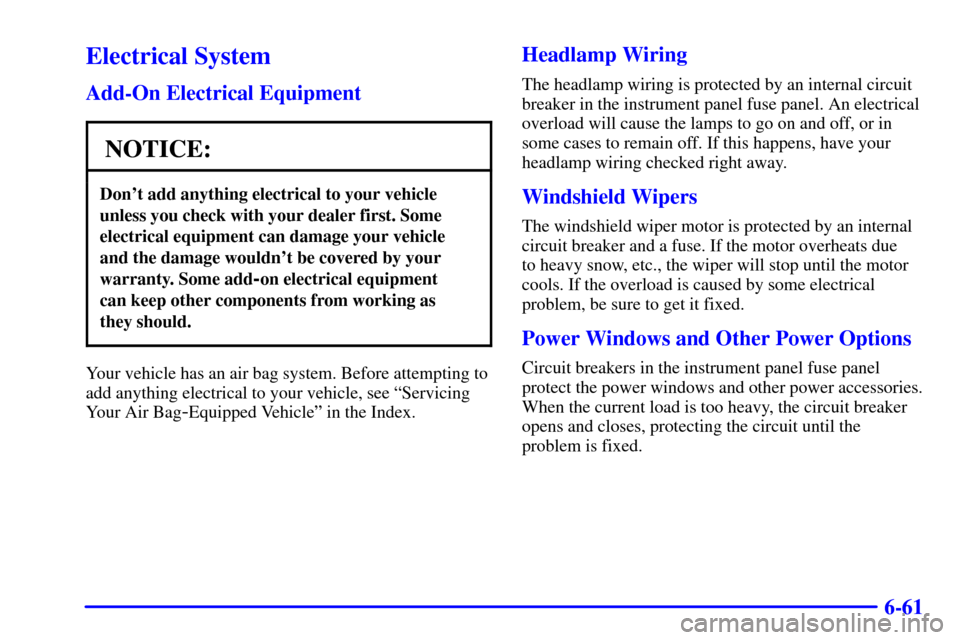

Electrical System
Add-On Electrical Equipment
NOTICE:
Don't add anything electrical to your vehicle
unless you check with your dealer first. Some
electrical equipment can damage your vehicle
and the damage wouldn't be covered by your
warranty. Some add
-on electrical equipment
can keep other components from working as
they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your vehicle, see ªServicing
Your Air Bag
-Equipped Vehicleº in the Index.
Headlamp Wiring
The headlamp wiring is protected by an internal circuit
breaker in the instrument panel fuse panel. An electrical
overload will cause the lamps to go on and off, or in
some cases to remain off. If this happens, have your
headlamp wiring checked right away.
Windshield Wipers
The windshield wiper motor is protected by an internal
circuit breaker and a fuse. If the motor overheats due
to heavy snow, etc., the wiper will stop until the motor
cools. If the overload is caused by some electrical
problem, be sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers in the instrument panel fuse panel
protect the power windows and other power accessories.
When the current load is too heavy, the circuit breaker
opens and closes, protecting the circuit until the
problem is fixed.

6-63
Circuit
BreakersUsage
1 Daytime Running Lamps (DRL)
Control Module, Headlamp and
Instrument Panel Dimmer Switch
2 Power Sliding Door
3 Front Power Windows
46
-Way Power Seats and Rear Side
Door Actuator Motor
5 Blower Motor Hi Speed
Relay ModuleFuses Usage
6 Steering Wheel Radio Control
Switches (Illumination)
7 Instrument Cluster to
PRNDL Indicators
8 Power Remote Control
Mirror Switch
9 Cruise Control Module,
Switch and Release Switch
10 Not Used
11 Powertrain Control Module (PCM),
Ignition Crank
12 PASS
-Key
III System
13 Body Control Module (BCM)
14 Heated Mirrors
15 Not Used
16 Not Used
17 Cigarette Lighter, Driver
Information Center (DIC),
Front Auxiliary Power Outlets

6-66
Underhood Fuse and Relay Center
This fuse and relay center
is located in the engine
compartment, in front of
the windshield washer fluid
reservoir. See ªEngine
Compartment Overviewº
in the Index for more
information on location.
The fuses marked spare are available if a replacement
fuse is needed.
To remove the cover, turn the knob counterclockwise
and lift up. Remove the cover.
When finished, put the cover back on, turn the knob
clockwise to tighten the cover in place. Make sure that
the remote positive (+) terminal cover is on correctly.
Maxi Fuse Usage
1 COOL FAN 2 Coolant Fans
2 Not Used
3 HEADLAMPS Circuit Breakers: FRT HVAC HI
BLWR, and HEADLAMP Fuses
(Instrument Panel): HAZARD
and STOPLAMP
4 BATT MAIN 2 Circuit Breaker: PWR SEAT/PSD.
Fuses (Instrument Panel): ELC and
RR DEFOG

6-68
Mini Fuse Usage
21 IGN1
-UH Evaporative Emissions (EVAP)
Canister Purge Valve,
Heated Oxygen Sensors 1 and 2,
Mass Air Flow (MAF) Sensor
22 SPARE Not Used
23 SPARE Not Used
24 SPARE Not Used
25 ELEK IGN Ignition Control Module (ICM)
26 SPARE Not Used
27 B/U LAMP Transaxle Range Switch to
Back
-up Lamps
28 A/C CLU A/C CLU Relay to A/C
Compressor Clutch Oil
29 RADIO Driver Information Display,
Heater A/C Control, Radio,
Rear Side Door Actuator Control
Motor, Remote Control Door
Lock Receiver (RCDLR),
Security Indicator Lamp and
Theft
-Deterrent Shock SensorMini Fuse Usage
30 ALT SENSE Generator
31 TCC Automatic Transaxle (Torque
Converter Clutch Solenoids)
Stoplamp Switch to PCM
32 FUEL PUMP Fuel Pump Relay
33 ECM SENSE Powertrain Control Module (PCM)
34 Not Used
35 FOG LP Fog Lamp Relay
36 HORN Horn Relay
37 PARK LP Daytime Running Lamps (DRL)
Control Module, Headlamps and
Instrument Panel Dimmer Switch
Theft
-Deterrent Relay to Headlamps
38 Not Used
39 AIR Not Used
Diodes
A/C
CLU DIODE Air Conditioning Clutch Diode
40 Mini Fuse Puller

6-69
Replacement Bulbs
Headlamps 9004-HBI . . . . . . . . . . . . . . . . . . . . . . . . .
Front Turn Signal/
Parking Lamps 3157 NA or 3157 NAK. . . . . . . . . .
Front Sidemarker Lamps 194. . . . . . . . . . . . . . . . . . .
Stop/Taillamps (Top) 3057. . . . . . . . . . . . . . . . . . . . .
Signal Lamps (2nd from Top) 3156. . . . . . . . . . . . . .
Back
-Up Lamps (3rd from Top) 3156. . . . . . . . . . . .
Taillamps (Bottom) 3057. . . . . . . . . . . . . . . . . . . . . .
Capacities and Specifications
The following approximate capacities are given in
English and metric conversions.
Please refer to ªRecommended Fluids and Lubricantsº
in the Index for more information.
Automatic Transaxle
Pan Removal
and Replacement 7.4 quarts (7.0 L). . . . . . . . . . . .
Complete Overhaul 10.0 quarts (9.5 L). . . . . . . . . . .
Cooling System
With A/C 9.6 quarts (9.1 L). . . . . . . . . . . . . . . . . . . .
With Rear Climate Control 11.9 quarts (11.3 L). . . . . Engine Crankcase
- Oil and
Filter Change4.5 quarts (4.25 L) . . . . . . . . . . . . .
Fuel Capacity25.5 U.S. gallons (94.0 L) . . . . . . . . .
Refrigerant,
Air ConditioningSee the Refrigerant Label . . . . .
under the hood.
Tire Pressures, SizesSee Certification/Tire label . . . .
on the rear edge of the driver's door.
Wheel Nut Torque100 lb
-ft (140 N´m) . . . . . . . . . .
Windshield
Washer Fluid1.0 U.S. gallon (0.37 L) . . . . . . . . .
All capacities are approximate. When adding, be sure
to fill to the appropriate level, as recommended in
this manual.
Engine Specifications
Engine VIN Code E. . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Type V6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Firing Order 1
-2-3-4-5-6 . . . . . . . . . . . . . . . . . . . . . .
Horsepower 185. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Thermostat Temperature
Specification 195
F (91
C) . . . . . . . . . . . . . . . . . .
