1-4 Memory Seat (Option)
If your vehicle has this
feature, the controls are
located to the left of the
steering column and are
used to program and recall
the driver's seat settings.
Adjust the driver's seat to the position you would like
for driving. Then press and hold memory button ª1º for
more than three seconds. A double beep will sound
when the memory is set.
To set the seat for a second driver, follow the previous
steps, but press button ª2º instead.To recall your memory positions, your vehicle must be
in PARK (P). Push and release the memory button
(1 or 2) corresponding to the desired driving position.
The seat will move to the position previously stored for
the identified driver. You will hear one beep.
You can also store an exit position for each driver.
The exit position is programmed by moving the seat to
the desired exit position and then holding the EXIT
button for more than three seconds. The exit position
set will be for the most recently selected driving position
(1 or 2). A double beep will sound when the memory is
set. To use EXIT, your vehicle must be in PARK (P).
Push and release the EXIT button and the seat will move
to the exit position stored for the most recently selected
driver. You will hear one beep.
To stop recall movement of the seat at any time,
press one of the three memory buttons or one of the
power seat controls located on the outboard side of
the driver's seat.

1-28
Here Are Questions Many People Ask
About Safety Belts
-- and the Answers
Q:
Won't I be trapped in the vehicle after an
accident if I'm wearing a safety belt?
A:You could be -- whether you're wearing a safety
belt or not. But you can unbuckle a safety belt,
even if you're upside down. And your chance of
being conscious during and after an accident, so
you can unbuckle and get out, is much greater
if you are belted.
Q:If my vehicle has air bags, why should I have
to wear safety belts?
A:Air bags are in many vehicles today and will
be in most of them in the future. But they are
supplemental systems only; so they work with
safety belts
-- not instead of them. Every air bag
system ever offered for sale has required the use of
safety belts. Even if you're in a vehicle that has air
bags, you still have to buckle up to get the most
protection. That's true not only in frontal collisions,
but especially in side and other collisions.
Q:If I'm a good driver, and I never drive far from
home, why should I wear safety belts?
A:You may be an excellent driver, but if you're in an
accident
-- even one that isn't your fault -- you
and your passengers can be hurt. Being a good
driver doesn't protect you from things beyond your
control, such as bad drivers.
Most accidents occur within 25 miles (40 km)
of home. And the greatest number of serious
injuries and deaths occur at speeds of less than
40 mph (65 km/h).
Safety belts are for everyone.

2-2

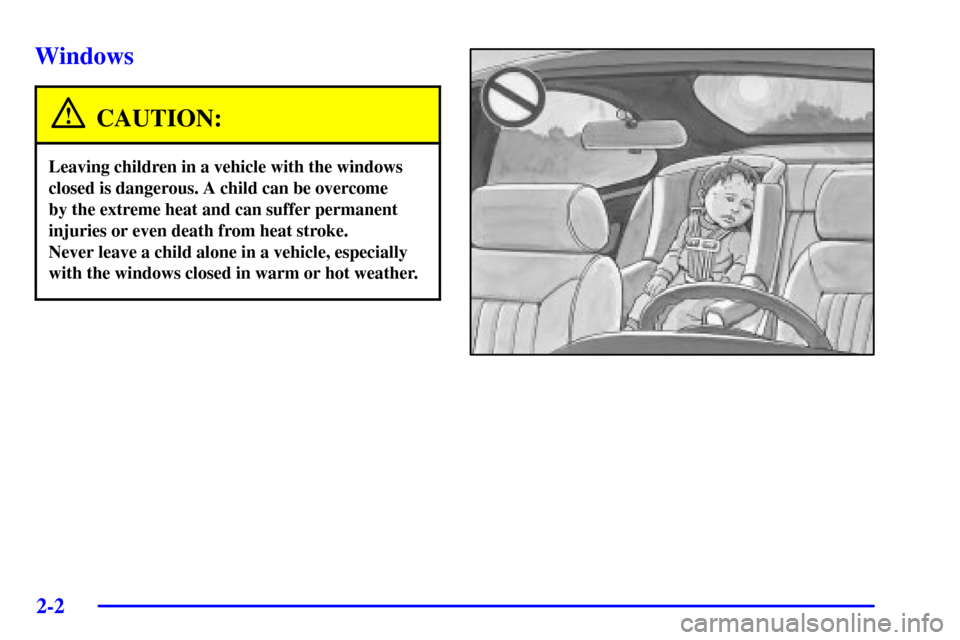

Windows
CAUTION:
Leaving children in a vehicle with the windows
closed is dangerous. A child can be overcome
by the extreme heat and can suffer permanent
injuries or even death from heat stroke.
Never leave a child alone in a vehicle, especially
with the windows closed in warm or hot weather.

2-7
Door Locks
CAUTION:
Unlocked doors can be dangerous.

Passengers -- especially children -- can
easily open the doors and fall out of a
moving vehicle. When a door is locked,
the handle won't open it. You increase the
chance of being thrown out of the vehicle in
a crash if the doors aren't locked. So, wear
safety belts properly and lock the doors
whenever you drive.

Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.

Outsiders can easily enter through an
unlocked door when you slow down or stop
your vehicle. Locking your doors can help
prevent this from happening.
There are several ways to lock and unlock your vehicle.
From the outside, use your key or the optional remote
keyless entry transmitter.
To unlock either front door from the outside with the key,
insert the key and turn it toward the front of the vehicle.
You can lock either front door from the outside with
your key by inserting and turning it toward the rear of
the vehicle.
To lock either front door from the inside, push the
manual lever forward.
To unlock either front door from the inside, pull back on
the manual lever.

2-18
When your vehicle was shipped from the factory, it was
programmed in Mode 4. The mode to which the vehicle
has been programmed may have been changed since it
left the factory. To determine the mode to which your
vehicle is programmed or to program your vehicle to a
different mode, do the following:
1. Follow the instructions for ªEntering Programming
Modeº listed previously.
2. Turn the interior lamps on by turning the instrument
panel brightness control all the way up.
3. Count the number of chimes you hear. The number
of chimes indicates the vehicle's current programmed
mode. (If you do not wish to change the current
mode, you can either exit the programming mode
by following the instructions later in this section or
program the next feature available on your vehicle.)
4. Turn the interior lamps off to change the current mode.
5. Turn the interior lamps from on to off until you hear
the number of chimes corresponding to the mode
selection you want.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.Automatic Door Locks
With automatic door locks, all doors will automatically
lock when you shift out of PARK (P) and automatically
unlock when the ignition is turned to OFF.
Programmable Modes
Mode 1: Both Features Off (Automatic door locking
and unlocking is disabled. You will always need to
lock your doors manually before driving to increase
occupant safety.)
Mode 2: Automatic Door Locking Only

The automatic door unlock feature is turned off.

Shift out of PARK (P) with the ignition on
and the driver's door closed; all doors will
lock automatically.
Mode 3: Automatic Unlocking with the Ignition Off

Turn off the ignition with the transaxle in PARK (P);
all doors will unlock automatically.

Shift out of PARK (P) with the ignition on and the
driver's door closed; all doors will lock automatically.

2-19
Mode 4: Automatic Unlocking with Transaxle
in PARK (P)

Shift into PARK (P) with the ignition on; all doors
will unlock automatically.

Shift out of PARK (P) with the ignition on and the
driver's door closed; all doors will lock automatically.
When your vehicle was shipped from the factory, it was
programmed in Mode 3. The mode to which the vehicle
has been programmed may have been changed since it
left the factory. To determine the mode to which your
vehicle is programmed or to program your vehicle to a
different mode, do the following:
1. Follow the instructions for ªEntering Programming
Modeº listed previously.
2. Press LOCK on the power door lock switch.
3. Count the number of chimes you hear. The number
of chimes indicates the vehicle's current programmed
mode. (If you do not wish to change the current
mode, you can either exit the programming mode
by following the instructions later in this section or
program the next feature available on your vehicle.)4. Press LOCK to change the current mode.
5. Press LOCK until you hear the number of chimes
corresponding to the mode selection you want.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
Last Door Closed Locking and
Lockout Prevention
With the last door closed locking and lockout prevention
features, your vehicle will do the following:

If you leave your key in the ignition and leave the
driver's door open, you won't be able to lock the
doors using the power door lock switch.

When you press LOCK on the power door
lock switch or the optional remote keyless entry
transmitter while any door or the liftgate is open,
the doors will not lock. Instead you will hear three
chimes, that will let you know that the last door
closed locking feature is in operation. Five seconds
after all the doors and the liftgate are closed, all the
doors and the liftgate will automatically lock.

2-20
Programmable Modes
Mode 1: Both Features Off (Doors will always lock
immediately when you press LOCK on the power
door lock switch or the optional remote keyless
entry transmitter.)
Mode 2: Lockout Deterrent Only (If you leave your key
in the ignition with the driver's door open, you won't be
able to lock the doors with the power door locks.)
Mode 3: Last Door Closed Locking Only (If the power
door lock switch or the optional remote keyless entry
transmitter is used to lock the vehicle while any door
or the liftgate is open, you will hear three chimes.
The doors will not lock. Five seconds after the last
door is closed, all doors and the liftgate will lock.)
Mode 4: Both Features On (This combines
Modes 2 and 3.)When your vehicle was shipped from the factory, it was
programmed in Mode 4. The mode to which the vehicle
has been programmed may have been changed since it
left the factory. To determine the mode to which your
vehicle is programmed or to program your vehicle to a
different mode, do the following:
1. Follow the instructions for ªEntering Programming
Modeº listed previously.
2. Press UNLOCK on the power door lock switch.
3. Count the number of chimes you hear. The number
of chimes indicates the vehicle's current programmed
mode. (If you do not wish to change the current
mode, you can either exit the programming mode
by following the instructions later in this section or
program the next feature available on your vehicle.)
4. Press UNLOCK to change the current mode.
5. Press UNLOCK until you hear the number of chimes
corresponding to the mode selection you want.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.

2-21
Remote Driver's Unlock Control
With the remote driver's unlock control feature, you can
program your vehicle to do the following:

When you press UNLOCK on your remote keyless
entry transmitter, the driver's door will unlock and,

when you press UNLOCK on your remote keyless
entry transmitter again within five seconds, all doors
and the liftgate will unlock.
Programmable Modes
Mode 1: Remote All Doors Unlock (When you press
UNLOCK on your remote keyless entry transmitter,
all doors and the liftgate will unlock.)
Mode 2: Remote Driver's Door Unlock Only
(When you press UNLOCK on your remote keyless
entry transmitter once, the driver's door will unlock.
When you press UNLOCK on your remote keyless
entry transmitter again within five seconds, all doors
and the liftgate will unlock.)When your vehicle was shipped from the factory, it was
programmed in Mode 2. The mode to which the vehicle
has been programmed may have been changed since it
left the factory. To determine the mode to which your
vehicle is programmed or to program your vehicle to a
different mode, do the following:
1. Follow the instructions for ªEntering Programming
Modeº listed previously.
2. Press UNLOCK on the remote keyless entry transmitter.
3. Count the number of chimes you hear. The number
of chimes indicates the vehicle's current programmed
mode. (If you do not wish to change the current
mode, you can either exit the programming mode
by following the instructions later in this section or
program the next feature available on your vehicle.)
4. Press UNLOCK to change the current mode.
5. Press UNLOCK until you hear the number of chimes
corresponding to the mode selection you want.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.

2-23
When your vehicle was shipped from the factory, it was
programmed in Mode 4. The mode to which the vehicle
has been programmed may have been changed since it
left the factory. To determine the mode to which your
vehicle is programmed or to program your vehicle to a
different mode, do the following:
1. Follow the instructions for ªEntering Programming
Modeº listed previously.
2. Press LOCK on the remote keyless entry transmitter.
3. Count the number of chimes you hear. The number
of chimes indicates the vehicle's current programmed
mode. (If you do not wish to change the current
mode, you can either exit the programming mode
by following the instructions later in this section or
program the next feature available on your vehicle.)
4. Press LOCK to change the current mode.
5. Press LOCK until you hear the number of chimes
corresponding to the mode selection you want.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.Content Theft-Deterrent System
With the content theft-deterrent system, if anyone
damages or enters your vehicle while the system is
armed, the horn will sound and your parking lamps will
flash for two minutes. The content theft shock sensor
detects if anyone damages your vehicle. The shock
sensors sensitivity can be adjusted, by your Oldsmobile
dealer, if more or less sensitivity is desired.
Programmable Modes
Mode 1: Damage Detection with Reduced Sensitivity
(If anyone seriously damages your vehicle or opens a
door or the liftgate while your content theft
-deterrent
system is armed, an alarm will sound and your parking
lamps will flash for up to two minutes.)
Mode 2: Damage Detection Off (If anyone opens a door
or the liftgate while your content theft
-deterrent system
is armed, an alarm will sound and your parking lamps
will flash for up to two minutes.)
Mode 3: Feature Off (Your content theft
-deterrent
system is always disarmed.)
Mode 4: Damage Detection with Normal Sensitivity
(If anyone damages or enters your vehicle while your
content theft
-deterrent system is armed, an alarm will
sound and your parking lamps will flash for up to
two minutes.)

2-24
When your vehicle was shipped from the factory, it was
programmed in Mode 4. The mode to which the vehicle
has been programmed may have been changed since it
left the factory. To determine the mode to which your
vehicle is programmed or to program your vehicle to a
different mode, do the following:
1. Follow the instructions for ªEntering Programming
Modeº listed previously.
2. Turn the parking lamps on, then off.
3. Count the number of chimes you hear. The number
of chimes indicates the vehicle's current programmed
mode. (If you do not wish to change the current
mode, you can either exit the programming mode
by following the instructions later in this section or
program the next feature available on your vehicle.)
4. Turn the parking lamps on, then off to change the
current mode.
5. Turn the parking lamps on, then off until you hear
the number of chimes corresponding to the mode
selection you want.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.Arming and Disarming the Content
Theft-Deterrent System
To arm and disarm the content theft-deterrent system,
the system must be turned on using Modes 1, 2 or 4
listed previously in this section under ªContent
Theft
-Deterrent System.º
With the arming and disarming feature, you can program
the vehicle to do the following:

Arm the system when you lock the doors using either
power door lock switch while any door or the liftgate
is open and the key is removed from the ignition.

Arm the system when you lock the doors with your
key or remote keyless entry transmitter and the key
is removed from the ignition.

Disarm the system when you unlock the doors with
your key or remote keyless entry transmitter.
