Page 4 of 436
Table of Contents
Windows
Keys and Door Locks
Remote Keyless Entry (Option)
Automatic Transaxle
Parking Brake
Tilt Wheel
Turn Signal/Multifunction Lever
Windshield Wipers
Cruise Control
Exterior and Interior LampsMirrors
Storage Compartments
Convenience Net (Option)
Accessory Power Outlets
OnStar® System (If Equipped)
HomeLink® Transmitter (Option)
Instrument Panel, Warning Lights and Gages
Driver Information Center (DIC) (Option)
Rear Parking Assist (Option) Seats and Seat Controls
Safety BeltsAir Bag Systems
Restraint Systems for Children
Section
1
Section
2
Seats and Restraint Systems
Features and Controls
ii
Page 23 of 436
1-11
Removing the Split Bench Seat
Make sure the seatback is in the upright position.
1. For the second row split bench, with the seatback in
the upright position, unhook the side attachment for
the safety belt. This mini
-buckle is located on the
right side of the seat.
2. Push the red center
of the buckle up
with a small pointed
object
-- like a key or
a pen
-- to remove the
seat belt, if needed.
3. Lift the seatback recliner lever or pull the nylon strap
on the back of the seat to fold the seatback forward.4. Slide the seat all the way back by lifting one of the
adjustment levers and sliding the seat fully rearward.
5. From behind the bench seat, pull the nylon strap at
the center of the base of the seat to release the rear
latches from the floor pins.
Do not let go of the strap until the seat is folded all
the way forward.
Page 50 of 436
1-38
The best way to protect the fetus is to protect the
mother. When a safety belt is worn properly, it's
more likely that the fetus won't be hurt in a crash.
For pregnant women, as for anyone, the key to
making safety belts effective is wearing them properly.
Right Front Passenger Position
To learn how to wear the right front passenger's
safety belt properly, see ªDriver Positionº earlier in
this section.
The right front passenger's safety belt works the same
way as the driver's safety belt
-- except for two things.
If the belt stops before it reaches the buckle, tilt the latch
plate and keep pulling until you can buckle the belt.
On some vehicles, if you pull the shoulder portion of the
belt out all the way, you will engage the child restraint
locking feature. If this happens, just let the belt go back
all the way and start again.
Page 58 of 436
1-46 Servicing Your Air Bag-Equipped Vehicle
Air bags affect how your vehicle should be serviced.
There are parts of the air bag systems in several places
around your vehicle. Your dealer and the service manual
have information about servicing your vehicle and the
air bag systems. To purchase a service manual, see
ªService and Owner Publicationsº in the Index.
CAUTION:
For up to 10 seconds after the ignition key is
turned off and the battery is disconnected,
an air bag can still inflate during improper
service. You can be injured if you are close to an
air bag when it inflates. Avoid yellow connectors.
They are probably part of the air bag systems.
Be sure to follow proper service procedures, and
make sure the person performing work for you
is qualified to do so.
The air bag systems do not need regular maintenance.
Safety Belt Pretensioners
Your vehicle has safety belt pretensioners. You'll find
them on the buckle end of the safety belts for the driver
and right front passenger. They help the safety belts
reduce a person's forward movement in a moderate
to severe crash in which the front of the vehicle
hits something.
Pretensioners work only once. If they activate in a crash,
you'll need to get new ones, and probably other new
parts for your safety belt system. See ªReplacing
Restraint System Parts After a Crashº in the Index.
Page 93 of 436
2-
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything
is working properly
-- and what to do if you have a problem.
2
-2 Windows
2
-5 Keys
2
-7 Door Locks
2
-10 Remote Keyless Entry System (Option)
2
-16 Multifunction Alarm Locks and
Lighting Choices
2
-26 Dual Sliding Doors
2
-28 Power Sliding Door (Option)
2
-35 Liftgate
2
-36 Theft
2
-37 Content Theft-Deterrent (Option)
2
-40 PASS-Key III
2
-42 New Vehicle ªBreak-Inº
2
-42 Ignition Positions
2
-44 Starting Your Engine
2
-45 Engine Coolant Heater (If Equipped)
2
-47 Automatic Transaxle Operation
2
-51 Parking Brake
2
-52 Shifting Into PARK (P)2
-54 Shifting Out of PARK (P)
2
-55 Parking Over Things That Burn
2
-55 Engine Exhaust
2
-56 Running Your Engine While You're Parked
2
-57 Turn Signal/Multifunction Lever
2
-64 Exterior Lamps
2
-67 Interior Lamps
2
-72 Storage Compartments
2
-85 Accessory Inflator System (Option)
2
-87 Accessory Power Outlets
2
-88 OnStar System (If Equipped)
2
-91 HomeLink Transmitter (Option)
2
-94 The Instrument Panel -- Your
Information System
2
-99 Warning Lights, Gages, Messages
and Indicators
2
-108 Message Center
2
-115 Driver Information Center (DIC) (Option)
2
-118 Rear Parking Assist (Option)
Page 97 of 436
2-5

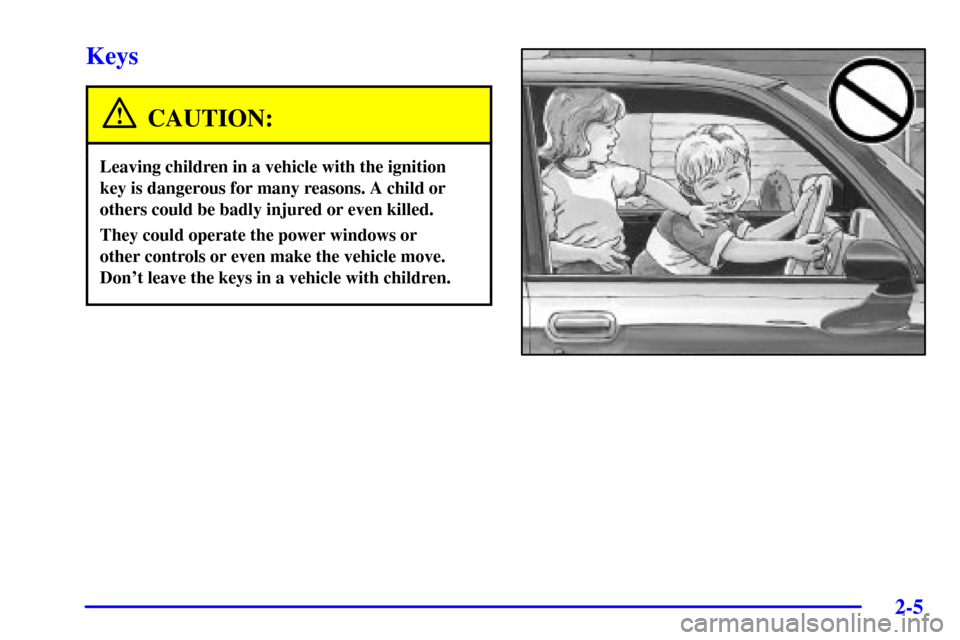

Keys
CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. A child or
others could be badly injured or even killed.
They could operate the power windows or
other controls or even make the vehicle move.
Don't leave the keys in a vehicle with children.
Page 98 of 436
2-6
The master key can be
used for the ignition
as well as all door locks,
the liftgate lock and the
storage compartments.
If you need a new key, contact your Oldsmobile dealer,
who can obtain the correct key code. In an emergency,
call Oldsmobile Roadside Assistance. See ªRoadside
Assistanceº in the Index for more information.Your vehicle has the PASS-Key III vehicle theft
system. The key has a transponder in the key head that
matches a decoder in the vehicle's steering column.
If a replacement key or any additional key is needed,
you must purchase this key from your dealer. The key
will have PK3 stamped on it. Keep the bar code tag that
came with the original keys. Give this tag to your dealer
if you need a new key made.
Any new PASS
-Key III key must be programmed before it
will start your vehicle. See ªPASS
-Key IIIº in the Index
for more information on programming your new key.
NOTICE:
Your vehicle has a number of new features that
can help prevent theft. But you can have a lot of
trouble getting into your vehicle if you ever lock
your key inside. You may even have to damage
your vehicle to get in. So be sure you have an
extra key.
Page 99 of 436
2-7
Door Locks
CAUTION:
Unlocked doors can be dangerous.
Passengers -- especially children -- can
easily open the doors and fall out of a
moving vehicle. When a door is locked,
the handle won't open it. You increase the
chance of being thrown out of the vehicle in
a crash if the doors aren't locked. So, wear
safety belts properly and lock the doors
whenever you drive.
Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.
Outsiders can easily enter through an
unlocked door when you slow down or stop
your vehicle. Locking your doors can help
prevent this from happening.
There are several ways to lock and unlock your vehicle.
From the outside, use your key or the optional remote
keyless entry transmitter.
To unlock either front door from the outside with the key,
insert the key and turn it toward the front of the vehicle.
You can lock either front door from the outside with
your key by inserting and turning it toward the rear of
the vehicle.
To lock either front door from the inside, push the
manual lever forward.
To unlock either front door from the inside, pull back on
the manual lever.
Page 100 of 436
2-8 Power Door Locks
From the inside, press the front of the power door lock
switch (on either front door) to unlock all doors and the
liftgate. If your vehicle has the content theft
-deterrent
system, the power door lock switch will not unlock the
doors until the system is disarmed. See ªContent
Theft
-Deterrentº in the Index for more details.
You can lock all doors and the liftgate from the inside
by pressing the rear of the power lock switch on either
front door.If your vehicle has the content theft
-deterrent system,
the power door lock switch may cause the system to
arm. See ªContent Theft
-Deterrentº in the Index for
more details.
To unlock any door or the liftgate from the outside with
your key, turn the key towards the front of the vehicle
and release it. This will only unlock that door or the
liftgate. To unlock all the doors and the liftgate at once,
insert the key into the key cylinder, then turn it towards
the front of the vehicle and hold it for one second.
With power door locks, you can lock all the doors from
the outside by inserting the key and turning the key
toward the rear of the vehicle.
Also, when the doors are locked with the power door
locks, the inside as well as the outside door handle
cannot open the doors. This safety feature prevents a
door from being accidentally opened from the inside
by moving the handle.
To override this safety feature, unlock the door you
want to open.
When the liftgate has been unlocked with the power
door locks, you won't need the key to open it.
Simply squeeze the handle located above the license
plate. This is also true if you use the optional remote
keyless entry transmitter. See ªRemote Keyless Entry
Systemº later in this section.
Page 101 of 436
2-9
Last Door Closed Locking
The last door closed locking feature makes it easier to
use your power door locks to lock all the doors and the
liftgate when leaving your vehicle.
The first time you attempt to lock the doors using the
power lock switch or the optional remote keyless entry
transmitter, three chimes will signal that last door closed
locking is being used when any door or the liftgate is
open. All doors and the liftgate can be re
-opened for
up to five seconds from the time the last door is closed.
Five seconds after the last door is closed, all the doors
will lock. You can lock the doors immediately using the
power door lock switch or the optional remote keyless
entry transmitter a second time.
If the ignition is in RUN or ACCESSORY, this feature
will not lock the doors.
To turn the last door closed locking feature off or on,
see ªMultifunction Alarm Locks and Lighting Choicesº
in the Index.
Automatic Door Locks
All of the doors will lock automatically when you move
your shift lever out of PARK (P). All doors will unlock
automatically when the ignition is turned off while the
shift lever is in PARK (P).
If someone needs to get out while you're not in
PARK (P), have that person use the manual lever or
the power door lock switch. When the door is closed
again, it will not lock automatically. Use the manual
lever or the power door lock switch to lock the door.
To change the way the automatic door locks operate,
see ªMultifunction Alarm Locks and Lighting Choicesº
in the Index.
With the automatic door locks feature, you can lock or
unlock the doors at any time, either manually or by
using the power door lock switches.
Sliding Door Delayed Locking
If either sliding door is open when you use the power
door locks to lock the vehicle, the sliding door that is
open will not lock. Normally the last door closed
locking feature will be used to lock the sliding door
after it has been closed.
