Oldsmobile Silhouette 2002 s Owner's Guide
Manufacturer: OLDSMOBILE, Model Year: 2002, Model line: Silhouette, Model: Oldsmobile Silhouette 2002Pages: 455, PDF Size: 2.97 MB
Page 21 of 455
1-15
Adjusting the Captain's Chairs (Second Row)
The second row captain's chairs can be adjusted forward
or rearward.
There are two adjustment levers on each seat. One is
located below the center, in front of the seat. The other
is located across the rear of the seat.
Lift up either lever to slide the seat forward or rearward.
Release the lever. Push and pull on the seat to make sure
it is locked into place.Removing the Captain's Chairs
1. Pull the nylon strap behind the chair to release the
rear hooks from the floor pins.
Page 22 of 455
1-16
2. The seat can then be lifted off the front floor pins
and removed from the vehicle.Replacing the Captain's Chairs
CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
CAUTION:
A seat that isn't locked into place properly can
move around in a collision or sudden stop. People
in the vehicle could be injured. Be sure to lock
the seat into place properly when installing it.
Page 23 of 455
1-17
CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted won't provide
the protection needed in a crash. The person
wearing the belt could be seriously injured. After
installing the seat, always check to be sure that
the safety belts are properly routed and attached,
and are not twisted.
Don't put the seats in so they face rearward because they
won't latch that way. For the second row, if you want
more storage room behind the seat, adjust the seat by
sliding it forward.
The captain's chairs have seat position labels, located on
the back of the seat, showing where the seat must go.
Follow that diagram. The seat must be placed in the
proper location for the legs to attach correctly.
Make sure the seatbacks are in the upright position, the
seat belts are on the correct side of the chairs and the
second row captain's chairs are in the full rear position
before beginning this procedure.
1. Hook the front latches over the front floor pins.
Page 24 of 455
1-18
2. Push the rear of the seat down to lock the rear latches
onto the rear set of floor pins.
3. Push and pull on the seat to be sure it is
properly attached.
Stowable Seat (Option)
The optional stowable seat is a full bench seat and
comes with the convenience center. See ªConvenience
Centerº in the Index for more information. The stowable
seat can be removed and replaced, or with the seatback
folded, it can lie flush with the convenience center.Folding the Seatback
CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
To fold down the seatback,
pull up on the lever located
on the back of the seat and
push the seatback down
until it is locked into place.
Push and pull on the seatback to make sure that it is
locked into place.
Page 25 of 455
1-19
To raise the seatback, do one of the following:
From the rear of the vehicle, pull up on the lever to
release the seatback, then pull the strap, located on
the right side of the seat, to pull the seatback up. The
seatback has a Velcro
patch to stow the strap on the
rear of the seat when not in use, or
from the passenger's side sliding door, pull up on the
lever to release the seatback, then push up on the
seatback to raise the seat.
Push and pull on the seatback to make sure that it is
locked into the upright position.
Removing the Stowable Seat
1. Remove the convenience center, if it is in the
vehicle. See ªConvenience Centerº in the Index
for more information.
2. Make sure all items are off of the stowable seat.
3. If the seatback is down, put the seatback in its
upright position before removing the seat. See
ªFolding the Seatbackº previously.
4. From behind the bench seat, push up the release
handles at the base of the seat to release the latches
from the floor pins.
5. While holding onto the crossbar at the bottom of the
seat, remove the seat by rocking it slightly toward
the rear of the vehicle and then pulling it out. This
should be done in one motion.
Page 26 of 455
1-20
NOTICE:
Do not use the release handles to pull the seat out.
The handles could break during removal. This
will not be covered by your warranty. Use the
crossbar at the bottom of the seat when pulling
the seat out.
Replacing the Stowable Seat
CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
CAUTION:
A seat that isn't locked into place properly can
move around in a collision or sudden stop. People
in the vehicle could be injured. Be sure to lock
the seat into place properly when installing it.
CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted won't provide
the protection needed in a crash. The person
wearing the belt could be seriously injured. After
installing the seat, always check to be sure that
the safety belts are properly routed and attached,
and are not twisted.
Page 27 of 455
1-21
Do not put the stowable seat in so it faces rearward
because it will not latch that way. The stowable seat has to
go in before the convenience center. See ªConvenience
Centerº in the Index for more information.
The stowable seat has seat position labels, located on the
back of the seat, showing where the seat must go.
Follow the floor pin diagram. Use the front floor pins of
the floor cups and the rear floor cups in the third row.
The seat must be placed in the proper location for the
legs to attach correctly.
Make sure the seat is in its upright position before
beginning this procedure.
1. Place the front hooks of the seat onto the front floor
pins in the third row. To do this, the seat will need to
be angled so the front hooks clear the floor pins.
If the front legs are not attached correctly, the rear
legs will not attach to the rear set of floor pins.
2. Firmly push the rear hooks into the rear floor pins by
pushing down on the rear of the seat.
3. Try to raise the seat to make sure that it is
locked down.
4. Push and pull on the seatback to make sure that it is
locked into place.Safety Belts: They're for Everyone
This part of the manual tells you how to use safety belts
properly. It also tells you some things you should not do
with safety belts.
And it explains the Supplemental Restraint System
(SRS), or air bag system.
CAUTION:
Don't let anyone ride where he or she can't wear
a safety belt properly. If you are in a crash and
you're not wearing a safety belt, your injuries
can be much worse. You can hit things inside the
vehicle or be ejected from it. You can be seriously
injured or killed. In the same crash, you might
not be if you are buckled up. Always fasten your
safety belt, and check that your passengers' belts
are fastened properly too.
Page 28 of 455
1-22

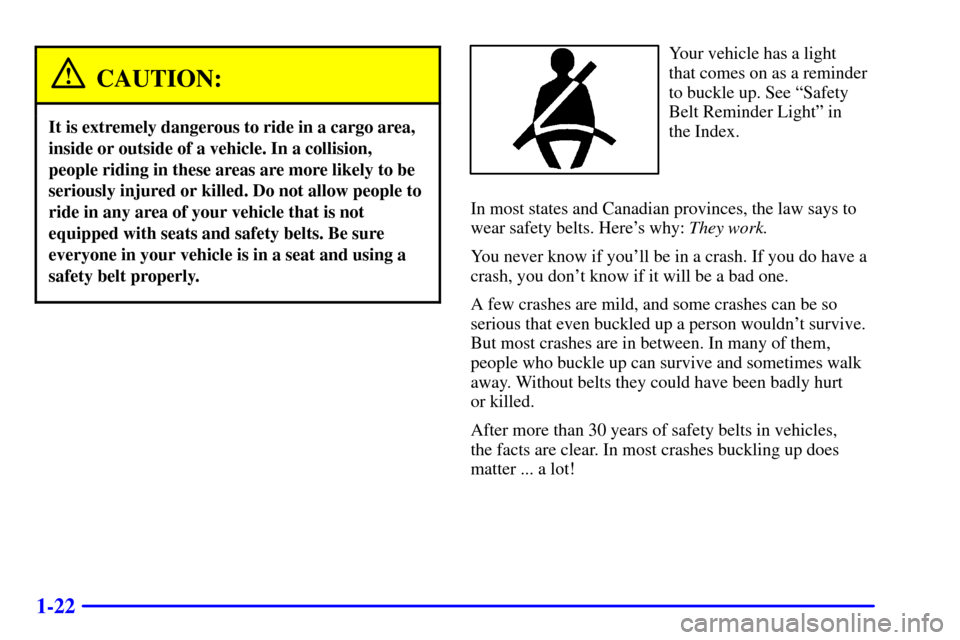

CAUTION:
It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision,
people riding in these areas are more likely to be
seriously injured or killed. Do not allow people to
ride in any area of your vehicle that is not
equipped with seats and safety belts. Be sure
everyone in your vehicle is in a seat and using a
safety belt properly.
Your vehicle has a light
that comes on as a reminder
to buckle up. See ªSafety
Belt Reminder Lightº in
the Index.
In most states and Canadian provinces, the law says to
wear safety belts. Here's why: They work.
You never know if you'll be in a crash. If you do have a
crash, you don't know if it will be a bad one.
A few crashes are mild, and some crashes can be so
serious that even buckled up a person wouldn't survive.
But most crashes are in between. In many of them,
people who buckle up can survive and sometimes walk
away. Without belts they could have been badly hurt
or killed.
After more than 30 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up does
matter ... a lot!
Page 29 of 455

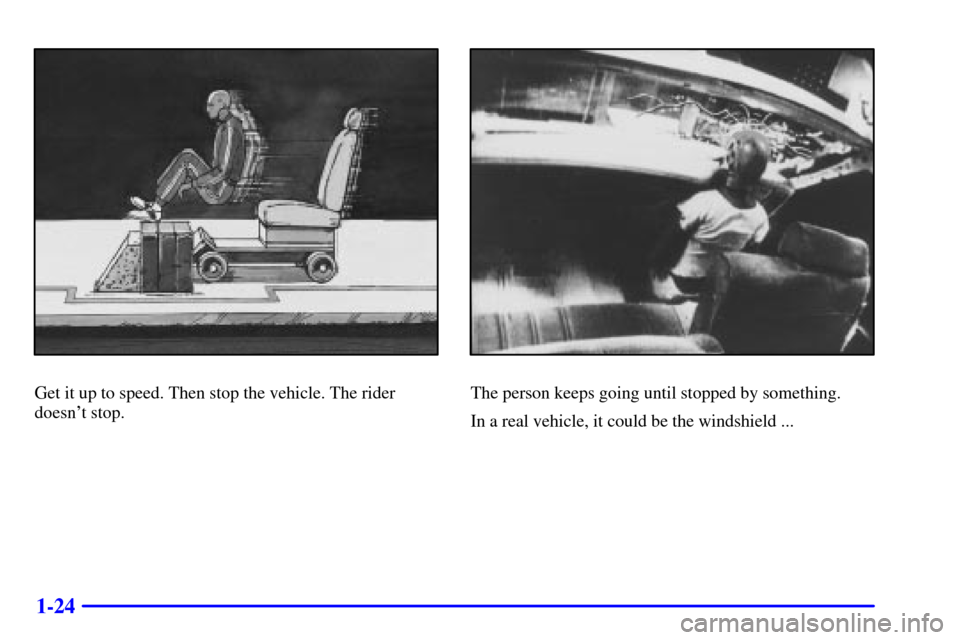

1-23 Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.
Take the simplest vehicle. Suppose it's just a seat
on wheels.
Put someone on it.
Page 30 of 455
1-24
Get it up to speed. Then stop the vehicle. The rider
doesn't stop.The person keeps going until stopped by something.
In a real vehicle, it could be the windshield ...
