2-17
Entering Programming Mode
To program features, your vehicle must be in the
programming mode. Follow these steps:
1. The optional content theft
-deterrent system must
be disarmed. See ªContent Theft
-Deterrent Systemº
in this section.
2. Remove the BCM PRGRM fuse from the instrument
panel fuse block, located to the right of the glove
box. See ªFuses and Circuit Breakersº in the Index.
3. Close the driver's door.
4. Turn the ignition key to ACCESSORY.
5. Count the number of chimes you hear. You will
hear two to four chimes depending on the features
your vehicle is equipped with. Refer to the chart
shown previously.
You can now program your choices.
To exit the programming mode, follow the steps
listed under ªExiting Programming Modeº later in
this section.
Delayed Illumination and Exit Lighting
This feature allows you to customize the interior lamps
when entering and exiting the vehicle.
Programmable Modes
Mode 1: Both Features Off (The interior lamps will
turn on or off at the same instant that a door is opened
or closed.)
Mode 2: Delayed Illumination Only (The interior lamps
will stay on for about 25 seconds after all the doors and
liftgate are closed, or until you lock the doors.)
Mode 3: Exit Lighting Only (The interior lamps will
come on whenever you remove the key from the ignition
and stay on for about 25 seconds, or until you lock
the doors.)
Mode 4: Both Features On (This combines
Modes 2 and 3.)

2-37
Parking at Night
Park in a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables out of sight.
Put them in a storage area, or take them with you.
Parking Lots
Even if you park in a lot where someone will be
watching your vehicle, it's still best to lock it up and
take your key. But what if you have to leave your
key? What if you have to leave something valuable in
your vehicle?

Put your valuables in a storage area, like your
glove box.

If your vehicle has a remote keyless entry system,
take the transmitter with you.

Lock all the doors except the driver's.
Content Theft-Deterrent (Option)
If your vehicle has this option, it has a theft-deterrent
alarm system.
A light located on top of your instrument panel (near the
center of the vehicle, next to the windshield) will flash
slowly to let you know that the system has been armed.
While armed, the doors will not unlock with the power
door lock switch.

2-68 Interior Lamps Override Switch
This switch is located
in the overhead
console switchbank.
Press the symbol on the switch to override control of the
interior lamps and turn off power to the reading lamps,
visor vanity lamps and glove box lamp. This feature
allows you to have the lamps off when any door is open.
Press the textured part of the interior lamps override
switch to turn power back on to the interior lamps. This
will allow the lamps to stay on when any door is open.
Illuminated Entry
With illuminated entry, the interior of your vehicle is
illuminated so that you can see inside before you enter
your vehicle. The lamps will come on for 40 seconds if
you unlock your door using your key or the optional
remote keyless entry transmitter and the ignition is in
LOCK or OFF. After 40 seconds have passed, the
interior lamps will slowly fade out. The lamps will turn
off before the 40 seconds if you:

Lock all the doors using the key,

press LOCK on the power door lock switch, or

press LOCK on the optional remote keyless
entry transmitter.
When any door is opened, illuminated entry is cancelled.
The interior lamps will stay on while any door or the
liftgate is open, and slowly fade out when all doors and
the liftgate are closed.
The interior lamps may stay on for up to 25 seconds
after all doors have been closed if they have not been
locked. See ªDelayed Illuminationº later in this section.
To turn the exit lighting feature off or on, see
ªMultifunction Alarm Locks and Lighting Choicesº
in the Index.

2-73
Storage Compartments
Your vehicle's large carrying capacity can store many
items. You can carry things as large as a 4
x 8
piece of
plywood. You can also use the floor pins that are used to
attach the seats, to secure larger loads.
Glove Box
Your vehicle has a glove box below the instrument
panel. To open the glove box, lift the latch release.
Use the key to lock or unlock the glove box.
The glove box door has a detent to prevent the door
from lowering too far. Open the glove box until the door
is partway open, then pull the door down if you need it
fully open. To close the glove box, the door must be
pushed up past the detent.
In the door of the glove box, you will find a tissue pack
holder and clip for a pen or pencil.
Compact Overhead Console (Canada Only)
The front overhead console includes two reading lamps,
a storage compartment and a switchbank.

2-74 Overhead Console (Option)
The optional front overhead console has reading lamps,
a switchbank, storage compartments, OnStar
System
buttons, an optional Driver Information Center (DIC)
and optional HomeLink

Transmitter buttons. For
information on the features listed see each of them in
the Index.
Storage Bin
At the base of the center instrument panel console, there
is a storage bin. To open the bin, lift the latch release
and the door will fold down.
Inside the bin, you will find a tray that slides out. Slide
the tray all the way toward the rear of the vehicle until
the tray locks onto the plastic tabs at the end of the
guide rails. The tray can hold CDs or cassettes in the
center area. You can also store cassettes in the left and
right side area. The tray can be removed for cleaning
or when you want to replace the selection of CDs or
cassettes. Slide the tray back into the storage bin before
closing the bin door. The tray can also be placed in the
glove box for locked storage if desired.

2-84
Accessory Inflator System (Option)
Your vehicle may have an air inflator. With it, you
can inflate things like air mattresses and basketballs,
and you can also use it to bring your tires up to the
proper pressure.
The air inflator is located in the rear compartment on the
driver's side. To remove the cover, pull the tab on the
cover and pull it off.
The air inflator kit is stored in the glove box. It includes
a 20
-foot (6 m) hose with an air pressure gage and
nozzle adapters.
CAUTION:
Inflating something too much can make it
explode, and you or others could be injured. Be
sure to read the inflator instructions, and inflate
any object only to its recommended pressure.

2-85
The switch and outlet for the air inflator system are
located in the rear compartment on the driver's side next
to the accessory power outlet.
To use your air inflator system, do the following:
1. Turn the ignition key to ACCESSORY or START.
2. Attach the appropriate nozzle adapter, if required, to
the end of the hose that has the pressure gage.
3. Then attach that end of the hose to the object you
wish to inflate.4. Remove the protective cap covering the outlet.
5. Attach the other end of the hose to the outlet.
6. Press the ON switch.
If the air inflator system does not turn on, the fuse may
be blown or installed incorrectly. See ªFuses and Circuit
Breakersº in the Index or see your dealer for service.
Your air inflator will automatically shut off after about
10 minutes. To reset, press the ON switch again.
Don't run your air inflator for longer than 30 minutes at
one time. If you do, you may damage the system. After
30 minutes, wait at least 10 minutes before restarting the
air inflator.
To turn off the inflator, do the following:
1. Press OFF and detach the hose, first from the
inflated object, then from the outlet.
2. Put the protective cap back on.
3. Place the inflator kit tools in the pouch, and store in
the glove box.
To put the cover the back, line up the tabs at the back
of the cover and put it in place. Push down the tab to
secure the cover.

2-95
The main components of the instrument panel are:
A. Side Vents
B. Front Vents
C. Turn Signal/Multifunction Lever
D. Hazard Warning Flasher Switch
E. Instrument Panel Cluster
F. Center Vents
G. Audio System
H. Side Vents
I. Exterior Lamps Control
J. Hood Release
K. Audio Steering Wheel Controls (Option)
L. HornM. Ignition Switch
N. Audio Steering Wheel Controls (Option)
O. Climate Controls
P. Rear Fan Controls (Option)
Q. Cupholder Tray
R. Accessory Power Outlet
S. Storage Bin
T. Instrument Panel Switchbank
U. Glove Box
V. Front Vents
W. Instrument Panel Fuse Block

6-19

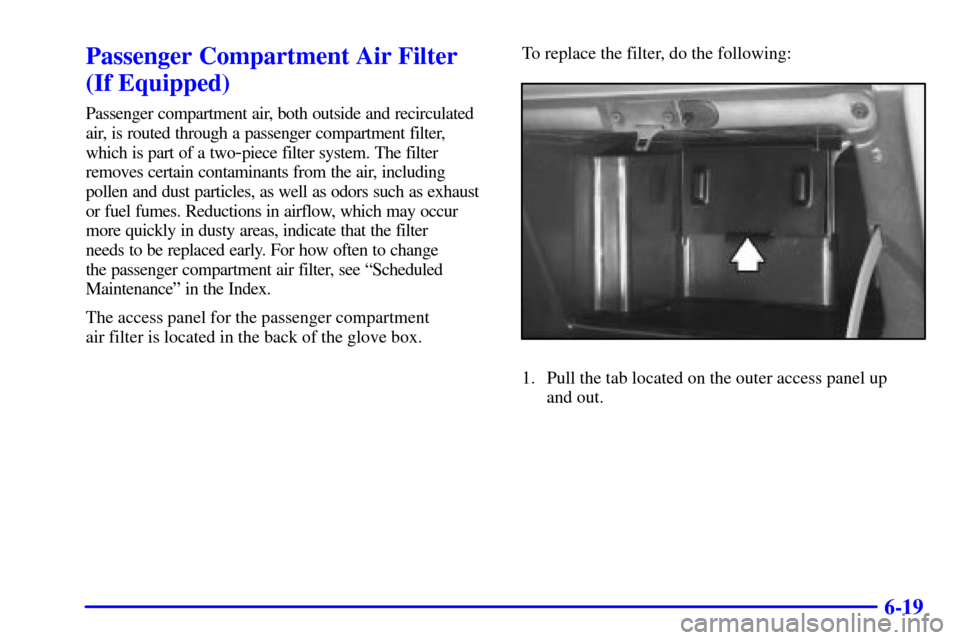

Passenger Compartment Air Filter
(If Equipped)
Passenger compartment air, both outside and recirculated
air, is routed through a passenger compartment filter,
which is part of a two
-piece filter system. The filter
removes certain contaminants from the air, including
pollen and dust particles, as well as odors such as exhaust
or fuel fumes. Reductions in airflow, which may occur
more quickly in dusty areas, indicate that the filter
needs to be replaced early. For how often to change
the passenger compartment air filter, see ªScheduled
Maintenanceº in the Index.
The access panel for the passenger compartment
air filter is located in the back of the glove box. To replace the filter, do the following:
1. Pull the tab located on the outer access panel up
and out.

6-20

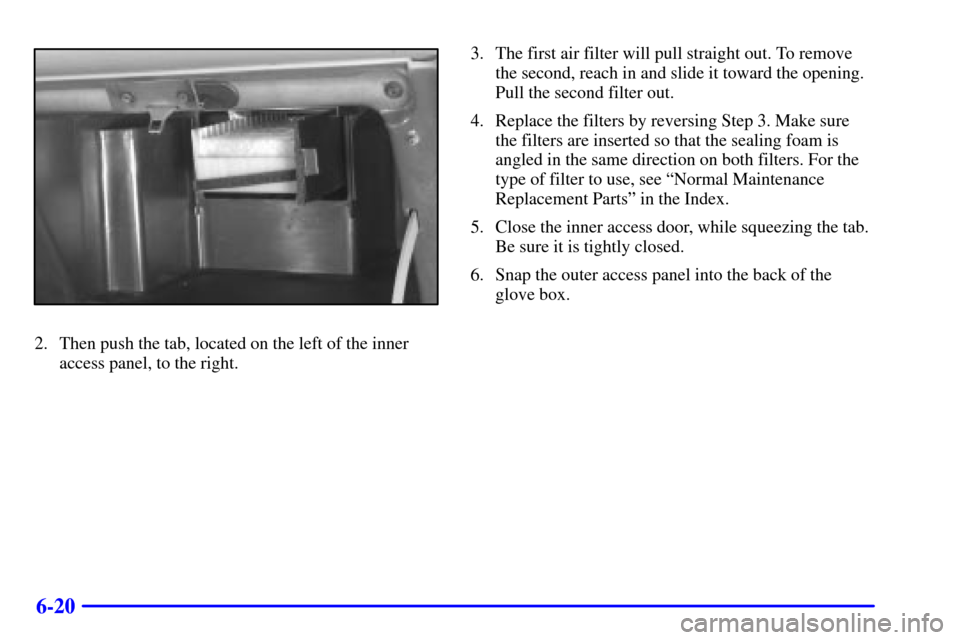

2. Then push the tab, located on the left of the inner
access panel, to the right.3. The first air filter will pull straight out. To remove
the second, reach in and slide it toward the opening.
Pull the second filter out.
4. Replace the filters by reversing Step 3. Make sure
the filters are inserted so that the sealing foam is
angled in the same direction on both filters. For the
type of filter to use, see ªNormal Maintenance
Replacement Partsº in the Index.
5. Close the inner access door, while squeezing the tab.
Be sure it is tightly closed.
6. Snap the outer access panel into the back of the
glove box.
