Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Windows
2
-5 Keys
2
-7 Door Locks
2
-10 Remote Keyless Entry System (Option)
2
-16 Multifunction Alarm Locks and
Lighting Choices
2
-26 Dual Sliding Doors
2
-28 Power Sliding Door (Option)
2
-35 Liftgate
2
-36 Theft
2
-37 Content Theft-Deterrent (Option)
2
-40 PASS-Key
III
2
-42 New Vehicle ªBreak-Inº
2
-42 Ignition Positions
2
-44 Starting Your Engine
2
-45 Engine Coolant Heater (If Equipped)
2
-47 Automatic Transaxle Operation
2
-51 Parking Brake
2
-52 Shifting Into PARK (P)2
-55 Shifting Out of PARK (P)
2
-55 Parking Over Things That Burn
2
-56 Engine Exhaust
2
-56 Running Your Engine While You're Parked
2
-58 Turn Signal/Multifunction Lever
2
-65 Exterior Lamps
2
-67 Interior Lamps
2
-73 Storage Compartments
2
-84 Accessory Inflator System (Option)
2
-86 Accessory Power Outlets
2
-87 OnStar
System (If Equipped)
2
-91 HomeLink
Transmitter (Option)
2
-94 The Instrument Panel -- Your
Information System
2
-99 Warning Lights, Gages, Messages and
Indicators
2
-108 Message Center
2
-116 Driver Information Center (DIC) (Option)
2
-119 Rear Parking Assist (Option)

2-20
Before your vehicle was shipped from the factory, it was
programmed in Mode 4. The mode to which the vehicle
was programmed may have been changed since it left
the factory. To determine the mode to which your
vehicle is programmed or to program your vehicle to
a different mode, do the following:
1. Follow the instructions for ªEntering Programming
Modeº listed previously.
2. Press UNLOCK on the power door lock switch.
3. Count the number of chimes you hear. The number
of chimes indicates the vehicle's current programmed
mode. (If you do not wish to change the current
mode, you can either exit the programming mode
by following the instructions later in this section or
program the next feature available on your vehicle.
4. Press UNLOCK to change the current mode.
5. Press UNLOCK until you hear the number of chimes
corresponding to the mode selection you want.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.Remote Driver's Unlock Control
This feature allows you to customize the UNLOCK
button on the remote keyless entry transmitter.
Programmable Modes
Mode 1: Remote All Doors Unlock (When you press
UNLOCK on your remote keyless entry transmitter,
all doors and the liftgate will unlock.)
Mode 2: Remote Driver's Door Unlock Only (When
you press UNLOCK on your remote keyless entry
transmitter once, the driver's door will unlock. When
you press UNLOCK on your remote keyless entry
transmitter again within five seconds, all doors and the
liftgate will unlock.)
Before your vehicle was shipped from the factory, it was
programmed in Mode 2. The mode to which the vehicle
was programmed may have been changed since it left
the factory. To determine the mode to which your
vehicle is programmed or to program your vehicle
to a different mode, do the following:
1. Follow the instructions for ªEntering Programming
Modeº listed previously.
2. Press UNLOCK on the remote keyless
entry transmitter.

2-35
Liftgate
To unlock the liftgate from the outside, turn the key in
the cylinder clockwise or use the optional remote
keyless entry transmitter. To lock the liftgate using the
key, turn the key counterclockwise.
Open the liftgate using the handle above the license
plate. Once slightly opened, the liftgate will rise by
itself. Lamps in the rear of the vehicle will come on,
illuminating the rear cargo area. See ªInterior Lampsº
in the Index.
NOTICE:
Be sure there are no overhead obstructions, such
as a garage door, before you open the liftgate.
You could slam the liftgate into something and
break the glass.
CAUTION:
It can be dangerous to drive with the liftgate
open because carbon monoxide (CO) gas can
come into your vehicle. You can't see or smell
CO. It can cause unconsciousness and even death.
If you must drive with the liftgate open or if
electrical wiring or other cable connections
must pass through the seal between the body
and the liftgate:

Make sure all other windows are shut.

Turn the fan on your heating or cooling
system to its highest speed with the setting
on vent and the outside air button pressed.
That will force outside air into your vehicle.
See ªComfort Controlsº
in the Index.

If you have air outlets on or under the
instrument panel, open them all the way.
See ªEngine Exhaustº in the Index.

2-68 Interior Lamps Override Switch
This switch is located
in the overhead
console switchbank.
Press the symbol on the switch to override control of the
interior lamps and turn off power to the reading lamps,
visor vanity lamps and glove box lamp. This feature
allows you to have the lamps off when any door is open.
Press the textured part of the interior lamps override
switch to turn power back on to the interior lamps. This
will allow the lamps to stay on when any door is open.
Illuminated Entry
With illuminated entry, the interior of your vehicle is
illuminated so that you can see inside before you enter
your vehicle. The lamps will come on for 40 seconds if
you unlock your door using your key or the optional
remote keyless entry transmitter and the ignition is in
LOCK or OFF. After 40 seconds have passed, the
interior lamps will slowly fade out. The lamps will turn
off before the 40 seconds if you:

Lock all the doors using the key,

press LOCK on the power door lock switch, or

press LOCK on the optional remote keyless
entry transmitter.
When any door is opened, illuminated entry is cancelled.
The interior lamps will stay on while any door or the
liftgate is open, and slowly fade out when all doors and
the liftgate are closed.
The interior lamps may stay on for up to 25 seconds
after all doors have been closed if they have not been
locked. See ªDelayed Illuminationº later in this section.
To turn the exit lighting feature off or on, see
ªMultifunction Alarm Locks and Lighting Choicesº
in the Index.

2-71
Cargo Lamp
The cargo lamp is located in the rear of your vehicle,
above the liftgate opening, and does not have a switch.
The cargo lamp will come on each time you open a
door, unless you turn on the interior lamps override.
See ªInterior Lamps Override Switchº in the Index.
Battery Saver
Your vehicle has a feature to help prevent you from
draining the battery, in case you accidentally leave the
interior lamps on. If you leave any interior lamps on
while the ignition is in LOCK or OFF, they will
automatically turn off after 10 minutes. The lamps
won't come back on again until you:

Turn the ignition to RUN or ACCESSORY,

turn the interior lamps thumbwheel all the way to the
right, then slightly back to the left, or

open (or close and reopen) a door that is closed.
If your vehicle has less than 15 miles (25 km) on the
odometer, the battery saver will turn off the lamps after
only three minutes.
Mirrors
Inside Day/Night Rearview Mirror
To reduce glare from lights behind you, pull the lever
toward you (to the night position). To return the mirror
to the day position, push the lever away from you.
Power Remote Control Rearview Mirrors
The control on the driver's
door operates both outside
rearview mirrors.

3-42
Entertainment System (Option)
Your vehicle may have an optional Digital Video Disc
(DVD) entertainment system. The entertainment system
works with the vehicle's audio system and includes a
DVD player, a video display screen, headphones and a
remote control. The entertainment system also integrates
the rear climate control and rear seat audio functions.
Before You Drive
The video entertainment system is for passengers in the
second and third row seats only. The driver cannot
safely view the video screen while driving and should
not try to do so.
In severe or extreme weather conditions your
entertainment system will shut down until the
temperature is within the operating range. This
protection feature will keep your video components
from being damaged while the temperature is below
-4
F (-20
C) or above 140
F (60
C). To resume
operation, shut off the entertainment system, pull down
the video screen and then heat or cool the vehicle until
the temperature is within the operating range.
Headphones
The entertainment
system includes four
dual channel, wireless
headphones. The
headphones have an
ON/OFF switch, a
channel A/B switch
and a volume control.
To use the headphones turn the switch located on the left
side to ON. An indicator light located on the right side
will illuminate. If the light does not illuminate, the
batteries may need to be replaced. See ªBattery
Replacementº later in this section for more information.
Switch the headphones to OFF when not in use.
If you move too far forward, step out of the vehicle or
break the ªline of sightº between the headphones and
the display above the video screen, the sound in the
headphones will be degraded or will cut out entirely. If the
system is shut off, or the headphones are out of the ªline
of sightº for more than three minutes, the headphones will
shut off automatically to preserve battery life.

3-43
If the channel switch located on the right side is on A,
the headphones will play the DVD or auxiliary device.
See ªStereo RCA Jacksº later in this section for
more information. If the channel switch is on B, the
headphones will play the rear seat audio system. See
ªRear Seat Audio (Vehicles with the Entertainment
System)º in the Index for more information.
To adjust the volume on the headphones, use the volume
control located on the right side.
NOTICE:
Do not store the headphones in heat or direct
sunlight. This could damage the headphones and
would not be covered by your warranty. Keep the
headphones stored in a cool place.
Battery Replacement
To change the batteries, do the following:
1. Slide open the battery door located on the left side of
the headphones.2. Remove the batteries from the compartment.
3. Replace the two AAA batteries. Make sure that they
are installed correctly.
If the headphones are to be stored for a long period
of time, remove the batteries and keep them in a cool,
dry place.
Stereo RCA Jacks

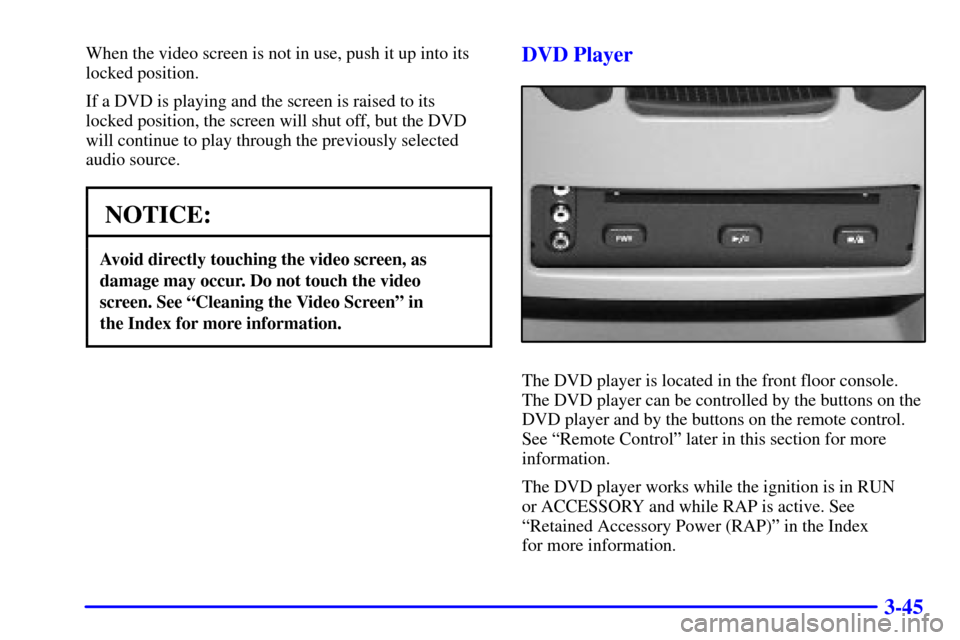

The RCA jacks are located on the faceplate of the DVD
player. They allow you to hook up an auxiliary device
such as a camcorder or a video game unit. You may
require adapter connectors or cables to connect your
auxiliary device to the RCA jacks. Refer to the
manufacturer's instructions for proper usage.
The entertainment system will always start in the
auxiliary mode. To use the auxiliary function, connect a
camcorder or a video game unit to the RCA jacks and
turn on the auxiliary device. If you want to view a DVD,
insert the DVD into the DVD player. The system will
automatically switch to DVD and start to play. To return
to the auxiliary device, press the stop button to stop the
DVD or use the remote control. See ªRemote Controlº
later in this section for more information.

3-45
When the video screen is not in use, push it up into its
locked position.
If a DVD is playing and the screen is raised to its
locked position, the screen will shut off, but the DVD
will continue to play through the previously selected
audio source.
NOTICE:
Avoid directly touching the video screen, as
damage may occur. Do not touch the video
screen. See ªCleaning the Video Screenº in
the Index for more information.
DVD Player
The DVD player is located in the front floor console.
The DVD player can be controlled by the buttons on the
DVD player and by the buttons on the remote control.
See ªRemote Controlº later in this section for more
information.
The DVD player works while the ignition is in RUN
or ACCESSORY and while RAP is active. See
ªRetained Accessory Power (RAP)º in the Index
for more information.

3-46
The entertainment system is only compatible with
DVDs authorized for use in the United States and
Canada. Regular audio CDs can also be played by
the DVD player. Home recorded CDs (CDRs) may not
play in this DVD player. Try the audio system CD
player instead.
DVD Player Buttons
PWR (Power): Press this button to turn the DVD
player on, to change to an auxiliary device or to turn the
system off.
(Play/Pause): Press this button to start play.
Press while playing to pause. Press it again to continue
playing.
(Stop/Eject): Press this button to stop playing.
Press the button a second time to eject the disc.
Playing a Disc
To play a disc, gently insert the disc (with the label side
up) into the loading slot until it stops. The DVD player
will continue loading the disc and the player will
automatically start.If a disc is already in the player, press the play/pause
button on the face of the player or on the remote control.
Some DVDs will not allow you to fast forward or skip
the copyright or previews. Some DVDs will begin
playing after the previews have finished. If the DVD
does not begin playing refer to the on
-screen
instructions.
Stopping and Resuming Playback
To stop a disc, press the stop/eject button on the DVD
player. To resume playback, press the play/pause button.
As long as you have not ejected the disc, it will resume
playback from the point where it was stopped. If the disc
has been ejected, the player will start playing at the
beginning of the disc.
Ejecting a Disc
Press the stop/eject button on the DVD player once to
stop and a second time to eject the disc.
If a disc is ejected from the player, but not removed,
the DVD player will reload the disc after a short period
of time.

3-47 Remote Control
To use the remote control, aim it at the display above the
video screen and press the desired button. Direct
sunlight or very bright light may affect the ability of the
entertainment system to receive signals from the remote
control. Be sure the remote's batteries are not
discharged, as this will also affect the function of the
remote control. Objects blocking the line of sight may
also affect the function of the remote control.
NOTICE:
Do not store the remote control in heat or direct
sunlight. This could damage the remote control
and would not be covered by your warranty.
Keep the remote control stored in a cool place.
Remote Control Buttons
Volume : Press
the up or down
arrow to increase
or decrease volume.
(Play/Pause): Press this button to play a disc.
Press this button while a disc is playing to pause. Press it
again to continue playing. If you press and hold this
button for three seconds or more, the DVD player will
turn off.
