warning light OLDSMOBILE SILHOUETTE 2003 Owner's Manual

h the wrong kind of fluid in ur brake
system, your brakes may not work well, or they
may not even work at all. This could cause a
crash. Always use the proper brake fluid.
Notice:
Using the wrong fluid can badly damage brake
system parts. For example, just a few drops of
mineral-based oil, such as engine oil,
in your
brake system can damage brake system
parts
so badly that they’ll have to be replaced.
Don’t let someone
put in the wrong kind of fluid.
0 If you spill brake fluid on your vehicle’s painted
surfaces, the paint finish can be damaged.
Be careful not to spill brake fluid on your
vehicle. If you do, wash
it off immediately.
See “Appearance Care” in the Index.
Brake Wear
Your vehicle has front disc brakes and rear drum brakes.
Disc brake pads have built-in wear indicators that make
a high-pitched warning sound when the brake pads are
worn and new pads are needed. The sound may come
and
go or be heard all the time your vehicle is moving
(except when you are pushing on the brake pedal firmly).
The brake wear warning sound means that soon
your brakes won’t work well. That could lead
to
an accident. When you hear the brake wear
warning sound, have your vehicle serviced.
Notice: Continuing to drive with worn-out brake
pads could result
in costly brake repair.
Some driving conditions or climates may cause a brake
squeal when the brakes are first applied or lightly
applied. This does not mean something is wrong with
your brakes.
5-41

Uniform Tire Quality Grading
Quality grades can be found where applicable on the
tire sidewall between tread shoulder and maximum
section width. For example:
Treadwear 200 Traction AA Temperature A
The following information relates to the system
developed by the United States National Highway
Traffic Safety Administration, which grades tires by
treadwear, traction and temperature performance.
(This applies only to vehicles sold in the United States.)
The grades are molded on the sidewalls of most
passenger car tires. The Uniform Tire Quality Grading
system does not apply to deep tread, winter-type
snow tires, space-saver or temporary use spare tires,
tires with nominal rim diameters of 10 to
12 inches
(25 to 30 cm), or to some limited-production tires.
While the tires available on General Motors passenger
cars and light trucks may vary with respect to these
grades, they must also conform to federal safety
Performance Criteria (TPC) standards.
-.-A -A-l:*:---l fi,,,,,I ill^+-”, T:”- It=~Ullt=lllelltb allu ~UUI~IUIIQI UCIICI~~ lvlulula I IIG
Treadwear
The treadwear grade is a comparative rating based on
the wear rate of the tire when tested under controlled
conditions on a specified government test course.
For example, a tire graded 150 would wear one and
a half (1
5) times as well on the government course as
a tire graded 100. The relative performance of tires
depends upon the actual conditions of their use,
however, and may depart significantly from the norm
due to variations in driving habits, service practices and differences in road characteristics and climate.
Traction - AA, A, 9, C
The traction grades, from highest to lowest, are AA, A,
B, and C. Those grades represent the tire’s ability
to stop on wet pavement as measured under controlled
conditions on specified government test surfaces of
asphalt and concrete. A tire marked C may have poor
traction performance. Warning: The traction grade
assigned to this tire is based on straight-ahead braking
traction tests, and does not include acceleration,
wrrlerir~ly, ilydlupih1Gl^ly, wr pea“ tIdwuI I cII la1 c~wz;I 1aL1t-a. ._ - - 1. A..- -A: - .- -L. -+--:-+:--
5-65

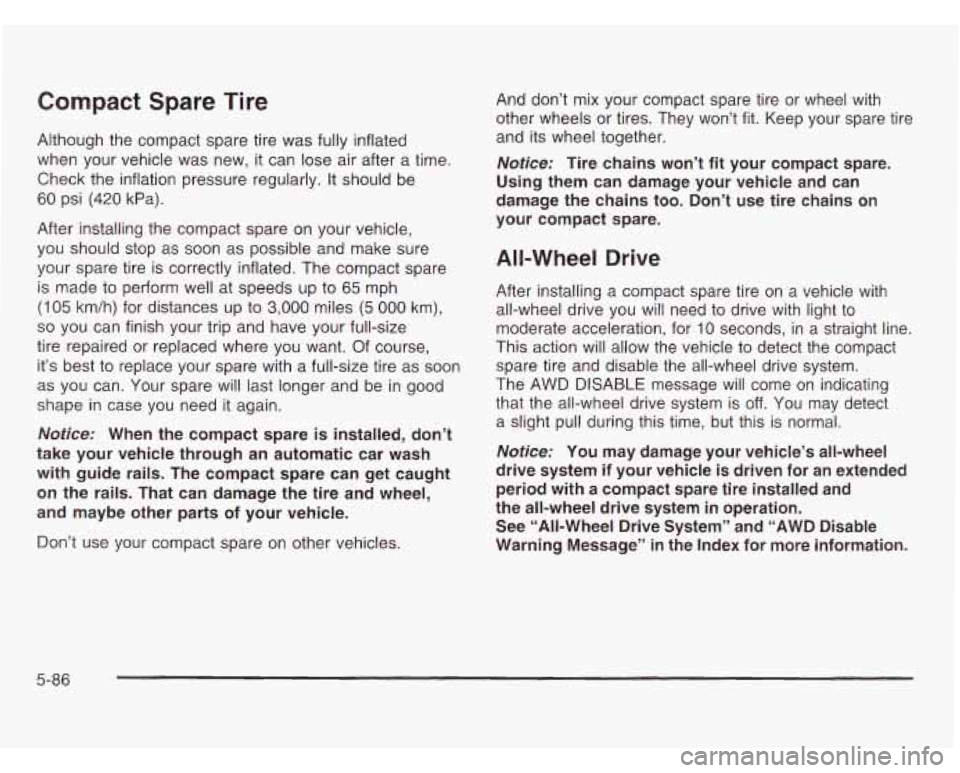

Compact Spare Tire
Although the compact spare tire was fully inflated
when your vehicle was new,
it can lose air after a time.
Check the inflation pressure regularly. It should be
60 psi (420 kPa).
After installing the compact spare on your vehicle,
you should stop as soon as possible and make sure
your spare tire is correctly inflated. The compact spare
is made to perform well at speeds up to 65 mph
(105 km/h) for distances up to 3,000 miles (5 000 km),
so you can finish your trip and have your full-size
tire repaired or replaced where you want. Of course,
it’s best to replace your spare with a full-size tire as soon
as you can. Your spare will last longer and be in good
shape in case you need it again.
Notice: When the compact spare is installed, don’t
take your vehicle through an automatic car wash
with guide rails. The compact spare can get caught
on the rails. That can damage the tire and wheel,
and maybe other parts of your vehicle.
Don’t use your compact spare on other vehicles. And
don’t mix your compact spare tire or wheel with
other wheels or tires. They won’t
fit. Keep your spare tire
and its wheel together.
Notice: Tire chains won’t fit your compact spare.
Using them can damage your vehicle and can
damage the chains too. Don’t use tire chains on
your compact spare.
All-Wheel Drive
After installing a compact spare tire on a vehicle with
all-wheel drive you will need to drive with light to
moderate acceleration, for
10 seconds, in a straight line.
This action will allow the vehicle to detect the compact
spare tire and disable the all-wheel drive system.
The AWD DISABLE message will come on indicating
that the all-wheel drive system is
off. You may detect
a slight pull during this time, but this is normal.
Notice: You may damage your vehicle’s all-wheel
drive system if your vehicle
is driven for an extended
period with a compact spare tire installed and
the all-wheel drive system in operation. See “All-Wheel Drive System’’ and “AWD Disable
Warning Message’’
in the Index for more information.
5-86

Accessory Inflator ........................................... 5-68
Accessory Power Outlets
................................. 3-24
Adding Washer Fluid
....................................... 5-38
Additional Program Information
........................... 7-8
Additives, Fuel
..................... ,... . ......... 5-6
Add-on Electrical Equipment
................. ... 5-96
Adjusting the Captain's Chairs
(Second Row)
............................................. 1-13
Adjusting the Speakers (Balance/Fade)
............................ 3-66, 3-73, 3-82
Air Bag Readiness Light
.......................................... 3-43
Air Bag Systems
............................................. 1-69
Servicing Your Air Bag-Equipped Vehicle
......... 1-76
What Will You See After an
How Does
ari Air Bag Restrain? .................... 1-74
What Makes an Air Bag Inflate?
.................... 1-74
Air Bag Inflates?
...................................... 1-74
When Should an Air Bag Inflate?
................... 1-73
Where Are the Air Bags?
.............................. 1-71
~II 'clttmIw/t-lller, Eflyirle ................................. 5- IS
All Overseas Locations ....... ........................ 7-4
A: . nr- ~ . . I~.ER
All-Wheel Drive ............................................... 5-86
All-Wheel Drive
............................................... 5-50
All-Wheel Drive Disable Warning Message .......... 3-59
All-Wheel-Drive (AWD) System
......................... 4-1 1
Aluminum Wheels ........................................... 5-92 AM
............................................................. 3-103
Antenna, Fixed Mast
...................................... 3-105
Anti-lock Brake System (ABS)
............................ 4-7
Anti-Lock Brake, System Warning Light
.............. 3-45
Appearance Care
............................................ 5-87
Care
of Safety Belts .................................... 5-90
Cleaning the Inside of Your Vehicle
................ 5-87
Cleaning the Outside of Your Vehicle
.............. 5-90
Finish Damage
............................................ 5-92
Chemical Paint Spotting
............................... 5-93
GM Vehicle Care/Appearance Materials
.......... 5-93
Sheet Metal Damage
................................... 5-92
Underbody Maintenance
............................... 5-93
Weatherstrips
.............................................. 5-90
Theft-Deterrent System
............. ......... 2-70
Arming and Disarming the Content
Arming Confirmation
.................... ............ 2-28
Arming with the Power Lock Switch
... ......... 2-27
Arming with the Remote Keyless Entry
Transmitter
................................................. 2-28
Arming with Your Key
...................................... 2-28
Audio Speakers
.............................................. 3-93
hdl0 System(s) ............................................. 3-63
Audio Systems
Audio Steering Wheel Controls
.................... 3-102
Care of Your Cassette Tape Player
............... 3-103
Care of Your CD and DVD Player
................ 3-104
Care
of Your CDs and DVDs ....................... 3-104
Fixed Mast Antenna
................. ... 3-105

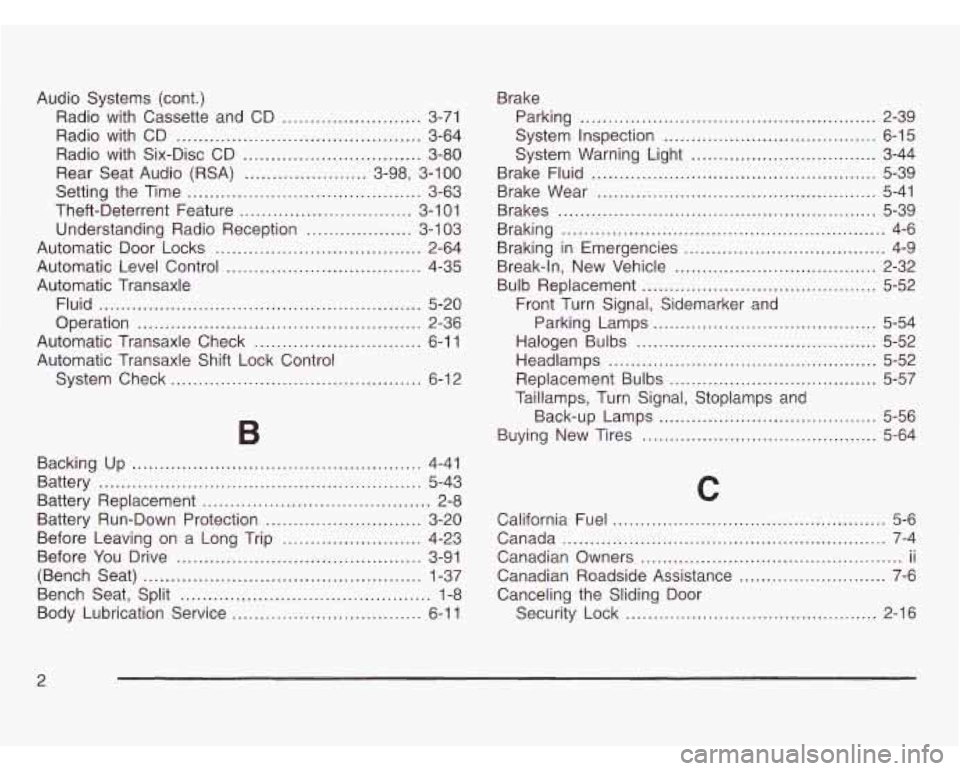

Audio Systems (cont.) Radio with Cassette and CD
......................... 3-71
Radio with CD
............................................ 3-64
Radio with Six-Disc CD
................................ 3-80
Rear Seat Audio (RSA)
...................... 3-98, 3-1 00
Setting the Time .......................................... 3-63
Theft-Deterrent Feature
............................... 3-1 01
Understanding Radio Reception
................... 3-1 03
Automatic Door Locks
..................................... 2-64
Automatic Level Control
................................... 4-35
Automatic Transaxle
Fluid
....................................................... 5-20
Automatic Transaxle Check
.............................. 6-1 1
Automatic Transaxle Shift Lock Control
System Check
................................... ... 6-12
Operation
................................................... 2-36
B
Backing
Up .................................................... 4-41
Battery
.......................................................... 5-43
Battery Replacement
......................................... 2-8
Battery Run-Down Protection
............................ 3-20
Before Leaving on a Long Trip
......................... 4-23
Before You Drive
............................................ 3-91
(Bench Seat)
.................................................. 1-37
Bench Seat, Split
............................................. 1-8
Body Lubrication Service
.................................. 6-1 1 Brake
Parking
.................................. .... 2-39
System Inspection
....................... ........ 6-15
System Warning Light
...................... .... 3-44
Brake Fluid
.................................................... 5-39
Brake Wear
................................................... 5-41
Brakes
.......................................................... 5-39
Braking
........................................................... 4-6
Braking in Emergencies
..................................... 4-9
Break-In, New Vehicle
..................................... 2-32
Bulb Replacement
........................................... 5-52
Halogen Bulbs
............................................ 5-52
Headlamps
................................................. 5-52
Front Turn Signal,
Sidemarker and
Parking Lamps
......................................... 5-54
Replacement Bulbs
...................................... 5-57
Taillamps, Turn Signal, Stoplamps and
Back-up Lamps
........................................ 5-56
Buying New Tires
........................................... 5-64
C
California Fuel .......................................... 5-6
Canada
..................................... .......... 7-4
Canadian Owners
....................... ................. II
Canadian Roadside Assistance ........................... 7-6
Canceling the Sliding Door
Security Lock
.............................................. 2-16

Climate Control System (cont.)
Outlet Adjustment
.................................... 3-31
Rear
.................................................. 3-32, 3-34
Comfort Controls
............................................. 3-25
Compact Disc Messages
................. 3-25, 3-79, 3-91
Compact Overhead Console
............................. 2-54
Compact Spare Tire
........................................ 5-86
Compass Variance
.......................................... 3-61
Content Theft-Deferrent
.................................... 2-27
Content Theft-Deterrent System
........................ 2-69
Content Theft-Deterrent System, Arming and
Disarming
................................................... 2-70
Control of a Vehicle
.......................................... 4-6
Convenience Center
........................................ 2-60
Convenience Net
............................................ 2-59
Coolant Engine Temperature Gage
............................ 3-47
Engine Temperature Warning Message
........... 3-53
Heater, Engine
............................................ 2-35
Cooling System
.............................................. 5-29
Cruise Control
................................................ 3-1 0
Cupholder(s) .................................................. 2-54
Current and Past Model Order Forms
................ 7-1 1
Customer Assistance Information
Courtesy Transportation
.................................. 7-7
Customer Assistance for Text
Telephone (TTY) Users
............................... 7-3
Customer Assistance Offices
........................... 7-4 Customer
Assistance Information (cont.)
Customer Satisfaction Procedure
..................... 7-2
GM Mobility Program for Persons with
Disabilities
................................................ 7-5
Reporting Safety Defects to General Motors
...... 7-9
Reporting Safety Defects to the Canadian
Government
.............................................. 7-9
Reporting Safety Defects to the United States
Government
.............................................. 7-9
Roadside Assistance Program
......................... 7-5
Service Publications Ordering Information ........ 7-10
Daytime Running Lamps/Automatic
Headlamp System
....................................... 3-15
Defensive Driving
............................................. 4-2
Defogging and Defrosting
......................... 3-27, 3-30
Delayed Lighting
............................................. 3-18
Delayed
Illumination and Exit Lighting
................ 2-63
Dinghy Towing
................................................ 4-33
Directing the Airflow
................................ 3-33, 3-35
Disarming with the Remote Keyless
Disarming with Your Key
.................................. 2-28
Doing Your Own Service Work
........................... 5-3
Dolly Towing
.................................................. 4-33
Dome Lamp
................................................... 3-17
Entry Transmitter
..................................... 2-28
4

Door Ajar Warning Message
................................. 3-57
Last Door Closed Locking
............................. 2-1 1
Power Door Locks ....................................... 2-10
Power Sliding Door
...................................... 2-1 6
Power Sliding Warning Message
.................... 3-56
Programmable Automatic Door Locks
............. 2-1 2
Position, Safety Belt
..................................... 1-28
Dual Sliding
Doors
....................................... 2-13
Locks
.......................................................... 2-9
Driver
Driver Information Center (DIC)
......................... 3-60
Driving
At Night
.................................................. 4-17
City
........................................................ 4-21
Defensive ..................................................... 4-2
Drunken ....................................................... 4-3
Freeway
..................................................... 4-22
Hill and Mountain Roads
.............................. 4-24
In Rain and on Wet Roads
........................... 4-1 8
Winter
........................................................ 4-26
Driving On Grades
.......................................... 4-42
Driving Through Deep Standing Water
............... 4-20
Driving with a Trailer
....................................... 4-40
Dual Trip Odometers
....................................... 3-41
ZrkiGCJ Gfi Sncjiiv Gi- kl3 4-a
Driving Through Flowing Water ......................... 4-20
Dual Climate Control System
............................ 3-28
n ,. ....................................
DVD
Care of Your
.......................................... 3-104
Care
of Your DVD Player ............................ 3-104
Cleaning the Video Screen
.......................... 3-105
Cleaning Your DVD Player .......................... 3-105
Distortion
.................................................. 3-1 03
Entertainment System
.................................. 3-91
DVD Player
.................................................... 3-94
E
Eight-Way Power Seats ..................................... 1-3
Electrical System
Add-on Equipment
...................................... 5-96
Fuses and Circuit Breakers
........................... 5-96
Headlamp Wiring
......................................... 5-96
Power Windows and Other Power Options
...... 5-96
Windshield Wiper Fuses
............................... 5-96
Maintenance Programs
............................. 3-50
Air CleanedFilter
...................... ........ 5-19
Battery ....................................................... 5-43
Change Oil Message
................................... 3-56
Coolant
...................................................... 5-23
Coolant Heater
............................................ 2-35
Emissions Inspection and
Engine
Check and Service Engine Soon Light
............ 3-47
Cnn!ant Temperature G2ge ........................... 3-47
5

Engine (cont.)
Coolant Temperature Warning Message
.......... 3-53
Cooling System Inspection
............................ 6-1 4
Engine Compartment Overview
.... ........... 5-12
Exhaust
..................................................... 2-43
Low Oil Level Message
................................ 3-55
Oil
............................................................. 5-14
Overheating
................................................ 5-26
Starting
...................................................... 2-34
Engine Coolant Level Check
............................. 6-10
Engine Oil Additives
......................... ....... 5-17
Engine Oil and Chassis Lubrication Scheduled Maintenance
................................. 6-5
Engine Oil Level Check
................................... 6-10
Engine Specifications
..................................... 5-1 04
Entering Programming Mode
............................ 2-63
Entertainment System
...................................... 3-91
Cleaning the Video Screen
.......................... 3-105
Cleaning Your DVD Player
.......................... 3-105
DVD Distortion
.......................................... 3-103
Entry Lighting
................................................. 3-18
Erasing HomeLink@ Buttons
.............................. 2-52
Exit Lighting
................................................... 3-19
Exiting Programming Mode
............................... 2-71
Express-Down Window
.................................... 2-25
Extender, Safety Belt
....................................... 1-44
Exterior Lamps
............................................... 3-1 4
F
FabricKarpet ................................................. 5-87
Engine Air Cleaner
...................................... 5-19
Filter
Finding
a PTY Station
..................... 3.67. 3.74. 3-83
Finding a Station
............................ 3-65, 3-72, 3-81
Finish Care
.................................................... 5-91
Finish Damage
............................................... 5-92
Fixed Mast Antenna
....................................... 3-105
Flash-to-Pass
................................................... 3-9
Flat Tire
........................................................ 5-69
Flat Tire, Changing
......................................... 5-70
Flip and Fold Rear Seats
.................................. 1-7
Fluid Automatic Transaxle
..................................... 5-20
Power Steering
........................................... 5-37
Windshield Washer
...................................... 5-38
FM
.............................................................. 3-103
Fog Lamps
.................................................... 3-16
Folding or Reclining the Seatbacks
............. 1-8, 1-14
Folding the Seatback
....................................... 1-18
Following Distance
.......................................... 4-41
Footnotes
........................................................ 6-5
Front Reading Lamps
...... ........................ 3-19
Front Seat Storage Net
................................ 2-55
Fuel
............................................................... 5-5
Additives
................. .......................... 5-6
California Fuel
....................................... 5-6

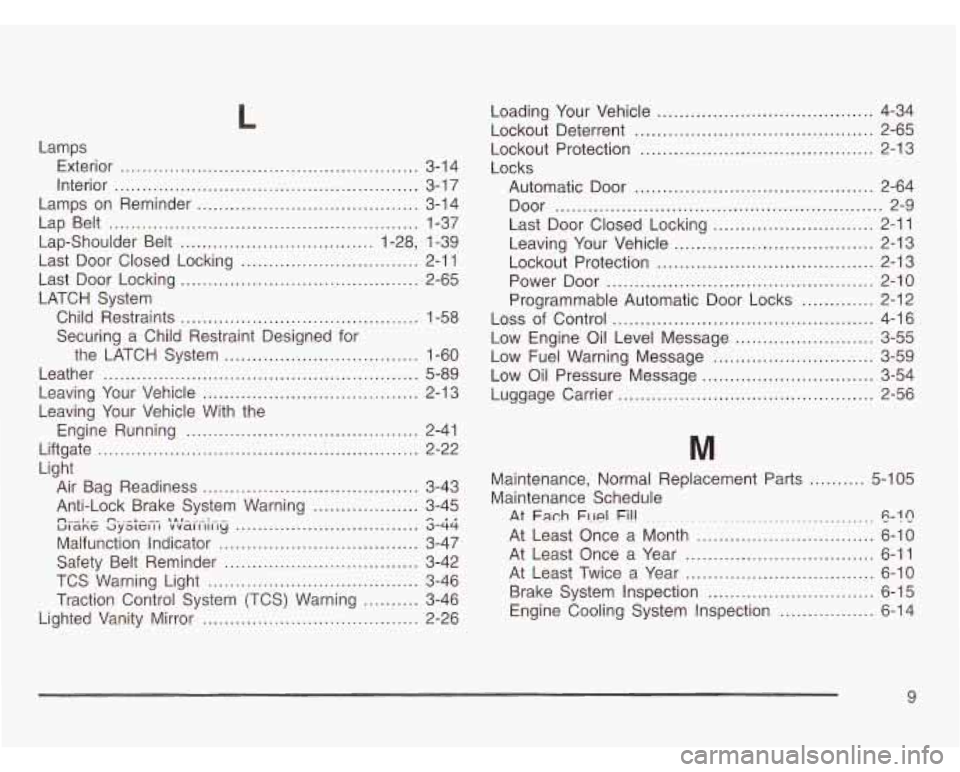

L
Lamps Exterior
..... ......................................... 3-14
Lamps on Reminder
........................................ 3-14
Lap-§boulder Belt ................................... 1-28, 1-39
Interior
....................................................... 3-1 7
Lap Belt ........................................................ 1-37
Last Door Closed Locking
................................ 2-1 1
Last Door Locking ........................................... 2-65
LATCH System Child Restraints
......................................... 1-58
Securing a Child Restraint Designed for
the LATCH System
................................... 1-60
Leather ......................................................... 5-89
Leaving Your Vehicle With the
Liftgate
.......................................................... 2-22
Light
Air Bag Readiness
....................................... 3-43
LeavifiCJ
YGl.i7 L'shicle ....................................... L- n-i I3
Engine Running .......................................... 2-41
Anti-Lock Brake System Warning
................... 3-45
ut ane 3~31~1 I I v V~II I 111 3-44
Malfunction indicator .................. .......... 3-47
Safety Belt Reminder
................................... 3-42
TCS Warning Light
...................................... 3-46
Traction Control System (TCS) Warning
.......... 3-46
Lighted Vanity Mirror
....................................... 2-26
ne-i*- n a IAI - : .................................
Loading Your Vehicle ....................................... 4-34
Lockout Deterrent
........................................... 2-65
Lockout Protection
.......................................... 2-13
Locks
Automatic Door
........................................... 2-64
Door
........................................................... 2-9
Last Door Closed Locking
............................. 2-11
Leaving Your Vehicle .................................... 2-13
Lockout Protection
....................................... 2-13
Power Door
................................................ 2-10
Programmable Automatic Door Locks
............. 2-12
Loss
of Control ............................................... 4-16
Low Engine Oil Level Message
......................... 3-55
Low Fuel Warning Message
............................. 3-59
Low Oil Pressure Message ............................... 3-54
Luggage Carrier
.............................................. 2-56
Maintenance. Normal Replacement Parts .......... 5-1 05
Maintenance Schedule
At Fach F!!d Fill .................. ........... c;-!c!
At Least Once a Month ............. ........ 6-10
At Least Once a Year
........... ........ 6-11
At Least Twice a Year
.................................. 6-10
Brake System Inspection
.............................. 6-15
Engine Cooling System Inspection
................. 6-14
9

Maintenance Schedule (cont.) Exhaust System Inspection
........................... 6-1 4
Fuel System Inspection
................................ 6-14
How This Section is Organized ....................... 6-3
Introduction
.................................................. 6-2
Maintenance Requirements
............................. 6-2
Part A
- Scheduled Maintenance Services ......... 6-4
Part B
- Owner Checks and Services ............. 6-10
Part
C - Periodic Maintenance Inspections ...... 6-1 4
Part D
- Recommended Fluids and
Lubricants
............................................... 6-1 6
Part E . Maintenance Record ........................ 6-18
Scheduled Maintenance
................................. 6-5
Steering, Suspension and Front Drive Axle
Boot and Seal Inspection
.......................... 6-14
Throttle System Inspection
............................ 6-1 5
Transfer Case (Power Transfer Unit) and
Carrier Assembly-Differential (Rear Drive
Module) All-Wheel Drive Inspection
............. 6-1 5
Using Your ................................................... 6-4
Your Vehicle and the Environment
................... 6-2
Maintenance When Trailer Towing
..................... 4-43
Making Turns
................................................. 4-41
Malfunction Indicator Light
................................ 3-47
Manual Seats
................................................... 1-2 Matching
Transmitter(s) to Your Vehicle
................. 2-7
Message
Memory Seat
................................. ......... 2-72
All-Wheel Drive Disable Warning
....... ..... 3-59
Center
...................................... ......... 3-52
Change Engine Oil
...................................... 3-56
Charging System Indicator
............................ 3-54
Door Ajar Warning
....................................... 3-57
Engine Coolant Temperature Warning
............. 3-53
Low Engine Oil Level ................................... 3-55
Low Fuel Warning
................................... 3-59
Low Oil Pressure
.................... ............. 3-54
PASS-Key@
Ill Security ............................. 3-58
Power Sliding Door Warning
......................... 3-56
Rear Hatch Ajar Warning
.............................. 3-58
Service Traction System Warning
................... 3-52
Traction Active
............................................ 3-53
Manual Rearview Mirror
................................ 2-45
Outside Convex Mirror
................................. 2-46
Outside Heated Mirrors
................................ 2-46
Outside Power Mirrors
.................................. 2-45
Islands/Countries (Except Puerto Rico and
US
. Virgin Islands) ........................................ 7-4
Mirrors
Mexico, Central
America and Caribbean
10
