differential OLDSMOBILE SILHOUETTE 2003 Owners Manual

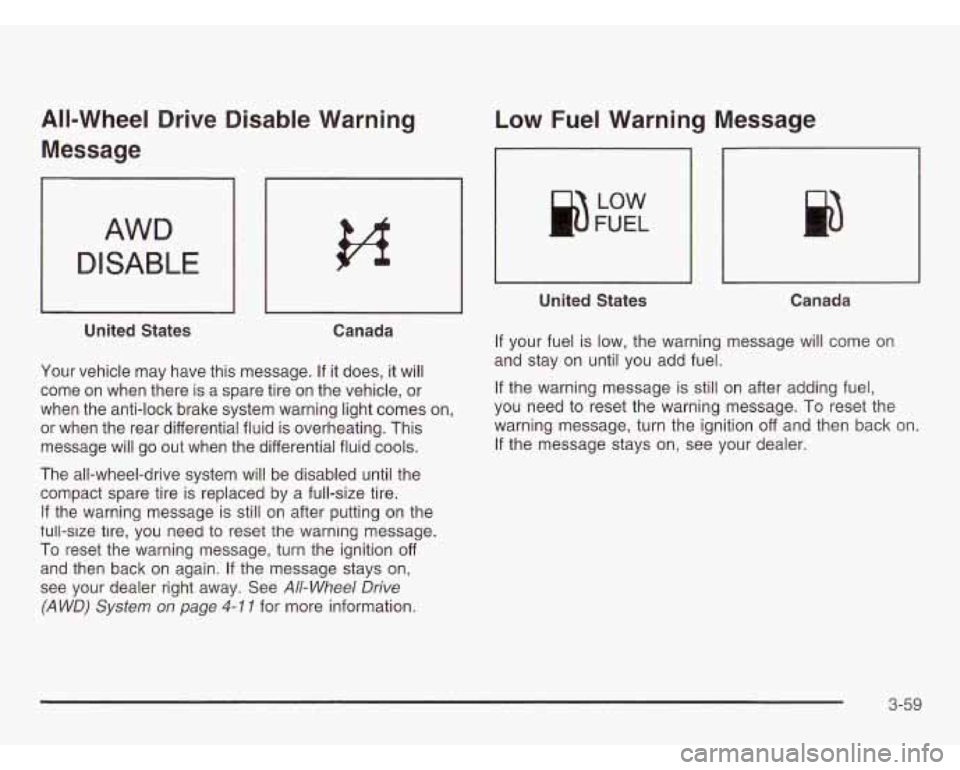

All-Wheel Drive Disable Warning
Message
AWD
DISABLE
I I I I
United States Canada
Your vehicle may have this message. If
it does, it will
come on when there is a spare tire on the vehicle, or
when the anti-lock brake system warning light comes on,
or when the rear differential fluid is overheating. This
message will go out when the differential fluid cools.
The all-wheel-drive system will be disabled until the
compact spare tire is replaced by a full-size tire.
If the warning message is still on after putting on the
tull-slze tire, you need to reset the warning message.
To reset the warning message, turn the ignition
off
and then back on again. If the message stays on,
see your dealer right away. See
All-Wheel Drive
(A WD)
System on page 4-1 I for more information.
Low Fuel Warning Message
I
United States Canada
If your fuel is low, the warning message will come on
and stay on until you add fuel.
If the warning message is still on after adding fuel,
you need to reset the warning message. To reset the
warning message, turn the ignition off and then back on.
If the message stays on, see your dealer.
3-59

Carrier Assembly-Differential
(Rear Drive Module)
When to Check and Change Lubricant
Refer to the Maintenance Schedule to determine how
often to check the lubricant and when to change it. See
Part A: Scheduled Maintenance Services on page 6-4.
How to Check Lubricant
If the level is below the bottom of the filler plug hole,
you’ll need to add some lubricant. Add enough lubricant
to raise the level
to the bottom of the filler plug hole.
A fluid loss could indicate a problem; check and have it
repaired,
if needed.
What to Use
Refer to the Maintenance Schedule to determine what
kind
of lubricant to use. See Part D: Recommended
Fluids and Lubricants on page
6-16.
To get an accurate reading, the vehicle should be on a
level surface.
5-51

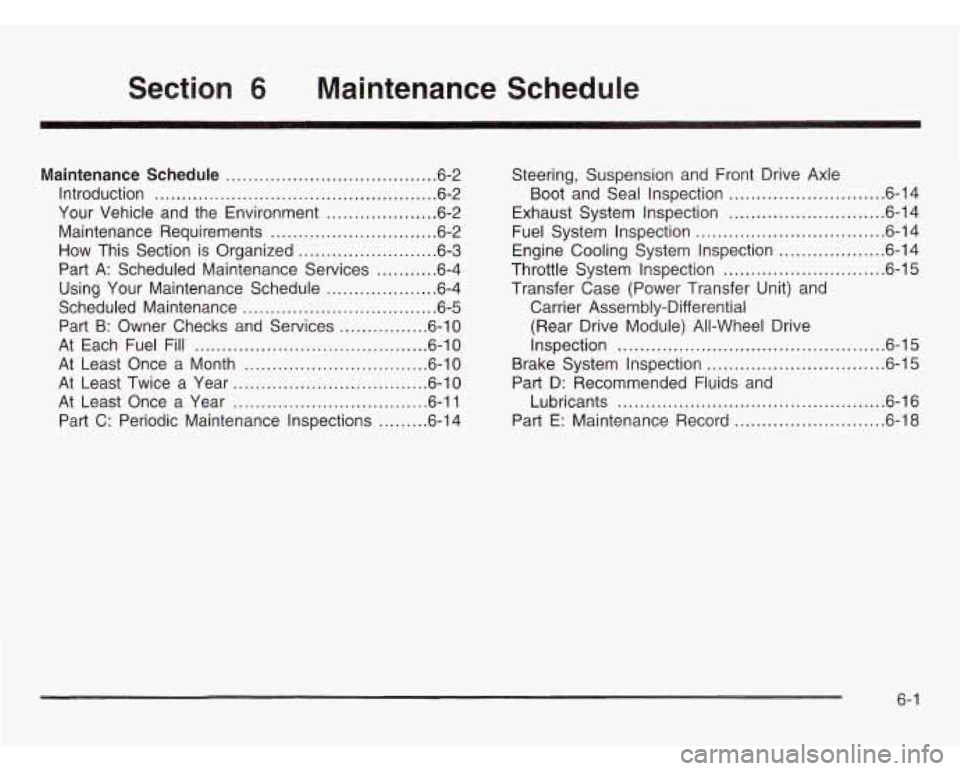

Section 6 Maintenance Schedule
Maintenance Schedule ...................................... 6.2
Introduction
................................................... 6.2
Your Vehicle and the Environment
.................... 6-2
Maintenance Requirements
.............................. 6.2
How This Section is Organized
......................... 6.3
Part
A: Scheduled Maintenance Services ........... 6.4
Scheduled Maintenance
................................... 6-5
Part
B: Owner Checks and Services ................ 6-10
At Each Fuel Fill .......................................... 6-10
At Least Once a Month ................................. 6-10
At Least Twice a Year ................................... 6-10
At Least Once a Year ................................... 6-11
Using Your Maintenance
Schedule
.................... 6.4
Part C: Periodic Maintenance Inspections
......... 6-14 Steering.
Suspension and Front Drive Axle
Boot and Seal Inspection
............................ 6.14
Exhaust System Inspection
............................ 6.14
Fuel System Inspection
.................................. 6.14
Engine Cooling System Inspection
................... 6.14
Throttle System Inspection
............................. 6.15
Transfer Case (Power Transfer Unit) and
Carrier Assembly-Differential
(Rear Drive Module) All-Wheel Drive
Inspection
................................................ 6.15
Brake System Inspection
................................ 6.15
Part D: Recommended Fluids and
Lubricants
................................................ 6.16
Part
E: Maintenance Record ........................... 6.18
6-
1

Throttle System Inspection
Inspect the throttle system for interference or binding,
and for damaged or missing parts. Replace parts
as needed. Replace any components that have high
effort or excessive wear.
Do not lubricate accelerator
and cruise control cables.
Transfer Case (Power Transfer Unit)
and Carrier Assembly-Differential
(Rear Drive Module) All-Wheel Drive
Inspection
Every 12 months or at engine oil change intervals,
check rear differential and transfer case and add
lubricant when necessary.
A fluid loss could indicate
a problem; check and have it repaired,
if needed.
Check vent hoses at transfer case and differential for
kinks and proper installation.
Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hook-up, binding, leaks, cracks,
chafing, etc. Inspect disc brake pads for wear and rotors
for surface condition.
Also inspect drum brake linings
for wear and cracks. Inspect other brake parts, including
drums, wheel cylinders, calipers, parking brake, etc.
Check parking brake adjustment.
You may need to
have your brakes inspected more often
if your driving
habits or conditions result in frequent braking.
6-1 5

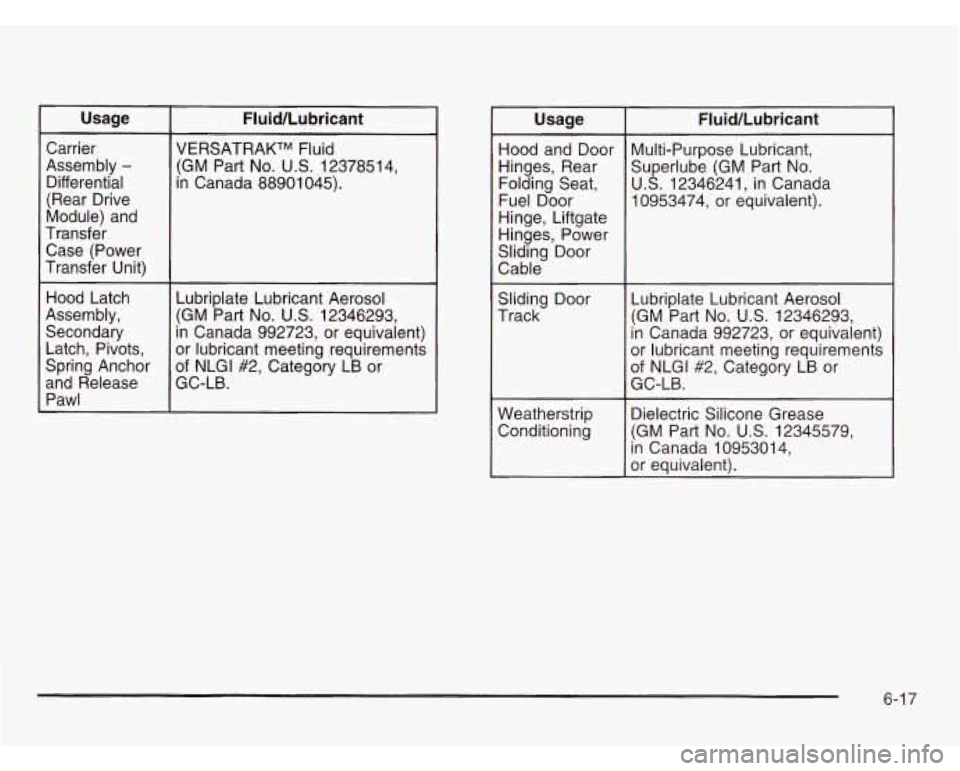

Usage
Carrier
Assembly
-
Differential
(Rear Drive
Module) and
Transfer
Case (Power
Transfer Unit)
Hood Latch
Assembly, Secondary
Latch, Pivots,
Spring Anchor
and Release Pawl FluWLubricant
VERSATRAKTM Fluid
(GM Part No. U.S. 1237851 4,
in Canada 88901 045).
Lubriplate Lubricant Aerosol
(GM Part No. U.S. 12346293,
in Canada 992723, or equivalent)
or lubricant meetina reauirements
of NLGI H, CategGry L'B or
GC-LB. Usage
I FluWLubricant
Hood and Door
Hinges, Rear
Folding Seat,
Fuel Door
Hinge, Liftgate
Hinges, Power
Sliding Door
Cable Multi-Purpose
Lubricant,
Superlube
(GM Part No.
U.S. 12346241, in Canada
10953474, or equivalent).
Sliding Door
Track Lubriplate
Lubricant Aerosol
(GM Part No. U.S. 12346293,
in Canada 992723, or equivalent)
or lubricant meetina reauirements
& NLGI H, CategGry LB or
GC-LB.
Weatherstrip Conditioning Dielectric Silicone Grease
(GM Part No. U.S. 12345579,
in Canada 10953014,
or eauivalent).
6-1 7

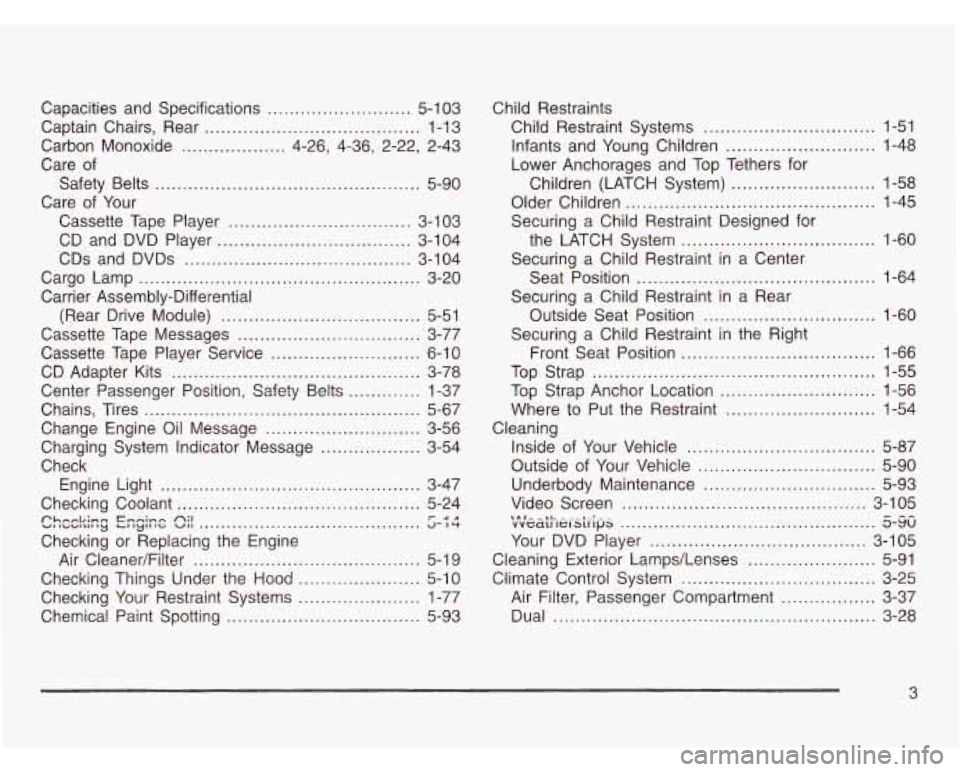

Capacities and Specifications .......................... 5-1 03
Captain Chairs. Rear
....................................... 1-13
Carbon Monoxide
................... 4-26, 4-36, 2-22, 2-43
Care of
Safety Belts
................................................ 5-90
Care of Your
Cassette Tape Player
................................. 3-103
CD and DVD Player
................................... 3-104
CDs and DVDs ......................................... 3-104
Cargo Lamp
................................................... 3-20
Carrier Assembly-Differential
(Rear Drive Module)
.................................... 5-51
Cassette Tape Messages
................................. 3-77
Cassette Tape Player Service
........................... 6-10
CD Adapter Kits
............................................. 3-78
Chains, Tires
.................................................. 5-67
Change Engine Oil Message
............................ 3-56
Charging System Indicator Message
.................. 3-54
Check
Checking Coolant
............................................ 5-24
Checking or Replacing the Engine Air CleanedFilter
......................................... 5-1 9
Checking Things Under the Hood
...................... 5-10
Center Passenger Position, Safety Belts ............. 1-37
Engine Light
............................................... 3-47
PhneLinm Enm;nn A:I VI l~ur\iIly Li lyll IG VI1 4- I y. 4A ........................................
Checking Your Restraint Systems ...................... 1-77
Chemical Paint Spotting
................................... 5-93 Child Restraints
Child Restraint Systems
............................... 1-51
Infants and Young Children
........................... 1-48
Lower Anchorages and Top Tethers for
Children (LATCH System)
.......................... 1-58
Older Children
.......................................... 1-45
Securing a Child Restraint Designed for
the LATCH System
................................ 1-60
Securing a Child Restraint in a Center
Seat Position
........................................... 1-64
Securing a Child Restraint in a Rear
Outside Seat Position
............................... 1-60
Securing a Child Restraint in the Right
Front Seat Position
................................... 1-66
Top Strap
................................................... 1-55
Where to Put the Restraint
........................... 1-54
Inside of Your Vehicle
.................................. 5-87
Outside of Your Vehicle
................................ 5-90
Underbody Maintenance
............................... 5-93
Video Screen
............................................ 3-105
VVedll IelsLI Ips 5-YU
Your DVD Player ....................................... 3-105
Cleaning Exterior LampsILenses
....................... 5-91
Air Filter, Passenger Compartment
................. 3-37
Dual
.......................................................... 3-28
-I--- iup S+m clap Anchor L~atio~~ 1-56 ............................
Cleaning
I A r- -11- - .._I .. I .. 1- ..............................................
Climate Control System ................................... 3-25
3

How to Use This Manual ................... .... ii
How to Wear Safety Belts Properly ............... 1-27
Hydroplaning
.................................................. 4-20
I
If No Steam Is Coming From
If Steam Is Coming From Your Engine ............... 5-27
If the Light Is Flashing ..................................... 3-49
If the Light Is On Steady ................................. 3-49
If You Are Stuck in Sand. Mud. Ice or Snow
....... 4-30
If You Do Decide To Pull A Trailer ..................... 4-37
Your
Engine
................................................ 5-28
If You’re Caught in a Blizzard ........................... 4-28
Ignition Positions
............................................. 2-32
Ignition Transaxle Lock Check
.......................... 6-13
Infants and Young Children, Restraints
............... 1-48
Inflation
- Tire Pressure ................................... 5-61
Inspection Brake System
............................................. 6-15
Engine Cooling System
................................ 6-14
Exhaust System
.......................................... 6-14
Fuel System
............................................... 6-14
Part C - Periodic Maintenance ....................... 6-14
Steering, Suspension and Front Drive Axle
Boot and Seal
..................................... 6-14 Inspection
(cont.)
Throttle System
........................................... 6-15
Transfer Care (Power Transfer Unit) and
Carrier Assembly-Differential
(Rear Drive Module) All-Wheel Drive
........... 6-15
Instrument Panel Cluster
..........................................
Overview ......................................
Switchbank ....................................
Instrument Panel Brightness ................
Instrument Panel Fuse Block ...............
Interior Lamps ...................................
Interior Lamps Control ........................
Interior Lamps Override ......................
Interior Plastic Components .................
....
.......... 3-40
........... 3-4
.......... 3-21
.......... 3-17
.......... 5-97
.......... 3-17
.......... 3-17
.......... 3-17
.......... 5-89
Jump Starting
......................... . 5-44
Key Lock Cylinders Service
................. .... .......... 6-11
Keyless Entry System
....................................... 2-5
Keys
............................................................... 2-3

Maintenance Schedule (cont.) Exhaust System Inspection
........................... 6-1 4
Fuel System Inspection
................................ 6-14
How This Section is Organized ....................... 6-3
Introduction
.................................................. 6-2
Maintenance Requirements
............................. 6-2
Part A
- Scheduled Maintenance Services ......... 6-4
Part B
- Owner Checks and Services ............. 6-10
Part
C - Periodic Maintenance Inspections ...... 6-1 4
Part D
- Recommended Fluids and
Lubricants
............................................... 6-1 6
Part E . Maintenance Record ........................ 6-18
Scheduled Maintenance
................................. 6-5
Steering, Suspension and Front Drive Axle
Boot and Seal Inspection
.......................... 6-14
Throttle System Inspection
............................ 6-1 5
Transfer Case (Power Transfer Unit) and
Carrier Assembly-Differential (Rear Drive
Module) All-Wheel Drive Inspection
............. 6-1 5
Using Your ................................................... 6-4
Your Vehicle and the Environment
................... 6-2
Maintenance When Trailer Towing
..................... 4-43
Making Turns
................................................. 4-41
Malfunction Indicator Light
................................ 3-47
Manual Seats
................................................... 1-2 Matching
Transmitter(s) to Your Vehicle
................. 2-7
Message
Memory Seat
................................. ......... 2-72
All-Wheel Drive Disable Warning
....... ..... 3-59
Center
...................................... ......... 3-52
Change Engine Oil
...................................... 3-56
Charging System Indicator
............................ 3-54
Door Ajar Warning
....................................... 3-57
Engine Coolant Temperature Warning
............. 3-53
Low Engine Oil Level ................................... 3-55
Low Fuel Warning
................................... 3-59
Low Oil Pressure
.................... ............. 3-54
PASS-Key@
Ill Security ............................. 3-58
Power Sliding Door Warning
......................... 3-56
Rear Hatch Ajar Warning
.............................. 3-58
Service Traction System Warning
................... 3-52
Traction Active
............................................ 3-53
Manual Rearview Mirror
................................ 2-45
Outside Convex Mirror
................................. 2-46
Outside Heated Mirrors
................................ 2-46
Outside Power Mirrors
.................................. 2-45
Islands/Countries (Except Puerto Rico and
US
. Virgin Islands) ........................................ 7-4
Mirrors
Mexico, Central
America and Caribbean
10
