fuel additives OLDSMOBILE SILHOUETTE 2003 Owners Manual

Section 5 Service and Appearance Care
Service ............................................................ 5.3
Doing Your Own Service Work
......................... 5.3
Adding Equipment to the Outside
of
Your Vehicle .............................................. 5-4
Fuel
.............................................................. -5-5
Gasoline Octane
............................................ 5-5
Gasoline Specifications
................................... 5-5
California Fuel
............................................... 5-6
Additives
....................... .... ......... 5-6
Fuels in Foreign Countries
........... ..... 5-7
Filling Your Tank
............................ ..... 5-7
Filling a Portable Fuel Container
.................... 5-9
Checking Things Under the
Hood .................. -5-1 0
Hood Release .............................................. 5-10
Engine Compartment Overview ....................... 5-12
Engine Oil
................................................... 5-14
Engine Air CleanedFilter
................................ 5-19
Automatic Transaxle Fluid
.............................. 5-20
Radiator Pressure Cap
............................... 5-26
Engine Overheating
.................................... 5-26
Cooling System
............................. , ....... 5-29
Power Steering Fluid .................. , ....... 5-37
Windshield Washer Fluid
................. , ....... 5-38
Brakes
.......................... .... ........ 5-39
r.--.:.-- ---I-.- b CI lyll IC uuvlal I1 4-LU c r)r) .............................................
Battery ........................................................ 5.43
Jump Starting
............................................... 5-44
All-Wheel Drive
.............................................. 5-50
Bulb Replacement .......................................... 5-52
Halogen Bulbs
.............................. ......... 5-52
Front Turn Signal, Sidemarker and
Taillamps, Turn Signal, Stoplamps and
Headlamps
...................................... ..... 5-52
Parking Lamps
.............................. ..... 5-54
Replacement Bulbs
....................................... 5-57
Back-up Lamps
......................................... 5-56
Windshield Wiper Blade Replacement
.............. 5-58
Tires
.............................................................. 5-60
Inflation
- Tire Pressure ................................ 5-61
Tire Inspection and Rotation
........................... 5-62
When It
Is Time for New Tires ....................... 5-63
Buying New Tires
......................................... 5-64
Uniform Tire Quality Grading
.......................... 5-65
Wheel Alignment and Tire Balance
.................. 5-66
Wheel Replacement
...................................... 5-66
Tire Chains
.................................................. 5-67
Accessory Inflator
......................................... 5-68
If a Tire Goes Flat ........................................ 5-69
Changing a Flat Tire ..................................... 5-70
Compact Spare Tire ...................................... 5-86
5- 1

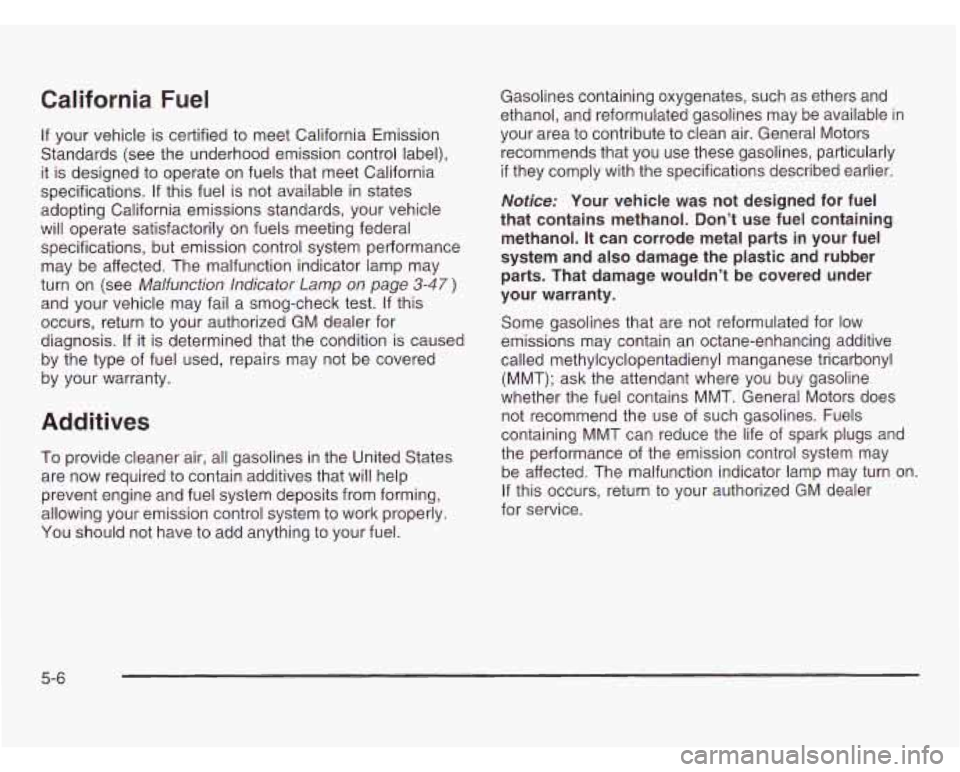

California Fuel
If your vehicle is certified to meet California Emission
Standards (see the underhood emission control label),
it is designed to operate on fuels that meet California
specifications. If this fuel is not available in states
adopting California emissions standards, your vehicle
will operate satisfactorily on fuels meeting federal
specifications, but emission control system performance
may be affected. The malfunction indicator lamp may
turn on (see
Malfunction Indicator Lamp on page 3-47 )
and your vehicle may fail a smog-check test. If this
occurs, return to your authorized GM dealer for
diagnosis. If it is determined that the condition is caused
by the type of fuel used, repairs may not be covered
by your warranty.
Additives
To provide cleaner air, all gasolines in the United States
are now required to contain additives that will help
prevent engine and fuel system deposits from forming,
allowing your emission control system to work properly.
You should not have to add anything to your fuel. Gasolines containing
oxygenates, such as ethers and
ethanol, and reformulated gasolines may be available in
your area to contribute to clean air. General Motors
recommends that you use these gasolines, particularly
if they comply with the specifications described earlier.
Notice: Your vehicle was not designed for fuel
that contains methanol. Don’t use fuel containing
methanol.
It can corrode metal parts in your fuel
system and also damage the plastic and rubber
parts. That damage wouldn’t be covered under
your warranty.
Some gasolines that are not reformulated for low
emissions may contain an octane-enhancing additive
called methylcyclopentadienyl manganese tricarbonyl
(MMT); ask the attendant where you buy gasoline
whether the fuel contains MMT. General Motors does
not recommend the use of such gasolines. Fuels
containing MMT can reduce the life of spark plugs and
the performance of the emission control system may
be affected. The malfunction indicator lamp may turn on.
If this occurs, return to your authorized GM dealer
for service.
5-6

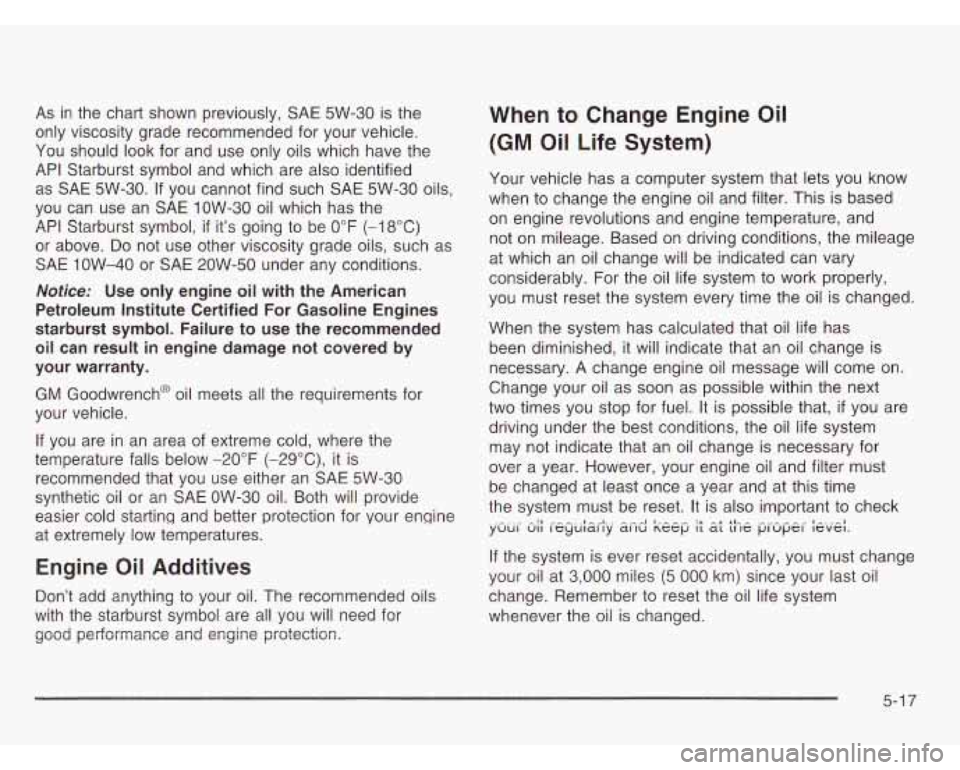

As in the chart shown previously, SAE 5W-30 is the
only viscosity grade recommended for your vehicle.
You should look for and use only oils which have the
API Starburst symbol and which are also identified
as SAE 5W-30. If you cannot find such SAE 5W-30 oils,
you can use an SAE
1OW-30 oil which has the
API Starburst symbol,
if it's going to be 0°F (-18°C)
or above. Do not use other viscosity grade oils, such as
SAE 1OW-40 or SAE 20W-50 under any conditions.
Notice: Use only engine oil with the American
Petroleum Institute Certified For Gasoline Engines
starburst symbol. Failure to use the recommended
oil can result in engine damage not covered by
your warranty.
GM Goodwrench@ oil meets all the requirements for
your vehicle.
If you are in an area of extreme cold, where the
temperature falls below -20°F (-29"C), it is
recommended that you use either an SAE 5W-30
synthetic oil or an SAE OW-30 oil. Both will provide
easier cold starting and better protection for your engine
at extremely low temperatures.
Engine Oil Additives
Don't add anything to your oil. The recommended oils
with the starburst symbol are all you will need for
good pe;formance and engifie prs:ection.
When to Change Engine Oil
(GM Oil Life System)
Your vehicle has a computer system that lets you know
when to change the engine oil and filter. This is based
on engine revolutions and engine temperature, and
not on mileage. Based on driving conditions, the mileage
at which an oil change will be indicated can vary
considerably. For the oil life system to work properly,
you must reset the system every time the oil
is changed.
When the system has calculated that oil life has
been diminished,
it will indicate that an oil change is
necessary. A change engine oil message will come on.
Change your oil as soon as possible within the next
two times you stop for fuel. It is possible that,
if you are
driving under the best conditions, the oil life system
may not indicate that an oil change is necessary for
over a year. However, your engine oil and filter must
be changed at least once a year and at this time
the system must be reset. It is also important to check
. .- . ..- -:I .I - ..I. . - - -1 I-- - - :r -I rl- - .- .- - ._ I -. ,-I yuul UII I cyular IY a1 IU ncep 11 a1 11 le IJI upcl eve^.
If the system is ever reset accidentally, you must change
your oil at 3,000 miles
(5 000 km) since your last oil
change. Remember to reset the oil life system
whenever the oil is changed.
5-1 7

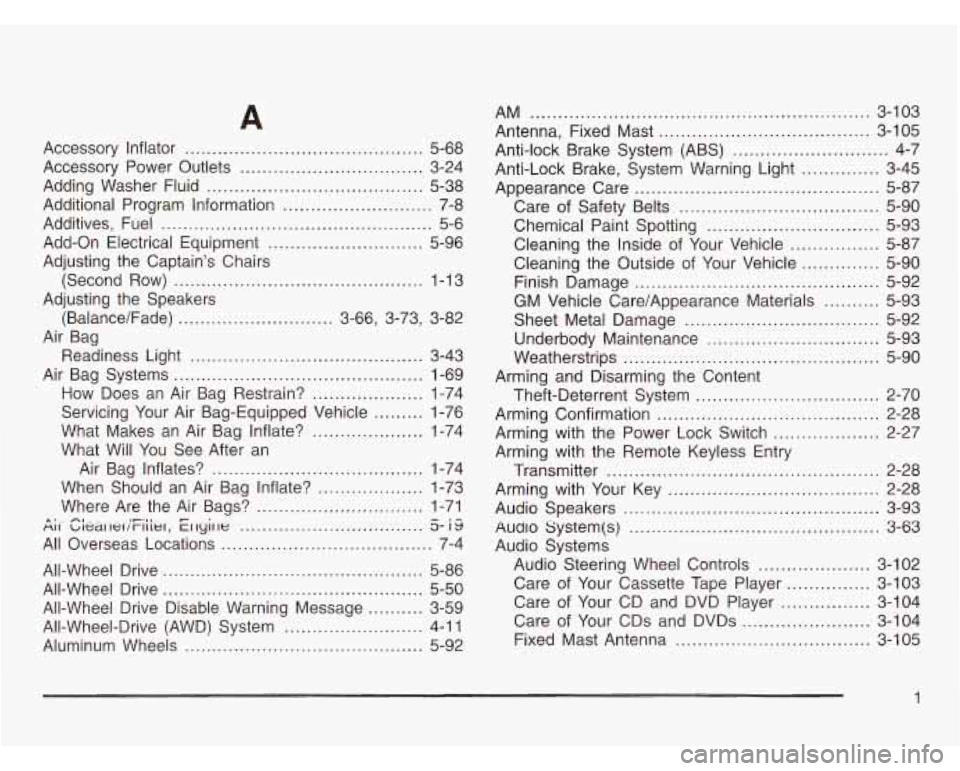

Accessory Inflator ........................................... 5-68
Accessory Power Outlets
................................. 3-24
Adding Washer Fluid
....................................... 5-38
Additional Program Information
........................... 7-8
Additives, Fuel
..................... ,... . ......... 5-6
Add-on Electrical Equipment
................. ... 5-96
Adjusting the Captain's Chairs
(Second Row)
............................................. 1-13
Adjusting the Speakers (Balance/Fade)
............................ 3-66, 3-73, 3-82
Air Bag Readiness Light
.......................................... 3-43
Air Bag Systems
............................................. 1-69
Servicing Your Air Bag-Equipped Vehicle
......... 1-76
What Will You See After an
How Does
ari Air Bag Restrain? .................... 1-74
What Makes an Air Bag Inflate?
.................... 1-74
Air Bag Inflates?
...................................... 1-74
When Should an Air Bag Inflate?
................... 1-73
Where Are the Air Bags?
.............................. 1-71
~II 'clttmIw/t-lller, Eflyirle ................................. 5- IS
All Overseas Locations ....... ........................ 7-4
A: . nr- ~ . . I~.ER
All-Wheel Drive ............................................... 5-86
All-Wheel Drive
............................................... 5-50
All-Wheel Drive Disable Warning Message .......... 3-59
All-Wheel-Drive (AWD) System
......................... 4-1 1
Aluminum Wheels ........................................... 5-92 AM
............................................................. 3-103
Antenna, Fixed Mast
...................................... 3-105
Anti-lock Brake System (ABS)
............................ 4-7
Anti-Lock Brake, System Warning Light
.............. 3-45
Appearance Care
............................................ 5-87
Care
of Safety Belts .................................... 5-90
Cleaning the Inside of Your Vehicle
................ 5-87
Cleaning the Outside of Your Vehicle
.............. 5-90
Finish Damage
............................................ 5-92
Chemical Paint Spotting
............................... 5-93
GM Vehicle Care/Appearance Materials
.......... 5-93
Sheet Metal Damage
................................... 5-92
Underbody Maintenance
............................... 5-93
Weatherstrips
.............................................. 5-90
Theft-Deterrent System
............. ......... 2-70
Arming and Disarming the Content
Arming Confirmation
.................... ............ 2-28
Arming with the Power Lock Switch
... ......... 2-27
Arming with the Remote Keyless Entry
Transmitter
................................................. 2-28
Arming with Your Key
...................................... 2-28
Audio Speakers
.............................................. 3-93
hdl0 System(s) ............................................. 3-63
Audio Systems
Audio Steering Wheel Controls
.................... 3-102
Care of Your Cassette Tape Player
............... 3-103
Care of Your CD and DVD Player
................ 3-104
Care
of Your CDs and DVDs ....................... 3-104
Fixed Mast Antenna
................. ... 3-105

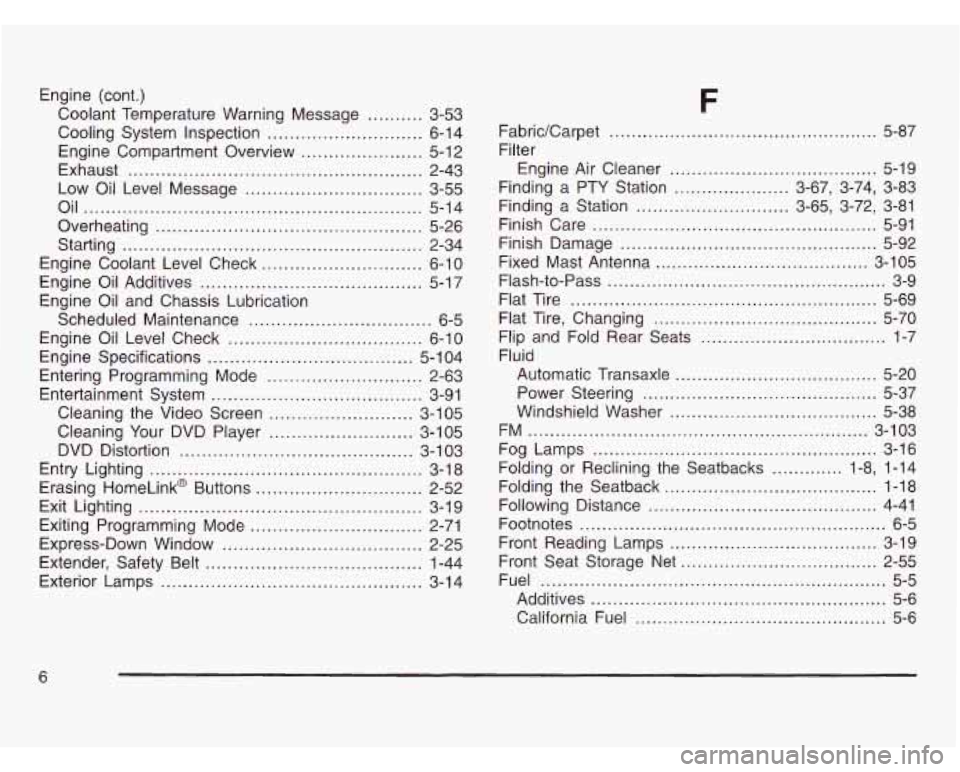

Engine (cont.)
Coolant Temperature Warning Message
.......... 3-53
Cooling System Inspection
............................ 6-1 4
Engine Compartment Overview
.... ........... 5-12
Exhaust
..................................................... 2-43
Low Oil Level Message
................................ 3-55
Oil
............................................................. 5-14
Overheating
................................................ 5-26
Starting
...................................................... 2-34
Engine Coolant Level Check
............................. 6-10
Engine Oil Additives
......................... ....... 5-17
Engine Oil and Chassis Lubrication Scheduled Maintenance
................................. 6-5
Engine Oil Level Check
................................... 6-10
Engine Specifications
..................................... 5-1 04
Entering Programming Mode
............................ 2-63
Entertainment System
...................................... 3-91
Cleaning the Video Screen
.......................... 3-105
Cleaning Your DVD Player
.......................... 3-105
DVD Distortion
.......................................... 3-103
Entry Lighting
................................................. 3-18
Erasing HomeLink@ Buttons
.............................. 2-52
Exit Lighting
................................................... 3-19
Exiting Programming Mode
............................... 2-71
Express-Down Window
.................................... 2-25
Extender, Safety Belt
....................................... 1-44
Exterior Lamps
............................................... 3-1 4
F
FabricKarpet ................................................. 5-87
Engine Air Cleaner
...................................... 5-19
Filter
Finding
a PTY Station
..................... 3.67. 3.74. 3-83
Finding a Station
............................ 3-65, 3-72, 3-81
Finish Care
.................................................... 5-91
Finish Damage
............................................... 5-92
Fixed Mast Antenna
....................................... 3-105
Flash-to-Pass
................................................... 3-9
Flat Tire
........................................................ 5-69
Flat Tire, Changing
......................................... 5-70
Flip and Fold Rear Seats
.................................. 1-7
Fluid Automatic Transaxle
..................................... 5-20
Power Steering
........................................... 5-37
Windshield Washer
...................................... 5-38
FM
.............................................................. 3-103
Fog Lamps
.................................................... 3-16
Folding or Reclining the Seatbacks
............. 1-8, 1-14
Folding the Seatback
....................................... 1-18
Following Distance
.......................................... 4-41
Footnotes
........................................................ 6-5
Front Reading Lamps
...... ........................ 3-19
Front Seat Storage Net
................................ 2-55
Fuel
............................................................... 5-5
Additives
................. .......................... 5-6
California Fuel
....................................... 5-6
