Passing Another Vehicle While Using
Cruise Control
To pass another vehicle while using cruise control, use
the accelerator pedal to increase your speed. When
you take your foot off the pedal, your vehicle will slow
down to the cruise control speed you set earlier.
Using Cruise Control on Hills
How well your cruise control will work on hills depends
upon your speed, load and the steepness of the
hills. When going up steep hills, you may have to step
on the accelerator pedal to maintain your speed.
When going downhill, you may have to brake or shift to
a lower gear to keep your speed down. Of course,
applying the brake takes you out of cruise control. Many
drivers ®nd this to be too much trouble and do not
use cruise control on steep hills.
Ending Cruise Control
To turn off the cruise control, do one of the following:
·Step lightly on the brake pedal.
·Move the cruise switch to OFF.
Erasing Speed Memory
When you turn off the cruise control or the ignition,
your cruise control set speed memory is erased.
3-15

Exterior Lamps
The control to the left of the steering column operates
the exterior lamps.
9(Off/Auto):Turning the control to this setting will
activate the automatic headlamp control when it is
dark enough outside and turn off all of the lamps and
lights during the day, except the Daytime Running
Lamps (DRL).
;(Parking Lamps):Turning the control to this
setting turns on the parking lamps together with the
following:
·Sidemarker Lamps
·Taillamps
·Instrument Panel Lights
2(Headlamps):Turning the control to this setting
turns on the headlamps, together with the previously
listed lamps and lights.
Lamps on Reminder
If the driver's door is opened and you turn the ignition to
OFF or LOCK while leaving the lamps on, you will
hear a warning chime.
3-16

Daytime Running Lamps/Automatic
Headlamp System
Daytime Running Lamps (DRL) can make it easier for
others to see the front of your vehicle during the
day. DRL can be helpful in many different driving
conditions, but they can be especially helpful in the short
periods after dawn and before sunset. Fully functional
daytime running lamps are required on all vehicles
®rst sold in Canada.
A light sensor on top of the instrument panel makes the
DRL work, so be sure it isn't covered. The DRL
system will make your front parking and turn signal
lamps come on in daylight when:
·The ignition is on.
·The exterior lamps control is off.
·The parking brake is released.
When the DRL are on, only your front parking and turn
signal lamps will be on. Your instrument panel will
not be lit up.When it is dark enough outside, the exterior lamps will
come on automatically. When it is bright enough
outside, the exterior lamps will turn off and the DRL will
turn on. Of course, you may still turn on the headlamps
any time you need to.
If you start your vehicle in a dark garage, the automatic
headlamp system will come on immediately. Once
you leave the garage, it will take approximately
one minute for the automatic headlamp system to
change to DRL if it is light outside. During that delay,
your instrument panel cluster may not be as bright
as usual. Make sure your instrument panel brightness
control is in the full bright position. See ªInstrument
Panel Brightness Controlº under
Interior Lamps
on page 3-18.
To idle your vehicle with the DRL and automatic
headlamp control off, set the parking brake while the
ignition is in OFF or LOCK. Then start the vehicle.
The DRL and automatic headlamp control will stay off
until you release the parking brake.
As with any vehicle, you should turn on the regular
headlamp system when you need it.
3-17

Fog Lamps
Your vehicle may have
fog lamps. If it does, the
fog lamps switch is located
in the instrument panel
switchbank. Press the
fog lamp symbol on
the switch to turn on
the lamps.
The indicator light will be lit while the fog lamps are on.
Press the top part of the switch to turn them off.
When your DRL are on, the exterior lamps control must
®rst be turned from the off position before the fog
lamps can be turned on.
Your parking lamps or headlamps must be on for your
fog lamps to turn on.At night, when the light sensor automatically turns on
your headlamps, the fog lamps can be turned on
while the exterior lamps control is in any position.
Your fog lamps will go off when you switch to high
beams. Using your high beams in fog is not
recommended.
Interior Lamps
Instrument Panel Brightness
The thumbwheel for this feature is located below the
exterior lamps control. Turn the thumbwheel to the right
to brighten the lights, or to the left to dim them.
Interior Lamps Control
Turn the thumbwheel all the way to the right to turn on
the interior lamps, if the interior lamps override
switch is off. Turn the thumbwheel to the left to turn the
lamps off.
3-18

Interior Lamps Override
This switch is located in
the overhead console
switchbank. Press
the bottom of the switch to
keep the interior lamps
off while any door is open,
or the top of the switch
to allow the interior lamps
to come on while any
door is open.
Dome Lamp
The dome lamp is located in the headliner and has two
buttons to manually turn it on or off. The dome lamp
will come on each time you open a door, unless you turn
on the interior lamps override feature. See ªInterior
Lamps Overrideº earlier in this section.
Entry Lighting
With entry lighting, the interior of your vehicle is
illuminated so that you can see inside before you enter
your vehicle. The lamps will come on for 40 seconds
if you unlock your door using your key or the remote
keyless entry transmitter and the ignition is in LOCK or
OFF. After 40 seconds have passed, the interior
lamps will slowly fade out. The lamps will turn off before
the 40 seconds if you do one of the following:
·Lock all the doors using the key.
·Press LOCK on the power door lock switch.
·Press LOCK on the remote keyless entry
transmitter.
When any door is opened, entry lighting is cancelled.
The interior lamps will stay on while any door or
the liftgate is open, and slowly fade out when all doors
and the liftgate are closed.
The interior lamps may stay on for up to 25 seconds
after all doors have been closed if they have not been
locked. See ªDelayed Lightingº following.
To turn the entry lighting feature off or on, see
Vehicle
Personalization on page 2-60.
3-19

Delayed Lighting
The delayed lighting feature will continue to illuminate
the interior for 25 seconds after all doors have been
closed, so that you can ®nd your ignition and buckle your
safety belt at night. Delayed lighting will not occur
while the ignition is in RUN or ACCESSORY. After
25 seconds have passed, the interior lamps will slowly
fade out. The lamps will fade out before the 25 seconds
have passed if you do one of the following:
·Turn the ignition to RUN or ACCESSORY.
·Lock all doors using the remote keyless entry
transmitter.
·Lock all doors using the power door lock switch
or the key.
To turn the delayed lighting feature off or on,
see
Vehicle Personalization on page 2-60.
Exit Lighting
With exit lighting, the interior lamps will come on for
about 25 seconds whenever you remove the key from
the ignition. If you turn the ignition key to RUN or
ACCESSORY, the lamps will fade out. The lamps will
also fade out if you lock the doors with the power
door lock switch or the remote keyless entry transmitter.
When any door is opened, exit lighting is cancelled.
The interior lamps will stay on while any door or
the liftgate is open, and slowly fade out when all doors
and the liftgate are closed.
The interior lamps may stay on for up to 25 seconds
after all doors have been closed if they have not been
locked. See ªDelayed Lightingº earlier in this section.
To turn the exit lighting feature off or on, see
Vehicle
Personalization on page 2-60.
3-20

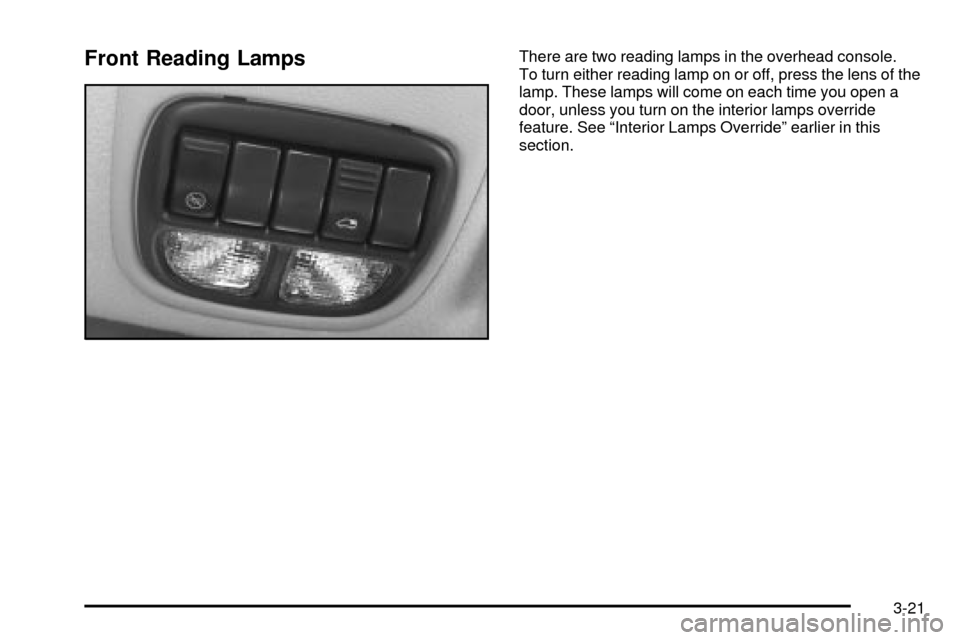

Front Reading LampsThere are two reading lamps in the overhead console.
To turn either reading lamp on or off, press the lens of the
lamp. These lamps will come on each time you open a
door, unless you turn on the interior lamps override
feature. See ªInterior Lamps Overrideº earlier in this
section.
3-21

Rear Reading Lamps
There may be two reading lamps in the third row
headliner. To turn either reading lamp on or off, press
the lens of the lamp.
There is also a reading lamp in the second row,
integrated with the dome lamp. To turn the second row
reading lamp on or off, press the button next to the
lamp lens.
Rear reading lamps will not turn on if the interior lamps
override switch is on. See ªInterior Lamps Overrideº
earlier in this section.
Cargo Lamp
The cargo lamp is located in the rear of your vehicle,
above the liftgate opening, and does not have a switch.
The cargo lamp will come on each time you open a
door, unless you turn on the interior lamps override.
See ªInterior Lamps Overrideº earlier in this section.
Battery Run-Down Protection
Your vehicle has a feature to help prevent you from
draining the battery, in case you accidentally leave the
interior lamps on. If you leave any interior lamps on while
the ignition is in LOCK or OFF, they will automatically turn
off after 10 minutes. The lamps will not come back on
again until you do one of the following:
·Turn the ignition to RUN or ACCESSORY.
·Turn the interior lamps thumbwheel all the way
to the right, then slightly back to the left.
·Open a closed door, or close and reopen a door.
If your vehicle has less than 15 miles (25 km) on
the odometer, the battery saver will turn off the
lamps after only three minutes.
3-22

Switchbanks
There are two sets of switchbanks located in the front of
the vehicle. The switches will vary with the options
that are on your vehicle.
Instrument Panel Switchbank
The instrument panel switchbank is located in the
instrument panel below the comfort controls.This switchbank may contain the following:
·Rear Fan Knob. SeeRear Climate Control System
(Without Entertainment System) on page 3-34
orRear Climate Control System (With Entertainment
System) on page 3-36.
·Rear Window Wiper/Washer Switch.
See ªRear Window Wiper/Washerº under
Turn Signal/Multifunction Lever on page 3-8.
·Fog Lamps Switch. SeeExterior Lamps
on page 3-16
.
·Traction Control Switch. SeeTraction Control
System (TCS) on page 4-8
.
·Heated Seats Switches. SeeHeated Seats
on page 1-5
.
If your vehicle does not have one of these options,
there will be a blank.
If your vehicle is not equipped with the optional rear
climate control system, there will be a storage space in
this switchbank. The rubber mat can be removed for
cleaning. Snap the mat into place after cleaning.
3-23

Overhead Console Switchbank
The overhead console switchbank is located in the
overhead console. This switchbank may include
the following:
·Interior Lamps Override. See ªInterior Lamps
Overrideº under
Interior Lamps on page 3-18.
·Power Sliding Door(s)/Override Switch(es).
See
Power Sliding Door (PSD) on page 2-17.
·Power Rear Quarter Windows. SeePower Rear
Quarter Windows on page 2-25
.
·Ultrasonic Rear Parking Aid (URPA) Disable
Switch. See
Ultrasonic Rear Parking Assist (URPA)
on page 3-24.
If your vehicle does not have some of these options,
there will be a blank.
Ultrasonic Rear Parking
Assist (URPA)
The Ultrasonic Rear Parking Assist (URPA) system is
designed to help you park, while the vehicle is in
REVERSE (R). It operates only at very low speeds, less
than 3 mph (5 km/h). URPA can help make parking
easier and to help you avoid colliding with objects such as
parked vehicles. The URPA system can detect objects up
to 5 feet (1.5 m) behind the vehicle, and tell you how
close these objects are from your rear bumper.
Your vehicle's URPA operates when the shift lever is
moved into REVERSE (R) and the vehicle speed is less
than 3 mph (5 km/h). Four ultrasonic sensors located at
the rear bumper are used to detect the distance to the
object. The URPA display is located inside the vehicle,
near the rear window. It has three color-coded lights used
to provide distance and system information to the driver.
3-24
