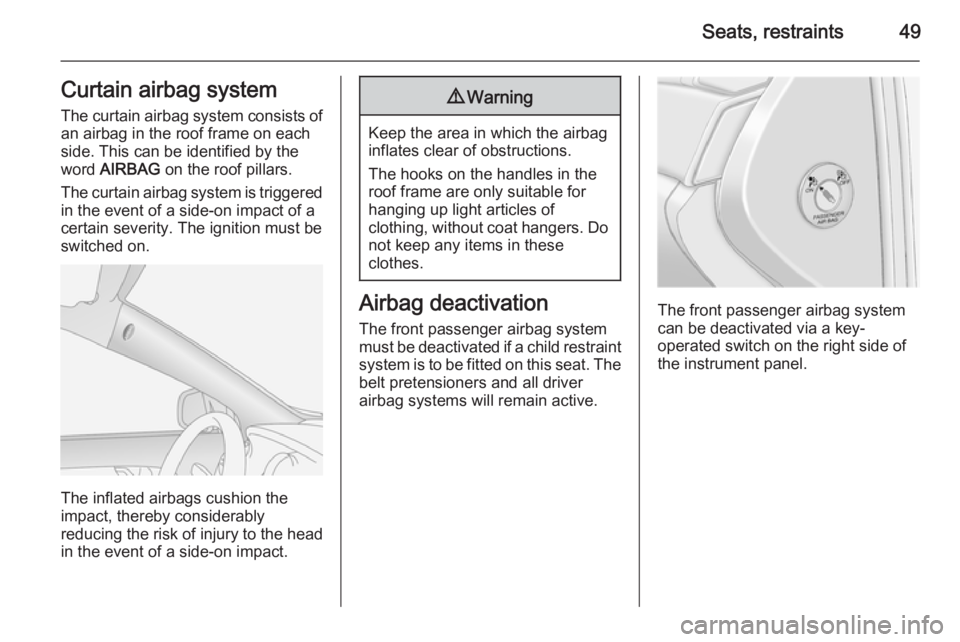

Seats, restraints49Curtain airbag system
The curtain airbag system consists of an airbag in the roof frame on each
side. This can be identified by the
word AIRBAG on the roof pillars.
The curtain airbag system is triggered in the event of a side-on impact of a
certain severity. The ignition must be
switched on.
The inflated airbags cushion the
impact, thereby considerably
reducing the risk of injury to the head in the event of a side-on impact.
9 Warning
Keep the area in which the airbag
inflates clear of obstructions.
The hooks on the handles in the
roof frame are only suitable for
hanging up light articles of
clothing, without coat hangers. Do not keep any items in these
clothes.
Airbag deactivation
The front passenger airbag system
must be deactivated if a child restraint system is to be fitted on this seat. The
belt pretensioners and all driver
airbag systems will remain active.The front passenger airbag system
can be deactivated via a key-
operated switch on the right side of the instrument panel.

50Seats, restraints
Use the ignition key to choose the
position:*
OFF=front passenger airbag
systems are deactivated
and will not inflate in the
event of a collision. Control
indicator * illuminates
continuously on the
passenger side of the
instrument panel. A child
restraint system can be
installed in accordance with the chart Child restraint
installation locations
3 52. No adult person is
allowed to occupy the front
passenger seat.V
ON=front passenger airbag
systems are active. A child
restraint system must not
be installed.9 Danger
Risk of fatal injury for a child using
a child restraint system on a seat
with activated front passenger
airbag.
Risk of fatal injury for an adult
person on a seat with deactivated
front passenger airbag.
Control indicators for the front
passenger airbag system are located
on the passenger side of the
instrument panel.
As long as control indicator is not illuminated, the front passenger
airbag system will inflate in the event
of a collision.
Change status only when the vehicle
is stopped with the ignition off.
Status remains until the next change.
Control indicator V for front
passenger airbag 3 81.

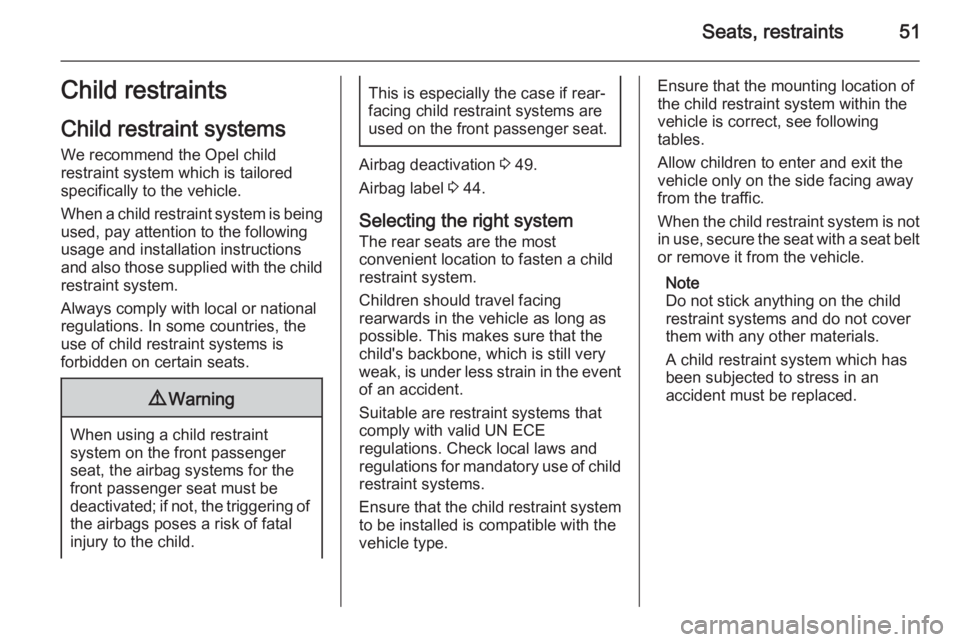

Seats, restraints51Child restraintsChild restraint systems
We recommend the Opel child
restraint system which is tailored
specifically to the vehicle.
When a child restraint system is being used, pay attention to the following
usage and installation instructions
and also those supplied with the child
restraint system.
Always comply with local or national
regulations. In some countries, the
use of child restraint systems is
forbidden on certain seats.9 Warning
When using a child restraint
system on the front passenger
seat, the airbag systems for the
front passenger seat must be
deactivated; if not, the triggering of the airbags poses a risk of fatal
injury to the child.
This is especially the case if rear-
facing child restraint systems are
used on the front passenger seat.
Airbag deactivation 3 49.
Airbag label 3 44.
Selecting the right system The rear seats are the most
convenient location to fasten a child
restraint system.
Children should travel facing
rearwards in the vehicle as long as
possible. This makes sure that the child's backbone, which is still very
weak, is under less strain in the event
of an accident.
Suitable are restraint systems that
comply with valid UN ECE
regulations. Check local laws and
regulations for mandatory use of child restraint systems.
Ensure that the child restraint system to be installed is compatible with the
vehicle type.
Ensure that the mounting location of
the child restraint system within the
vehicle is correct, see following
tables.
Allow children to enter and exit the
vehicle only on the side facing away
from the traffic.
When the child restraint system is not
in use, secure the seat with a seat belt or remove it from the vehicle.
Note
Do not stick anything on the child
restraint systems and do not cover
them with any other materials.
A child restraint system which has
been subjected to stress in an
accident must be replaced.

52Seats, restraintsChild restraint installation locationsPermissible options for fitting a child restraint system
Weight and age class
On front passenger seat
On rear outboard seatsOn rear centre seat
activated airbagdeactivated airbagGroup 0: up to 10 kg
or approx. 10 monthsXU 1U,
or approx. 2 yearsXU 1U,
or approx. 8 months to 4 yearsXU 1U,
or approx. 3 to 7 yearsXXUXGroup III: 22 to 36 kg
or approx. 6 to 12 yearsXXUX1=Child restraint system must be secured using a three-point seat belt. Move seat height adjustment to uppermost
position and ensure that vehicle seat belt runs forwards from the upper anchorage point. Adjust seat backrest
inclination as far as necessary to a vertical position to ensure that the belt is tight on the buckle side.<=Vehicle seat with ISOFIX mounting available. When mounting with ISOFIX, only ISOFIX child restraint systems that
have been approved for the vehicle may be used.U=Universal suitability in conjunction with three-point seat belt.X=No child restraint system permitted in this weight and age class.

Seats, restraints53
Permissible options for fitting an ISOFIX child restraint systemWeight and age classSize classFixtureOn front
passenger seatOn rear
outboard seatsOn rear
centre seatGroup 0: up to 10 kg or approx. 10 monthsEISO/R1XILXGroup 0+: up to 13 kg or approx. 2 yearsEISO/R1XILXDISO/R2XILXCISO/R3XILXGroup I: 9 to 18 kg or approx. 8 months to 4 yearsDISO/R2XILXCISO/R3XILXBISO/F2XIUFXB1ISO/F2XXIUFXAISO/F3XIUFXGroup II: 15 to 25 kg
or approx. 3 to 7 yearsXILXGroup III: 22 to 36 kg
or approx. 6 to 12 yearsXILX

54Seats, restraints

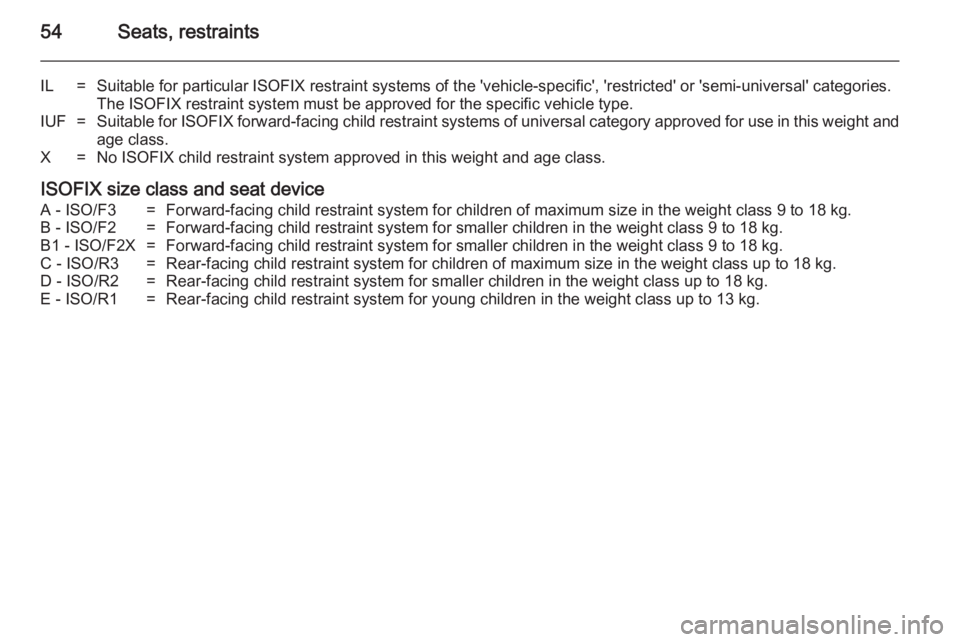

IL=Suitable for particular ISOFIX restraint systems of the 'vehicle-specific', 'restricted' or 'semi-universal' categories.The ISOFIX restraint system must be approved for the specific vehicle type.IUF=Suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this weight and
age class.X=No ISOFIX child restraint system approved in this weight and age class.
ISOFIX size class and seat device
A - ISO/F3=Forward-facing child restraint system for children of maximum size in the weight class 9 to 18 kg.B - ISO/F2=Forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.B1 - ISO/F2X=Forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.C - ISO/R3=Rear-facing child restraint system for children of maximum size in the weight class up to 18 kg.D - ISO/R2=Rear-facing child restraint system for smaller children in the weight class up to 18 kg.E - ISO/R1=Rear-facing child restraint system for young children in the weight class up to 13 kg.

Seats, restraints55ISOFIX child restraint
systems
Fasten vehicle-approved ISOFIX
child restraint systems to the ISOFIX
mounting brackets.
Permitted installation positions for specific vehicle ISOFIX child restraint
systems are marked in the table by IL.
No more than two ISOFIX child
restraint systems can be installed on
the rear seats at the same time,
though not on the rear centre seat.
ISOFIX mounting brackets are
indicated by a label on the backrest.
Top-tether fastening eyes
The Top-tether anchors located on
the rear of the backrests are designed
to hold child restraints which come
equipped with Top-tether anchor
attachments only. Follow the
instructions provided with the
Top-tether child restraint system.
For use of ISOFIX and Top-tether
fixings, universal ISOFIX child restraint systems may be used.
Permitted installation positions are
marked in the table by IUF.

56StorageStorageStorage compartments................56
Load compartment .......................68
Roof rack system .........................71
Loading information .....................71Storage compartments9Warning
Do not store heavy or sharp
objects in the storage
compartments. Otherwise vehicle
occupants could be injured by
objects being thrown around in the
event of hard braking, a sudden
change in direction or an accident.
Glovebox
The glovebox will illuminate when
opened.
The glovebox partition can be
removed from its groove. Store the
partition in the groove on the far left- hand side of the glovebox.
The glovebox should be closed whilst driving.
Lockable glovebox Lock and unlock the glovebox with thekey.
Cupholders Cupholders are located in the front ofthe centre console.
The cupholder is flexible, allowing
different size drink containers to be stored.
Additional cupholders are located in
the centre rear seat armrest. Fold
down the armrest to access the
cupholder.

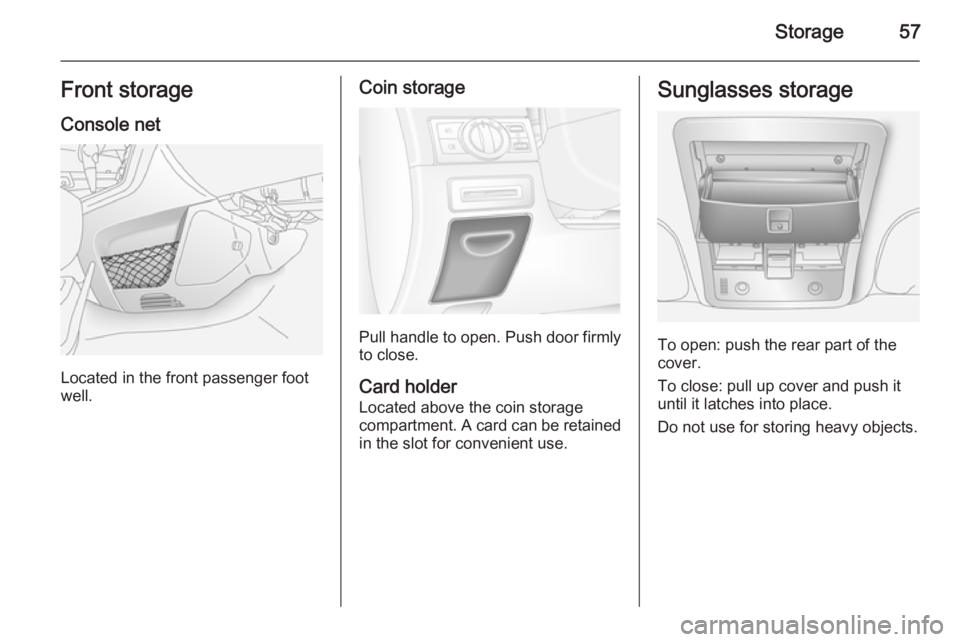

Storage57Front storage
Console net
Located in the front passenger foot
well.
Coin storage
Pull handle to open. Push door firmly
to close.
Card holder
Located above the coin storage
compartment. A card can be retained in the slot for convenient use.
Sunglasses storage
To open: push the rear part of the
cover.
To close: pull up cover and push it
until it latches into place.
Do not use for storing heavy objects.

58StorageUnderseat storage
Front passenger seat undertray
Pull up on front of tray then pull it
forwards. Push the tray towards the
seat to return it to its original position.
Armrest storage
Console box in front armrest
To open: pull up lever and lift the lid.
To close: lower lid and push it down
until it latches into position.
Centre console storage To access the storage compartment,
power outlet and AUX input, slide the
cupholder tray rearwards.
Power outlets 3 78.
AUX input - see Infotainment system
manual for further information.
Rear carrier system
The rear carrier system (Flex-Fix
system) allows bicycles to be
attached to a pull-out carrier
integrated into the vehicle floor. The
transportation of other objects is not
permitted.
The maximum load of the rear carrier
system is 40 kg. The maximum load
per bicycle is 20 kg.
The wheelbase of a bicycle must not
exceed 1.15 metres. Otherwise the
secure fastening of a bicycle is not
possible.
