118Climate controlNote
If A/C is switched on, reducing the
set cabin temperature can cause the engine to restart from an Autostop or
inhibit an Autostop.
Stop-start system 3 126.
Manual settings
Climate control system settings can
be changed by pressing A/C or by
adjusting the fan speed or air
distribution switch. Changing a
setting will deactivate Automatic
mode.
To return to Automatic mode: Press
AUTO .
Cooling A/C 3 115.
Fan speed x
To deactivate Automatic mode,
change fan speed manually or turn
fan to position off x.
To return to Automatic mode: Switch
on fan and press AUTO.
Air distribution
Press appropriate button for desired
adjustment. Activation is indicated by illumination of the LED in the button.M:to head area via adjustable air
ventsL:to head area via adjustable air
vents and to foot wellsK:to foot wells and to windscreenJ:to windscreen, front door
windows and foot wellsV:to windscreen, front door
windows and head area via
adjustable air vents
All combinations are possible.
To return to Automatic mode: Press
AUTO .
Automatic air recirculation t
The automatic air recirculation
system has an air quality sensor
which switches on automatically if
harmful ambient gases are detected.
Operated by pressing t. Activation is
indicated by illumination of the LED in
the button.
The automatic air recirculation
system is only operational if the
engine is running.

126Driving and operatingStarting the vehicle at low
temperatures
In extremely cold temperatures, i.e.
below -20 °С, it may be necessary to
crank the engine for up to
30 seconds for it to start.
Turn key to position START and hold
until engine starts. Start attempts
should not last longer than
30 seconds. If engine does not start, wait 10 seconds before repeatingstarting procedure.
Ensure the engine oil is of the correct viscosity, the correct fuel is used,
vehicle services are performed
regularly and the battery is sufficiently
charged.
Turbo engine warm-up Upon start-up, engine available
torque may be limited for a short time,
especially when the engine
temperature is cold. The limitation is
to allow the lubrication system to fully protect the engine.Overrun cut-off
The fuel supply is automatically cut-
off during overrun, i.e. when the
vehicle is driven with a gear engaged
but accelerator is released.
Stop-start system The stop-start system helps to save
fuel and to reduce the exhaust
emissions. When conditions allow, it
switches off the engine as soon as the
vehicle is at a low speed or at a
standstill, e.g. at a traffic light or in a
traffic jam. It starts the engine
automatically as soon as the clutch is depressed. A vehicle battery sensor
ensures that an Autostop is only performed if the vehicle battery is
sufficiently charged for a restart.
Activation
The stop-start system is available as soon as the engine is started, the
vehicle starts-off and the conditions
as stated below in this section are
fulfilled.Deactivation
Deactivate the stop-start system
manually by pressing s. The
deactivation is indicated when the
LED in the button extinguishes.
Fuel economy mode 3 122.
Autostop If the vehicle is at a low speed or at a
standstill, activate an Autostop as
follows:
● Depress the clutch pedal
● set the lever to neutral
● release the clutch pedal

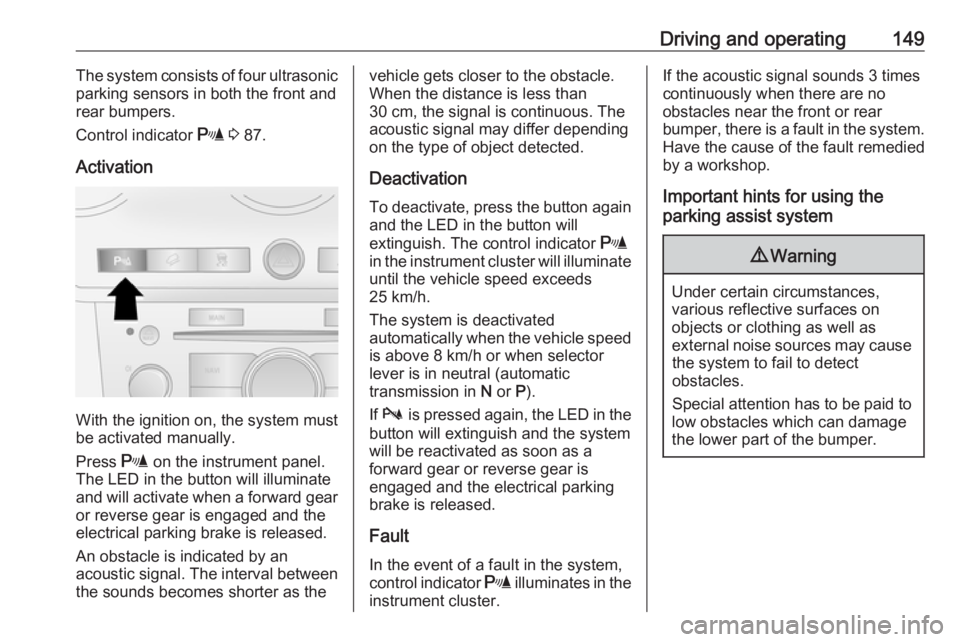

Driving and operating149The system consists of four ultrasonic
parking sensors in both the front and
rear bumpers.
Control indicator r 3 87.
Activation
With the ignition on, the system must
be activated manually.
Press r on the instrument panel.
The LED in the button will illuminate
and will activate when a forward gear
or reverse gear is engaged and the
electrical parking brake is released.
An obstacle is indicated by an
acoustic signal. The interval between
the sounds becomes shorter as the
vehicle gets closer to the obstacle.
When the distance is less than
30 cm, the signal is continuous. The
acoustic signal may differ depending
on the type of object detected.
Deactivation To deactivate, press the button again
and the LED in the button will
extinguish. The control indicator r
in the instrument cluster will illuminate
until the vehicle speed exceeds
25 km/h.
The system is deactivated
automatically when the vehicle speed is above 8 km/h or when selector
lever is in neutral (automatic
transmission in N or P).
If b is pressed again, the LED in the
button will extinguish and the system
will be reactivated as soon as a
forward gear or reverse gear is
engaged and the electrical parking brake is released.
Fault
In the event of a fault in the system,
control indicator r illuminates in the
instrument cluster.If the acoustic signal sounds 3 times
continuously when there are no
obstacles near the front or rear
bumper, there is a fault in the system. Have the cause of the fault remedied
by a workshop.
Important hints for using the
parking assist system9 Warning
Under certain circumstances,
various reflective surfaces on
objects or clothing as well as
external noise sources may cause the system to fail to detect
obstacles.
Special attention has to be paid to
low obstacles which can damage
the lower part of the bumper.

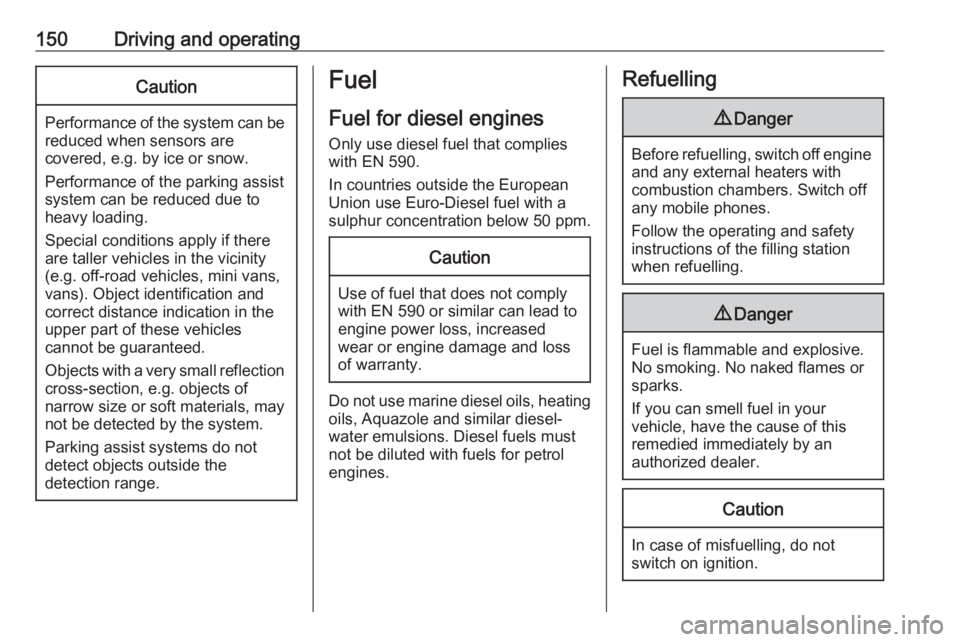

150Driving and operatingCaution
Performance of the system can bereduced when sensors are
covered, e.g. by ice or snow.
Performance of the parking assist
system can be reduced due to
heavy loading.
Special conditions apply if there
are taller vehicles in the vicinity
(e.g. off-road vehicles, mini vans,
vans). Object identification and correct distance indication in the
upper part of these vehicles
cannot be guaranteed.
Objects with a very small reflection
cross-section, e.g. objects of
narrow size or soft materials, may
not be detected by the system.
Parking assist systems do not
detect objects outside the
detection range.
Fuel
Fuel for diesel engines
Only use diesel fuel that complies
with EN 590.
In countries outside the European
Union use Euro-Diesel fuel with a
sulphur concentration below 50 ppm.Caution
Use of fuel that does not comply
with EN 590 or similar can lead to engine power loss, increased
wear or engine damage and loss
of warranty.
Do not use marine diesel oils, heating
oils, Aquazole and similar diesel-
water emulsions. Diesel fuels must
not be diluted with fuels for petrol
engines.
Refuelling9 Danger
Before refuelling, switch off engine
and any external heaters with
combustion chambers. Switch off
any mobile phones.
Follow the operating and safety
instructions of the filling station
when refuelling.
9 Danger
Fuel is flammable and explosive.
No smoking. No naked flames or
sparks.
If you can smell fuel in your
vehicle, have the cause of this
remedied immediately by an
authorized dealer.
Caution
In case of misfuelling, do not
switch on ignition.

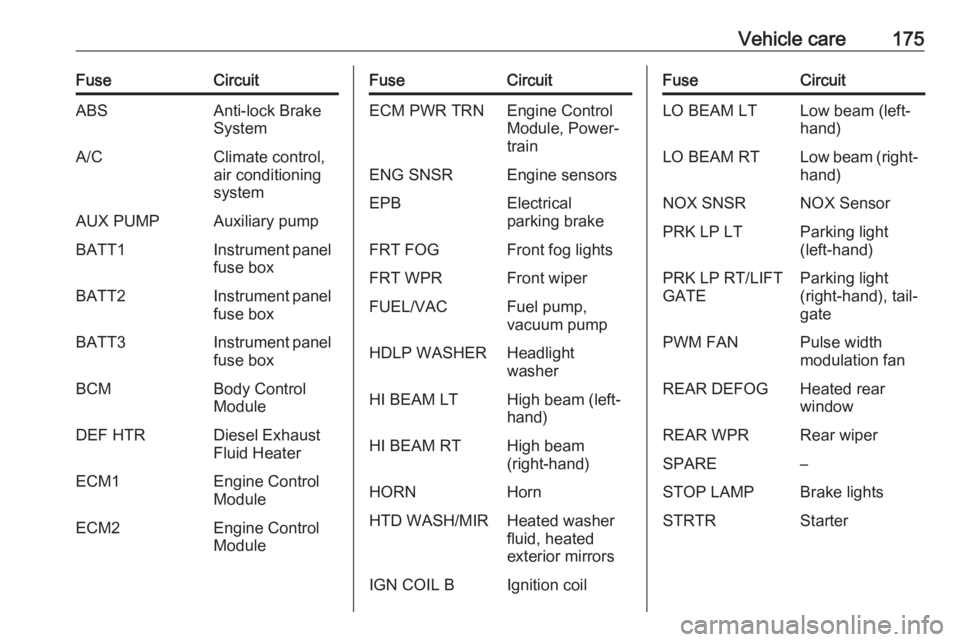

Vehicle care175FuseCircuitABSAnti-lock Brake
SystemA/CClimate control,
air conditioning
systemAUX PUMPAuxiliary pumpBATT1Instrument panel
fuse boxBATT2Instrument panel
fuse boxBATT3Instrument panel
fuse boxBCMBody Control
ModuleDEF HTRDiesel Exhaust
Fluid HeaterECM1Engine Control
ModuleECM2Engine Control
ModuleFuseCircuitECM PWR TRNEngine Control
Module, Power‐
trainENG SNSREngine sensorsEPBElectrical
parking brakeFRT FOGFront fog lightsFRT WPRFront wiperFUEL/VACFuel pump,
vacuum pumpHDLP WASHERHeadlight
washerHI BEAM LTHigh beam (left-
hand)HI BEAM RTHigh beam
(right-hand)HORNHornHTD WASH/MIRHeated washer
fluid, heated
exterior mirrorsIGN COIL BIgnition coilFuseCircuitLO BEAM LTLow beam (left-
hand)LO BEAM RTLow beam (right-
hand)NOX SNSRNOX SensorPRK LP LTParking light
(left-hand)PRK LP RT/LIFT
GATEParking light
(right-hand), tail‐
gatePWM FANPulse width
modulation fanREAR DEFOGHeated rear
windowREAR WPRRear wiperSPARE–STOP LAMPBrake lightsSTRTRStarter

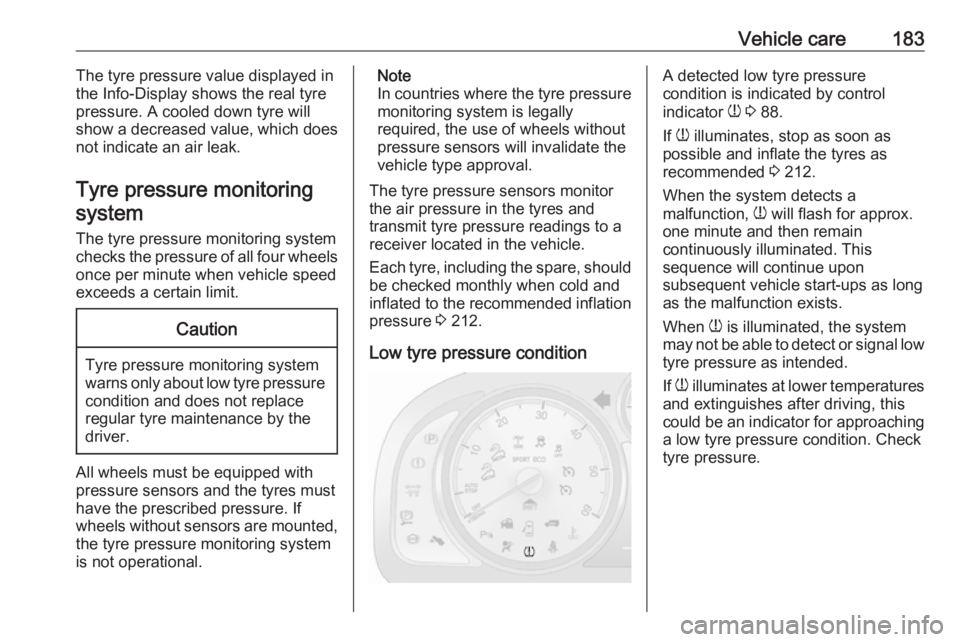

Vehicle care183The tyre pressure value displayed in
the Info-Display shows the real tyre
pressure. A cooled down tyre will
show a decreased value, which does
not indicate an air leak.
Tyre pressure monitoring system
The tyre pressure monitoring system
checks the pressure of all four wheels
once per minute when vehicle speed
exceeds a certain limit.Caution
Tyre pressure monitoring system
warns only about low tyre pressure
condition and does not replace
regular tyre maintenance by the
driver.
All wheels must be equipped with pressure sensors and the tyres must
have the prescribed pressure. If
wheels without sensors are mounted,
the tyre pressure monitoring system
is not operational.
Note
In countries where the tyre pressure monitoring system is legally
required, the use of wheels without
pressure sensors will invalidate the
vehicle type approval.
The tyre pressure sensors monitor
the air pressure in the tyres and
transmit tyre pressure readings to a
receiver located in the vehicle.
Each tyre, including the spare, should be checked monthly when cold and
inflated to the recommended inflation
pressure 3 212.
Low tyre pressure conditionA detected low tyre pressure
condition is indicated by control
indicator w 3 88.
If w illuminates, stop as soon as
possible and inflate the tyres as
recommended 3 212.
When the system detects a
malfunction, w will flash for approx.
one minute and then remain
continuously illuminated. This
sequence will continue upon
subsequent vehicle start-ups as long as the malfunction exists.
When w is illuminated, the system
may not be able to detect or signal low tyre pressure as intended.
If w illuminates at lower temperatures
and extinguishes after driving, this
could be an indicator for approaching
a low tyre pressure condition. Check
tyre pressure.

Vehicle care185If the tyre pressure is to be reduced or
increased, switch off the ignition. Tyre
pressures 3 182, 3 212.
General information The use of commercially available
liquid tyre repair kits can impair the
function of the system. Factory-
approved tyre repair kits can be used.
Tyre repair kit 3 187.
Operating electronic devices or being close to facilities using similar wave
frequencies could disrupt the tyre
pressure monitoring system.
The tyre pressure monitoring system
valve cores and sealing rings must be
replaced each time the tyres are
changed.
Tyre pressure sensor matching
process
Each tyre pressure sensor has a
unique identification code. The
identification code must be matched
to a new tyre/wheel position after
rotating the tyres or replacing one or
more of the tyre pressure sensors.The tyre pressure sensor matching
process should also be performed
after replacing a spare tyre with a
road tyre containing a tyre pressure
sensor. The control indicator w and
the warning message should
extinguish at the next ignition cycle.
The sensors are matched to the tyre/
wheel positions, using a TPMS
relearn tool, in the following order:
● left front tyre
● right front tyre
● right rear tyre
● left rear tyre
Consult your workshop for service or
to purchase a relearn tool.
There are two minutes to match the
first tyre/wheel position, and
five minutes overall to match all four
tyre/wheel positions. If it takes longer, the matching process stops and must
be restarted.The tyre pressure sensor matching
process is as follows:
1. Apply the electrical parking brake 3 143 ; on vehicles with automatic
transmission move the selector
lever to position P.
2. Turn the ignition on 3 125.
3. Initiate the TPMS Learn Mode by simultaneously pressing p and
q on the radio remote control,
- or -
Press INFO on the Infotainment
system until a tyre learn message appears on the Info-display.
Press and hold OK.
The horn sounds twice and the left front turn signal also illuminates
as confirmation that Learn Mode
has been enabled.
4. Start with the left front tyre. 5. Place the relearn tool against the tyre sidewall, near the valve stem.
Then press the button to activate
the tyre pressure sensor. A horn
chirp confirms that the sensor
identification code has been

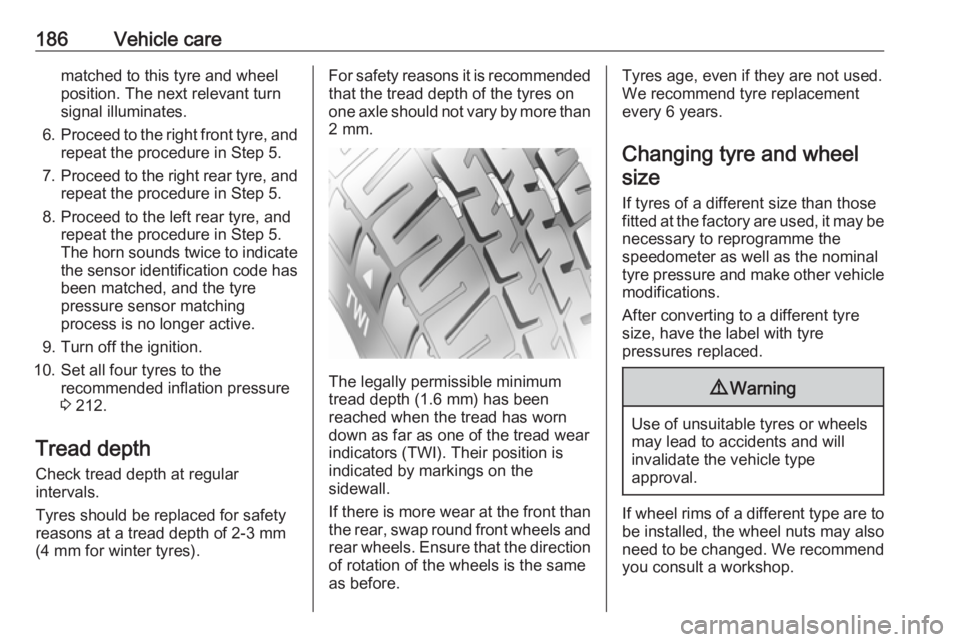

186Vehicle carematched to this tyre and wheel
position. The next relevant turn
signal illuminates.
6. Proceed to the right front tyre, and
repeat the procedure in Step 5.
7. Proceed to the right rear tyre, and
repeat the procedure in Step 5.
8. Proceed to the left rear tyre, and repeat the procedure in Step 5.
The horn sounds twice to indicate
the sensor identification code has been matched, and the tyre
pressure sensor matching
process is no longer active.
9. Turn off the ignition.
10. Set all four tyres to the recommended inflation pressure
3 212.
Tread depth Check tread depth at regular
intervals.
Tyres should be replaced for safety
reasons at a tread depth of 2-3 mm
(4 mm for winter tyres).For safety reasons it is recommended
that the tread depth of the tyres on
one axle should not vary by more than
2 mm.
The legally permissible minimum
tread depth (1.6 mm) has been
reached when the tread has worn
down as far as one of the tread wear
indicators (TWI). Their position is
indicated by markings on the
sidewall.
If there is more wear at the front than
the rear, swap round front wheels and rear wheels. Ensure that the direction
of rotation of the wheels is the same
as before.
Tyres age, even if they are not used.
We recommend tyre replacement
every 6 years.
Changing tyre and wheel size
If tyres of a different size than those
fitted at the factory are used, it may be necessary to reprogramme the
speedometer as well as the nominal
tyre pressure and make other vehicle modifications.
After converting to a different tyre
size, have the label with tyre
pressures replaced.9 Warning
Use of unsuitable tyres or wheels
may lead to accidents and will
invalidate the vehicle type
approval.
If wheel rims of a different type are to
be installed, the wheel nuts may also
need to be changed. We recommend you consult a workshop.

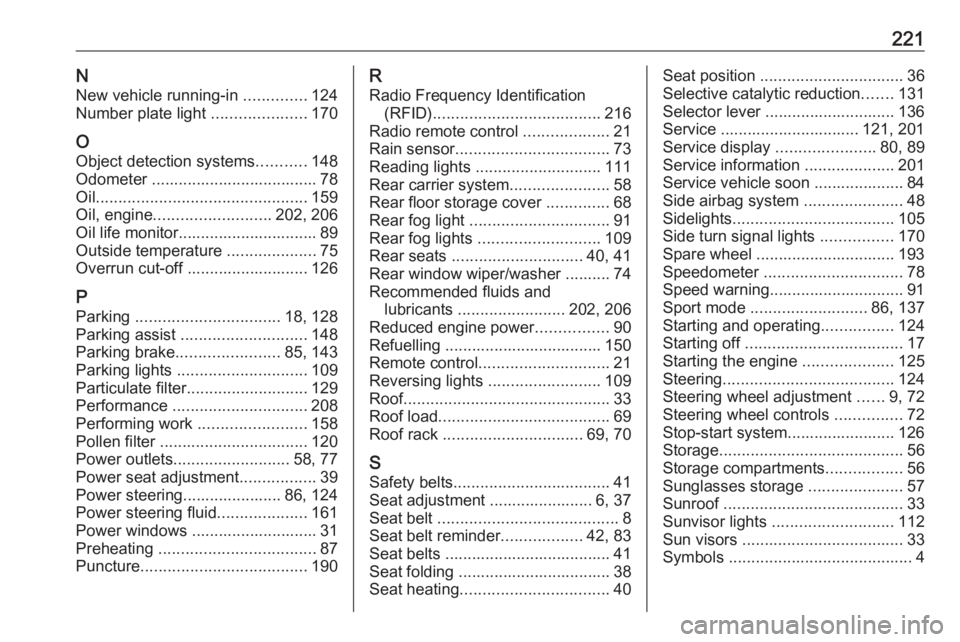

221NNew vehicle running-in ..............124
Number plate light .....................170
O
Object detection systems ...........148
Odometer ..................................... 78
Oil ............................................... 159
Oil, engine .......................... 202, 206
Oil life monitor............................... 89
Outside temperature ....................75
Overrun cut-off ........................... 126
P Parking ................................ 18, 128
Parking assist ............................ 148
Parking brake ....................... 85, 143
Parking lights ............................. 109
Particulate filter ........................... 129
Performance .............................. 208
Performing work ........................158
Pollen filter ................................. 120
Power outlets .......................... 58, 77
Power seat adjustment .................39
Power steering...................... 86, 124
Power steering fluid ....................161
Power windows ............................ 31
Preheating ................................... 87
Puncture ..................................... 190R
Radio Frequency Identification (RFID) ..................................... 216
Radio remote control ...................21
Rain sensor .................................. 73
Reading lights ............................ 111
Rear carrier system ......................58
Rear floor storage cover ..............68
Rear fog light ............................... 91
Rear fog lights ........................... 109
Rear seats ............................. 40, 41
Rear window wiper/washer .......... 74
Recommended fluids and lubricants ........................ 202, 206
Reduced engine power ................90
Refuelling ................................... 150
Remote control ............................. 21
Reversing lights .........................109
Roof .............................................. 33
Roof load ...................................... 69
Roof rack ............................... 69, 70
S Safety belts ................................... 41
Seat adjustment ....................... 6, 37
Seat belt ........................................ 8
Seat belt reminder ..................42, 83
Seat belts ..................................... 41
Seat folding .................................. 38
Seat heating ................................. 40Seat position ................................ 36
Selective catalytic reduction .......131
Selector lever ............................. 136
Service ............................... 121, 201
Service display ......................80, 89
Service information ....................201
Service vehicle soon .................... 84
Side airbag system ......................48
Sidelights .................................... 105
Side turn signal lights ................170
Spare wheel ............................... 193
Speedometer ............................... 78
Speed warning.............................. 91
Sport mode .......................... 86, 137
Starting and operating ................124
Starting off ................................... 17
Starting the engine ....................125
Steering ...................................... 124
Steering wheel adjustment ......9, 72
Steering wheel controls ...............72
Stop-start system........................ 126
Storage ......................................... 56
Storage compartments .................56
Sunglasses storage .....................57
Sunroof ........................................ 33
Sunvisor lights ........................... 112
Sun visors .................................... 33
Symbols ......................................... 4
