OPEL ANTARA 2017 Owners Manual

Technical data209Vehicle weightKerb weight, basic model without any optional equipment
Manual transmission / Automatic transmission.EngineAll-wheel driveFront-wheel driveB 20 DTH1925-1985 / -1851-1911 / 1883-1943A 22 DM1911-1971 / 1936-19961836-1896 / 1861-1921A 22 DMH1911-1971 / 1936-1996- / -
Optional equipment and accessories increase the kerb weight.
Loading information 3 70.
Vehicle dimensionsLength [mm]4596Width [mm]1850Height with roof rails [mm]1761Height without roof rails [mm]1717Wheelbase [mm]2707Track width [mm]
Front1569Rear1576

210Technical dataTurning circle diameter, wall to wall [m]12.78Turning circle diameter, kerb to kerb [m]11.87Maximum wading depth [mm]
(at 5 km/h)450Approach angle20°Ramp angle18°Departure angle24°

Technical data211Capacities
Engine oilEngineB 20 DTHA 22 DMA 22 DMHincluding filter [l]4.95.65.6between MIN and MAX [l]1.01.01.0
Fuel tank
Diesel, nominal capacity [l]65
AdBlue tank
AdBlue, nominal capacity [l]12.2

212Technical dataTyre pressuresUp to full loadUp to full load ECOTrailer towingEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])All215/70 R 16 2)
,
235/60 R 17,
235/65 R 17,
235/55 R 18,
235/50 R 19240/2.4 (35)240/2.4 (35)260/2.6 (38)260/2.6 (38)240/2.4 (35)280/2.8 (41)2) Spare wheel.

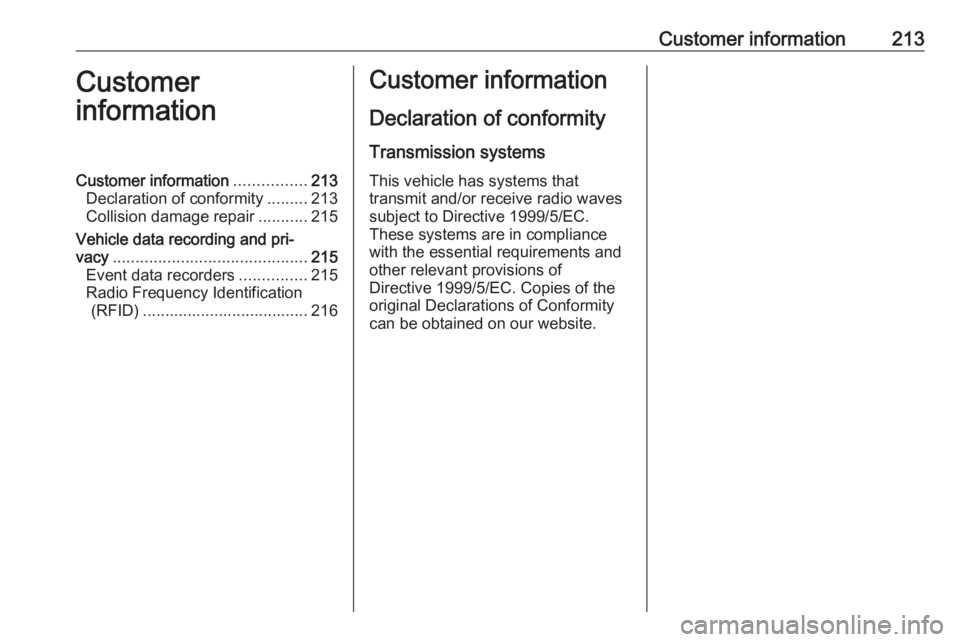

Customer information213Customer
informationCustomer information ................213
Declaration of conformity .........213
Collision damage repair ...........215
Vehicle data recording and pri‐ vacy ........................................... 215
Event data recorders ...............215
Radio Frequency Identification (RFID) ..................................... 216Customer information
Declaration of conformity
Transmission systems
This vehicle has systems that
transmit and/or receive radio waves
subject to Directive 1999/5/EC.
These systems are in compliance
with the essential requirements and
other relevant provisions of
Directive 1999/5/EC. Copies of the
original Declarations of Conformity
can be obtained on our website.

214Customer informationJack

Customer information215Translation of the original declaration
of conformity
Declaration of conformity according
to EC Directive 2006/42/EC
We declare that the product:
Product designation: Jack
Type/GM part number: 13590195
is in compliance with the provisions of
Directive 2006/42/EC.
Applied technical standards:GMW 14337:Standard Equipment
Jack – Hardware
TestsGMW15005:Standard Equipment
Jack and Spare Tyre, Vehicle TestThe person authorised to compile thetechnical documentation is
Hans-Peter Metzger
Engineering Group Manager Chassis
& Structure
Adam Opel AG
D-65423 RüsselsheimSigned by
Daehyeok AnEngineering Group Manager Tyre
Wheel Systems
GM Korea
Bupyung, Incheon, 403-714, Korea
Incheon, Republic of Korea, 4th April
2014
Collision damage repair
Paint thickness Due to production techniques, the
thickness of the paint can vary
between 50 and 400 µm.
Therefore, different paint thickness is
no indicator for a collision damage
repair.Vehicle data recording
and privacy
Event data recorders Data storage modules in the
vehicle
A large number of electronic
components of your vehicle contain
data storage modules temporarily or
permanently storing technical data
about the condition of the vehicle,
events and errors. In general, this
technical information documents the
condition of parts, modules, systems
or the environment:
● Operating conditions of system components (e.g. filling levels)
● Status messages of the vehicle and its single components (e.g.
number of wheel revolutions / rotational speed, deceleration,
lateral acceleration)
● Dysfunctions and defects in important system components

216Customer information● Vehicle reactions in particulardriving situations (e.g. inflation of
an airbag, activation of the
stability regulation system)
● Environmental conditions (e.g. temperature)
These data are exclusively technical
and help identifying and correcting
errors as well as optimizing vehicle
functions.
Motion profiles indicating travelled
routes cannot be created with these
data.
If services are used (e.g. repair
works, service processes, warranty cases, quality assurance),
employees of the service network
(manufacturer included) are able to
read out this technical information
from the event and error data storage
modules applying special diagnostic
devices. If required, you will receive
further information at these
workshops. After an error has been
corrected, the data are deleted from
the error storage module or they are
constantly overwritten.When using the vehicle, situations
may occur in which these technical
data related to other information
(accident report, damages on the
vehicle, witness statements etc.) may
be associated with a specific person - possibly with the assistance of an
expert.
Additional functions contractually
agreed upon with the client (e.g.
vehicle location in emergency cases)
allow the transmission of particular
vehicle data from the vehicle.
Radio Frequency Identification (RFID)
RFID technology is used in some
vehicles for functions such as tyre
pressure monitoring and ignition
system security. It is also used in
connection with conveniences such
as radio remote controls for door
locking/unlocking and starting, and in-
vehicle transmitters for garage door
openers. RFID technology in Opel
vehicles does not use or record
personal information or link with any
other Opel system containing
personal information.

Customer information217

218IndexAAccessories and vehicle modifications .......................... 157
Accessory sockets ........................77
Active head restraints .............35, 36
AdBlue .................................. 88, 131
Adjustable air vents ...................119
Airbag and belt tensioners ...........83
Airbag deactivation ................50, 83
Airbag label................................... 45 Airbag system .............................. 45
Air conditioning regular operation ................................ 121
Air conditioning system .............. 115
Air intake .................................... 120
Air vents...................................... 119
All wheel drive .....................86, 140
Antilock brake system ................ 142
Antilock brake system (ABS) .......85
Anti-theft alarm system ..........26, 91
Anti-theft locking system .............. 25
Appearance care ........................198
Apply footbrake ............................ 90
Armrest ................................... 39, 41
Armrest storage ........................... 58
Automatic anti-dazzle ..................30
Automatic dimming ......................30
Automatic headlight levelling system ...................................... 90
Automatic level control .......106, 147Automatic light control ...............106
Automatic transmission ........84, 136
Autostop ..................................... 126
AUX input ..................................... 58
B Battery .......................................... 84
Battery discharge protection ......113
Battery, jump starting.................. 194
Belt pretensioners......................... 41
Belts.............................................. 41 Bicycle rack .................................. 58
BlueInjection ............................... 131
Board-Info-Display .......................92
Bonnet ....................................... 158
Brake and clutch fluid .................202
Brake assist ............................... 144
Brake fluid .................................. 162
Brakes ............................... 142, 161
Brake system ............................... 85
Breakdown.................................. 196
Bulb replacement ....................... 165
C
Capacities .................................. 211
Card holder ................................... 56
Car Pass ...................................... 21
Catalytic converter ................84, 130
CD tray ......................................... 56
Central locking system ................22
Centre console storage ...............58
