Technical data265Performance
3-door hatchbackEngineA14XERB14NELB14NETA16LETA16XHTB16SHTB16SHLMaximum speed [km/h]Manual transmission178 5)192201220219230–Automatic transmission––200–––2105)
4th gear.
EngineA18XERB20NFTB16DTHB16DTL
A20DTH
121 kWA20DTH
96 kW
A20DTR
Maximum speed [km/h]Manual transmission200250198182210– 6)225Automatic transmission––––207––6)
Value was not available at time of printing.

266Technical data4-door notchback
EngineB14XERB14NET
B14NET
LPG
A16LETB16XERA16XHT
Maximum speed [km/h]Manual transmission183 5)207202223193222Automatic transmission–205–2131852155)
4th gear.EngineA13DTEB16DTHB16DTLB16SHLMaximum speed [km/h]Manual transmission180205189–Automatic transmission–200–215

Technical data267Vehicle weightKerb weight, basic model without any optional equipment3-door hatchbackEngineManual transmissionAutomatic transmissionwithout/with air conditioning
[kg]A14XER1393/1408–B14NEL–/1437–B14NET–/1437–/1471A16LET1471–A16XHT–/1503–B16SHT–/1503–B16SHL––/1503A18XER–/1437–B20NFT–/1550–B16DTH1503/1518–B16DTL1503/1518–A20DTH–/1550–/1571A20DTR–/1571–
Optional equipment and accessories increase the kerb weight.
Loading information 3 70.

268Technical dataKerb weight, basic model without any optional equipment4-door notchbackEngineManual transmissionAutomatic transmissionwithout/with air conditioning
[kg]B14XER1393/1405–B14NET1437/1449–/1483B14NET
LPG1503/1515–A16LET–/14711503B16XER1393/1405–/1449A16XHT–/1503–/1503A13DTE1471/1483–B16SHL––/1503B16DTH1491/1503–/1550B16DTL1491/1503–
Optional equipment and accessories increase the kerb weight.
Loading information 3 70.

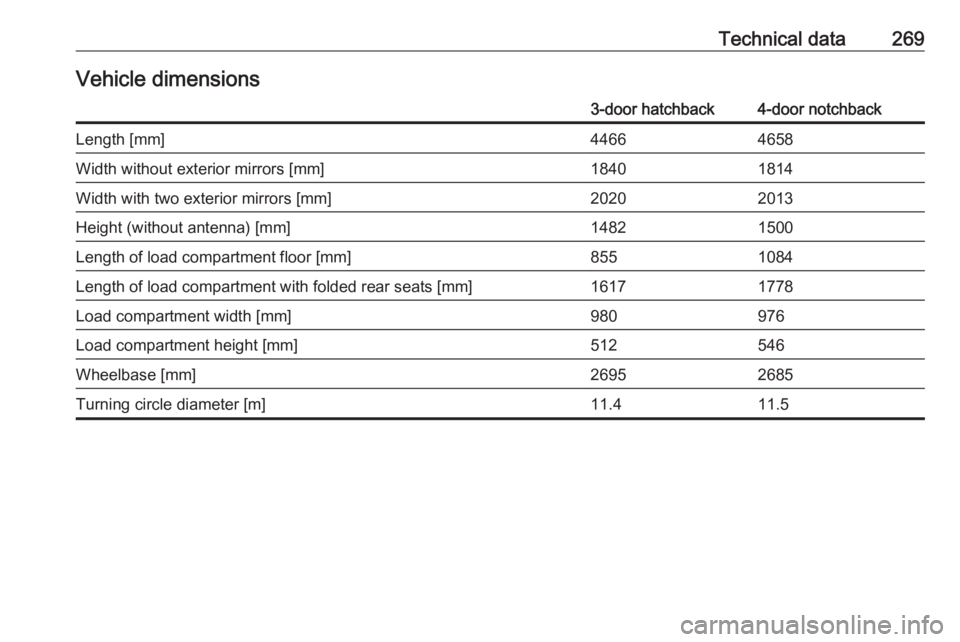

Technical data269Vehicle dimensions3-door hatchback4-door notchbackLength [mm]44664658Width without exterior mirrors [mm]18401814Width with two exterior mirrors [mm]20202013Height (without antenna) [mm]14821500Length of load compartment floor [mm]8551084Length of load compartment with folded rear seats [mm]16171778Load compartment width [mm]980976Load compartment height [mm]512546Wheelbase [mm]26952685Turning circle diameter [m]11.411.5

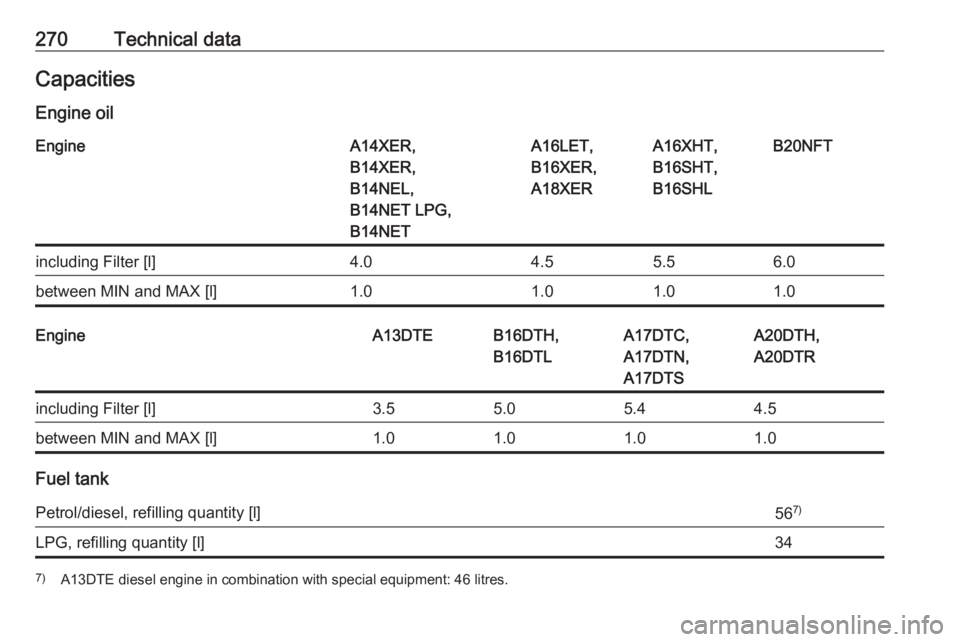

270Technical dataCapacities
Engine oilEngineA14XER,
B14XER,
B14NEL,
B14NET LPG,
B14NETA16LET,
B16XER,
A18XERA16XHT,
B16SHT,
B16SHLB20NFTincluding Filter [l]4.04.55.56.0between MIN and MAX [l]1.01.01.01.0EngineA13DTEB16DTH,
B16DTLA17DTC,
A17DTN,
A17DTSA20DTH,
A20DTRincluding Filter [l]3.55.05.44.5between MIN and MAX [l]1.01.01.01.0
Fuel tank
Petrol/diesel, refilling quantity [l]56 7)LPG, refilling quantity [l]347)
A13DTE diesel engine in combination with special equipment: 46 litres.

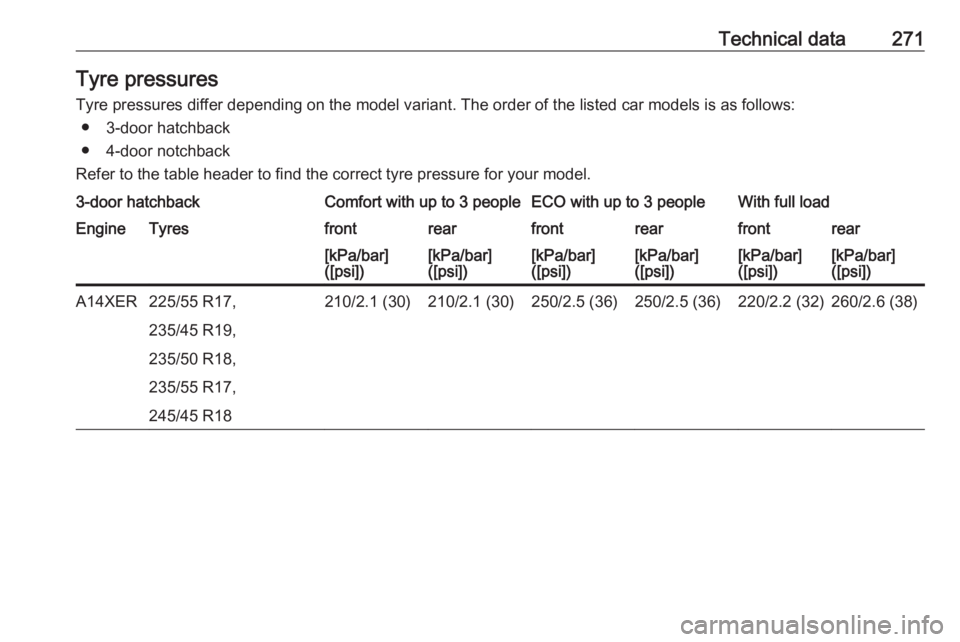

Technical data271Tyre pressures
Tyre pressures differ depending on the model variant. The order of the listed car models is as follows: ● 3-door hatchback
● 4-door notchback
Refer to the table header to find the correct tyre pressure for your model.3-door hatchbackComfort with up to 3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])A14XER225/55 R17,210/2.1 (30)210/2.1 (30)250/2.5 (36)250/2.5 (36)220/2.2 (32)260/2.6 (38)235/45 R19,235/50 R18,235/55 R17,245/45 R18

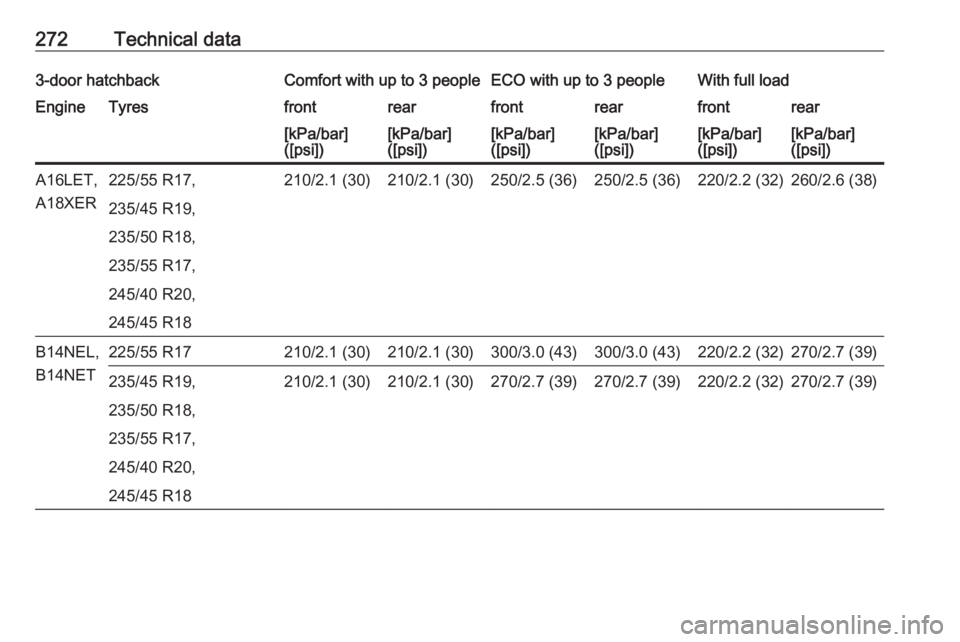

272Technical data3-door hatchbackComfort with up to 3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])A16LET,
A18XER225/55 R17,210/2.1 (30)210/2.1 (30)250/2.5 (36)250/2.5 (36)220/2.2 (32)260/2.6 (38)235/45 R19,235/50 R18,235/55 R17,245/40 R20,245/45 R18B14NEL,
B14NET225/55 R17210/2.1 (30)210/2.1 (30)300/3.0 (43)300/3.0 (43)220/2.2 (32)270/2.7 (39)235/45 R19,210/2.1 (30)210/2.1 (30)270/2.7 (39)270/2.7 (39)220/2.2 (32)270/2.7 (39)235/50 R18,235/55 R17,245/40 R20,245/45 R18

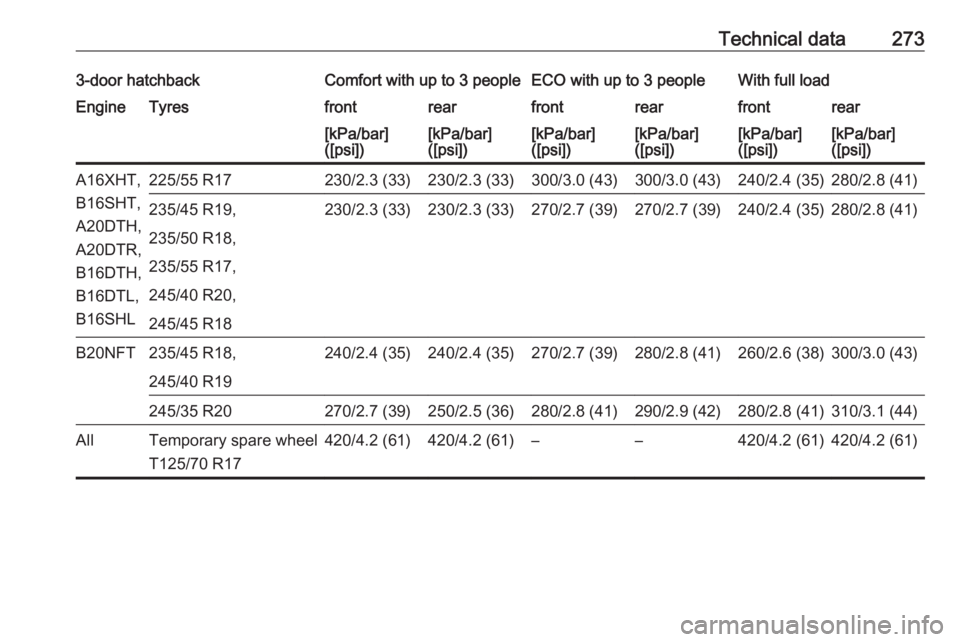

Technical data2733-door hatchbackComfort with up to 3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])A16XHT,
B16SHT,
A20DTH,
A20DTR,
B16DTH,
B16DTL,
B16SHL225/55 R17230/2.3 (33)230/2.3 (33)300/3.0 (43)300/3.0 (43)240/2.4 (35)280/2.8 (41)235/45 R19,230/2.3 (33)230/2.3 (33)270/2.7 (39)270/2.7 (39)240/2.4 (35)280/2.8 (41)235/50 R18,235/55 R17,245/40 R20,245/45 R18B20NFT235/45 R18,240/2.4 (35)240/2.4 (35)270/2.7 (39)280/2.8 (41)260/2.6 (38)300/3.0 (43)245/40 R19245/35 R20270/2.7 (39)250/2.5 (36)280/2.8 (41)290/2.9 (42)280/2.8 (41)310/3.1 (44)AllTemporary spare wheel
T125/70 R17420/4.2 (61)420/4.2 (61)––420/4.2 (61)420/4.2 (61)

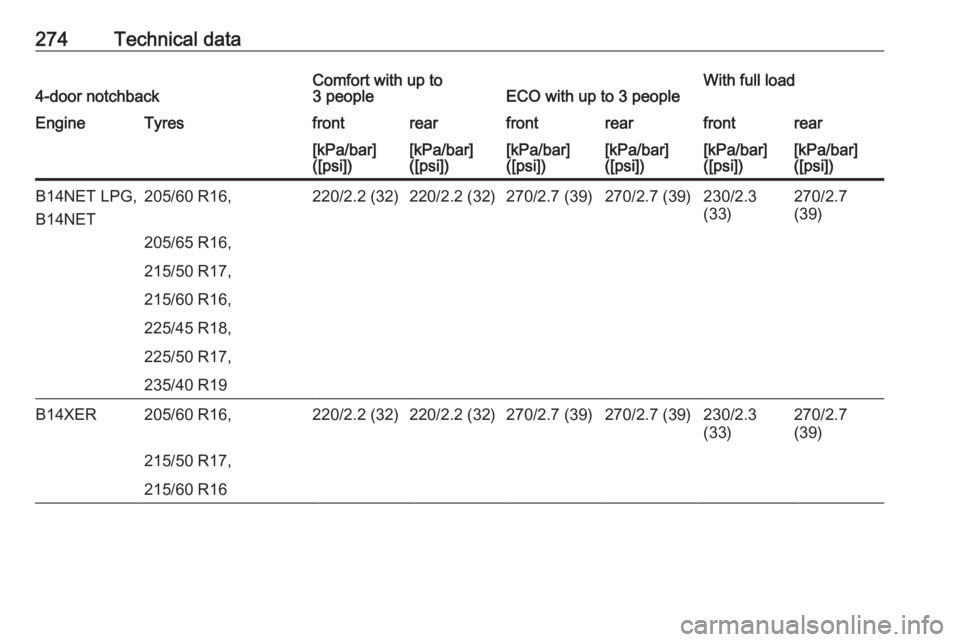

274Technical data4-door notchbackComfort with up to
3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])B14NET LPG,
B14NET205/60 R16,220/2.2 (32)220/2.2 (32)270/2.7 (39)270/2.7 (39)230/2.3
(33)270/2.7
(39)205/65 R16,215/50 R17,215/60 R16,225/45 R18,225/50 R17,235/40 R19B14XER205/60 R16,220/2.2 (32)220/2.2 (32)270/2.7 (39)270/2.7 (39)230/2.3
(33)270/2.7
(39)215/50 R17,215/60 R16
