In brief9
Power seat adjustment
Operate switch 1:
forwards/
backwards=length adjustmentupwards/
downwards=height adjustmentupwards/
downwards
at front=inclination
adjustment
Operate switch 2:
forwards/
backwards at
the top=backrest
adjustmentPower seat adjustment 3 46, Seat
folding 3 45.Head restraint adjustment
Press release button, adjust height,
engage.
Head restraints 3 40.

10In briefSeat belt
Pull out the seat belt and engage in
belt buckle. The seat belt must not be twisted and must fit close against the
body. The backrest must not be tilted
back too far (maximum approx. 25 ° ).
To release belt, press red button on belt buckle.
Seat position 3 42, Seat belts
3 49, Airbag system 3 52.
Mirror adjustment
Interior mirror
To reduce dazzle, adjust the lever on the underside of the mirror housing.
Interior mirror 3 34, Automatic anti-
dazzle interior mirror 3 34.
Exterior mirrors
Select the relevant exterior mirror and
adjust it.
Convex exterior mirrors 3 33,
Electric adjustment 3 33, Folding
exterior mirrors 3 33, Heated
exterior mirrors 3 34.

In brief11Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 52, Ignition
positions 3 165.

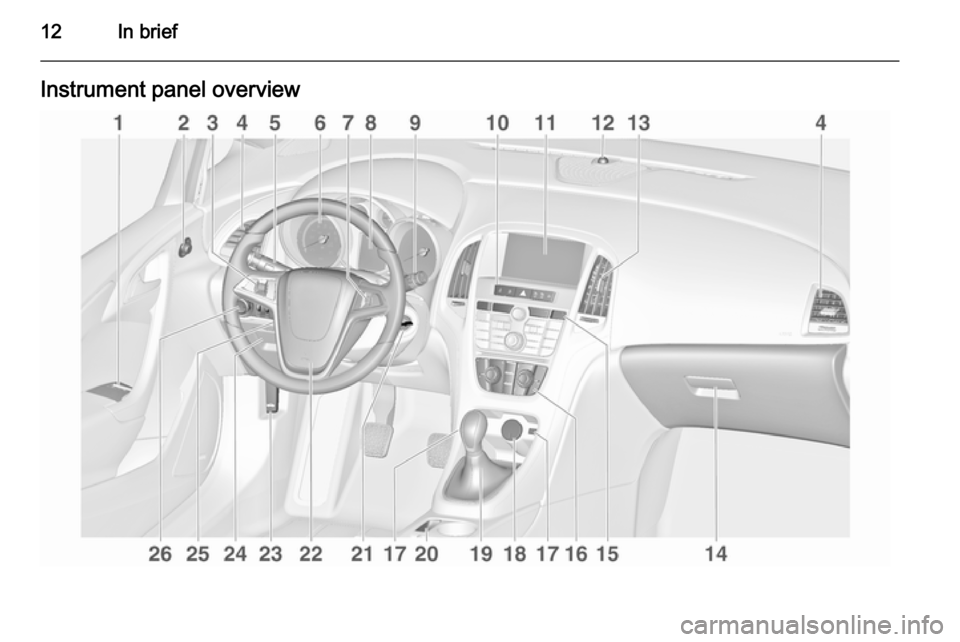

12In briefInstrument panel overview

In brief13
1Power windows .....................35
2 Exterior mirrors .....................33
3 Cruise control .....................183
Speed limiter ....................... 185
Adaptive cruise control .......186
Forward collision alert .........193
4 Side air vents ...................... 162
5 Turn and lane-change
signals, headlight flash,
low beam and high beam,
high beam assist .................149
Exit lighting ......................... 153
Parking lights ...................... 150
Buttons for Driver
Information Centre ..............121
6 Instruments ........................ 110
7 Steering wheel controls .....102
8 Driver Information Centre .... 121
9 Windscreen wiper,
windscreen washer
system, headlight washer
system, rear wiper, rear
washer system ....................10410Sport mode ........................ 181
Central locking system ..........25
Fuel selector ....................... 111
Hazard warning flashers ....149
Control indicator for airbag
deactivation ........................ 115
Control indicator for front
passenger seat belt ...........115
Tour mode .......................... 181
11 Info-Display ........................ 126
12 Anti-theft alarm system
status LED ........................... 30
13 Centre air vents .................. 162
14 Glovebox .............................. 62
15 Traction Control system .....178
Electronic Stability Control . 179
Parking assist ..................... 198
Advanced parking assist .....201
Lane departure warning .....211Eco button for stop-start
system ................................. 167
Unlock button for boot lid ......28
16 Climate control system ........ 155
17 AUX input, USB input, SD
card slot ................................ 12
18 Power outlet ........................ 108
19 Selector lever, manual
transmission ....................... 175
Automatic transmission ......171
20 Electric parking brake .........176
21 Ignition switch with
steering wheel lock ............165
22 Horn ................................... 103
Driver airbag ........................ 53
23 Bonnet release lever ..........226
24 Storage compartment,
fuse box ............................. 255
25 Steering wheel adjustment 102
26 Light switch ........................ 142
Headlight range
adjustment ......................... 144
Front fog lights ...................149

14In brief
Rear fog light ...................... 150
Instrument illumination .......151

In brief15

16In briefExterior lighting
Turn light switch:
7=lights off8=sidelights9=low beam
Automatic light control
AUTO=automatic light control:
exterior lighting is switched
on and off automaticallym=activation or deactivation
of the automatic light
control8=sidelights9=low beam
Fog lights
Press light switch:
>=front fog lightsr=rear fog light
Lighting 3 142.
Headlight flash, high beam and
low beamheadlight flash=pull leverhigh beam=push leverlow beam=push or pull lever
Automatic light control 3 143, High
beam 3 143, Headlight flash 3 144,
Adaptive forward lighting 3 145.

In brief17
Turn and lane-change signalslever up=right turn signallever down=left turn signal
Turn and lane-change signals
3 149, Parking lights 3 150.
Hazard warning flashers
Operated with the ¨ button.
Hazard warning flashers 3 149.
Horn
Press j.

18In briefWasher and wiper systems
Windscreen wiper2=fast1=slowP=interval wiping or automatic wiping with rain sensor§=off
For a single wipe when the
windscreen wiper is off, press the
lever down.
Windscreen wiper 3 104, Wiper
blade replacement 3 231.
Windscreen and headlight
washer
Pull lever.
Windscreen and headlight washer
system 3 104, Washer fluid 3 228.
Rear window wiper
Press the rocker switch to activate the
rear window wiper:
upper
switch=continuous
operationlower switch=intermittent
operationmiddle posi‐
tion=off
