Storage79
Attaching the adapter
When carrying more than two
bicycles, the adapter must be fixed
before the second bicycle is attached.

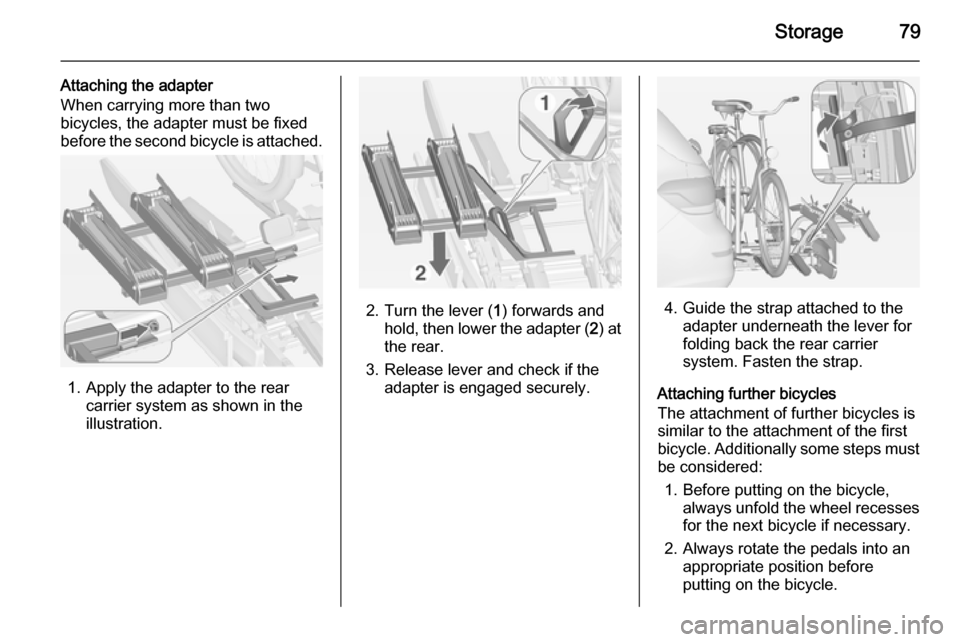

1. Apply the adapter to the rear
carrier system as shown in the
illustration.
2. Turn the lever ( 1) forwards and
hold, then lower the adapter ( 2) at
the rear.
3. Release lever and check if the adapter is engaged securely.4. Guide the strap attached to theadapter underneath the lever for
folding back the rear carrier
system. Fasten the strap.
Attaching further bicycles
The attachment of further bicycles is
similar to the attachment of the first
bicycle. Additionally some steps must be considered:
1. Before putting on the bicycle, always unfold the wheel recesses
for the next bicycle if necessary.
2. Always rotate the pedals into an appropriate position before
putting on the bicycle.

80Storage

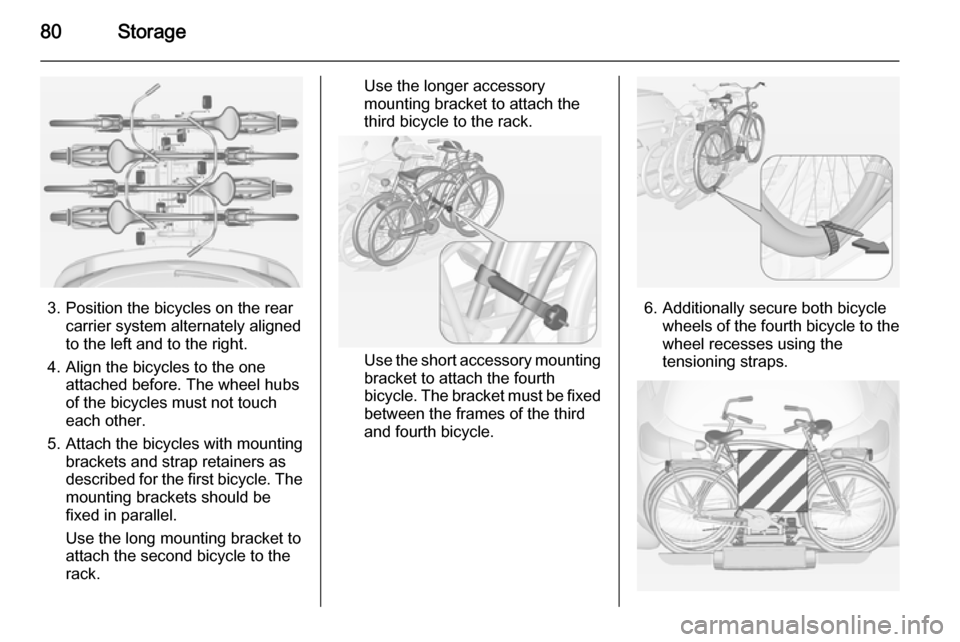

3. Position the bicycles on the rearcarrier system alternately aligned
to the left and to the right.
4. Align the bicycles to the one attached before. The wheel hubsof the bicycles must not touch
each other.
5. Attach the bicycles with mounting brackets and strap retainers as
described for the first bicycle. The
mounting brackets should be
fixed in parallel.
Use the long mounting bracket to
attach the second bicycle to the
rack.
Use the longer accessory
mounting bracket to attach the
third bicycle to the rack.
Use the short accessory mounting
bracket to attach the fourth
bicycle. The bracket must be fixed
between the frames of the third
and fourth bicycle.
6. Additionally secure both bicycle wheels of the fourth bicycle to thewheel recesses using the
tensioning straps.

Storage81
It is recommended to attach a
warning sign at the rearmost bicycle
to increase visibility.
Fold the rear carrier system
backwards
The rear carrier system can be folded
backwards to get access to the load
compartment.
■ Without attached adapter:
Push the lever ( 1) to disengage and
hold.
Pull the rack ( 2) backwards to fold
the rear carrier system.
■ With attached adapter:9 Warning
Take care when disengaging the
rear carrier system as it will tilt
backwards. Risk of injury.
Hold frame ( 1) of rearmost bicycle
with one hand and pull the loop ( 2)
to disengage.
Hold rearmost bicycle with both
hands and fold the rear carrier
system backwards.
To increase visibility, the tail lights of
the vehicle are activated when the
rear carrier system is folded back.
9 Warning
When folding the rear carrier
system forwards again, take care that the system is engaged
securely.
Removing bicycles
Undo strap retainers on both bicycle
tyres.
Turn knob anti-clockwise and remove
mounting brackets.
Detaching adapter
Detach the adapter before removing the last bicycle left on the rear carrier
system.
1. Fold in wheel recesses.

82Storage
2. Unbutton the strap.
3. Turn the lever (1) forwards and
hold.
4. Lift the adapter ( 2) at the rear and
remove.

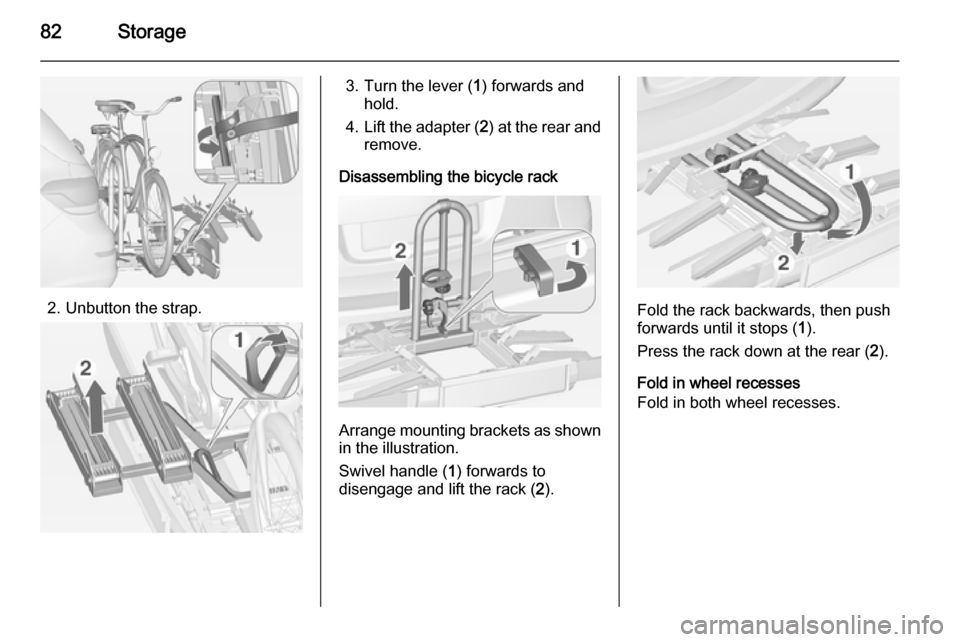

Disassembling the bicycle rack
Arrange mounting brackets as shown in the illustration.
Swivel handle ( 1) forwards to
disengage and lift the rack ( 2).
Fold the rack backwards, then push
forwards until it stops ( 1).
Press the rack down at the rear ( 2).
Fold in wheel recesses
Fold in both wheel recesses.

Storage83
Stow the strap retainers accurately.
Unlock the rear carrier system
Swivel both clamping levers inwards
as far as they will go.
Fold in tail lamps
Swivel in both tail lamps.
Fold in number plate holder
Lift the number plate holder and fold
it forwards.
Retracting the rear carrier systemCaution
Take care that all foldable parts,
e.g. wheel recesses and mounting brackets, are stowed accurately.
Otherwise the rear carrier system might get damaged when trying to retract it.Push the release lever up and hold.
Lift the system slightly and push it into the bumper until it engages.
Release lever must return to original
position.
9 Warning
If the system cannot be correctly
engaged, please seek the
assistance of a workshop.

84StorageLoad compartmentThe rear seat backrest is divided into
two parts. Both parts can be folded
down.
Load compartmentextension, 3-door and 5-door hatchback,
4-door notchback ■ Only 3-door and 5-door hatchback: remove the load compartment
cover if necessary.
■ Press and hold the catch to push the head restraints down 3 40.
■ Fold up the rear armrest.■ Guide the seat belts through side supports to protect them against
damage. When folding the
backrests, pull the seat belts along
with them.
■ Pull the release lever on one or both
sides and fold down the backrests
onto the seat cushion.
■ Take the seat belt out of the seat backrest guide and put it behind theretainer as shown in the illustration.
To fold up, raise the backrests and
guide them into an upright position
until they engage audibly.
Ensure that the seat belts of the
outboard seats are placed in the
corresponding belt guides.
The backrests are properly engaged
when the red marks on both sides near the release lever are no longer
visible.
9 Warning
When folding up, ensure that
backrests are securely locked in
position before driving. Failure to
do so may result in personal injury

Storage85or damage to the load or vehicle inthe event of hard braking or a
collision.
The seat belt of the centre seat could
be blocked when the backrest is
folded up too quickly. To unlock the
retractor, push in the seat belt or pull
it out by approx. 20 mm then release.
Load compartment extension,
Sports tourer
Folding down rear backrests ■ Remove the load compartment cover if necessary.
■ Press and hold the catch to pushthe head restraints down 3 40.
■ Fold up the rear armrest.
■ Guide the seat belts through side supports to protect them against
damage. When folding the
backrests, pull the seat belts along
with them.
■ Pull the release lever on one or both
sides and fold down the backrests
onto the seat cushion.
Electric seat folding
On vehicles with electric seat folding,
the rear seats can also be folded from the load compartment.
■ Pull switch on left or right sidewall of the load compartment to fold the
corresponding part of the rear seat.
9 Warning
Take care when operating the
electric foldable rear seats. The seat backrest is folded with
considerable power. Risk of injury, particularly to children.
Ensure that nothing is attached to
the rear seats or located on the
seat cushion.

86Storage
If the vehicle is to be loaded via arear door, take the seat belt out of
the seat backrest guide and put it
behind the retainer (as shown in the illustration).
■ To fold up, raise the backrests and guide them into an upright position
until they engage audibly.
Ensure that the seat belts of the
outboard seats are placed in the corresponding belt guides.The backrests are properly engaged
when the red marks on both sides
near the release lever are no longer
visible.
9 Warning
Only drive the vehicle if the
backrests are securely locked into position. Otherwise there is a risk
of personal injury or damage to the
load or vehicle in the event of hard braking or a collision.
The seat belt of the centre seat could
be blocked when the backrest is
folded up too quickly. To unlock the
retractor, push in the seat belt or pull
it out by approx. 20 mm then release.

Storage87

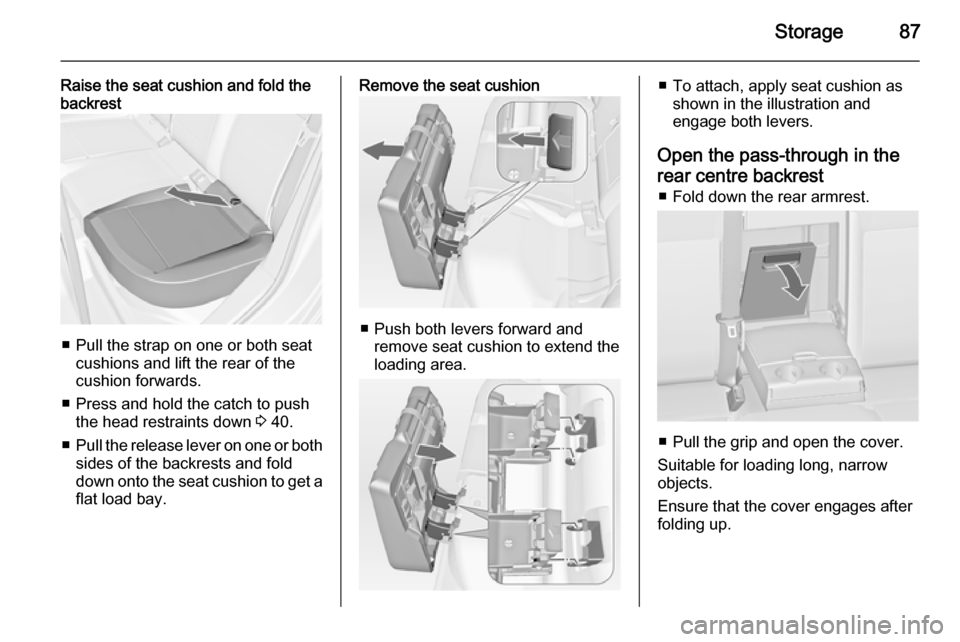

Raise the seat cushion and fold the
backrest
■ Pull the strap on one or both seat
cushions and lift the rear of thecushion forwards.
■ Press and hold the catch to push the head restraints down 3 40.
■ Pull the release lever on one or both
sides of the backrests and fold
down onto the seat cushion to get a
flat load bay.
Remove the seat cushion
■ Push both levers forward and remove seat cushion to extend theloading area.
■ To attach, apply seat cushion as shown in the illustration and
engage both levers.
Open the pass-through in the
rear centre backrest ■ Fold down the rear armrest.
■ Pull the grip and open the cover.
Suitable for loading long, narrow
objects.
Ensure that the cover engages after
folding up.

88Storage
The closed cover can be secured
from the side of the load
compartment. Turn the knob 90°:
knob
hori‐
zontal=cover secured from the
side of the passenger
compartmentknob
vertical=cover not secured
Rear storage
3-door hatchback
Press both buttons and fold down
cover.
Maximum load: 0.5 kg.
Load compartment cover Do not place any objects on the cover.
3-door and 5-door hatchback
Removing
Unhook retaining straps from tailgate.
