technical data OPEL ASTRA J 2017 Manual user

Introduction.................................... 2
In brief ............................................ 6
Keys, doors and windows ............22
Seats, restraints ........................... 39
Storage ........................................ 61
Instruments and controls .............73
Lighting ...................................... 116
Climate control ........................... 129
Driving and operating .................139
Vehicle care ............................... 200
Service and maintenance ..........254
Technical data ........................... 257
Customer information ................280
Index .......................................... 288Contents

Introduction3Vehicle specific dataPlease enter your vehicle's data on
the previous page to keep it easily
accessible. This information is
available in the sections "Service and
maintenance" and "Technical data"
as well as on the identification plate.
Introduction
Your vehicle is a designed
combination of advanced technology, safety, environmental friendliness
and economy.
This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.
Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.
You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in this Owner's Manual.
Disregarding the description given in
this manual may affect your warranty.When this Owner's Manual refers to a
workshop visit, we recommend your
Opel Service Partner. For gas
vehicles we recommend an Opel
Repairer authorised for servicing gas
vehicles.
All Opel Service Partners provide first-class service at reasonable
prices. Experienced mechanics
trained by Opel work according to
specific Opel instructions.
The customer literature pack should
always be kept ready to hand in the
vehicle.
Using this manual ● This manual describes all options
and features available for this
model. Certain descriptions,
including those for display and
menu functions, may not apply to
your vehicle due to model
variant, country specifications,
special equipment or
accessories.
● The "In brief" section will give you
an initial overview.● The table of contents at the beginning of this manual and
within each section shows where the information is located.
● The index will enable you to search for specific information.
● This Owner's Manual depicts left-
hand drive vehicles. Operation is similar for right-hand drive
vehicles.
● The Owner's Manual uses the engine identifier code. The
corresponding sales designation
and engineering code can be
found in the section "Technical
data".
● Directional data, e.g. left or right, or front or back, always relate to
the direction of travel.
● Displays may not support your specific language.
● Display messages and interior labelling are written in bold
letters.

Technical data257Technical dataVehicle identification..................257
Vehicle Identification Number ..257
Identification plate ...................257
Engine identification ................258
Vehicle data ............................... 259
Recommended fluids and lubricants ................................ 259
Engine data ............................. 262
Performance ............................ 265
Vehicle weight ......................... 267
Vehicle dimensions .................269
Capacities ................................ 270
Tyre pressures ........................ 271Vehicle identification
Vehicle IdentificationNumber
The Vehicle Identification Number
may be stamped on the identification plate and on the floor pan, under thefloor covering, visible under a cover.
The Vehicle Identification Number
may be embossed on the instrument
panel, visible through the windscreen,
or in the engine compartment on the
right body panel.
Identification plate

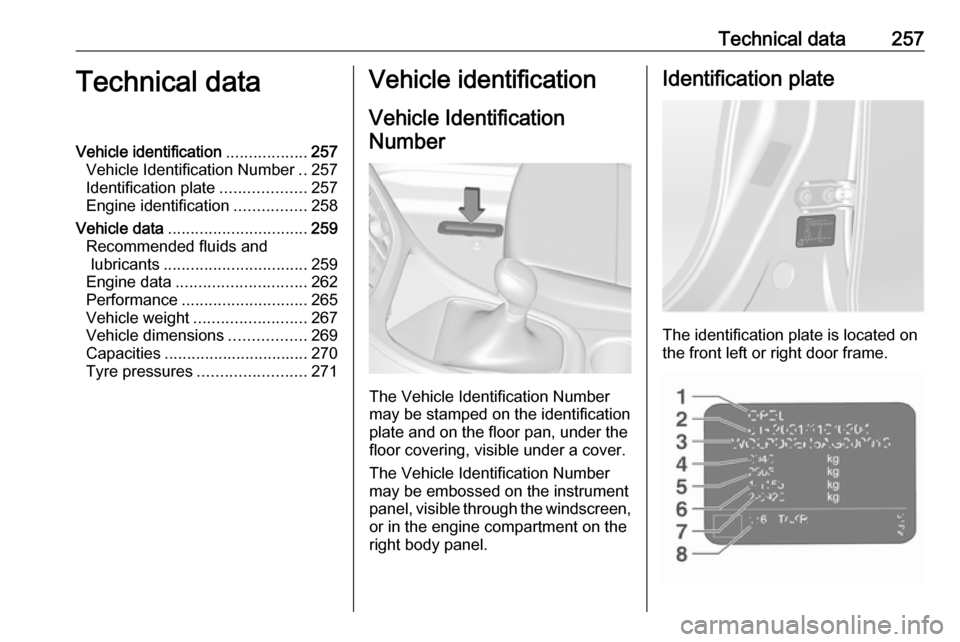

The identification plate is located on
the front left or right door frame.

258Technical dataInformation on identification label:1:manufacturer2:type approval number3:vehicle identification number4:permissible gross vehicle weight
rating in kg5:permissible gross train weight
in kg6:maximum permissible front axle
load in kg7:maximum permissible rear axle
load in kg8:vehicle-specific or country-
specific data
The combined total of front and rear
axle loads must not exceed the
permissible gross vehicle weight. For
example, if the front axle is bearing its
maximum permissible load, the rear
axle can only bear a load that is equal
to the gross vehicle weight minus the front axle load.
The technical data is determined in
accordance with European
Community standards. We reserve
the right to make modifications.
Specifications in the vehicle
documents always have priority over
those given in this manual.
Engine identification
The technical data tables show the
engine identifier code. Engine data
3 262.
To identify the respective engine,
refer to the engine power in the EEC
Certificate of Conformity provided
with your vehicle or other national
registration documents.

Technical data259Vehicle dataRecommended fluids and lubricants
European service schedule Required engine oil qualityAll European countries with European service interval 3 254Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesdexos 1––dexos 2✔✔
In case dexos quality is unavailable you may use max. 1 litre engine oil quality ACEA C3 once between each oil change.
Engine oil viscosity grades
All European countries with European service interval 3 254Ambient temperaturePetrol and diesel enginesdown to -25 °CSAE 5W-30 or SAE 5W-40below -25 °CSAE 0W-30 or SAE 0W-40

260Technical dataInternational service schedule
Required engine oil qualityAll countries with international service interval 3 254Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesdexos 1 (if available)✔–dexos 2✔✔
In case dexos quality is unavailable you may use the oil qualities listed below:
All countries with international service interval 3 254Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesGM-LL-A-025✔–GM-LL-B-025–✔All countries with international service interval 3 254Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesACEA A3/B3✔–ACEA A3/B4✔✔

Technical data261All countries with international service interval 3 254ACEA C3✔✔API SM✔–API SN resource conserving✔–
Engine oil viscosity grades
All countries with international service interval 3 254Ambient temperaturePetrol and diesel enginesdown to -25 °CSAE 5W-30 or SAE 5W-40below -25 °CSAE 0W-30 or SAE 0W-40down to -20 °CSAE 10W-30 1)
or SAE 10W-40 1)1)
Permitted, but usage of SAE 5W-30 or SAE 5W-40 with dexos quality is recommended.

262Technical dataEngine dataEngine identifier code
A14XER,
B14XERB14NELB14NET LPG,
B14NETB16XERA16XHTB16SHLB16SHTSales designation1.41.41.41.61.61.61.6Engineering codeA14XERB14NETB14NETB16XERB16SHTB16SHTPiston displacement [cm 3
]1398136413641598159815981598Engine power [kW]748810385125125147at rpm60004200-60004900-6000600060004750-60005500Torque [Nm]130200200155260260280at rpm40001850-42001850-490040001650-32001650-45001650-5000Fuel typePetrolPetrolPetrol/Liquid gasPetrolPetrolPetrolPetrolOctane rating RON 2)recommended95959595989898possible98989898959595possible91919191919191Additional fuel type––Liquid gas (LPG)––––2)
A country specific label at the fuel filler flap can supersede the engine specific requirement.

Technical data263Sales designation1.61.82.0 OPC1.31.61.6Engine identifier codeA16LETA18XERB20NFTA13DTEB16DTHB16DTLEngineering codeA18XERB20NFTB16DTHB16DTLPiston displacement [cm3
]159817961998124815981598Engine power [kW]1321032067010081at rpm55006300530040003500-40003500Torque [Nm]230175400190320300at rpm220038002400-48001750-325020001750-2000Fuel typePetrolPetrolPetrolDieselDieselDieselOctane rating RON 3)recommended959598possible989895possible9191913)
A country specific label at the fuel filler flap can supersede the engine specific requirement.

264Technical dataSales designation1.71.71.72.0 Turbo2.0 Turbo2.0 Turbo
Engine identifier code
A17DTNA17DTCA17DTSA20DTH
121 kWA20DTH
96 kWA20DTREngineering codePiston displacement [cm 3
]168616861686195619561956Engine power [kW]748196121/117 4)96143at rpm400040004000400040004000Torque [Nm]260280300350300400at rpm1750-25001750-25002000-25001750-25001750-25001750-2500Fuel typeDieselDieselDieselDieselDieselDiesel4)
Detuned version.
