In brief9Seat belt
Pull out the seat belt and fasten in belt
buckle. The seat belt must not be
twisted and must fit close against the
body. The backrest must not be tilted back too far (maximum approx. 25 ° ).
To unfasten belt, press red button on belt buckle.
Seat position 3 41, Seat belts
3 48, Airbag system 3 51.
Mirror adjustment
Interior mirror
To adjust the mirror, move the mirror
housing in the desired direction.
Manual anti-dazzle interior mirror
3 33, Automatic anti-dazzle interior
mirror 3 33.
Exterior mirrors
Select the relevant exterior mirror and
adjust it.
Convex exterior mirrors 3 31,
Electric adjustment 3 31, Folding
exterior mirrors 3 32, Heated
exterior mirrors 3 32.

10In briefSteering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 51, Ignition
positions 3 142.

In brief11Instrument panel overview

12In brief1Power windows .....................34
2 Exterior mirrors .....................31
3 Cruise control .....................160
Speed limiter ....................... 162
Adaptive cruise control .......163
Forward collision alert .........170
4 Side air vents ...................... 138
5 Turn and lane-change
signals, headlight flash,
low beam and high beam,
high beam assist .................124
Exit lighting ......................... 128
Parking lights ...................... 125
Buttons for Driver
Information Centre ................94
6 Instruments .......................... 81
7 Steering wheel controls .......74
8 Driver Information Centre ...... 94
9 Windscreen wiper,
windscreen washer
system, headlight washer
system, rear window
wiper, rear window washer
system ................................... 7510 Sport mode ........................ 158
Central locking system ..........24
Fuel selector ......................... 82
Hazard warning flashers ....124
Control indicator for airbag
deactivation .......................... 88
Control indicator for front
passenger seat belt .............88
Tour mode .......................... 158
11 Info Display ........................... 98
12 Anti-theft alarm system
status LED ........................... 29
13 Centre air vents .................. 138
14 Glovebox .............................. 61
15 Traction Control system
(TC) ..................................... 156
Electronic Stability Control (ESC) .................................. 156
Parking assist systems .......176
Lane departure warning .....188Eco button for stop-start
system ................................. 143
Unlock button for boot lid ......27
16 Climate control system ........ 130
17 AUX input, USB input, SD
card slot ................................ 11
18 Power outlet .......................... 79
19 Selector lever, manual
transmission ....................... 152
Automatic transmission ......148
20 Electric parking brake .........154
21 Ignition switch with
steering wheel lock ............142
22 Horn ..................................... 75
Driver airbag ........................ 52
23 Bonnet release lever ..........202
24 Storage compartment,
fuse box ............................. 226
25 Steering wheel adjustment ..74
26 Light switch ........................ 117
Headlight range
adjustment ......................... 120
Front fog lights ...................125

In brief13Rear fog light ...................... 125
Instrument illumination .......126

14In brief

In brief15Exterior lighting
Turn light switch:
7:lights off8:sidelights9:low beam
Automatic light control
AUTO:automatic light control:
exterior lighting is switched
on and off automaticallym:activation or deactivation of
the automatic light control8:sidelights9:low beam
Fog lights
Press light switch:
>:front fog lightsr:rear fog light
Lighting 3 117.
Headlight flash, high beam and
low beamheadlight flash:pull leverhigh beam:push leverlow beam:push or pull lever
Automatic light control 3 118, High
beam 3 119, Headlight flash 3 119,
Adaptive forward lighting 3 121.

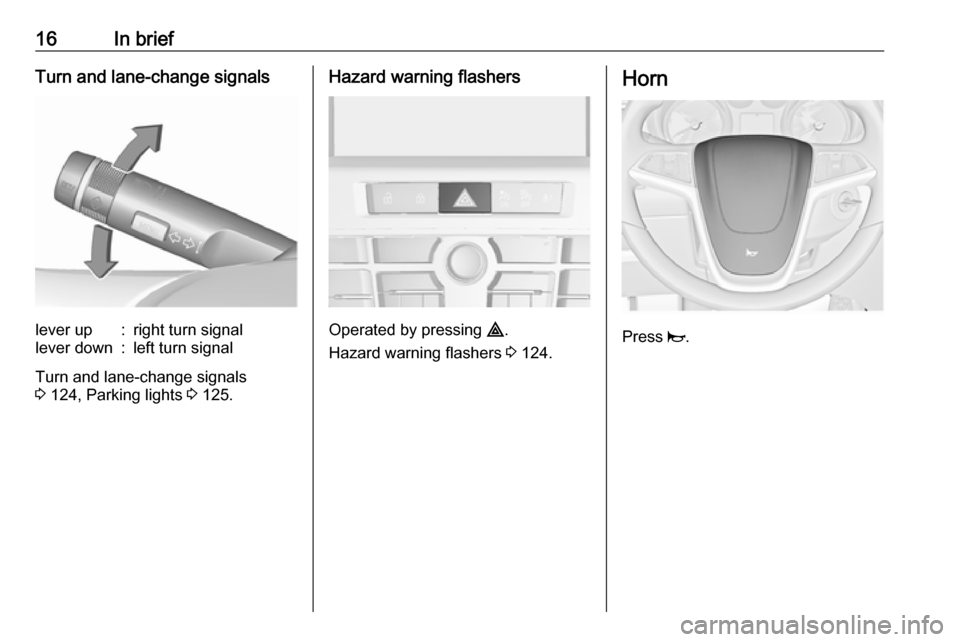

16In briefTurn and lane-change signalslever up:right turn signallever down:left turn signal
Turn and lane-change signals
3 124, Parking lights 3 125.
Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 124.
Horn
Press j.

In brief17Climate control
Heated rear window, heated
exterior mirrors
The heating is operated by pressing
Ü .
Heated rear window 3 36.
Demisting and defrosting the
windows
Press V.
Set the temperature control to the
highest level.
Heated rear window Ü on.
Climate control system 3 130.
Washer and wiper systems
Windscreen wiperHI:fastLO:slowINT:interval wiping or automatic
wiping with rain sensorOFF:off
For a single wipe when the
windscreen wiper is off, press the
lever down to position 1x.
Windscreen wiper 3 75, Wiper
blade replacement 3 208.

18In briefWindscreen and headlight
washer
Pull lever.
Windscreen and headlight washer
system 3 75, Washer fluid 3 205.
Rear window wiper
Press the rocker switch to activate the
rear window wiper:
upper switch:continuous
operationlower switch:intermittent
operationmiddle position:offRear window washer
Push lever.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper/washer 3 77.
