General information
The phone holder is attached to a
power connector (PowerFlex Bar).
Further information regarding power
connector is available in the Owner's
manual.
Smartphones with following
dimensions can be attached to the
phone holder:
● height: up to 150 mm
● width: 57 to 73.5 mm
● depth: 6 to 11 mm
9 Warning
Devices attached to the phone
holder must be used in a way that
driver distraction is avoided and the vehicle can be driven safely at all times. You must always comply
with the respective laws and
regulations of the country where
you are driving. These laws may
differ from the information in this
manual. If in doubt, stop your
vehicle and operate devices while
the vehicle is stationary.
Caution
To avoid theft, do not leave the mobile phone in the phone holder
when leaving the vehicle.

Phone holder163UsageAdapting the phone holder to the sizeof the smartphone
1. Press both brackets (1) on the
rear side to disengage the shifters
for width adjustment and pull them
out.
2. Press button (2) on left upper side
to disengage shifter for height
adjustment.
3. Insert the smartphone.
4. Adjust the width of the phone holder to the width of the phone by
pushing together the shifters.

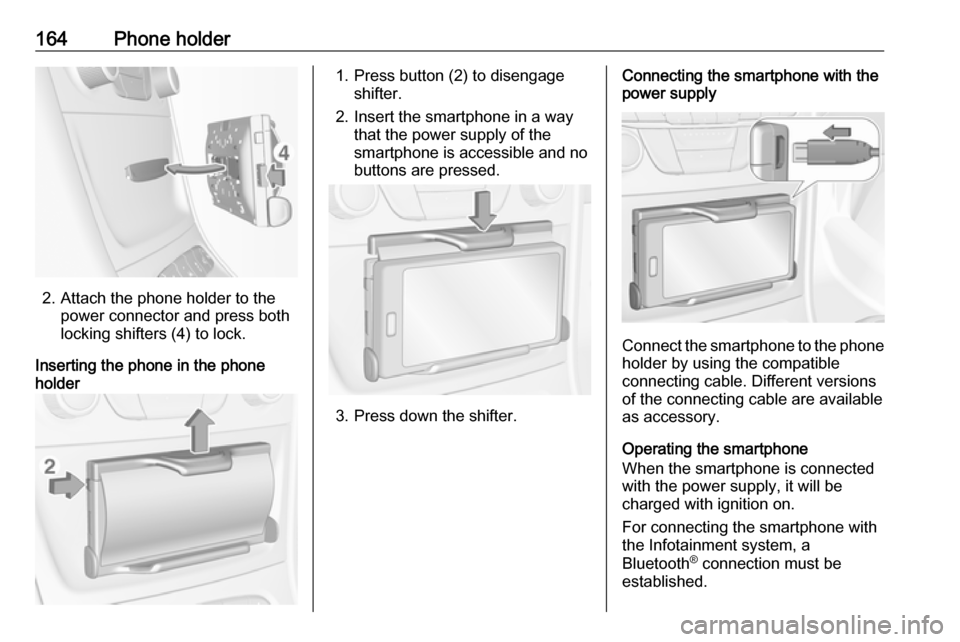

Attaching the phone holder to the
power connector
1. Press release button (3) to
disengage locking shifters (4).

164Phone holder
2. Attach the phone holder to thepower connector and press both
locking shifters (4) to lock.
Inserting the phone in the phone holder
1. Press button (2) to disengage
shifter.
2. Insert the smartphone in a way that the power supply of the
smartphone is accessible and no
buttons are pressed.
3. Press down the shifter.
Connecting the smartphone with the power supply
Connect the smartphone to the phone
holder by using the compatible
connecting cable. Different versions
of the connecting cable are available
as accessory.
Operating the smartphone
When the smartphone is connected with the power supply, it will be
charged with ignition on.
For connecting the smartphone with
the Infotainment system, a
Bluetooth ®
connection must be
established.

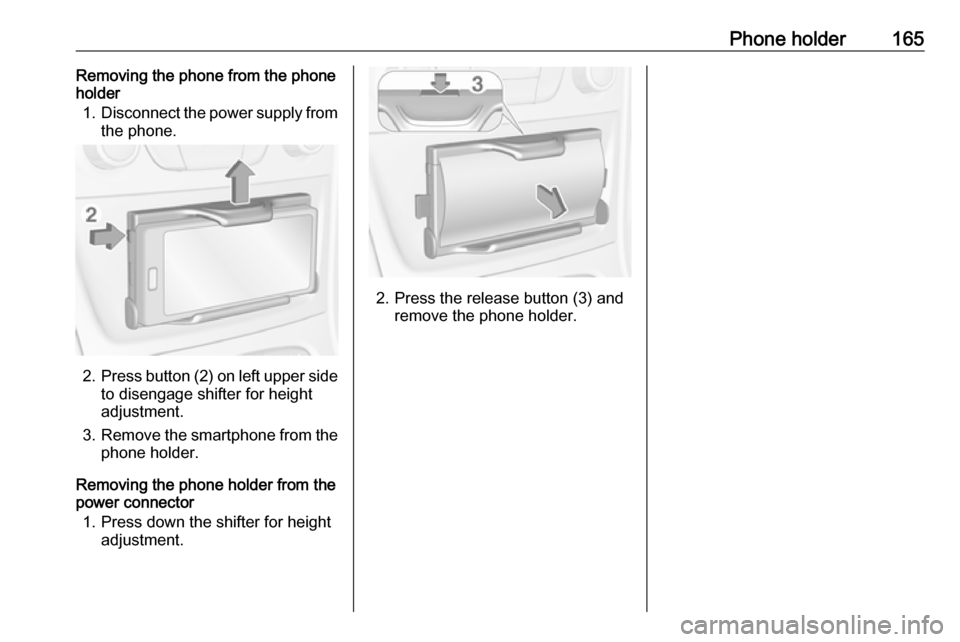

Phone holder165Removing the phone from the phone
holder
1. Disconnect the power supply from
the phone.
2. Press button (2) on left upper side
to disengage shifter for height
adjustment.
3. Remove the smartphone from the
phone holder.
Removing the phone holder from the power connector
1. Press down the shifter for height adjustment.
2. Press the release button (3) andremove the phone holder.

166IndexPPhone holder .............................. 162
