technical data OPEL ASTRA K 2018.75 Manual user

Introduction.................................... 2
In brief ............................................ 6
Keys, doors and windows ............20
Seats, restraints ........................... 46
Storage ........................................ 71
Instruments and controls .............90
Lighting ...................................... 136
Climate control ........................... 147
Driving and operating .................157
Vehicle care ............................... 231
Service and maintenance ..........280
Technical data ........................... 284
Customer information ................301
Index .......................................... 312Contents

Introduction3Vehicle specific dataPlease enter your vehicle's data on
the previous page to keep it easily
accessible. This information is
available in the sections "Service and
maintenance" and "Technical data"
as well as on the identification plate.
Introduction
Your vehicle is a designed
combination of advanced technology, safety, environmental friendliness
and economy.
This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.
Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.
You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in this Owner's Manual.
Disregarding the description given in
this manual may affect your warranty.When this Owner's Manual refers to a
workshop visit, we recommend your
Opel Service Partner.
For gas vehicles we recommend an
Opel Repairer authorised for
servicing gas vehicles.
All Opel Service Partners provide
first-class service at reasonable
prices. Experienced mechanics
trained by Opel work according to
specific Opel instructions.
The customer literature pack should
always be kept ready to hand in the
vehicle.
Using this manual ● This manual describes all options
and features available for this
model. Certain descriptions,
including those for display and
menu functions, may not apply to
your vehicle due to model
variant, country specifications,
special equipment or
accessories.
● The "In brief" section will give you
an initial overview.● The table of contents at the beginning of this manual and
within each section shows where the information is located.
● The index will enable you to search for specific information.
● This Owner's Manual depicts left-
hand drive vehicles. Operation is similar for right-hand drive
vehicles.
● The Owner's Manual uses the engine identifier code. The
corresponding sales designation
and engineering code can be
found in the section "Technical
data".
● Directional data, e.g. left or right, or front or back, always relate to
the direction of travel.
● Displays may not support your specific language.
● Display messages and interior labelling are written in bold
letters.

284Technical dataTechnical dataVehicle identification..................284
Vehicle Identification Number ..284
Identification plate ...................284
Engine identification ................285
Vehicle data ............................... 286
Recommended fluids and lubricants ................................ 286
Engine data ............................. 289
Performance ............................ 291
Vehicle weight ......................... 293
Vehicle dimensions .................296
Capacities ................................ 297
Tyre pressures ........................ 298Vehicle identification
Vehicle IdentificationNumber

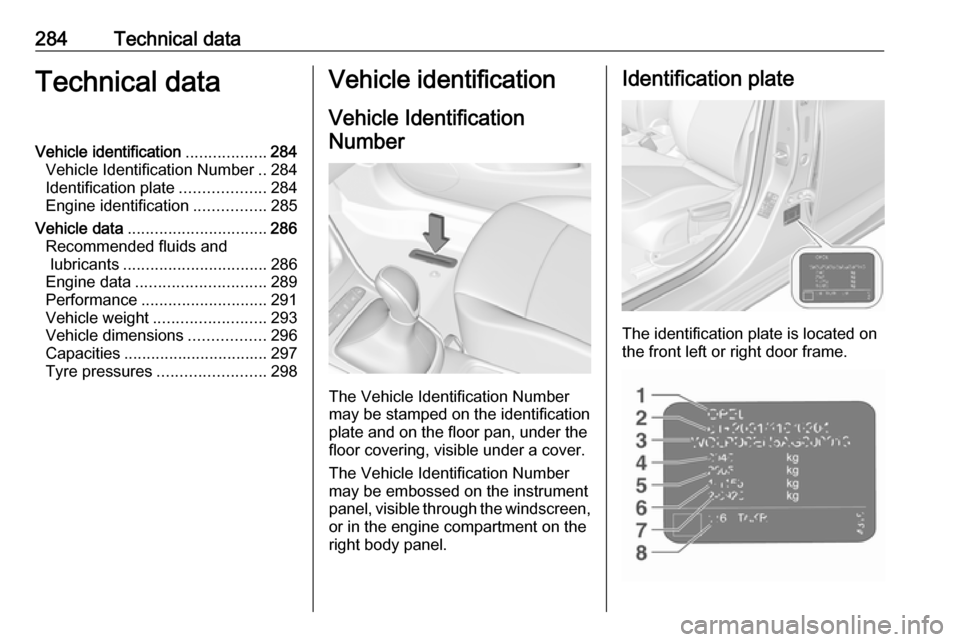

The Vehicle Identification Number
may be stamped on the identification plate and on the floor pan, under thefloor covering, visible under a cover.
The Vehicle Identification Number
may be embossed on the instrument
panel, visible through the windscreen,
or in the engine compartment on the
right body panel.
Identification plate
The identification plate is located on
the front left or right door frame.

Technical data285Information on identification label:1:manufacturer2:type approval number3:vehicle identification number4:permissible gross vehicle weightrating in kg5:permissible gross train weight
in kg6:maximum permissible front axle
load in kg7:maximum permissible rear axle
load in kg8:vehicle-specific or country-
specific data
The combined total of front and rear
axle loads must not exceed the
permissible gross vehicle weight. For
example, if the front axle is bearing its
maximum permissible load, the rear
axle can only bear a load that is equal
to the gross vehicle weight minus the front axle load.
The technical data is determined in
accordance with European
Community standards. We reserve
the right to make modifications.
Specifications in the vehicle
documents always have priority over
those given in this manual.
Engine identification
The technical data tables show the
engine identifier code. Engine data
3 289.
To identify the respective engine,
refer to the engine power in the EEC
Certificate of Conformity provided
with your vehicle or other national
registration documents.

286Technical dataVehicle dataRecommended fluids and lubricantsEuropean service schedule Required engine oil qualityAll European countries with European service interval 3 280Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesdexos1 Gen2✔–dexos2–✔
Diesel engines only: In case dexos quality is unavailable, you may use max. one litre engine oil quality ACEA C3 once
between each oil change.
Engine oil viscosity grades
All European countries with European service interval 3 280Ambient temperaturePetrol and diesel enginesdown to -25 °CSAE 0W-30 or SAE 0W-40SAE 5W-30 or SAE 5W-40below -25 °CSAE 0W-30 or SAE 0W-40

Technical data287International service scheduleRequired engine oil qualityAll countries with international service interval 3 280Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesdexos1 Gen2✔–dexos2–✔
In case dexos quality is unavailable you may use the oil qualities listed below:
All countries with international service interval 3 280Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesACEA A3/B4–✔ACEA C3–✔
Engine oil viscosity grades
All countries with international service interval 3 280Ambient temperaturePetrol and diesel enginesdown to -25 °CSAE 0W-30 or SAE 0W-40SAE 5W-30 or SAE 5W-40

288Technical dataAll countries with international service interval 3 280below -25 °CSAE 0W-30 or SAE 0W-40down to -20 °CSAE 10W-30 1)
or SAE 10W-40 1)1)
Permitted, but usage of oil with dexos quality is recommended.

Technical data289Engine dataEngine identifier codeB10XFL / D10XFLB14XEB14XFLB14XFTD14XNTD16SHTSales designation1.01.41.41.41.4 CNG1.6Engineering codeB10XFTB14XEB14XFTB14XFTD14XNTD16SHTPiston displacement [cm3
]99913991399139913991598Engine power [kW]77 / 66 2)749211081147at rpm4500-600060004000-56005000-560056005500Torque [Nm]170130245/230 3)245/2303)200280at rpm1800-430043002000-35002000-40002000-36001650-5000Fuel typePetrolPetrolPetrolPetrolNatural gas/PetrolPetrolOctane rating RON 4)recommended959595959598possible989898989895possible919191919191Additional fuel type––––Natural gas (CNG)–2)
Ecotec version
3) With Stop-start system.
4) A country-specific label at the fuel filler flap can supersede the engine-specific requirement.

290Technical dataEngine identifier
codeB16DTCB16DTE /
D16DTEB16DTUD16DTND16DTI /
D16DTLB16DTH /
D16DTHB16DTRSales designation1.61.61.61.61.61.61.6Engineering codeB16DTEB16DTEB16DTUD16DTND16DTI /
D16DTLB16DTHB16DTRPiston
displacement [cm 3
]1598159815981598159815981598Engine power [kW]7081818181100118at rpm3500350035003500– 5)3500-40004000Torque [Nm]280300300300– 5)320350at rpm1500-17501750-20001750-20001750-2000– 5)2000-22501500-2250Fuel typeDieselDieselDieselDieselDieselDieselDiesel5)
Value was not available at time of printing.

Technical data291Performance
5-door HatchbackEngineB10XFL / D10XFLB14XEB14XFLB14XFT
D14XNT
CNG
D16SHT
Maximum speed [km/h]Manual transmission195185205215200235Manual transmission automated200–––––Automatic transmission–––210–235EngineB16DTCB16DTE /
D16DTEB16DTUD16DTND16DTI / D16DTLB16DTH /
D16DTHB16DTRMaximum speed [km/
h]Manual transmission185195200– 6)–7)205220Manual transmission
automated––
–– 6)–7)––Automatic
transmission––
–– 6)–7)200–6)
Value was not available at time of printing.
7) Value was not available at time of printing.
