washer fluid OPEL ASTRA SALOON 2014 Owners Manual

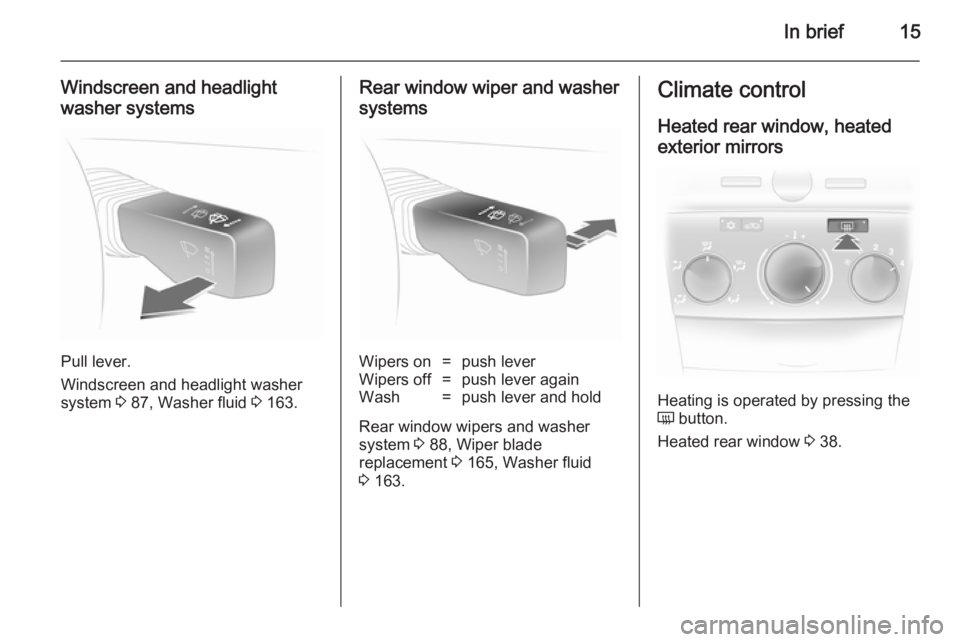

In brief15
Windscreen and headlight
washer systems
Pull lever.
Windscreen and headlight washer
system 3 87, Washer fluid 3 163.
Rear window wiper and washer
systemsWipers on=push leverWipers off=push lever againWash=push lever and hold
Rear window wipers and washer
system 3 88, Wiper blade
replacement 3 165, Washer fluid
3 163.
Climate control
Heated rear window, heatedexterior mirrors
Heating is operated by pressing the
Ü button.
Heated rear window 3 38.

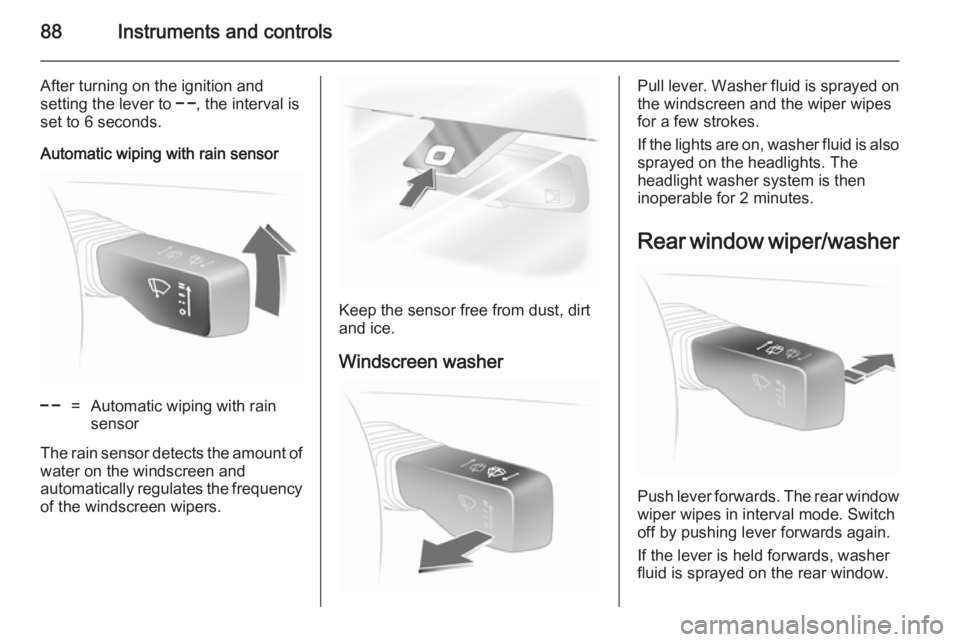

88Instruments and controls
After turning on the ignition and
setting the lever to $, the interval is
set to 6 seconds.
Automatic wiping with rain sensor$=Automatic wiping with rain
sensor
The rain sensor detects the amount of water on the windscreen and
automatically regulates the frequency
of the windscreen wipers.
Keep the sensor free from dust, dirt
and ice.
Windscreen washer
Pull lever. Washer fluid is sprayed on the windscreen and the wiper wipes
for a few strokes.
If the lights are on, washer fluid is also
sprayed on the headlights. The
headlight washer system is then
inoperable for 2 minutes.
Rear window wiper/washer
Push lever forwards. The rear windowwiper wipes in interval mode. Switch
off by pushing lever forwards again.
If the lever is held forwards, washer
fluid is sprayed on the rear window.

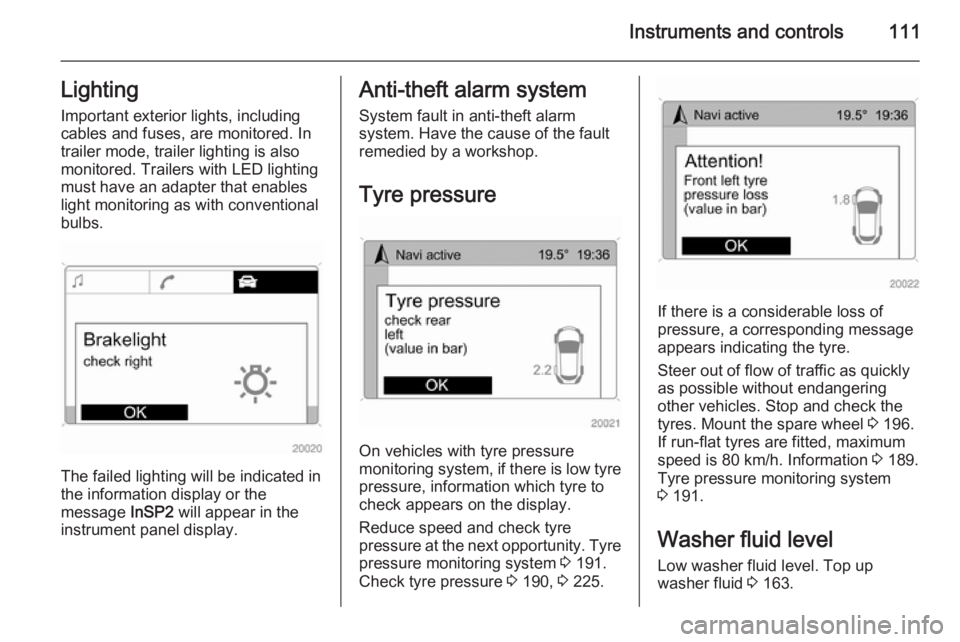

Instruments and controls111Lighting
Important exterior lights, including
cables and fuses, are monitored. In
trailer mode, trailer lighting is also
monitored. Trailers with LED lighting
must have an adapter that enables
light monitoring as with conventional
bulbs.
The failed lighting will be indicated in
the information display or the
message InSP2 will appear in the
instrument panel display.
Anti-theft alarm system
System fault in anti-theft alarm
system. Have the cause of the fault
remedied by a workshop.
Tyre pressure
On vehicles with tyre pressure
monitoring system, if there is low tyre pressure, information which tyre to
check appears on the display.
Reduce speed and check tyre
pressure at the next opportunity. Tyre
pressure monitoring system 3 191.
Check tyre pressure 3 190, 3 225.
If there is a considerable loss of
pressure, a corresponding message
appears indicating the tyre.
Steer out of flow of traffic as quickly as possible without endangering
other vehicles. Stop and check the
tyres. Mount the spare wheel 3 196.
If run-flat tyres are fitted, maximum
speed is 80 km/h. Information 3 189.
Tyre pressure monitoring system
3 191.
Washer fluid level
Low washer fluid level. Top up
washer fluid 3 163.

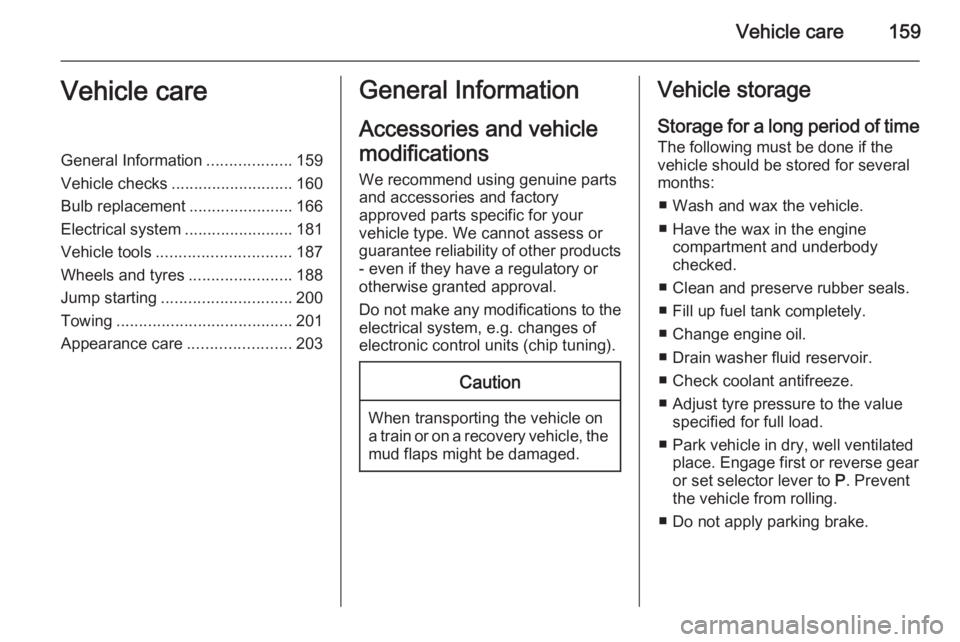

Vehicle care159Vehicle careGeneral Information...................159
Vehicle checks ........................... 160
Bulb replacement .......................166
Electrical system ........................181
Vehicle tools .............................. 187
Wheels and tyres .......................188
Jump starting ............................. 200
Towing ....................................... 201
Appearance care .......................203General Information
Accessories and vehicle
modifications
We recommend using genuine parts and accessories and factory
approved parts specific for your
vehicle type. We cannot assess or guarantee reliability of other products
- even if they have a regulatory or
otherwise granted approval.
Do not make any modifications to the electrical system, e.g. changes of
electronic control units (chip tuning).Caution
When transporting the vehicle on
a train or on a recovery vehicle, the
mud flaps might be damaged.
Vehicle storage
Storage for a long period of time
The following must be done if the
vehicle should be stored for several months:
■ Wash and wax the vehicle.
■ Have the wax in the engine compartment and underbody
checked.
■ Clean and preserve rubber seals.
■ Fill up fuel tank completely.
■ Change engine oil.
■ Drain washer fluid reservoir.
■ Check coolant antifreeze.
■ Adjust tyre pressure to the value specified for full load.
■ Park vehicle in dry, well ventilated place. Engage first or reverse gear
or set selector lever to P. Prevent
the vehicle from rolling.
■ Do not apply parking brake.

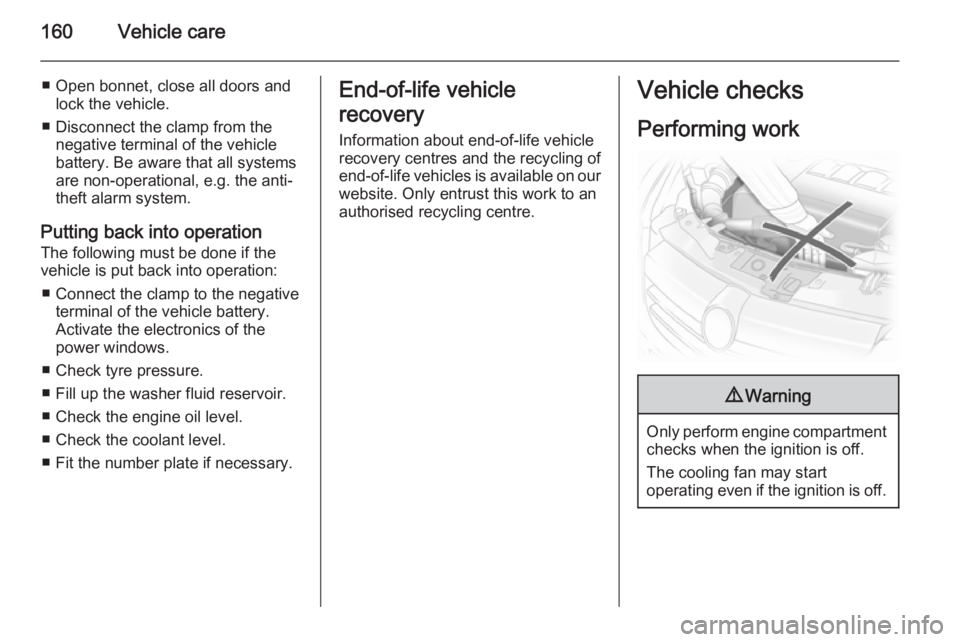

160Vehicle care
■ Open bonnet, close all doors andlock the vehicle.
■ Disconnect the clamp from the negative terminal of the vehicle
battery. Be aware that all systems
are non-operational, e.g. the anti-
theft alarm system.
Putting back into operation The following must be done if the
vehicle is put back into operation:
■ Connect the clamp to the negative terminal of the vehicle battery.
Activate the electronics of the
power windows.
■ Check tyre pressure.
■ Fill up the washer fluid reservoir.
■ Check the engine oil level.
■ Check the coolant level.
■ Fit the number plate if necessary.End-of-life vehicle
recovery
Information about end-of-life vehicle
recovery centres and the recycling of
end-of-life vehicles is available on our website. Only entrust this work to an
authorised recycling centre.Vehicle checks
Performing work9 Warning
Only perform engine compartment
checks when the ignition is off.
The cooling fan may start
operating even if the ignition is off.

Vehicle care163
Coolant levelCaution
Too low a coolant level can causeengine damage.
When the cooling system is cold, the
coolant level should be just above the
KALT/COLD mark. Top up if the level
is low.
9 Warning
Allow the engine to cool before
opening the cap. Carefully open
the cap, relieving the pressure
slowly.
Top up with antifreeze. If no
antifreeze is available, use clean tap
water or distilled water. Install the cap
tightly. Have the antifreeze
concentration checked and have the
cause of the coolant loss remedied by a workshop.
Washer fluid
Fill with clean water mixed with a
suitable quantity of windscreen
washer fluid which contains
antifreeze.
Brakes A squealing noise indicates that the
brake lining is at its minimum
thickness. Continued driving is
possible but have the brake lining
replaced as soon as possible.
Once new brake linings are installed,
do not brake unnecessarily hard for
the first few journeys.

241
Performing work ........................160
Pollen filter ................................. 131
Power outlets ............................... 90
Power windows ............................ 35
Preheating and diesel particle filter .......................................... 99
Puncture ..................................... 196
Q
Quickheat ................................... 130
R Radio Frequency Identification (RFID) ..................................... 236
Radio remote control ...................20
Reading lights ............................ 122
Rear fog light ............................. 102
Rear fog lights ........................... 120
Rear seats .................................... 53
Rear window wiper/washer .......... 88
Recommended fluids and lubricants ........................ 208, 213
Refuelling ................................... 152
Retractable hardtop .....................41
Reversing lights .........................121
Ride control systems ..................147
Roof .............................................. 39
Roof rack ..................................... 83
Run-flat tyres ............................. 189S
Safety net .................................... 78
Seat adjustment ....................... 7, 50
Seat belt ........................................ 8
Seat belt reminder .......................96
Seat belts ..................................... 54
Seat folding .................................. 52
Seat occupancy recognition ..60, 96
Seat position ................................ 49
Selector lever ..................... 137, 142
Service ............................... 131, 207
Service display ............................ 94
Service information ....................207
Service vehicle soon .................... 97
Side airbag system ......................59
Sidelights .................................... 117
Side turn signal lights ................178
Spare wheel ............................... 198
Speedometer ............................... 93
Sport mode .......................... 98, 148
Starting and operating ................132
Starting off ................................... 17
Starting the engine ............133, 142
Steering wheel adjustment ......9, 86
Steering wheel controls ...............86
Stop watch ................................. 116
Storage ......................................... 67
Storage compartments .................67
Sunglasses storage .....................68Sunroof ........................................ 39
Sunvisor lights ........................... 122
Sun visors .................................... 38
Symbols ......................................... 4
T
Tachometer ................................. 93
Tail lights ................................... 171
Three-point seat belt .................... 55
Tools .......................................... 187
Top-tether child restraint systems 65
Tow bar....................................... 154
Towing ................................ 154, 201
Towing another vehicle .............202
Towing equipment .....................155
Towing hitch installation dimensions ............................. 232
Towing the vehicle .....................201
Trailer coupling ........................... 154
Trailer stability assist .................158
Trailer towing ............................. 155
Transmission ............................... 16
Transmission display .........136, 142
Tread depth ............................... 192
Trip computer in Board-Info- Display ................................... 112
Trip computer in Graphic-Info- Display or Colour-Info-Display 113
Triple-Info-Display .....................102
Trip odometer .............................. 93

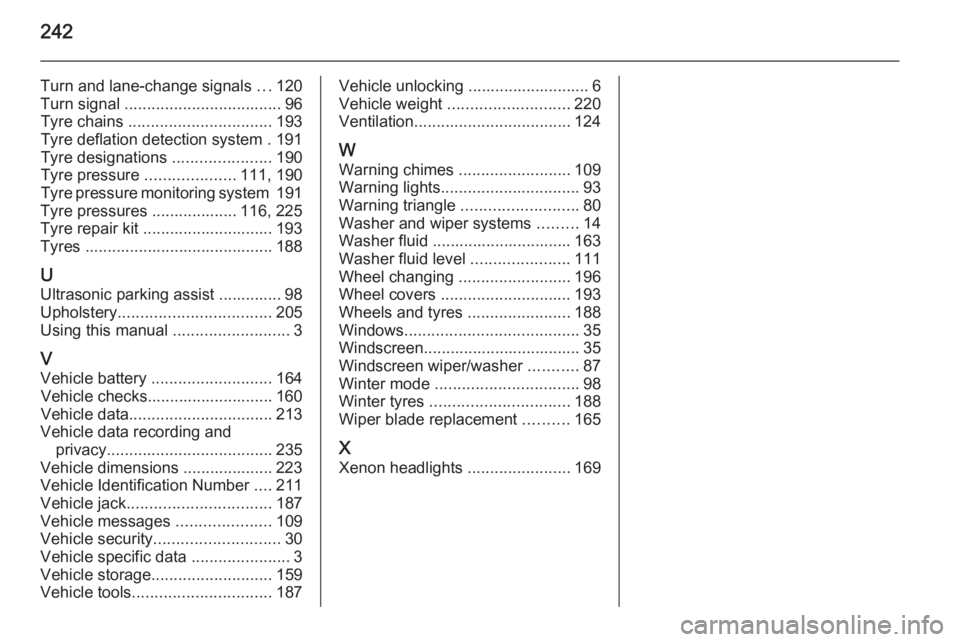

242
Turn and lane-change signals ...120
Turn signal ................................... 96
Tyre chains ................................ 193
Tyre deflation detection system . 191
Tyre designations ......................190
Tyre pressure ....................111, 190
Tyre pressure monitoring system 191
Tyre pressures ................... 116, 225
Tyre repair kit ............................. 193
Tyres .......................................... 188
U Ultrasonic parking assist .............. 98
Upholstery .................................. 205
Using this manual ..........................3
V Vehicle battery ........................... 164
Vehicle checks............................ 160
Vehicle data ................................ 213
Vehicle data recording and privacy ..................................... 235
Vehicle dimensions .................... 223
Vehicle Identification Number ....211
Vehicle jack ................................ 187
Vehicle messages .....................109
Vehicle security ............................ 30
Vehicle specific data ......................3
Vehicle storage ........................... 159
Vehicle tools ............................... 187Vehicle unlocking ........................... 6
Vehicle weight ........................... 220
Ventilation ................................... 124
W
Warning chimes .........................109
Warning lights ............................... 93
Warning triangle .......................... 80
Washer and wiper systems .........14
Washer fluid ............................... 163
Washer fluid level ......................111
Wheel changing .........................196
Wheel covers ............................. 193
Wheels and tyres .......................188
Windows ....................................... 35
Windscreen................................... 35
Windscreen wiper/washer ...........87
Winter mode ................................ 98
Winter tyres ............................... 188
Wiper blade replacement ..........165
X Xenon headlights .......................169
