OPEL CASCADA 2018 Manual user

In brief9Exterior mirrors
Select the relevant exterior mirror andadjust it.
Convex exterior mirrors 3 30,
Electric adjustment 3 30, Folding
exterior mirrors 3 31, Heated
exterior mirrors 3 31.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 59, Ignition
positions 3 137.

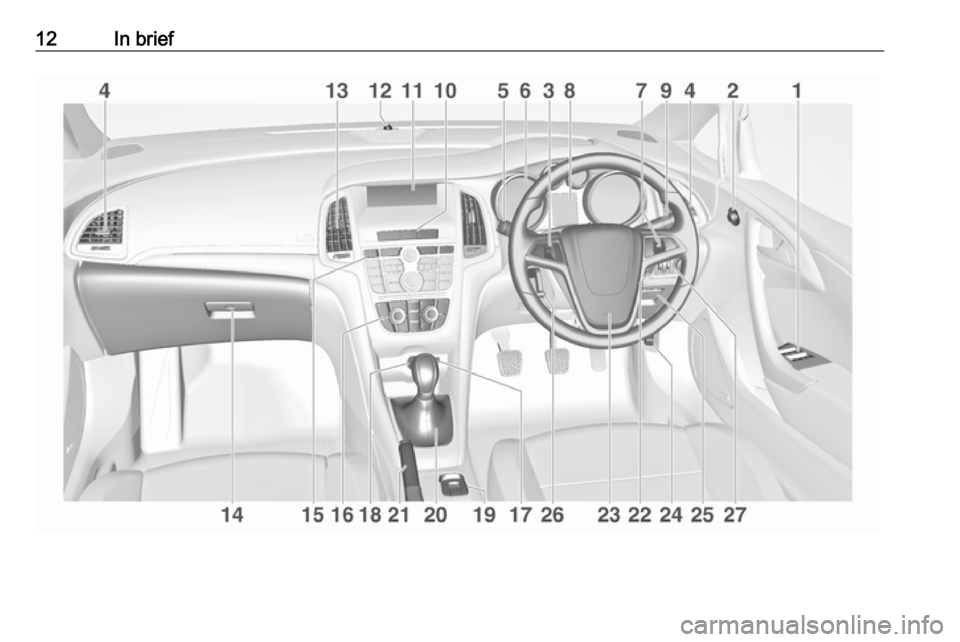

10In briefInstrument panel overview

In brief111Power windows .....................33
2 Exterior mirrors .....................30
3 Cruise control .....................157
Speed limiter ....................... 159
Forward collision alert .........160
4 Side air vents ...................... 133
5 Turn and lane-change
signals, headlight flash,
low beam and high beam,
high beam assist .................120
Exit lighting ......................... 123
Parking lights ...................... 121
Buttons for Driver
Information Centre ................95
6 Instruments .......................... 85
7 Steering wheel controls .......79
8 Driver Information Centre ...... 95
9 Windscreen wiper,
windscreen washer
system, headlight washer
system ................................... 80
10 Sport mode ........................ 155
Central locking system ..........23Hazard warning flashers ....119
Control indicator for airbag deactivation .......................... 90
Control indicator for front
passenger seat belt .............89
Tour mode .......................... 155
11 Info-Display .......................... 99
12 Anti-theft alarm system
status LED ........................... 28
13 Centre air vents .................. 133
14 Glovebox, lockable ...............70
15 Traction Control system
(TC) ..................................... 153
Electronic Stability Control (ESC) .................................. 154
Parking assist systems .......163
Lane departure warning .....177
Eco button for stop-start
system ................................. 138
16 Climate control system ........ 125
17 AUX input, USB input ..........10
18 Power outlet .......................... 8319Soft top operation switch .....36
Central window switch .........33
20 Selector lever, transmission
21 Parking brake, manual or
electric operation ................151
22 Ignition switch with
steering wheel lock ............137
23 Horn ..................................... 80
Driver airbag ........................ 62
24 Bonnet release lever ..........190
25 Storage compartment ..........71
Fuse box ............................ 207
26 Steering wheel adjustment ..79
27 Light switch ........................ 112
Rear fog light ...................... 120 Instrument illumination .......121
Headlight range
adjustment ......................... 115
Front fog lights ...................120

12In brief

In brief131Power windows .....................33
2 Exterior mirrors .....................30
3 Cruise control .....................157
Speed limiter ....................... 159
Forward collision alert .........160
4 Side air vents ...................... 133
5 Turn and lane-change
signals, headlight flash,
low beam and high beam,
high beam assist .................120
Exit lighting ......................... 123
Parking lights ...................... 121
Buttons for Driver
Information Centre ................95
6 Instruments .......................... 85
7 Steering wheel controls .......79
8 Driver Information Centre ...... 95
9 Windscreen wiper,
windscreen washer
system, headlight washer
system ................................... 80
10 Sport mode ........................ 155
Central locking system ..........23Hazard warning flashers ....119
Control indicator for airbag deactivation .......................... 90
Control indicator for front
passenger seat belt .............89
Tour mode .......................... 155
11 Info-Display .......................... 99
12 Anti-theft alarm system
status LED ........................... 28
13 Centre air vents .................. 133
14 Glovebox, lockable ...............70
Fuse box ............................. 207
15 Traction Control system
(TC) ..................................... 153
Electronic Stability Control (ESC) .................................. 154
Parking assist systems .......163
Lane departure warning .....177
Eco button for stop-start
system ................................. 138
16 Climate control system ........ 125
17 AUX input, USB input ..........10
18 Power outlet .......................... 8319Soft top operation switch .....36
Central window switch .........33
20 Selector lever, transmission
21 Parking brake, manual or
electric operation ................151
22 Ignition switch with
steering wheel lock ............137
23 Horn ..................................... 80
Driver airbag ........................ 62
24 Bonnet release lever ..........190
25 Storage compartment ..........71
Fuse box ............................ 207
26 Steering wheel adjustment ..79
27 Light switch ........................ 112
Rear fog light ...................... 120
Instrument illumination .......121
Headlight range
adjustment ......................... 115
Front fog lights ...................120

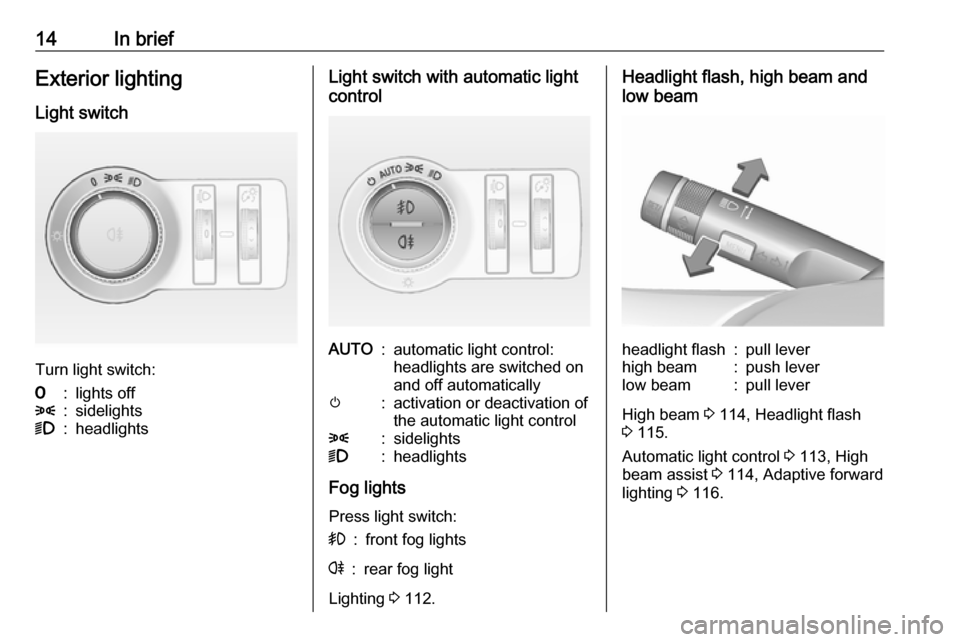

14In briefExterior lighting
Light switch
Turn light switch:
7:lights off8:sidelights9:headlightsLight switch with automatic light
controlAUTO:automatic light control:
headlights are switched on
and off automaticallym:activation or deactivation of
the automatic light control8:sidelights9:headlights
Fog lights
Press light switch:
>:front fog lightsr:rear fog light
Lighting 3 112.
Headlight flash, high beam and
low beamheadlight flash:pull leverhigh beam:push leverlow beam:pull lever
High beam 3 114, Headlight flash
3 115.
Automatic light control 3 113, High
beam assist 3 114, Adaptive forward
lighting 3 116.

In brief15Turn and lane-change signalslever up:right turn signallever down:left turn signal
Turn and lane-change signals
3 120, Parking lights 3 121.
Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 119.
Horn
Press j.

16In briefWasher and wiper systems
Windscreen wiperHI:fastLO:slowINT:interval wiping
or
automatic wiping with rain
sensorOFF:off
For a single wipe when the
windscreen wiper is off, press the
lever down to position 1x.
Windscreen wiper 3 80.
Windscreen and headlight
washer systems
Pull lever.
Windscreen and headlight washer
system 3 80, Washer fluid 3 193.
Climate control
Heated rear window, heated
exterior mirrors
The heating is operated by pressing
Ü .
Heated rear window 3 35.

In brief17Demisting and defrosting the
windows, Air conditioning system
Press V.
Set the temperature control to the
highest level.
Switch on heated rear window Ü.
Air conditioning system 3 126.
Demisting and defrosting the
windows, Electronic climate
control
Press V.
Temperature and air distribution are
set automatically and the fan runs at
high speed.
Switch on heated rear window Ü.
Electronic climate control 3 128.
Transmission
Manual transmission
Reverse: with the vehicle stationary,
depress clutch pedal, press the
release button on the selector lever
and engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Manual transmission 3 150.

18In briefAutomatic transmissionP:parkR:reverseN:neutralD:automatic modeM:manual mode: move selector
lever from D to the left.<:manual mode upshifting]:manual mode downshifting
The selector lever can only be moved
out of P when the ignition is on and
the brake pedal is applied. To engage
P or R, press the release button.
Automatic transmission 3 146.
Starting off
Check before starting off ● Tyre pressure and condition 3 215, 3 248.
● Engine oil level and fluid levels 3 191.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors, seats and seat belts 3 30, 3 49,
3 57.
● Soft top must be completely opened or closed 3 36.
● Brake function at low speed, particularly if the brakes are wet.Starting the engine
● Turn key to position 1.
● Move the steering wheel slightly to release the steering wheel
lock.
● Manual transmission: operate clutch and brake pedal.
Automatic transmission: operate
brake pedal and move selector to
P or N.
● Do not operate accelerator pedal.
