6In briefIn briefInitial drive informationVehicle unlocking
Press c
briefly to unlock the doors
and boot lid. Open the doors by
pulling the handles.
When a door is being opened, the
window lowers slightly. It will raise
automatically when the door is being
closed.
Soft top 3 36, Windows 3 33.
To open the boot lid, push the brand
emblem at the bottom half.
Pressing x opens the boot lid while
the vehicle remains locked.
Radio remote control 3 22, Central
locking system 3 23, Load
compartment 3 26.

24Keys, doors and windowsUnlocking
Press c.
Two settings are selectable: ● To unlock only the driver's door and fuel filler flap, press c once.
To unlock all doors, press c
twice.
Press c again and hold to open
the windows and the soft top 3 33.
● Press c once to unlock all doors,
load compartment and fuel filler
flap.
The setting can be changed in the Settings menu in the Info-Display.
Vehicle personalisation 3 104.
The setting can be saved for the key
being used.
Memorised settings 3 23.
Unlocking and opening the boot lid 3 26.
Locking
Close doors, load compartment and
fuel filler flap.
Press e briefly.
If the driver's door is not closed
properly, the central locking system will not work.
Press and hold e again to close the
soft top and the windows 3 33.
Central locking buttons Locks or unlocks both doors, the load compartment and fuel filler flap from
the passenger compartment.
Press e
to lock.
Press c to unlock.

26Keys, doors and windowsDoors
Load compartment Boot lid
Opening
Press x on the radio remote control
or push the brand emblem at the
bottom half after unlocking to open the boot lid.
Pressing x opens the boot lid while
the vehicle remains locked.
Central locking system 3 23.
Load compartment 3 73.
Closing
Use the interior handle.
Do not touch the brand emblem whilst closing as this could unlock the boot
lid again.
Central locking system 3 23.
Blockage of boot lid
The boot lid can only be opened when
the soft top is completely opened or
closed. The soft top lid must be
closed.
Manual closing of the soft top 3 36.

Keys, doors and windows27Blockage of soft top
The soft top can only be operated
when the boot lid is closed.
General hints for operating the
boot lid9 Danger
Do not drive with the boot lid open
or ajar, e.g. when transporting
bulky objects, since toxic exhaust
gases, which cannot be seen or
smelled, could enter the vehicle.
This can cause unconsciousness
and even death.
Caution
Before opening the boot lid check
overhead obstructions, such as a
garage door, to avoid damage to
the boot lid. Always check the
moving area above and behind the
boot lid.
Note
The installation of certain heavy
accessories onto the boot lid may
affect its ability to remain open.Vehicle security
Anti-theft locking system9 Warning
Do not use the system if there are
people in the vehicle! The doorscannot be unlocked from the
inside.
The system deadlocks the doors. The doors must be closed otherwise the
system cannot be activated.
Unlocking the vehicle disables the
mechanical anti-theft locking system.
This is not possible with the central
locking button.

28Keys, doors and windowsActivating
Press e on the radio remote control
twice briefly within 15 seconds. Long press will activate soft top closing.
Anti-theft alarm system The anti-theft alarm system is
combined with the anti-theft locking
system.
It monitors: ● doors, boot lid, bonnet
● passenger compartment including adjoining load
compartment
● vehicle inclination, e.g. if it is raised
● ignition
Activation ● Self-activated 30 seconds after locking the vehicle by pressing e
once.
● Directly by pressing e twice
briefly within five seconds. Long
press will activate soft top
closing.
Note
Changes to the vehicle interior, such as the use of seat covers and open
windows, could impair the function
of passenger compartment
monitoring.Activation without monitoring of
passenger compartment and
vehicle inclination
Switch off the monitoring of
passenger compartment and vehicle
inclination when e.g. animals are
being left in the vehicle, because of
high volume ultrasonic signals or due to movements triggering the alarm.
Also switch off when the vehicle is on
a ferry or train.
1. Close boot lid, bonnet, windows and soft top.
2. Press o. LED in button o
illuminates for a maximum of
10 minutes.

Keys, doors and windows293. Close doors.
4. Activate the anti-theft alarm system.
To prevent false alarms, passenger compartment monitoring is
deactivated if the soft top is open. The
LED in button o does not illuminate.
If only the windows are open,
passenger compartment monitoring
operation is restricted and LED in
button o illuminates.
Status message is displayed in the
Driver Information Centre.
Status LEDStatus LED is integrated in the sensor
on top of the instrument panel.
Status during the first 30 seconds of
anti-theft alarm system activation:LED illuminates:test, arming delayLED flashes
quickly:doors, boot lid, soft
top or bonnet not
completely closed, or system fault
Status after system is armed:
LED flashes
slowly:system is armed
Seek the assistance of a workshop in
the event of faults.
Deactivation Unlocking the vehicle by pressing c
deactivates the anti-theft alarm
system. Long press will activate soft top opening.
The system is not deactivated when
unlocking the driver's door with the
key or by pressing the central locking
button in the passenger
compartment.
Alarm
When triggered, the alarm horn
sounds and the hazard warning lights
flash simultaneously. The number
and duration of alarm signals are
stipulated by legislation.
The alarm can be silenced by
pressing any button on the radio
remote control or by switching on the
ignition.
The anti-theft alarm system can be
deactivated only by pressing c or by
switching on the ignition.
A triggered alarm, which has not been interrupted by the driver, will be
indicated by the hazard warning
lights. They will flash quickly three
times the next time the vehicle is
unlocked with the radio remote
control. Additionally, a warning
message is displayed in the Driver
Information Centre after switching on
the ignition.
Vehicle messages 3 103.
If the vehicle's battery is to be
disconnected (e.g. for maintenance
work), the alarm siren must be
deactivated as follows: Switch the

38Keys, doors and windowsSafety stop
The button on the remote control or
the switch in the centre console must
be actuated until the soft top is in its
respective end position. Releasing
the button or the switch during
operation stops soft top movement
immediately. The soft top remains in
intermediate position only for a
certain time. After this time a warning chime sounds, the hydraulic pressure
in the system decreases and the soft
top can start to move by itself.
Actuating button or switch once more
continues operation.
Requirements for operation ● Vehicle is stationary or driving with a speed up to 50 km/h.
● Load compartment partition isfolded out, pass-through flap is
closed 3 73.
● Soft top lid is engaged in closed position.
● Boot lid is completely closed.
● Outside temperature is not lower than -7 °C for opening and
-10 °C for closing.
● Vehicle battery voltage is sufficient.
● The system is not overloaded by repeated operation (max. 5
complete cycles in succession).If any of these requirements are
not fulfilled, a warning chime sounds and a message appears
in the Driver Information Centre
when the switch is actuated and
the soft top will not open or close.
● There must be no objects in front
of the rear window or in the pivot
area of the soft top and the soft
top lid.
If the automatic drive is not
operational when the soft top is open,
execute a manual closing process,
see the following instructions in
"Manual closing in the event of a
system fault".

40Keys, doors and windows
● allen key with 4 mm hexagon onthe long side and 6 mm hexagon
on the short side, located in the
glovebox
● two strings, located in the glovebox
● screwdriver, located in the tool box in the load compartment
3 206
1. Switch off ignition.
2. Open the boot lid and remove the
screwdriver from the tool box.3. On the inside of the upper load
compartment edge is a lever for
releasing the soft top lid. Locate
the lever and unlatch by swivelling
the lever downwards.
Note
The boot lid cannot be opened from
next step on.
Remove the screwdriver from the
toolbox for further operation. It is
possible that the load compartment
cannot be opened until the vehicle is at a workshop. Therefore remove
any required objects from the load
compartment.
4. Close boot lid.5. Lift up soft top lid from both sides simultaneously up to approx. the
half raised position.

Keys, doors and windows43
18.Push down firmly each side of the
tension bow. Simultaneously pull
the string with a screwdriver cross in the loop slowly and continuous
to the front. Possibly support
yourself on the door frame with
the other hand. Execute this on
both sides to latch the soft top at
the rear.
After the last step, the boot lid can be
opened again. Allow the strings to be removed by your workshop.
The soft top may not be opened with
fixed strings.
Wind deflector
There are two wind deflectors located in a bag behind the rear seat
backrests. Fold down the rear
backrests 3 73, open the Velcro
fasteners and move out the bag from
the recess.
● The small wind deflector can be placed between the rear head
restraints.
● The big wind deflector can be placed behind the front seats.
Do not place any objects on the wind
deflector.
To install the deflectors, the soft top
should be opened.
Fitting of the small wind deflector ● Fold down left rear backrest 3 73.
● Remove the cover from the
guidance between the rear head
restraints by sliding sideways to the left vehicle side.

Storage73Load compartment
Load compartment extension

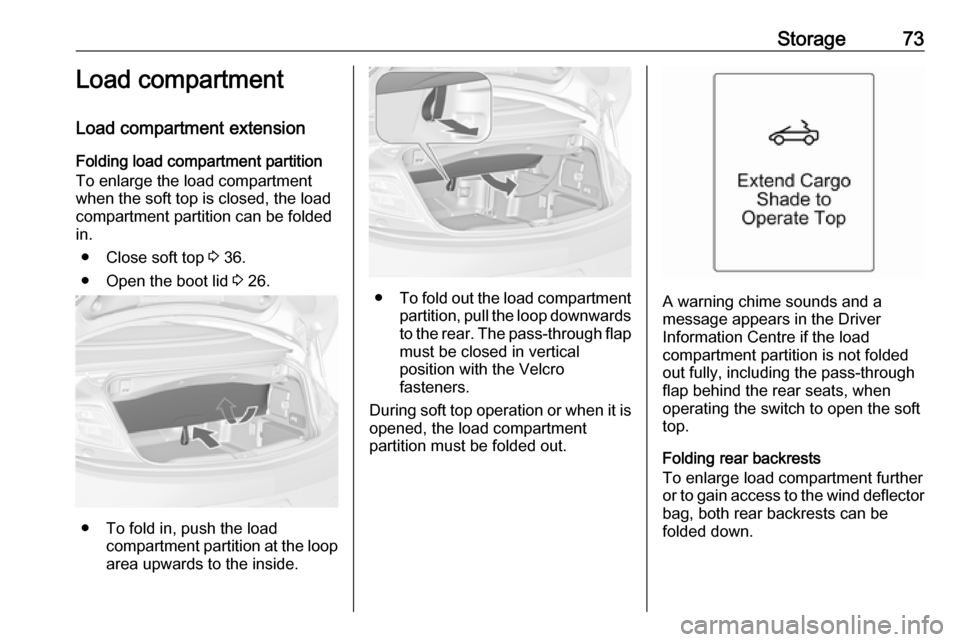

Folding load compartment partition
To enlarge the load compartment when the soft top is closed, the load
compartment partition can be folded
in.
● Close soft top 3 36.
● Open the boot lid 3 26.
● To fold in, push the load
compartment partition at the looparea upwards to the inside.
● To fold out the load compartment
partition, pull the loop downwards to the rear. The pass-through flap
must be closed in vertical
position with the Velcro
fasteners.
During soft top operation or when it is opened, the load compartment
partition must be folded out.A warning chime sounds and a
message appears in the Driver
Information Centre if the load
compartment partition is not folded
out fully, including the pass-through
flap behind the rear seats, when operating the switch to open the softtop.
Folding rear backrests
To enlarge load compartment further
or to gain access to the wind deflector
bag, both rear backrests can be
folded down.
