In brief111Power windows .....................33
2 Exterior mirrors .....................30
3 Cruise control .....................156
Speed limiter ....................... 157
Forward collision alert .........159
4 Side air vents ...................... 135
5 Turn and lane-change
signals, headlight flash,
low beam and high beam,
high beam assist .................122
Exit lighting ......................... 125
Parking lights ...................... 123
Buttons for Driver
Information Centre ................96
6 Instruments .......................... 85
7 Steering wheel controls .......79
8 Driver Information Centre ...... 96
9 Windscreen wiper,
windscreen washer
system, headlight washer
system ................................... 80
10 Sport mode ........................ 154
Central locking system ..........23Hazard warning flashers ....121
Control indicator for airbag deactivation .......................... 91
Control indicator for front
passenger seat belt .............91
Tour mode .......................... 154
11 Info Display ......................... 101
12 Anti-theft alarm system
status LED ........................... 28
13 Centre air vents .................. 135
14 Glovebox, lockable ...............70
15 Traction Control system
(TC) ..................................... 152
Electronic Stability Control
(ESC) .................................. 153
Parking assist systems .......162
Lane departure warning .....176
Eco button for stop-start
system ................................. 140
16 Climate control system ........ 127
17 AUX input, USB input ..........10
18 Power outlet .......................... 8319Soft top operation switch .....36
Central window switch .........33
20 Selector lever, transmission
21 Parking brake, manual or
electric operation ................150
22 Ignition switch with
steering wheel lock ............139
23 Horn ..................................... 80
Driver airbag ........................ 62
24 Bonnet release lever ..........187
25 Storage compartment ..........71
Fuse box ............................ 203
26 Steering wheel adjustment ..79
27 Light switch ........................ 114
Rear fog light ...................... 122
Instrument illumination .......123
Headlight range
adjustment ......................... 117
Front fog lights ...................122
Page 15 of 261

In brief131Power windows .....................33
2 Exterior mirrors .....................30
3 Cruise control .....................156
Speed limiter ....................... 157
Forward collision alert .........159
4 Side air vents ...................... 135
5 Turn and lane-change
signals, headlight flash,
low beam and high beam,
high beam assist .................122
Exit lighting ......................... 125
Parking lights ...................... 123
Buttons for Driver
Information Centre ................96
6 Instruments .......................... 85
7 Steering wheel controls .......79
8 Driver Information Centre ...... 96
9 Windscreen wiper,
windscreen washer
system, headlight washer
system ................................... 80
10 Sport mode ........................ 154
Central locking system ..........23Hazard warning flashers ....121
Control indicator for airbag deactivation .......................... 91
Control indicator for front
passenger seat belt .............91
Tour mode .......................... 154
11 Info Display ......................... 101
12 Anti-theft alarm system
status LED ........................... 28
13 Centre air vents .................. 135
14 Glovebox, lockable ...............70
Fuse box ............................. 203
15 Traction Control system
(TC) ..................................... 152
Electronic Stability Control (ESC) .................................. 153
Parking assist systems .......162
Lane departure warning .....176
Eco button for stop-start
system ................................. 140
16 Climate control system ........ 127
17 AUX input, USB input ..........10
18 Power outlet .......................... 8319Soft top operation switch .....36
Central window switch .........33
20 Selector lever, transmission
21 Parking brake, manual or
electric operation ................150
22 Ignition switch with
steering wheel lock ............139
23 Horn ..................................... 80
Driver airbag ........................ 62
24 Bonnet release lever ..........187
25 Storage compartment ..........71
Fuse box ............................ 203
26 Steering wheel adjustment ..79
27 Light switch ........................ 114
Rear fog light ...................... 122 Instrument illumination .......123
Headlight range
adjustment ......................... 117
Front fog lights ...................122
Page 42 of 261

40Keys, doors and windows
● allen key with 4 mm hexagon onthe long side and 6 mm hexagon
on the short side, located in the
glovebox
● two strings, located in the glovebox
● screwdriver, located in the tool box in the load compartment
3 206
1. Switch off ignition.
2. Open the boot lid and remove the
screwdriver from the tool box.3. On the inside of the upper load
compartment edge is a lever for
releasing the soft top lid. Locate
the lever and unlatch by swivelling
the lever downwards.
Note
The boot lid cannot be opened from
next step on.
Remove the screwdriver from the
toolbox for further operation. It is
possible that the load compartment
cannot be opened until the vehicle is at a workshop. Therefore remove
any required objects from the load
compartment.
4. Close boot lid.5. Lift up soft top lid from both sides simultaneously up to approx. the
half raised position.
Page 72 of 261

70StorageStorageStorage compartments................70
Glovebox ................................... 70
Cupholders ................................ 71
Front storage ............................. 71
Armrest storage .........................72
Centre console storage .............72
Load compartment .......................73
Rear storage .............................. 75
Rear floor storage cover ............75
Lashing eyes ............................. 76
Warning triangle ........................76
First aid kit ................................. 76
Loading information .....................77Storage compartments9Warning
Do not store heavy or sharp
objects in the storage
compartments. Otherwise, the
storage compartment lid could
open and vehicle occupants could be injured by objects being thrown
around in the event of hard
braking, a sudden change in
direction or an accident.

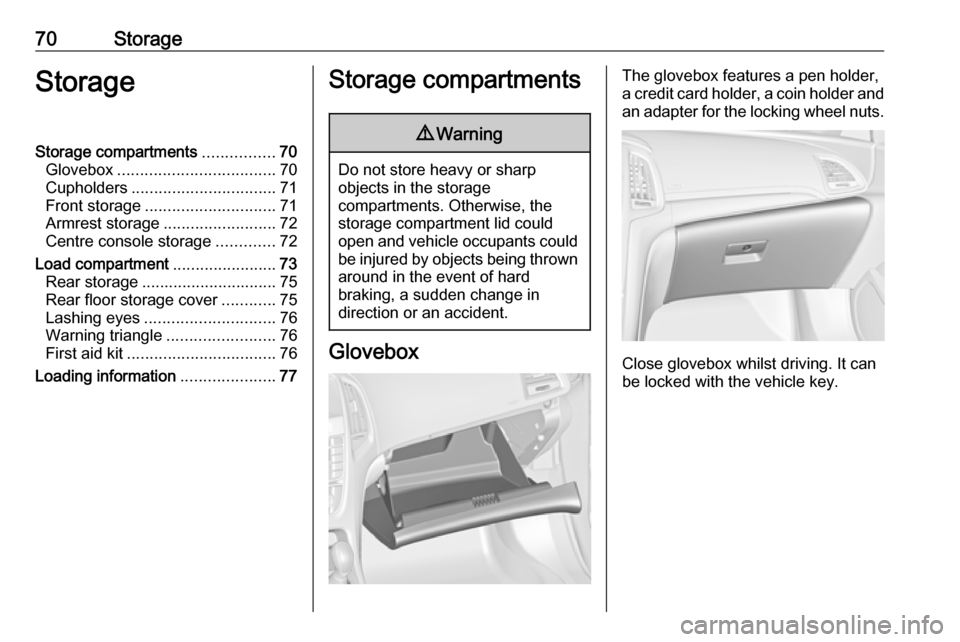

Glovebox
The glovebox features a pen holder,
a credit card holder, a coin holder and
an adapter for the locking wheel nuts.
Close glovebox whilst driving. It can
be locked with the vehicle key.
Page 74 of 261

72StorageArmrest storage
Storage under the front armrest
Press button to fold up the armrest.
The armrest must be in rearmost
position.
Centre console storage
Front console Depending on the version, a storage
compartment is located under a
cover.
Slide cover backwards.
Press button to remove the frame of
the cupholder. The frame can be
stowed in the glovebox.
A further storage compartment is
located under the intermediate shelf.
Fold up the intermediate shelf and fix it in the vertical position. The frame of
the cupholder can be reintegrated to
stow bottles.
Rear console
Pull out the drawer.
Caution
Do not use for ashes or for other
glowing items.
Page 202 of 261

200Vehicle care
3. Remove bulb holder from lamphousing by turning anticlockwise.
4. Pull bulb from bulb holder andreplace it.
5. Insert bulb holder into lamphousing and turn clockwise.
6. Insert lamp into bumper and let engage.
Interior lights
Courtesy light, reading lights Have bulbs replaced by a workshop.
Load compartment light
Have bulbs replaced by a workshop.
Instrument panel illumination
Have bulbs replaced by a workshop.Electrical system
Fuses Data on the replacement fuse must
match the data on the defective fuse.
There are three fuse boxes in the
vehicle:
● In the front left of the engine compartment,
● In left-hand drive vehicles, in the interior behind the storage
compartment, or, in right-hand
drive vehicles, behind the
glovebox,
● Behind a cover on the left side of
the load compartment.
Before replacing a fuse, turn off the
respective switch and the ignition.
A blown fuse can be recognized by its melted wire. Do not replace the fuse
until the cause of the fault has been
remedied.
Some functions are protected by
several fuses.
Fuses may also be inserted without existence of a function.
Page 206 of 261

204Vehicle care
In right-hand drive vehicles, the fuse
box is located behind a cover in the
glovebox. Open the glovebox, then
open the cover and fold it down.
No.Circuit1Displays2Body control unit, exterior lights3Body control unit, exterior lights4Infotainment system5Infotainment system, instru‐
ment6Power outlet, cigarette lighter7Power outlet8Body control module, left low
beam9Body control module, right low
beam10Body control module, door locks11Interior fan12Driver power seat13Passenger power seat14Diagnostic connector15Airbag16Boot lid relayNo.Circuit17Air conditioning system18Service diagnose19Body control module, brake
lights, tail lights, interior lights20-21Instrument panel22Ignition system23Body control module24Body control module25–26Trunk power outlet accessory
Load compartment fuse box
The fuse box is on the left side of the
load compartment behind a cover.
Page 222 of 261

220Vehicle care
2. Install the wheel wrench ensuringthat it locates securely and loosen
each wheel nut by half a turn.
The wheels may be protected by
locking wheel nuts. To loosen
these specific nuts, first attach the adapter onto the head of the nut
before installing the wheel
wrench. The adapter is located in
the glovebox.3. Ensure the jack is correctly positioned under the relevant
vehicle jacking point.
4. Set the jack to the necessary height. Position it directly below
the jacking point in a manner that
prevents it from slipping.
Attach wheel wrench and with the
jack correctly aligned rotate
wrench until wheel is clear of the
ground.
5. Unscrew the wheel nuts. 6. Change the wheel. Spare wheel 3 217.
7. Screw on the wheel nuts.
8. Lower the vehicle and remove jack.
Page 257 of 261

255Control indicators.......................... 88
Control of the vehicle .................137
Controls ........................................ 79
Convex shape .............................. 30
Coolant and antifreeze ...............231
Cruise control ...................... 96, 156
Cupholders .................................. 71
Curve lighting.............................. 118
D Danger, Warnings and Cautions ...4
Daytime running lights ...............118
Declaration of conformity ............243
Door open .................................... 96
Doors ............................................ 26
Driver assistance systems ..........156
Driver Information Centre .............96
Driving characteristics and towing tips .............................. 180
Driving hints ................................ 137
E Electric adjustment ......................30
Electrical system......................... 200
Electric parking brake ...........92, 150
Electric parking brake fault ...........93
Electronic climate control system 130
Electronic driving programmes ..147
Electronic Stability Control.......... 153
Electronic Stability Control and Traction Control system ............94Electronic Stability Control off....... 94
End-of-life vehicle recovery .......186
Engine compartment fuse box ...201
Engine coolant ........................... 189
Engine coolant temperature gauge ....................................... 86
Engine data ............................... 238
Engine exhaust .......................... 143
Engine identification ...................234
Engine oil ................... 188, 231, 235
Engine oil pressure ......................95
Entry lighting .............................. 125
Event data recorders ..................249
Exhaust filter ......................... 94, 143
Exit lighting ................................ 125
Exterior care .............................. 226
Exterior light ................................. 95
Exterior lighting ....................14, 114
Exterior mirrors ............................. 30
F
Fault ........................................... 147
First aid ......................................... 76
First aid kit ................................... 76
Fixed air vents ........................... 135
Folding mirrors ............................. 31
Following distance indication ......161
Forward collision alert................. 159
Front airbag system .....................62
Front fog lights .............96, 122, 195Front seats.................................... 49
Front storage ................................ 71
Front turn lights .......................... 196
Fuel............................................. 177
Fuel for petrol engines ...............177
Fuel gauge ................................... 86 Funnel......................................... 178
Fuses ......................................... 200
G Gauges ......................................... 85
General information ...................180
Glovebox ..................................... 70
Ground clearance .......................138
H Halogen headlights ....................193
Hand brake ......................... 149, 150
Hazard warning flashers ............121
Headlight flash ........................... 117
Headlight range adjustment ......117
Headlights................................... 114 Headlights when driving abroad 117
Head restraint adjustment .............8
Head restraints ............................ 47
Heated mirrors ............................. 31
Heated rear window ..................... 35
Heated steering wheel .................79
Heating ........................................ 55
Heating and ventilation system . 127
High beam ........................... 95, 116
