In brief9Exterior mirrors
Select the relevant exterior mirror by
pushing the mirror button to the left or right. Adjust respective mirror by the
four-way control.
Convex mirrors 3 39.
Electric adjustment 3 39.
Folding mirrors 3 39.
Heated mirrors 3 40.
Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is fully locked. Do not adjust steering
wheel unless vehicle is stationary and steering wheel lock has been
released.
Seat position 3 48.
Ignition positions 3 146.

10In briefInstrument panel overview

In brief111Electric child locks ................. 29
Unlocking tailgate .................33
Child safety system for
rear windows ......................... 42
2 Power windows .....................42
3 Exterior mirrors .....................39
4 Side air vents ...................... 143
5 Cruise control .....................170
Speed limiter ....................... 173
Adaptive cruise control .......170
6 Turn lights ........................... 128
Headlight flash ....................126
High beam ........................... 125
High beam assist ...............125
Exit lighting ......................... 131
Parking lights ...................... 129
Buttons for Driver
Information Centre ..............111
7 Instruments ........................ 100
Driver Information Centre .... 111
8 Infotainment controls9Head-up display ..................115
10 Windscreen wiper and
washer, rear wiper and
washer ................................. 93
11 Air vents ............................. 143
12 Info Display ........................ 113
13 Hazard warning flashers ....127
Central locking system ..........26
14 Light sensor ........................ 125
Rain sensor ........................... 93
Sun sensor .......................... 137
15 USB charging port ................ 96
16 Storage ................................. 72
17 Glovebox .............................. 72
18 Climate control system ........ 134
19 Electronic Stability Control
and Traction Control ...........166
Eco mode ............................ 160
Descent control system ....... 167
20 Selective ride control ..........168
21 Inductive charging .................9722Manual transmission ..........161
Automatic transmission ......158
23 Power outlet .......................... 96
24 Electric parking brake .........163
25 Power button ....................... 147
26 Ignition switch .....................146
27 Steering wheel adjustment ..92
28 Horn ..................................... 93
29 Parking assist / Advanced
parking assist .....................186
Electric child locks ................. 29
Eco button for stop-start
system ................................. 150
Lane keep assist .................201
Tyre deflation detection
system ................................. 234
Heated windscreen ...............45
Parking heater ....................141
30 Fuse box ............................ 230
31 Bonnet release lever ..........215
32 Head-up display ..................115

12In brief33Light switch ........................ 124
Front / rear fog lights ..........128
Instrument illumination .......130

In brief13

14In briefExterior lightingAUTO:automatic light control
switches automatically
between daytime running
light and headlight8:sidelights9:headlights
Automatic light control 3 125.
Front fog lights 3 128.
Rear fog light 3 129.
Headlight flash and high beampull:headlight flashpush:high beam
High beam 3 125.
High beam assist 3 125.
Headlight flash 3 126.
Turn lightsup:right turn lightdown:left turn light
Turn lights 3 128.
Parking lights 3 129.

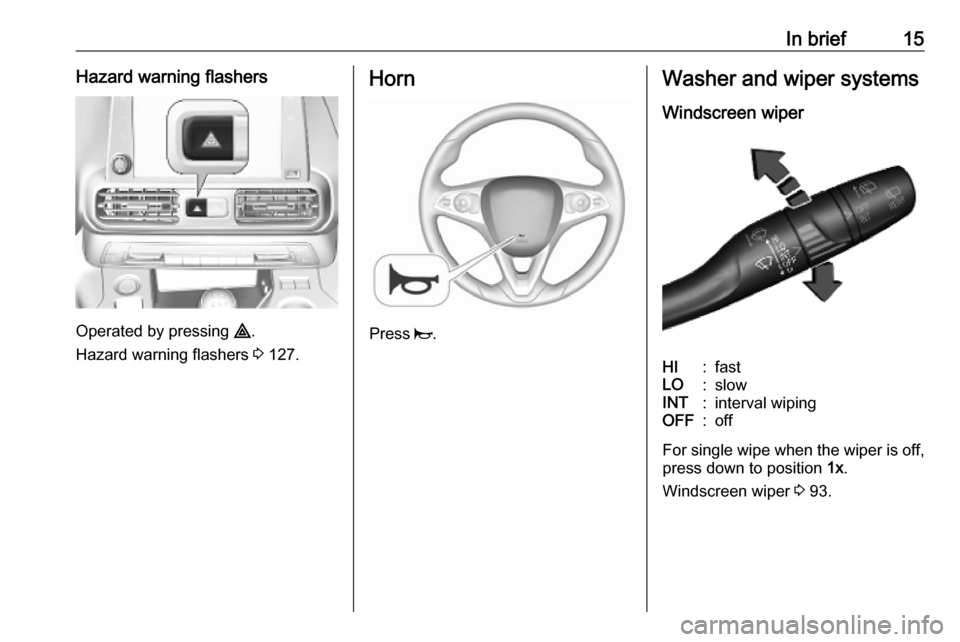

In brief15Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 127.
Horn
Press j.
Washer and wiper systems
Windscreen wiperHI:fastLO:slowINT:interval wipingOFF:off
For single wipe when the wiper is off,press down to position 1x.
Windscreen wiper 3 93.

16In briefWindscreen washer
Pull.
Windscreen washer system 3 93.
Washer fluid 3 218.
Wiper blade replacement 3 221.
Rear window wiperOFF:offINT:intermittent operationRear window washer
Push.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper / washer 3 95.

In brief17Climate control
Heated rear window
The heating is operated by pressing
e .
Heated rear window 3 44.
Heated windscreen 3 45.
Heated exterior mirrors
Depending on the version, heating is
operated by pressing e or d.
Heating works with the engine
running and is switched off
automatically after a short time.
Heated exterior mirrors 3 40.

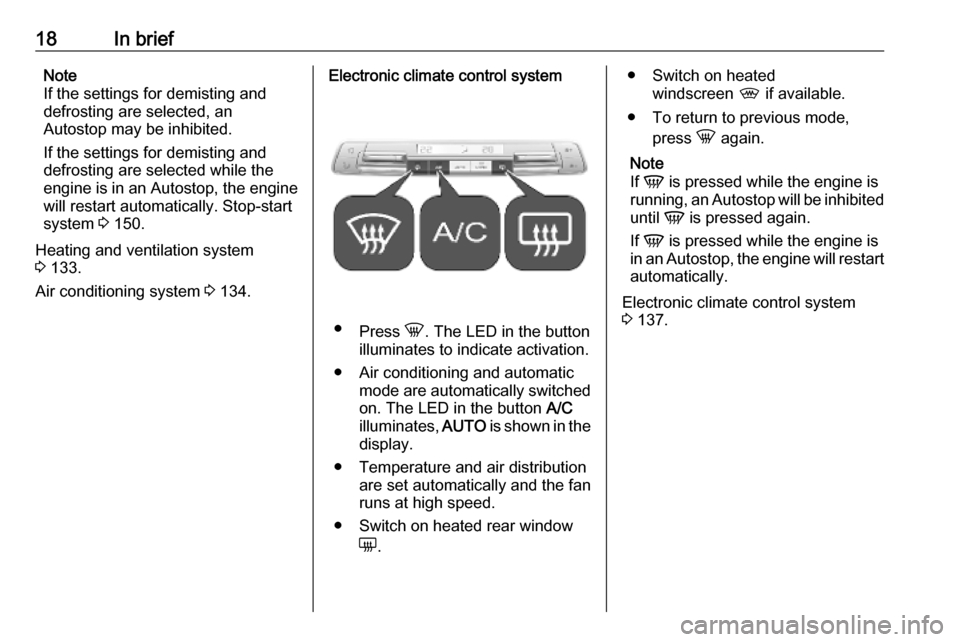

Demisting and defrosting the
windows
Heating and ventilation system, air
conditioning system
● Set fan speed x to highest level.
● Set temperature controller n to
warmest level.
● Switch on cooling A/C, if
required.
● Switch on heated rear window e.
● Open side air vents as required and direct them towards the doorwindows.

18In briefNote
If the settings for demisting and
defrosting are selected, an
Autostop may be inhibited.
If the settings for demisting and
defrosting are selected while the
engine is in an Autostop, the engine
will restart automatically. Stop-start
system 3 150.
Heating and ventilation system
3 133.
Air conditioning system 3 134.Electronic climate control system
●
Press h. The LED in the button
illuminates to indicate activation.
● Air conditioning and automatic mode are automatically switched
on. The LED in the button A/C
illuminates, AUTO is shown in the
display.
● Temperature and air distribution are set automatically and the fan
runs at high speed.
● Switch on heated rear window e.
● Switch on heated
windscreen , if available.
● To return to previous mode, press h again.
Note
If V is pressed while the engine is
running, an Autostop will be inhibited
until V is pressed again.
If V is pressed while the engine is
in an Autostop, the engine will restart automatically.
Electronic climate control system
3 137.
