Introduction.................................... 2
In brief ............................................ 6
Keys, doors and windows ............21
Seats, restraints ........................... 46
Storage ........................................ 71
Instruments and controls .............89
Lighting ...................................... 122
Climate control ........................... 131
Driving and operating .................143
Vehicle care ............................... 210
Service and maintenance ..........249
Technical data ........................... 254
Customer information ................264
Index .......................................... 272Contents

In brief111Electric child locks ................. 29
Unlocking tailgate .................33
Child safety system for
rear windows ......................... 41
2 Power windows .....................41
3 Exterior mirrors .....................38
4 Side air vents ...................... 140
5 Cruise control .....................169
Speed limiter ....................... 171
Adaptive cruise control .......169
6 Turn lights ........................... 125
Headlight flash ....................124
High beam ........................... 123
High beam assist ...............123
Exit lighting ......................... 129
Parking lights ...................... 127
Buttons for Driver
Information Centre ..............112
7 Instruments ........................ 100
Driver Information Centre .... 112
8 Infotainment controls9Head-up display ..................116
10 Windscreen wiper and
washer, rear wiper and
washer ................................. 91
11 Centre air vents .................. 140
12 Info Display ........................ 114
13 Hazard warning flashers ....125
Central locking system ..........25
14 Anti-theft alarm system
status LED ........................... 35
15 USB charging port ................ 95
16 Storage ................................. 71
17 Glovebox .............................. 71
18 Climate control system ........ 132
19 Electronic Stability Control
and Traction Control ...........164
Eco mode ............................ 159
Descent control system ....... 165
20 Selective ride control ..........167
21 Inductive charging .................96
22 Manual transmission ..........159
Automatic transmission ......156
23 Power outlet .......................... 9524Electric parking brake .........161
25 Power button ....................... 145
26 Ignition switch .....................144
27 Steering wheel adjustment ..90
28 Horn ..................................... 91
29 Parking assist / Advanced
parking assist .....................185
Electric child locks ................. 29
Eco button for stop-start
system ................................. 148
Lane keep assist .................198
Tyre deflation detection
system ................................. 231
Heated windscreen ...............43
Parking heater ....................139
30 Fuse box ............................ 227
31 Bonnet release lever ..........212
32 Head-up display ..................116
33 Light switch ........................ 122
Front / rear fog lights ..........126
Instrument illumination .......127

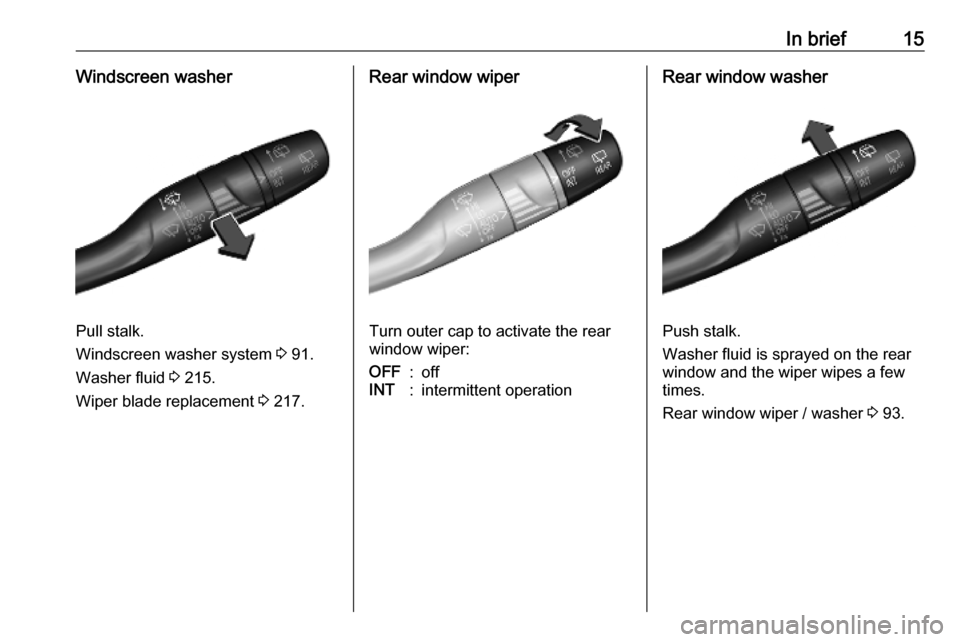

In brief15Windscreen washer
Pull stalk.
Windscreen washer system 3 91.
Washer fluid 3 215.
Wiper blade replacement 3 217.
Rear window wiper
Turn outer cap to activate the rear
window wiper:
OFF:offINT:intermittent operationRear window washer
Push stalk.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper / washer 3 93.

16In briefClimate control
Heated rear window
The heating is operated by pressing
e .
Heated rear window 3 43.
Heated exterior mirrors
Depending on the version, heating is
operated by pressing e or d.
Heating works with the engine
running and is switched off
automatically after a short time.
Heated exterior mirrors 3 39.
Demisting and defrosting the
windows
Heating and ventilation system, air
conditioning system
● Set fan speed x to highest level.
● Set temperature controller n to
warmest level.
● Switch on cooling A/C, if
required.
● Switch on heated rear window e.
● Open side air vents as required and direct them towards the doorwindows.

In brief17Note
If the settings for demisting and
defrosting are selected, an
Autostop may be inhibited.
If the settings for demisting and
defrosting are selected while the
engine is in an Autostop, the engine
will restart automatically. Stop-start
system 3 148.
Heating and ventilation system
3 131.
Air conditioning system 3 132.
Heated windscreen 3 43.Electronic climate control system
●
Press h. The LED in the button
illuminates to indicate activation.
● Air conditioning and automatic mode are automatically switched
on. The LED in the button A/C
illuminates, AUTO is shown in the
display.
● Temperature and air distribution are set automatically and the fan
runs at high speed.
● Switch on heated rear window e.
● Switch on heated
windscreen , if available.
● To return to previous mode, press h again.
Note
If V is pressed while the engine is
running, an Autostop will be inhibited
until V is pressed again.
If V is pressed while the engine is
in an Autostop, the engine will restart automatically.
Electronic climate control system
3 135.

18In briefTransmission
Manual transmission
To engage reverse on 6-speed
transmission, depress the clutch
pedal, pull the ring under the selector
lever and move the selector lever
quite to the left and front.
Manual transmission 3 159.
Automatic transmissionP:park position, front wheels are
locked, engage only when the
vehicle is stationary and the
parking brake is appliedR:reverse gear, engage only when
the vehicle is stationaryN:neutralD:automatic modeM:manual mode
Automatic transmission 3 156.
Starting off
Check before starting off ● tyre pressure 3 230 and
condition 3 263
● engine oil level and fluid levels 3 213
● all windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational
● proper position of mirrors 3 38,
seats 3 47 and seat belts
3 57
● brake function at low speed, particularly if the brakes are wet

20In briefStop-start system
If the vehicle is at a low speed or at astandstill and certain conditions are
fulfilled, an Autostop is activated.
An Autostop is indicated by control
indicator D.
Manual transmission: to restart the
engine, depress the clutch pedal
again. Control indicator D
extinguishes.
Automatic transmission: to restart the
engine, release the brake pedal.
Control indicator D extinguishes.
Stop-start system 3 148.
Parking9 Warning
● Do not park the vehicle on an
easily ignitable surface. The
high temperature of the
exhaust system could ignite the
surface.
● Always apply the parking brake.
● If the vehicle is on a level surface or uphill slope, engage
first gear or set the selector
lever to position P. On an uphill
slope, turn the front wheels
away from the kerb.
If the vehicle is on a downhill
slope, engage reverse gear or
set the selector lever to position
P . Turn the front wheels
towards the kerb.
● Close the windows.
● Switch off the engine.
● Remove the ignition key from the ignition switch or switch off
ignition on vehicles with power
button. Turn the steering wheel until the steering wheel lock is
felt to engage.
● Lock the vehicle with e on the
radio remote control.
Activate the anti-theft alarm
system 3 35.
● The engine cooling fans may run
after the engine has been
switched off 3 212.
Caution
After running at high engine
speeds or with high engine loads,
operate the engine briefly at a low load or run in neutral for
approx. 30 seconds before
switching off, in order to protect
the turbocharger.
Keys, locks 3 21.
Laying-up the vehicle for a long
period of time 3 211.

Keys, doors and windows21Keys, doors and
windowsKeys, locks ................................... 21
Keys .......................................... 21
Radio remote control .................22
Electronic key system ................23
Central locking system ..............25
Automatic locking ......................28
Child locks ................................. 29
Doors ........................................... 30
Sliding door ............................... 30
Rear doors ................................. 31
Load compartment ....................33
Vehicle security ............................ 35
Anti-theft locking system ...........35
Anti-theft alarm system ..............35
Immobiliser ................................ 38
Exterior mirrors ............................ 38
Convex shape ........................... 38
Electric adjustment ....................38
Folding mirrors .......................... 39
Heated mirrors ........................... 39
Interior mirrors ............................. 40
Manual anti-dazzle ....................40Automatic anti-dazzle ................40
Child surveillance mirror ............40
Windows ...................................... 41
Windscreen ............................... 41
Power windows ......................... 41
Rear windows ............................ 43
Heated rear window ..................43
Heated windscreen ....................43
Sun visors .................................. 44
Roller blinds ............................... 44
Roof ............................................. 45
Glass panel ............................... 45Keys, locks
KeysCaution
Do not attach heavy or bulky itemsto the ignition key.
Replacement keys
The key number is specified on a
detachable tag.
The key number must be quoted
when ordering replacement keys as it
is a component of the immobiliser
system.
Locks 3 245.
Central locking 3 25.
Starting the engine 3 147.
Radio remote control 3 22.
Electronic key 3 23.
The code number of the adapter for
the locking wheel nuts is specified on
a card. It must be quoted when
ordering a replacement adapter.
Wheel changing 3 237.

22Keys, doors and windowsKey with foldaway key section
Press button to extend. To fold the
key, first press the button.
Radio remote controlDepending on the version, the radio
remote control enables a operation of
the following functions:
● central locking system 3 25
● anti-theft locking system 3 35
● anti-theft alarm system 3 35
● tailgate unlocking 3 25
● power windows 3 41
● mirrors folding 3 39
● vehicle locator lighting 3 130
● peripheral lighting 3 130
The remote control has a range of up
to several metres, but may also be
much less due to external influences. The hazard warning flashers confirm
operation.
Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.
Replacing battery in radio remote
control
Replace the battery as soon as the
range reduces.

Keys, doors and windows23
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
1. Remove the back cover from the remote control.
2. Extract the flat battery from its location.
3. Replace battery with a battery ofthe same type. Pay attention to
the installation position.
4. Clip the back cover in place.
Fault
If the central locking system cannot
be operated with the radio remote
control, the cause may be one of the
following:
● Fault in radio remote control.● Electronic key is out of reception range.
● The battery voltage is too low.
● Overload of the central locking system by operating at frequentintervals, the power supply is
interrupted for a short time.
● Interference from higher-power radio waves from other sources.
Manual unlocking 3 25.Electronic key system
