headlamp OPEL CORSA 2009 User Guide

117
Lighting
Headlamps when driving abroad The asymmetrical dipped beam increases
the field of vision on the passenger side of
the lane.
This causes glare for oncoming traffic if the
vehicle is driven in countries where traffic
drives on the opposite side of the road. Do as follows to prevent glare:
Vehicles with halogen headlamps
Have headlights conv
erted in a workshop. Vehicles with Adaptive Forward Lighting
3
(AFL)
1. Pull and hold stalk for main beam on steering wheel (headlamp flash).
2. Switch on ignition.
3. After approx. 3 seconds, an acoustic signal sounds and then AFL control
indicator
B flashes approx. 4 seconds.
After the switch, AFL control indicator
B
flashes for 4 seconds each time the ignition
is switched on.
To return to asymmetrical dipped beam,
pull and hold the main beam stalk again,
switch on the ignition and wait for the
acoustic signal. AFL control indicator
B
will then discontinue flashing.
Control indicator
B
3 85. 3112.
Back to overview

190 Self-help, vehicle careSelf-help,
vehicle care
Diesel fuel system, bleeding If the tank is allowed to run dry, the diesel
fuel system must be bled. Turn over the
ignition three times for 15 seconds at a
time. Then start the engine for a maximum
of 40 seconds
1). Repeat this process after
no less than 5 seconds. If the engine fails to
start, seek the assistance of a workshop.
Picture no: 18190s.tif
Bonnet Pull the release lever located on the left
side below the instru ment panel and push
it back to its original position.
Diesel fuel system, bleeding ............... 190
Bonnet .................................................. 190
Starting the engine with jump leads
3. 191
Towing .................................................. 193
Warning triangle ¨ 3......................... 196
First-aid kit (cushion) + 3................... 196
Spare wheel 3...................................... 196
Jack £ 3 and vehicle tools 3........... 198
Changing wheels ................................. 200
Tyre repair kit 3................................... 204
Electrical system .................................. 208
Fuses and the most important circuits they protect ....................................... 209
Bulb replacement ................................ 212
Halogen headlamp system ................ 212
Adaptive Forward Lighting system 3. 216
Front indicator lamps .......................... 220
Fog lamps 3......................................... 220
Side turn signal lamp .......................... 220
Tail lamps ............................................. 221
Number plate lamp ............................. 225
Courtesy lamps .................................... 226
Vehicle care.......................................... 228
1)For technical reasons only 30 seconds are
possible on engines A 17 DTR/Z 17 DTR
Back to overview

209
Self-help, vehicle care
Picture no: 18588s.tif
Fuses and the most important
circuits they protectFuse box in engine compartment
The fuse box is at the front left side of the
engine compartment.
To open, disengage the cover, fold cover
up and remove.
Picture no: 18589s.tif Picture no:
No. Circuit
1 Starter
2 Air conditioning system
3 Diesel fuel filter heater
4 Horn
5 Manual transmission automated,
automatic transmission
6 Engine control unit
7 Fog lamps
8 Engine cooling
9 Engine cooling
No. Circuit
10 Automated manual transmission
11 Glow plugs, ignition system
12 Headlamp range adjustment,
Adaptive Forward Lighting
13 Air conditioning system
14 Automated manual transmission
15 Main beam (right)
16 Main beam (left)
17 Main relay
18 Engine control unit
Back to overview

212 Self-help, vehicle careBulb replacement Switch off the ignition and switch off the
relevant switch or close the doors.
Only hold a new bulb at the base! Do not
touch the bulb glass with your bare hands.
Replace the bulb, checking that the data
on the base matches that of the defective
bulb.
Picture no: 18422s.tif
To replace the bulb on the right-hand side,
remove the air hose from the air filter.
To replace the bulb on the left-hand side,
remove fuse box cover3209, and also
remove windscreen washer system
reservoir filler neck from above. Washing
fluid may escape if the reservoir is full to
the top.
Picture no: 18129s.tif
Halogen headlamp system Headlamp system has separate bulbs for
dipped beam 1 (outer bulbs) and main
beam 2 (inner bulbs).
Back to overview

214 Self-help, vehicle care
Picture no: 18130s.tif
Main beam
1. Open bonnet and engage support.
2. Rotate headlamp cap anticlockwise and remove.
3. Detach plug connector from bulb.
Picture no: 18132s.tif
4. Disengage spring wire clip from retaining lugs by moving it and swivelling it to the
side.
5. Remove bulb from reflector housing.
6. When fitting the new bulb, insert lugs in
the reflector recesses.
Picture no: 18133s.tif
7. Engage spring wire clip, plug connector
onto bulb.
8. Fit headlamp cap and rotate clockwise.
Back to overview

215
Self-help, vehicle care
Picture no: 18130s.tif
Parking lamps
1. Open bonnet and engage support.
2. Rotate the main beam headlamp cap anticlockwise and remove.
Picture no: 18139s.tif
3. Remove parking lamp socket from reflector.
Picture no: 18140s.tif
4. Remove bulb from socket.
5. Insert new bulb.
6. Insert socket in reflector.
7. Fit headlamp cap and rotate clockwise.
Back to overview

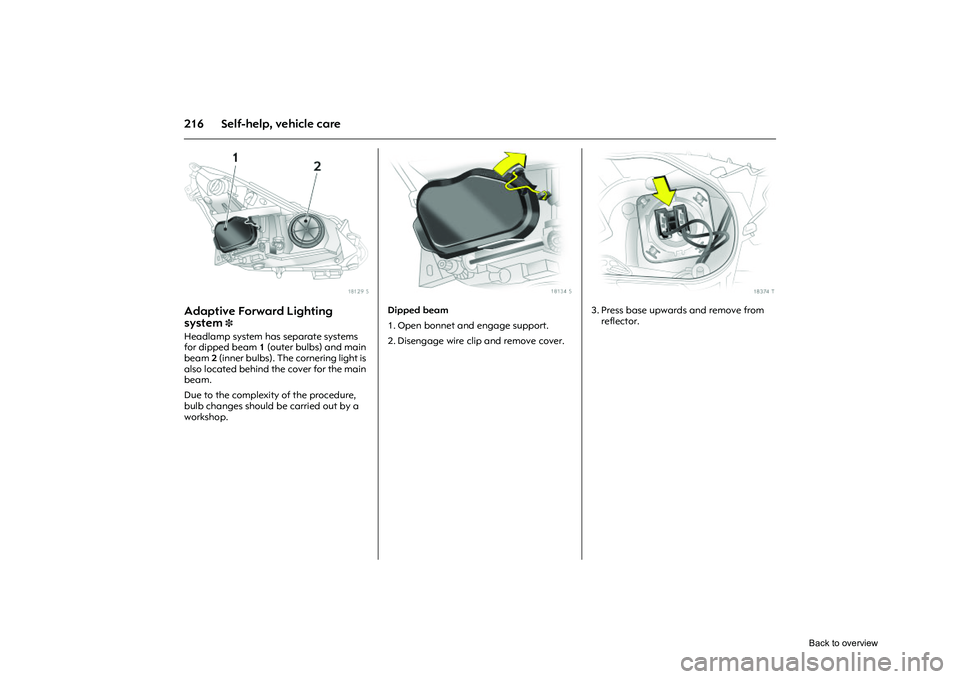

216 Self-help, vehicle care
Picture no: 18129s.tif
Adaptive Forward Lighting
system
3
Headlamp system has separate systems
for dipped beam 1 (outer bulbs) and main
beam 2 (inner bulbs). The cornering light is
also located behind the cover for the main
beam.
Due to the complexity of the procedure,
bulb changes should be carried out by a
workshop.
Picture no: 18134s.tif
Dipped beam
1. Open bonnet and engage support.
2. Disengage wire clip and remove cover.
Picture no: 18374s.tif
3. Press base upwards and remove from reflector.
Back to overview

217
Self-help, vehicle care
Picture no: 17270t.tif
4. Detach plug connector from bulb.
5. Insert new bulb in reflector so that the
locating tab of the bulb holder aligns
with the reflector recess. Attach the bulb
holder so that the locating tab is on the
side.
6. Engage bulb.
7. Attach connector to bulb.
8. Put on cover and engage wire clip.
Picture no: 18130s.tif
Main beam
1. Open bonnet and engage support.
2. Rotate the main beam headlamp cap
anticlockwise and remove.
Picture no: 18379s.tif
3. Detach plug connector from bulb.
Back to overview

218 Self-help, vehicle care
Picture no: 18380s.tif
4. Disengage spring wire clip from retaining lugs by moving it and swivelling it to the
side.
5. Remove bulb from reflector housing.
6. When fitting the new bulb, insert lugs in the reflector recesses.
7. Engage spring wire clip, plug connector onto bulb.
8. Fit headlamp cap and rotate clockwise.
Picture no: 18130s.tif
Cornering light
1. Open bonnet and engage support.
2. Rotate the main beam headlamp cap
anticlockwise and remove.
Picture no: 18376s.tif
3. Detach plug connector from bulb.
Back to overview

219
Self-help, vehicle care
Picture no: 18377s.tif
4. Disengage spring wire clip from retaining lugs by moving it and swivelling it to the
side.
5. Remove bulb from reflector housing.
6. When fitting the new bulb, insert lugs in the reflector recesses.
7. Engage spring wire clip, plug connector onto bulb.
8. Fit headlamp cap and rotate clockwise.
Picture no: 18130s.tif
Parking lamps
1. Open bonnet and engage support.
2. Rotate the main beam headlamp cap
anticlockwise and remove.
Picture no: 18382s.tif
3. Remove parking lamp socket from reflector.
Back to overview
