OPEL CORSA E 2017.5 Manual user

In brief9Exterior mirrors
Select the relevant exterior mirror with
the rocker switch and adjust the
mirror with the control :.
Convex exterior mirrors 3 30,
Electric adjustment 3 30, Folding
exterior mirrors 3 30.
Heated exterior mirrors 3 31.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 44, Ignition
positions 3 134.

10In briefInstrument panel overview

In brief111Turn and lane-change
signals, headlight flash,
low beam and high beam ....118
Exit lighting ......................... 121
Parking lights ...................... 119
Buttons for Driver
Information Centre ................97
2 Instruments .......................... 83
3 Forward collision alert
indicator ............................. 157
4 Driver Information Centre ...... 97
5 Infotainment controls ...........76
6 Windscreen wiper,
windscreen washer
system, rear window
wiper, rear window washer
system ................................... 77
7 Central locking system ..........24
City mode ............................ 153
Fuel selector ......................... 86
Eco button for stop-start
system ................................. 136
Traction Control system .....151
Electronic Stability Control . 152Parking assist ..................... 160
Lane departure warning ........76
Seat heating .......................... 40
Heated steering wheel ..........76
8 Anti-theft alarm system
status LED ........................... 28
9 Hazard warning flashers ....117
Control indicator for airbag deactivation .......................... 92
Control indicator for front
passenger seat belt .............91
10 Info-Display ........................ 101
11 Centre air vents .................. 131
12 Side air vents, passenger
side ..................................... 131
13 Airbag deactivation ..............49
14 Glovebox .............................. 57
15 Climate control system ........ 123
16 Power outlet .......................... 82
17 USB input .............................. 10
18 Selector lever ...................... 141
19 Parking brake ......................150
20 Ignition switch with
steering wheel lock ............13421Horn ..................................... 77
Driver airbag ........................ 47
22 Bonnet release lever ..........192
23 Steering wheel adjustment ..76
24 Light switch ........................ 113
Headlight range
adjustment ......................... 115
Rear fog light ...................... 118
Front fog lights ....................118
Brightness of instrument
panel illumination ................119
Fuse box ............................ 210
25 Power windows .....................32
26 Exterior mirrors .....................30
27 Cruise control .....................154
Speed limiter ...................... 156
Forward collision alert ........157

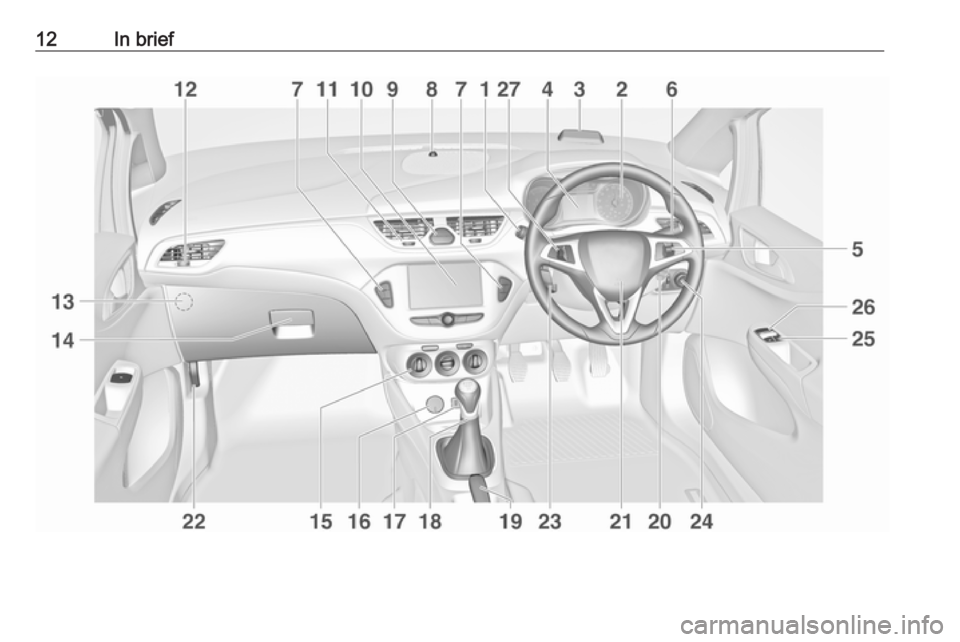

12In brief

In brief131Turn and lane-change
signals, headlight flash,
low beam and high beam ....118
Exit lighting ......................... 121
Parking lights ...................... 119
Buttons for Driver
Information Centre ................97
2 Instruments .......................... 83
3 Forward collision alert
indicator ............................. 157
4 Driver Information Centre ...... 97
5 Infotainment controls ...........76
6 Windscreen wiper,
windscreen washer
system, rear window
wiper, rear window washer
system ................................... 77
7 Central locking system ..........24
City mode ............................ 153
Fuel selector ......................... 86
Eco button for stop-start
system ................................. 136
Traction Control system .....151
Electronic Stability Control . 152Parking assist ..................... 160
Lane departure warning ........76
Seat heating .......................... 40
Heated steering wheel ..........76
8 Anti-theft alarm system
status LED ........................... 28
9 Hazard warning flashers ....117
Control indicator for airbag deactivation .......................... 92
Control indicator for front
passenger seat belt .............91
10 Colour-Info-Display ............101
Graphic-Info-Display ...........102
11 Centre air vents .................. 131
12 Side air vents, passenger
side ..................................... 131
13 Airbag deactivation ..............49
14 Glovebox .............................. 57
15 Climate control system ........ 123
16 Power outlet .......................... 82
17 USB input .............................. 10
18 Selector lever ...................... 141
19 Parking brake ......................15020Ignition switch with
steering wheel lock ............134
21 Horn ..................................... 77
Driver airbag ........................ 47
22 Bonnet release lever ..........192
23 Steering wheel adjustment ..76
24 Light switch ........................ 113
Headlight range
adjustment ......................... 115
Rear fog light ...................... 118
Front fog lights ....................118
Brightness of instrument panel illumination ................119
Fuse box ............................ 210
25 Power windows .....................32
26 Exterior mirrors .....................30
27 Cruise control .....................154
Speed limiter ...................... 156
Forward collision alert ........157

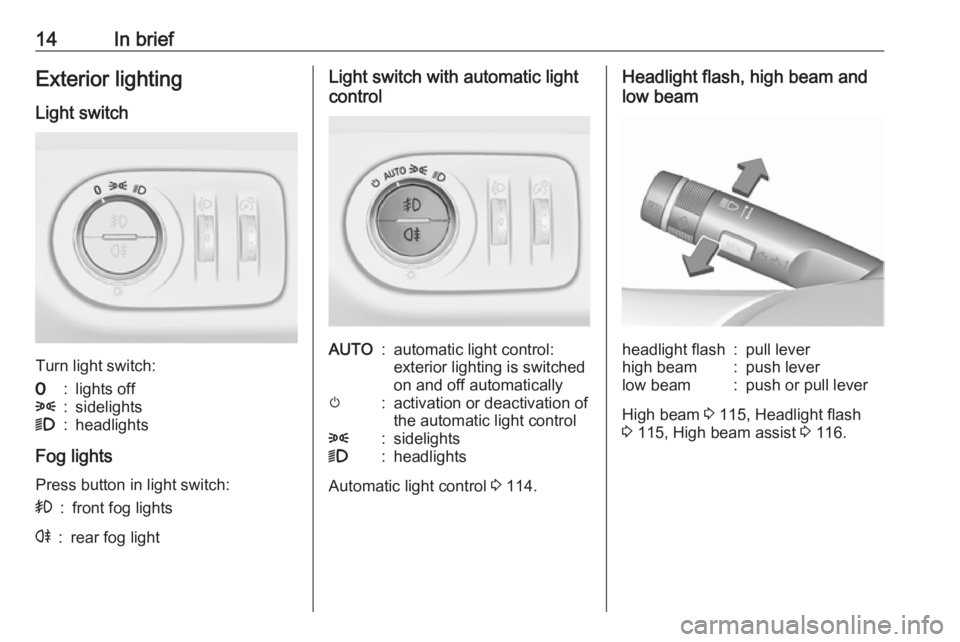

14In briefExterior lighting
Light switch
Turn light switch:
7:lights off8:sidelights9:headlights
Fog lights
Press button in light switch:
>:front fog lightsr:rear fog lightLight switch with automatic light
controlAUTO:automatic light control:
exterior lighting is switched
on and off automaticallym:activation or deactivation of
the automatic light control8:sidelights9:headlights
Automatic light control 3 114.
Headlight flash, high beam and
low beamheadlight flash:pull leverhigh beam:push leverlow beam:push or pull lever
High beam 3 115, Headlight flash
3 115, High beam assist 3 116.

In brief15Turn and lane-change signalslever up:right turn signallever down:left turn signal
Turn and lane-change signals
3 118, Parking lights 3 119.
Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 117.
Horn
Press j.

16In briefWasher and wiper systems
Windscreen wiperHI:fastLO:slowINT:interval wiping
or
automatic wiping with rain
sensorOFF:off
For single wipe when the wiper is off,
press lever down to position 1x.
Windscreen wiper 3 77.
Windscreen washer
Pull lever.
Windscreen washer system 3 77,
Washer fluid 3 195, Wiper blade
replacement 3 198.
Rear window wiper
Press the rocker switch to activate the
rear window wiper:
ON:continuous operationOFF:offINT:intermittent operation

In brief17Rear window washer
Push lever.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper/washer 3 78.
Climate control
Heated rear window
The heating is operated by pressing
Ü .
Heated rear window 3 33.
Heated windscreen 3 34.
Heated exterior mirrors
Pressing Ü also activates the heated
exterior mirrors.
Heated exterior mirrors 3 31.
Demisting and defrosting the
windows
● Set air distribution control to l.
● Press V.
● Set temperature control to warmest level.
● Set fan speed to highest level.
● Switch on heated rear window Ü.
● Open side air vents as required and direct them towards the doorwindows.
Climate control system 3 123.

18In briefTransmission
Manual transmission
Reverse: with the vehicle stationary,
depress clutch pedal and press the release button on the selector lever
and engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Manual transmission 3 144.
Automatic transmissionP:parkR:reverseN:neutralD:driveM:manual mode<:press to upshift in manual mode]:press to downshift in manual
mode
The selector lever can only be moved out of P when the ignition is on and
the brake pedal is applied. To engage
P or R, press the release button.
Automatic transmission 3 141.
Manual transmission automatedR:reverse, engage only when
vehicle is stationaryN:neutralD:automatic modeM:manual mode<:upshift in manual mode]:downshift in manual mode
Manual transmission automated
3 145.
