Instruments and controls75Instruments and
controlsControls ....................................... 76
Steering wheel adjustment ........76
Steering wheel controls .............76
Heated steering wheel ...............76
Horn ........................................... 77
Windscreen wiper and washer ..77
Rear window wiper and washer ...................................... 78
Outside temperature ..................79
Clock ......................................... 80
Power outlets ............................. 81
Inductive charging .....................82
Cigarette lighter ......................... 83
Ashtrays .................................... 83
Warning lights, gauges and indi‐ cators ........................................... 84
Instrument cluster ......................84
Speedometer ............................. 84
Odometer .................................. 84
Trip odometer ............................ 84
Tachometer ............................... 85
Fuel gauge ................................ 85
Fuel selector .............................. 86Engine coolant temperature
gauge ....................................... 87
Service display .......................... 87
Control indicators ......................88
Turn lights .................................. 90
Seat belt reminder .....................91
Airbag and belt tensioners .........91
Airbag deactivation ....................92
Charging system .......................92
Malfunction indicator light ..........92
Service vehicle soon .................92
Brake and clutch system ...........93
Operate pedal ............................ 93
Antilock brake system (ABS) .....93
Gear shifting .............................. 93
Power steering .......................... 93
Lane departure warning ............93
Parking assist ............................ 94
Electronic Stability Control off ...94
Electronic Stability Control and Traction Control system ...........94
Traction Control system off .......94
Preheating ................................. 94
Exhaust filter .............................. 94
Tyre pressure monitoring system ...................................... 95
Engine oil pressure ....................95
Low fuel ..................................... 95
Immobiliser ................................ 95
Reduced engine power .............95Autostop .................................... 96
Exterior light .............................. 96
High beam ................................. 96
High beam assist .......................96
Fog light ..................................... 96
Rear fog light ............................. 96
Cruise control ............................ 96
Vehicle detected ahead .............96
Speed limiter ............................. 96
Traffic sign assistant ..................96
Door open .................................. 96
Displays ....................................... 97
Driver Information Centre ..........97
Info Display .............................. 101
Vehicle messages ......................103
Warning chimes .......................105
Battery voltage ........................ 105
Vehicle personalisation ..............106
Telematics service .....................108
OnStar ..................................... 108

Instruments and controls87Caution
Repairs and adjustments may onlybe made by trained specialists in
order to maintain the safety and
warranty on the LPG system.
Liquid gas is given a particular odour
(odorised) so that any leaks can be
detected easily.
9 Warning
If you smell gas in the vehicle or in
the immediate vicinity, switch to petrol mode immediately. No
smoking. No naked flames or
ignition sources.
If the gas odour persists, do not start
the engine. Have the cause of the
fault remedied by a workshop.
When using underground car parks,
follow the instructions of the operator
and local laws.
Note
In the event of an accident, switch off
the ignition.
Fuel for liquid gas operation 3 179.
Engine coolant temperature gauge
Number of LEDs displayed shows the coolant temperature.
up to 3 LEDs:engine operating
temperature not
yet reached4 to 6 LEDs:normal operating
temperaturemore than 6
LEDs:temperature too
highCaution
If engine coolant temperature is
too high, stop vehicle, switch off
engine. Danger to engine. Check
coolant level.
Service display
The engine oil life system lets you
know when to change the engine oil
and filter. Based on driving
conditions, the interval at which an
engine oil and filter change will be
indicated can vary considerably.
When the system has calculated that
engine oil life has been diminished, a warning message appears in theDriver Information Centre. Have
engine oil and filter changed by a
workshop within one week or
500 km, whichever occurs first.
This can be an additional engine oil
and filter change or part of a regular
service.
To display the remaining engine oil
life duration use the buttons on the
stalk:

90Instruments and controlsControl indicators in the centre
console
Overview
OTurn lights 3 90XSeat belt reminder 3 91vAirbag and belt tensioners
3 91VAirbag deactivation 3 92pCharging system 3 92ZMalfunction indicator light
3 92gService vehicle soon 3 92RBrake and clutch system
3 93-Operate pedal 3 93uAntilock brake system (ABS)
3 93RGear shifting 3 93cPower steering 3 93)Lane departure warning 3 93rParking assist 3 94aElectronic Stability Control off
3 94bElectronic Stability Control and
Traction Control system 3 94kTraction Control system off
3 94!Preheating 3 94%Exhaust filter 3 94wTyre pressure monitoring
system 3 95IEngine oil pressure 3 95YLow fuel 3 95dImmobiliser 3 95#Reduced engine power 3 95DAutostop 3 968Exterior light 3 96CHigh beam 3 96fHigh beam assist 3 96>Fog light 3 96rRear fog light 3 96mCruise control 3 96AVehicle detected ahead 3 96LSpeed limiter 3 96LTraffic sign assistant 3 96hDoor open 3 96
Turn lights
O illuminates or flashes green.
Illuminates briefly The parking lights are switched on.

100Instruments and controlsSpeed warning
The speed warning function alerts thedriver when a set speed is exceeded.
To set the speed warning, press
SET/CLR while the page is displayed.
Turn the adjuster wheel to select the
value. Press SET/CLR to set the
speed.
If the selected speed limit is
exceeded, a warning chime sounds.
Once the speed is set, this feature
can be turned off by pressing
SET/CLR while viewing this page.
Remaining oil life
Indicates an estimate of the oil's
useful life. The number in percentage means the current remaining oil life
and indicates when to change the
engine oil and filter 3 87.
Tyre pressure
Tyre pressures of all wheels are
displayed on this page during driving
3 212.
Tyre load
The tyre pressure category according
to the actual tyre inflation pressure
can be selected 3 212.
Outside temperature
Display of current outside
temperature.
Following distance
Displays the distance in seconds to a preceding moving vehicle 3 160.
Traffic sign assistant
Displays the detected traffic signs for
the current route section 3 173.Language
Select preferred country language as
the display language.
Eco information menu @
Possible pages are: ● economy trend
● economy index
● top consumers
Economy trend
Displays the average consumption
development over a distance of
50 km. Filled segments display the

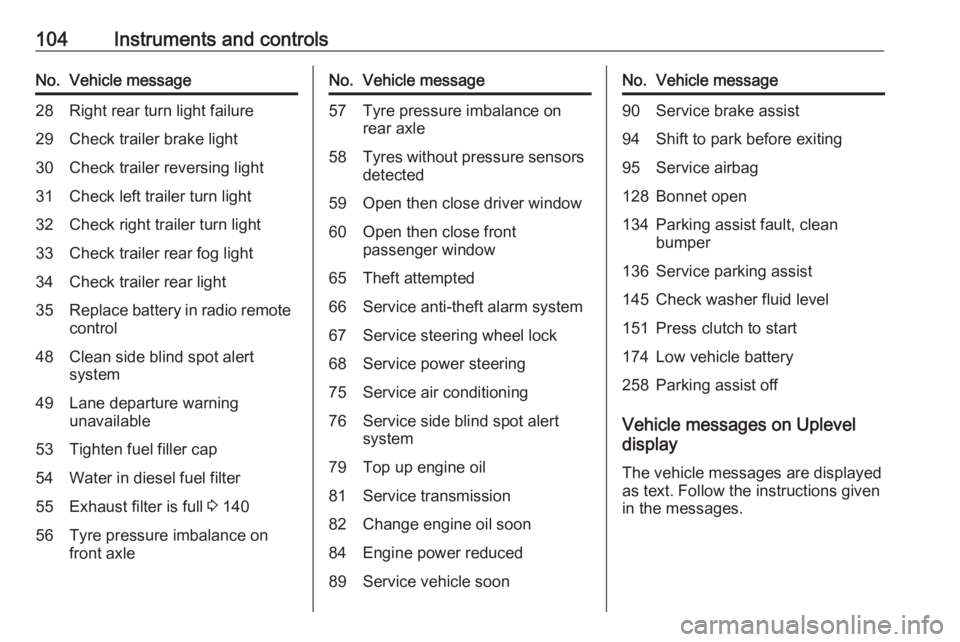

104Instruments and controlsNo.Vehicle message28Right rear turn light failure29Check trailer brake light30Check trailer reversing light31Check left trailer turn light32Check right trailer turn light33Check trailer rear fog light34Check trailer rear light35Replace battery in radio remote
control48Clean side blind spot alert
system49Lane departure warning
unavailable53Tighten fuel filler cap54Water in diesel fuel filter55Exhaust filter is full 3 14056Tyre pressure imbalance on
front axleNo.Vehicle message57Tyre pressure imbalance on rear axle58Tyres without pressure sensors
detected59Open then close driver window60Open then close front
passenger window65Theft attempted66Service anti-theft alarm system67Service steering wheel lock68Service power steering75Service air conditioning76Service side blind spot alert
system79Top up engine oil81Service transmission82Change engine oil soon84Engine power reduced89Service vehicle soonNo.Vehicle message90Service brake assist94Shift to park before exiting95Service airbag128Bonnet open134Parking assist fault, clean
bumper136Service parking assist145Check washer fluid level151Press clutch to start174Low vehicle battery258Parking assist off
Vehicle messages on Uplevel
display
The vehicle messages are displayed as text. Follow the instructions given
in the messages.

134Driving and operatingDriving hints
Control of the vehicle
Never coast with engine not
running
Many systems will not function in this situation (e.g. brake servo unit, power
steering). Driving in this manner is a
danger to yourself and others.
All systems function during an
Autostop.
Stop-start system 3 136.
Idle boost
If charging of the vehicle battery is
required due to battery condition, the
power output of the generator must
be increased. This will be achieved by an idle boost which may be audible.
A message appears in the Driver
Information Centre.
Pedals
To ensure the pedal travel is
uninhibited, there must be no mats in
the area of the pedals.Use only floor mats, which fit properly and are fixed by the retainers on the
driver side.
Driving downhill
Engage a gear when driving downhill
to ensure that sufficient brake
pressure is available.Starting and operating
New vehicle running-in Do not brake unnecessarily hard for
the first few journeys.
During the first drive, smoke may
occur because of wax and oil
evaporating off the exhaust system.
Park the vehicle in the open for a
while after the first drive and avoid
inhaling the fumes.
During the running-in period, fuel and engine oil consumption may be
higher.
Additionally, the cleaning process of
the exhaust filter may take place more
often.
Exhaust filter 3 140.
Autostop may be inhibited to allow for charging of the vehicle battery.
Ignition switch positions Turn key:

234Service and maintenanceService and
maintenanceGeneral information ...................234
Service information ..................234
Recommended fluids, lubricants
and parts .................................... 235
Recommended fluids and lubricants ................................ 235General information
Service information In order to ensure economical and
safe vehicle operation and to
maintain the value of your vehicle, it
is of vital importance that all
maintenance work is carried out at the proper intervals as specified.
The detailed, up-to-date service
schedule for your vehicle is available
at the workshop.
Service display 3 87.
European service intervals
Maintenance of your vehicle is
required every 30,000 km or after one year, whichever occurs first.
Additional engine oil and filter change
is indicated by the engine oil life
system, when required earlier than
maintenance.
A shorter service interval can be valid for severe driving behaviour, e.g. for
taxis and police vehicles.
The European service intervals are
valid for the following countries:Andorra, Austria, Belgium, Bosnia-
Herzegovina, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark,
Estonia, Finland, France, Germany,
Greece, Greenland, Hungary,
Iceland, Ireland, Italy, Latvia,
Liechtenstein, Lithuania,
Luxembourg, Macedonia, Malta,
Monaco, Montenegro, Netherlands,
Norway, Poland, Portugal, Romania, San Marino, Serbia, Slovakia,
Slovenia, Spain, Sweden,
Switzerland, United Kingdom.
Service display 3 87.
International service intervals
Maintenance of your vehicle is
required every 15,000 km or after one year, whichever occurs first.
Additional engine oil and filter change
is indicated by the engine oil life
system, when required earlier than
maintenance.
Severe operating conditions exist if
one or more of the following
circumstances occur frequently: Cold
starting, stop and go operation, trailer operation, mountain driving, driving
on poor and sandy road surfaces,

Technical data251Capacities
Engine oilEngineB10XFL /
F10XFL /
B10XFTB12XEL /
D12XEL /
B14XEJ /
D14XEJB14NEJ /
D14NEJ /
B14NEH /
D14NEHB14XEL /
D14XEL /
B14XEL LPG /
D14XEL LPGB16LERB13DTC
B13DTE
B13DTRincluding filter [l]4.04.04.04.04.04.0between MIN and MAX [l]1.01.01.01.01.01.0
Fuel tank
EngineB10XFL /
F10XFL /
B10XFTB12XEL /
D12XEL /
B14XEJ /
D14XEJB14NEJ /
D14NEJ /
B14NEH /
D14NEHB14XEL /
D14XEL /
B14XEL LPG /
D14XEL LPGB16LERB13DTC
B13DTE
B13DTRPetrol/diesel, refilling quantity [l]454545454545LPG, refilling quantity [l]–––31––

265Controls........................................ 76
Convex shape .............................. 30
Coolant and antifreeze ...............235
Corner lighting ............................ 116
Cruise control ...................... 96, 154
Cupholders .................................. 57
Curtain airbag system .................. 49
D Danger, Warnings and Cautions ...4
Daytime running lights ...............116
Declaration of conformity ............255
Diesel fuel system bleeding .......195
Door open .................................... 96
Doors ............................................ 27
Driver assistance systems ..........154
Driver Information Centre .............97
Driving characteristics and towing tips .............................. 183
Driving hints ................................ 134
E Easy entry..................................... 39
Electric adjustment ......................30
Electrical system......................... 204
Electronic climate control system 126
Electronic driving programmes . ........................................ 143, 148
Electronic Stability Control.......... 152
Electronic Stability Control and Traction Control system ............94Electronic Stability Control off....... 94
End-of-life vehicle recovery .......189
Engine compartment fuse box ...205
Engine coolant ........................... 192
Engine coolant temperature gauge ....................................... 87
Engine data ............................... 242
Engine exhaust .......................... 140
Engine identification ...................238
Engine oil ................... 191, 235, 239
Engine oil pressure ......................95
Entry lighting .............................. 121
Event data recorders ..................260
Exhaust filter ......................... 94, 140
Exit lighting ................................ 121
Exterior care .............................. 231
Exterior light ................................. 96
Exterior lighting ....................14, 113
Exterior mirrors ............................. 30
F Fault ................................... 144, 148
First aid ......................................... 72
First aid kit ................................... 72
Fixed air vents ........................... 131
Flex-Fix system ............................ 59
Fog light ....................................... 96
Fog lights ................................... 200
Folding mirrors ............................. 30
Following distance indication ......160Forward collision alert................. 157
Front airbag system .....................47
Front fog lights ........................... 118
Front seats.................................... 37
Front storage ................................ 58
Front turn lights .......................... 200
Fuel............................................. 177
Fuel for diesel engines ..............179
Fuel for liquid gas operation .......179
Fuel for petrol engines ...............177
Fuel gauge ................................... 85 Fuel selector ................................ 86
Fuses ......................................... 204
G Gauges ......................................... 84
Gear shifting ................................. 93
General information ...................183
Glovebox ..................................... 57
H
Halogen headlights ....................196
Hand brake ......................... 149, 150
Hazard warning flashers ............117
Headlight flash ........................... 115
Headlight range adjustment ......115
Headlights................................... 113 Headlights when driving abroad 115
Head restraint adjustment .............8
Head restraints ............................ 36
Heated mirrors ............................. 31

266Heated rear window ..................... 33
Heated steering wheel .................76
Heated windscreen .......................34
Heating ........................................ 40
Heating and ventilation system . 123
High beam ........................... 96, 115
High beam assist ..................96, 116
Hill start assist ........................... 150
Horn ....................................... 15, 77
I
Identification plate .....................238
Ignition switch positions .............134
Immobiliser ............................ 29, 95
Indicators ...................................... 84
Inductive charging ........................82
Info Display ................................. 101
Information displays...................... 97
Instrument cluster ........................84
Instrument panel fuse box .........207
Instrument panel illumination control .................................... 119
Instrument panel overview ........... 10
Interior care ............................... 233
Interior lighting ............................ 119
Interior lights ...................... 120, 204
Interior mirrors .............................. 31
Interruption of power supply ......144
Introduction .................................... 3J
Jump starting ............................. 227
K Key, memorised settings ..............24
Keys ............................................. 22
Keys, locks ................................... 22
L Lane departure warning .......93, 176
Lashing eyes ............................... 71
Light switch ................................ 113
Load compartment ................27, 67
Load compartment cover .............69
Loading information .....................73
Low fuel ....................................... 95
LPG .............................. 86, 179, 239
M
Malfunction indicator light ............92
Manual anti-dazzle ......................31
Manual mode .....................143, 148
Manual transmission .................. 145
Manual transmission automated 145
Manual windows ..........................32
Memorised settings ......................24
Mirror adjustment ........................... 8 Misted light covers .....................119N
New vehicle running-in ..............134
Number plate light .....................203
O Object detection systems ...........160
Odometer ..................................... 84
Oil, engine .......................... 235, 239
OnStar ........................................ 108
Operate pedal ............................... 93
Outside temperature ....................79
Overrun cut-off ........................... 136
P Parking ................................ 20, 139
Parking assist ...................... 94, 160
Parking brake ............................ 150
Parking lights ............................. 119
Particulate filter ........................... 140
Performance .............................. 244
Performing work ........................190
Power outlets ............................... 81
Power steering.............................. 93
Power windows ............................ 32
Preheating ................................... 94
Puncture ..................................... 223
R
Radio Frequency Identification (RFID) ..................................... 263
Radio remote control ...................23
