technical data OPEL CORSA E 2018.5 Manual user

Introduction.................................... 2
In brief ............................................ 6
Keys, doors and windows ............22
Seats, restraints ........................... 36
Storage ........................................ 57
Instruments and controls .............75
Lighting ...................................... 113
Climate control ........................... 123
Driving and operating .................133
Vehicle care ............................... 188
Service and maintenance ..........234
Technical data ........................... 237
Customer information ................255
Index .......................................... 264Contents

Introduction3Vehicle specific dataPlease enter your vehicle's data on
the previous page to keep it easily
accessible. This information is
available in the sections "Service and
maintenance" and "Technical data"
as well as on the identification plate.
Introduction
Your vehicle is a designed
combination of advanced technology, safety, environmental friendliness
and economy.
This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.
Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.
You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in this Owner's Manual.
Disregarding the description given in
this manual may affect your warranty.When this Owner's Manual refers to a
workshop visit, we recommend your
Opel Service Partner.
For gas vehicles we recommend an
Opel Repairer authorised for
servicing gas vehicles.
All Opel Service Partners provide
first-class service at reasonable
prices. Experienced mechanics
trained by Opel work according to
specific Opel instructions.
The customer literature pack should
always be kept ready to hand in the
vehicle.
Using this manual ● This manual describes all options
and features available for this
model. Certain descriptions,
including those for display and
menu functions, may not apply to
your vehicle due to model
variant, country specifications,
special equipment or
accessories.
● The "In brief" section will give you
an initial overview.● The table of contents at the beginning of this manual and
within each section shows where the information is located.
● The index will enable you to search for specific information.
● This Owner's Manual depicts left-
hand drive vehicles. Operation is similar for right-hand drive
vehicles.
● The Owner's Manual uses the engine identifier code. The
corresponding sales designation
and engineering code can be
found in the section "Technical
data".
● Directional data, e.g. left or right, or front or back, always relate to
the direction of travel.
● Displays may not support your specific language.
● Display messages and interior labelling are written in bold
letters.

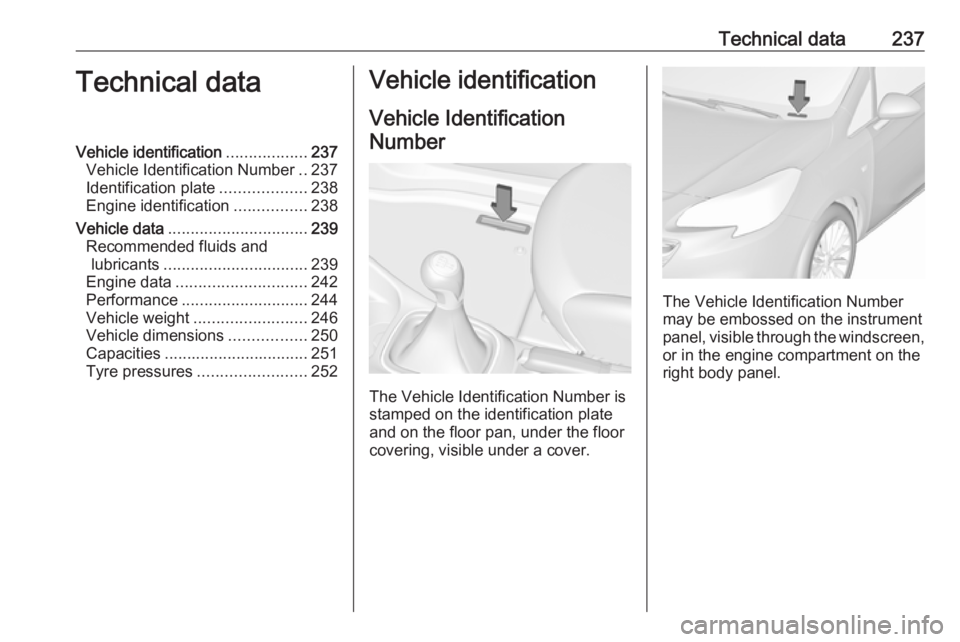

Technical data237Technical dataVehicle identification..................237
Vehicle Identification Number ..237
Identification plate ...................238
Engine identification ................238
Vehicle data ............................... 239
Recommended fluids and lubricants ................................ 239
Engine data ............................. 242
Performance ............................ 244
Vehicle weight ......................... 246
Vehicle dimensions .................250
Capacities ................................ 251
Tyre pressures ........................ 252Vehicle identification
Vehicle IdentificationNumber
The Vehicle Identification Number is
stamped on the identification plate
and on the floor pan, under the floor
covering, visible under a cover.
The Vehicle Identification Number
may be embossed on the instrument
panel, visible through the windscreen,
or in the engine compartment on the
right body panel.

238Technical dataIdentification plate
The identification plate is located on
the left or right door frame.
Information on identification label:1:manufacturer2:type approval number3:vehicle identification number4:permissible gross vehicle weight rating in kg5:permissible gross train weight
in kg6:maximum permissible front axle
load in kg7:maximum permissible rear axle
load in kg8:vehicle-specific or country-
specific data
The combined total of front and rear
axle loads must not exceed the
permissible gross vehicle weight. For
example, if the front axle is bearing its
maximum permissible load, the rear
axle can only bear a load that is equal
to the gross vehicle weight minus the front axle load.
The technical data is determined in
accordance with European
Community standards. We reserve
the right to make modifications.
Specifications in the vehicle
documents always have priority over
those given in this manual.
Engine identification
The technical data tables use the
engine identifier code. The engine
data table additionally shows the
engineering code.
Engine data 3 242.
To identify the respective engine,
refer to the EEC Certificate of
Conformity provided with your vehicle
or other national registration
documents.
The Certificate of Conformity shows
the engine identifier code, other
national publications may show the
engineering code. Check piston
displacement and engine power to
identify the respective engine.

Technical data239Vehicle data
Recommended fluids and lubricants
European service schedule Required engine oil qualityAll European countries with European service interval 3 234Engine oil qualityPetrol engine
B10XFL, F10XFL, B14NEH, D14NEHAll other petrol engines
(including CNG, LPG, E85)Diesel enginesdexos1 Gen2✔––dexos2–✔✔
All engines except B10XFL, F10XFL, B14NEH and D14NEH: In case dexos quality is unavailable, you may use max.
1 l engine oil quality ACEA C3 for topping up once between each oil change.
Engine oil viscosity grades
All European countries with European service interval 3 234Ambient temperaturePetrol and diesel enginesdown to -25 °CSAE 0W-30 or SAE 0W-40
SAE 5W-30 or SAE 5W-40below -25 °CSAE 0W-30 or SAE 0W-40

240Technical dataInternational service schedule
Required engine oil qualityAll European countries with European service interval 3 234Engine oil qualityPetrol engine
B10XFL, F10XFL, B14NEH, D14NEHAll other petrol engines
(including CNG, LPG, E85)Diesel enginesdexos1 Gen2✔––dexos2–✔✔
In case dexos quality is unavailable, you may use the oil qualities listed below:
All countries with international service interval 3 234Engine oil qualityPetrol engine
B10XFL, F10XFL, B14NEH, D14NEHAll other petrol engines
(including CNG, LPG, E85)Diesel enginesACEA A3/B4–✔✔ACEA C3–✔✔

Technical data241Engine oil viscosity gradesAll countries with international service interval 3 234Ambient temperaturePetrol and diesel enginesdown to -25 °CSAE 0W-30 or SAE 0W-40
SAE 5W-30 or SAE 5W-40below -25 °CSAE 0W-30 or SAE 0W-40down to -20 °CSAE 10W-30 1)
or SAE 10W-40 1)1)
Permitted, but usage of oils with dexos quality is recommended.

242Technical dataEngine dataEngine identifier code
B10XFL /
F10XFLB10XFTB12XEL /
D12XELB14XEJ /
D14XEJB14XEL /
D14XELB14NEJ /
D14NEJSales designation1.01.01.21.41.41.4Engineering codeB10XFTB10XFTB12XERB14XERB14XERB14NELPiston displacement [cm 3
]9999991229139813981364Engine power [kW]668551556674at rpm3700 - 60005000 - 600056004200 - 600060003500 - 6000Torque [Nm]170170115130130200at rpm1800 - 37001800 - 45004000400040001850 - 3500Fuel typePetrolPetrolPetrolPetrolPetrolPetrolOctane rating RON 2)recommended959595959595possible919198989898possible989891919191Additional fuel type––––-–2)
A country-specific label at the fuel filler flap can supersede the engine-specific requirement.

Technical data243
Engine identifier code
B14XEL /
D14XELB14NEH /
D14NEHB16LERSales designation1.4 LPG1.4 TurboOPCEngineering codeB14XERB14NETB16LERPiston displacement [cm 3
]139813641598Engine power [kW]66110152at rpm600050005800Torque [Nm]130220245at rpm40003000-45001900-5800Fuel typeLiquid gas / PetrolPetrolPetrolOctane rating RON 2)recommended9598100possible989598possible91––Additional fuel typeLiquid gas (LPG)––2)
A country-specific label at the fuel filler flap can supersede the engine-specific requirement.

244Technical dataEngine identifier codeB13DTCB13DTEB13DTEB13DTRSales designation1.31.31.31.3Engineering codeB13DTCB13DTEB13DTEB13DTRPiston displacement [cm3
]1248124812481248Engine power [kW]55557070at rpm3750375037503750Torque [Nm]190190190210at rpm1500 - 25001500 - 25001500 - 35001500 - 3000Fuel typeDieselDieselDieselDieselAdditional fuel type––––PerformanceEngine
B10XFL /
F10XFLB10XFTB12XEL /
D12XELB14XEJ /
D14XEJB14XEL /
D14XELB14NEJ /
D14NEJMaximum speed [km/h]Manual transmission180195162167175185Manual transmission automated––––175–Automatic transmission––––170–
