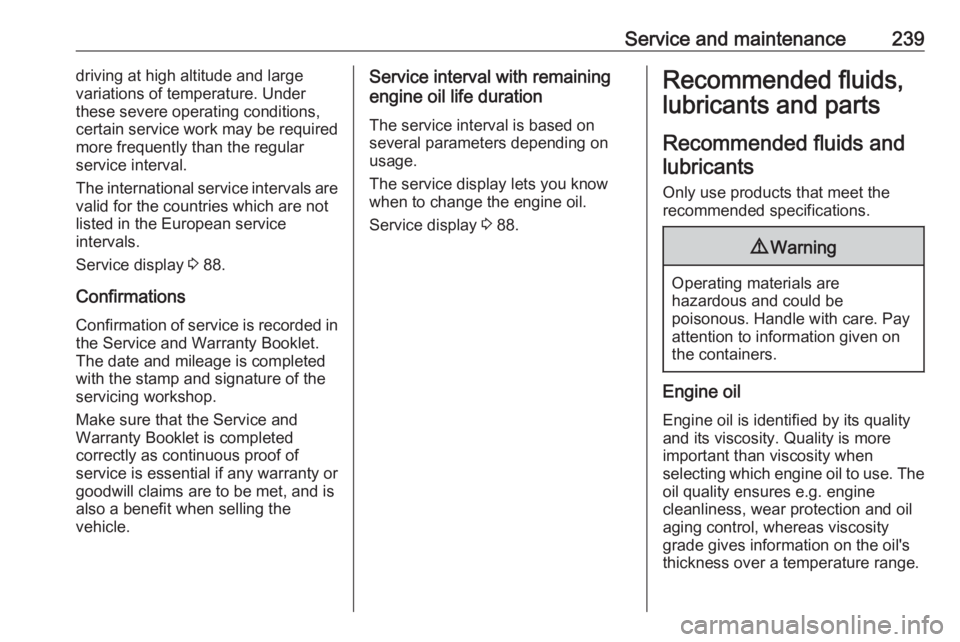

Service and maintenance239driving at high altitude and large
variations of temperature. Under
these severe operating conditions, certain service work may be required
more frequently than the regular service interval.
The international service intervals are
valid for the countries which are not
listed in the European service
intervals.
Service display 3 88.
Confirmations
Confirmation of service is recorded in the Service and Warranty Booklet.
The date and mileage is completed
with the stamp and signature of the
servicing workshop.
Make sure that the Service and
Warranty Booklet is completed
correctly as continuous proof of
service is essential if any warranty or
goodwill claims are to be met, and is
also a benefit when selling the
vehicle.Service interval with remaining
engine oil life duration
The service interval is based on
several parameters depending on
usage.
The service display lets you know when to change the engine oil.
Service display 3 88.Recommended fluids,
lubricants and parts
Recommended fluids andlubricants
Only use products that meet the
recommended specifications.9 Warning
Operating materials are
hazardous and could be
poisonous. Handle with care. Pay
attention to information given on
the containers.
Engine oil
Engine oil is identified by its quality
and its viscosity. Quality is more
important than viscosity when
selecting which engine oil to use. The oil quality ensures e.g. engine
cleanliness, wear protection and oil
aging control, whereas viscosity
grade gives information on the oil's
thickness over a temperature range.

240Service and maintenanceDexos is the newest engine oil quality
that provides optimum protection for
petrol and diesel engines. If it is
unavailable, engine oils of other listed qualities have to be used.
Recommendations for petrol engines
are also valid for Compressed Natural
Gas (CNG), Liquified Petroleum Gas
(LPG) and Ethanol (E85) fuelled
engines.
Select the appropriate engine oil based on its quality and on the
minimum ambient temperature
3 244.
Topping up engine oilCaution
In case of any spilled oil, wipe it up and dispose it properly.
Engine oils of different manufacturersand brands can be mixed as long as
they comply with the required engine
oil quality and viscosity.
Use of engine oils for all petrol
engines with only ACEA quality is
prohibited, since it can cause engine
damage under certain operating
conditions.
Select the appropriate engine oil
based on its quality and on the
minimum ambient temperature
3 244.
Additional engine oil additives
The use of additional engine oil
additives could cause damage and
invalidate the warranty.
Engine oil viscosity grades
The SAE viscosity grade gives
information of the thickness of the oil.
Multigrade oil is indicated by two
figures, e.g. SAE 5W-30. The first
figure, followed by a W, indicates the
low temperature viscosity and the
second figure the high temperature viscosity.
Select the appropriate viscosity grade depending on the minimum ambient
temperature 3 244.All of the recommended viscosity
grades are suitable for high ambient
temperatures.
Coolant and antifreeze
Use only silicate-free long life coolant
(LLC) antifreeze. Consult a
workshop.
The system is factory filled with
coolant designed for excellent
corrosion protection and frost
protection down to approx. -28 °C. In
northern countries with very low
temperatures the factory filled coolant
provides frost protection down to
approx. -37 °C. This concentration
should be maintained all year round.
The use of additional coolant
additives that intend to give additional corrosion protection or seal against
minor leaks can cause function
problems. Liability for consequences
resulting from the use of additional
coolant additives will be rejected.

Service and maintenance241Washer fluidUse only washer fluid approved for
the vehicle to prevent damage of
wiper blades, paintwork, plastic and
rubber parts. Consult a workshop.
Brake and clutch fluid Over time, brake fluid absorbs
moisture which will reduce braking
effectiveness. The brake fluid should
therefore be replaced at the specified
interval.

242Technical dataTechnical dataVehicle identification..................242
Vehicle Identification Number ..242
Identification plate ...................243
Engine identification ................243
Vehicle data ............................... 244
Recommended fluids and lubricants ................................ 244
Engine data ............................. 247
Performance ............................ 249
Vehicle weight ......................... 251
Vehicle dimensions .................253
Capacities ................................ 254
Tyre pressures ........................ 255Vehicle identification
Vehicle IdentificationNumber
The Vehicle Identification Number is
stamped on the identification plate
and on the floor pan, under the floor
covering, visible under a cover.
The Vehicle Identification Number
may be embossed on the instrument
panel, visible through the windscreen,
or in the engine compartment on the
right body panel.

Technical data243Identification plate
The identification plate is located on
the left or right door frame.
Information on identification label:1:manufacturer2:type approval number3:vehicle identification number4:permissible gross vehicle weight rating in kg5:permissible gross train weight
in kg6:maximum permissible front axle
load in kg7:maximum permissible rear axle
load in kg8:vehicle-specific or country-
specific data
The combined total of front and rear
axle loads must not exceed the
permissible gross vehicle weight. For
example, if the front axle is bearing its
maximum permissible load, the rear
axle can only bear a load that is equal
to the gross vehicle weight minus the front axle load.
The technical data is determined in
accordance with European
Community standards. We reserve
the right to make modifications.
Specifications in the vehicle
documents always have priority over
those given in this manual.
Engine identification
The technical data tables use the
engine identifier code. The engine
data table additionally shows the
engineering code. Engine data
3 247.
To identify the respective engine,
refer to the EEC Certificate of
Conformity provided with your vehicle
or other national registration
documents.
The Certificate of Conformity shows
the engine identifier code, other
national publications may show the
engineering code. Check piston
displacement and engine power to
identify the respective engine.

244Technical dataVehicle dataRecommended fluids and lubricantsEuropean service schedule Required engine oil qualityAll European countries with European service interval 3 238Engine oil qualityPetrol engine
B10XFL, B14NEHAll other petrol engines
(including CNG, LPG, E85)Diesel enginesdexos1 Gen2✔––dexos2–✔✔
All engines except B10XFL and B14NEH: In case dexos quality is unavailable, you may use max. one litre engine oil quality ACEA C3 for topping up once between each oil change.
Engine oil viscosity grades
All European countries with European service interval 3 238Ambient temperaturePetrol and diesel enginesdown to -25 °CSAE 0W-30 or SAE 0W-40
SAE 5W-30 or SAE 5W-40below -25 °CSAE 0W-30 or SAE 0W-40

Technical data245International service scheduleRequired engine oil qualityAll European countries with European service interval 3 238Engine oil qualityPetrol engine
B10XFL, B14NEHAll other petrol engines
(including CNG, LPG, E85)Diesel enginesdexos1 Gen2✔––dexos2–✔✔
In case dexos quality is unavailable, you may use the oil qualities listed below:
All countries with international service interval 3 238Engine oil qualityPetrol engine
B10XFL, B14NEHAll other petrol engines
(including CNG, LPG, E85)Diesel enginesACEA A3/B4–✔✔ACEA C3–✔✔

246Technical dataEngine oil viscosity gradesAll countries with international service interval 3 238Ambient temperaturePetrol and diesel enginesdown to -25 °CSAE 0W-30 or SAE 0W-40
SAE 5W-30 or SAE 5W-40below -25 °CSAE 0W-30 or SAE 0W-40down to -20 °CSAE 10W-30 1)
or SAE 10W-40 1)1)
Permitted, but usage of oils with dexos quality is recommended.

Technical data247Engine dataEngine identifier codeB10XFLB10XFTB12XELB14XEJB14XELB14NEJSales designation1.01.01.21.41.41.4Engineering codeB10XFTB10XFTB12XERB14XERB14XERB14NELPiston displacement [cm3
]9999991229139813981364Engine power [kW]668551556674at rpm3700 - 60005000 - 600056004200 - 600060003500 - 6000Torque [Nm]170170115130130200at rpm1800 - 37001800 - 45004000400040001850 - 3500Fuel typePetrolPetrolPetrolPetrolPetrolPetrolOctane rating RON 2)recommended959595959595possible919198989898possible989891919191Additional fuel type––––-–2)
A country-specific label at the fuel filler flap can supersede the engine-specific requirement.

248Technical dataEngine identifier codeB14XELB14NEHB16LERSales designation1.4 LPG1.4 TurboOPCEngineering codeB14XERB14NETB16LERPiston displacement [cm3
]139813641598Engine power [kW]66110152at rpm600050005800Torque [Nm]130 3)220245at rpm40003000-45001900-5800Fuel typeLiquid gas/PetrolPetrolPetrolOctane rating RON 2)recommended9598100possible989598possible91––Additional fuel typeLiquid gas (LPG)––2)
A country-specific label at the fuel filler flap can supersede the engine-specific requirement.
3) LPG operation: 124.
