Keys, doors and windows35
Raise
Hold switch ü depressed until the
sunroof is raised at the rear.
Open
From raised position press and
release switch ü: the sunroof is
opened automatically up to end
position. To stop movement before
endposition, operate switch once
more.
Close
Hold switch d depressed from any
position until sunroof is closed
completely. Releasing the switch
stops movement in any position.Caution
When using a roof rack, check the free movement of the sunroof in
order to avoid damage. It is only
permitted to raise the sunroof.
Note
If the top of the roof is wet, tilt
sunroof, allow water to run off and
then open sunroof.
Do not affix any stickers to sunroof.
Sunblind The sunblind is manually operated.
Close or open the sunblind by sliding. Sunblind is usable in each sunroofposition.
Overload
If the system is overloaded, the power
supply is automatically cut-off for a
short time. The system is protected by
fuses in the fuse box 3 207.
Initialising the sun roof
If the sunroof cannot be operated,
activate the electronics as follows:
with ignition on close the sunroof and
hold d depressed for at least ten
seconds.
Seek the assistance of a workshop to
have the cause of the fault remedied.

Vehicle care191Vehicle careGeneral Information...................192
Accessories and vehicle modifications .......................... 192
Vehicle storage ........................192
End-of-life vehicle recovery .....193
Vehicle checks ........................... 193
Performing work ......................193
Bonnet ..................................... 193
Engine oil ................................. 194
Engine coolant ......................... 195
Washer fluid ............................ 196
Brakes ..................................... 197
Brake fluid ............................... 197
Vehicle battery ......................... 197
Diesel fuel system bleeding .....198
Wiper blade replacement ........199
Bulb replacement .......................199
Halogen headlights ..................199
Xenon headlights .....................202
Fog lights ................................. 203
Front turn signal lights .............203
Tail lights ................................. 204
Side turn signal lights ..............206
Centre high-mounted brake light ......................................... 206Number plate light...................206
Interior lights ............................ 207
Instrument panel illumination ...207
Electrical system ........................207
Fuses ....................................... 207
Engine compartment fuse box . 208
Instrument panel fuse box .......210
Vehicle tools .............................. 212
Tools ........................................ 212
Wheels and tyres .......................213
Winter tyres ............................. 213
Tyre designations ....................214
Tyre pressure .......................... 214
Tyre pressure monitoring system .................................... 215
Tread depth ............................. 219
Changing tyre and wheel size . 220
Wheel covers ........................... 220
Tyre chains .............................. 221
Tyre repair kit .......................... 221
Wheel changing .......................226
Spare wheel ............................ 228
Jump starting ............................. 230
Towing ....................................... 232
Towing the vehicle ...................232
Towing another vehicle ...........233Appearance care .......................234
Exterior care ............................ 234
Interior care ............................. 236

Vehicle care207
2. Remove lamp downwards, takingcare not to pull on the cable.
3. Remove bulb holder from lamphousing by turning anticlockwise.
4. Pull bulb from bulb holder andreplace it.
5. Insert bulb holder into lamp housing and turn clockwise.
6. Insert lamp into bumper and let engage.
Interior lights
Courtesy light, reading lights Have bulbs replaced by a workshop.
Load compartment light
Have bulbs replaced by a workshop.
Dome light
Have bulbs replaced by a workshop.
Instrument panel
illumination
Have bulbs replaced by a workshop.Electrical system
Fuses Data on the replacement fuse must
match the data on the defective fuse.
There are two fuse boxes in the
vehicle:
● in the front left of the engine compartment
● in left-hand drive vehicles, behind
the light switch, or, in right-hand
drive vehicles, behind the
glovebox
Before replacing a fuse, turn off the
respective switch and the ignition.

208Vehicle careThere are different kinds of fuses in
the vehicle.
Depending on the type of fuse, a
blown fuse can be recognized by its
melted wire. Do not replace the fuse until the cause of the fault has been
remedied.
Some functions are protected by
several fuses.
Fuses may also be inserted without existence of a function.
Fuse extractorA fuse extractor may be located in the
fuse box in the engine compartment.
Place the fuse extractor on the
various types of fuse from the top, and withdraw fuse.
Engine compartment fuse
box
The fuse box is in the front left of the
engine compartment.
Disengage the cover and fold it
upwards until it stops. Remove the
cover vertically upwards.

210Vehicle careNo.Circuit30Engine control module31High beam left, Xenon low
beam left32High beam right, Xenon low
beam right33Engine control module34Horn35Air condition compressor clutch36Front fog lightsNo.Circuit1ABS pump2Front wiper3Blower4Instrument panel5Cooling fan6Diesel fuel heater7Transmission8Cooling fan9Cooling fan10Cooling fan11Starter
After having changed defective fuses
close the fuse box cover and press
until it engages.
If the fuse box cover is not closed
correctly, malfunction may occur.

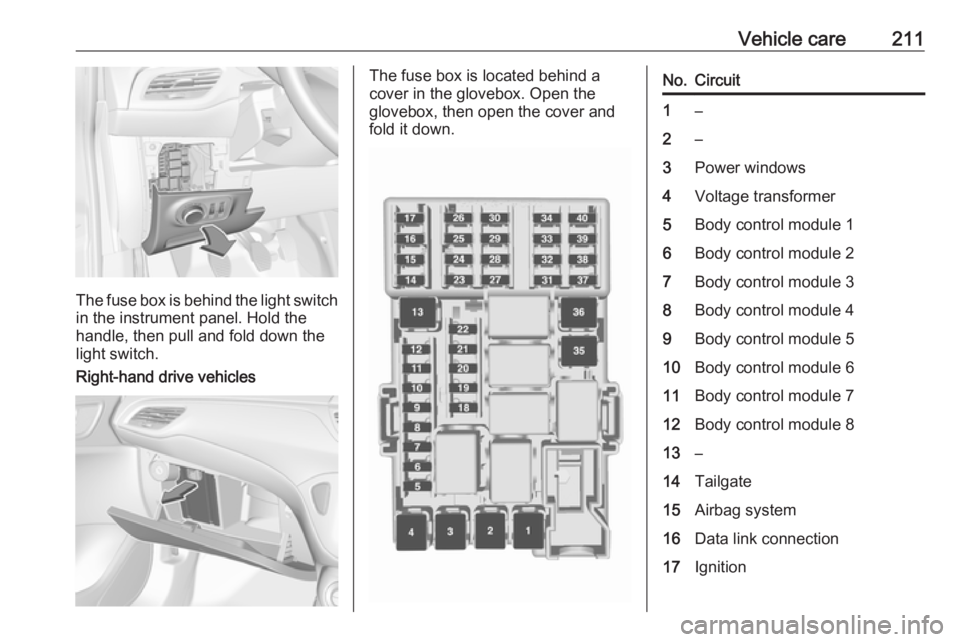

Instrument panel fuse box Left-hand drive vehicles

Vehicle care211
The fuse box is behind the light switchin the instrument panel. Hold the
handle, then pull and fold down the
light switch.
Right-hand drive vehicles
The fuse box is located behind a
cover in the glovebox. Open the
glovebox, then open the cover and
fold it down.No.Circuit1–2–3Power windows4Voltage transformer5Body control module 16Body control module 27Body control module 38Body control module 49Body control module 510Body control module 611Body control module 712Body control module 813–14Tailgate15Airbag system16Data link connection17Ignition

265Control indicators.......................... 89
Control of the vehicle .................136
Controls ........................................ 76
Convex shape .............................. 30
Coolant and antifreeze ...............239
Corner lighting ............................ 118
Cruise control ...................... 97, 156
Cupholders .................................. 57
Curtain airbag system .................. 49
D Danger, Warnings and Cautions ...4
Daytime running lights ...............118
Declaration of conformity ............257
Diesel fuel system bleeding .......198
Diesel particle filter ...............95, 142
Door open .................................... 97
Doors ............................................ 27
Driver assistance systems ..........156
Driver Information Centre .............98
Driving characteristics and towing tips .............................. 186
Driving hints ................................ 136
E Easy entry..................................... 39
Electric adjustment ......................30
Electrical system......................... 207
Electronic climate control system 128
Electronic driving programmes . ........................................ 145, 150Electronic Stability Control.......... 154
Electronic Stability Control and Traction Control system ............95
Electronic Stability Control off....... 95
End-of-life vehicle recovery .......193
Engine compartment fuse box ...208
Engine coolant ........................... 195
Engine coolant temperature gauge ....................................... 87
Engine data ............................... 247
Engine exhaust .......................... 142
Engine identification ...................243
Engine oil ................... 194, 239, 244
Engine oil pressure ......................96
Entry lighting .............................. 123
Event data recorders ..................263
Exit lighting ................................ 123
Exterior care .............................. 234
Exterior light ................................. 97
Exterior lighting ....................14, 115
Exterior mirrors ............................. 30
F
Fault ................................... 146, 150
First aid ......................................... 72
First aid kit ................................... 72
Fixed air vents ........................... 133
Flex-Fix system ............................ 59
Fog light ....................................... 97
Fog lights ................................... 203Folding mirrors ............................. 30
Following distance indication ......162
Forward collision alert................. 159
Front airbag system .....................47
Front fog lights ........................... 120
Front seats.................................... 37
Front storage ................................ 58
Front turn signal lights ...............203
Fuel............................................. 180
Fuel consumption - CO 2-
Emissions ............................... 185
Fuel for diesel engines ..............181
Fuel for liquid gas operation .......181
Fuel for petrol engines ...............180
Fuel gauge ................................... 85 Fuel selector ................................ 86
Fuses ......................................... 207
G Gauges ......................................... 84
Gear shifting ................................. 94
General information ...................186
Glovebox ..................................... 57
Graphic-Info-Display ...................103
H Halogen headlights ....................199
Hand brake ......................... 151, 152
Hazard warning flashers ............119
Headlight flash ........................... 117
Headlight range adjustment ......117

266Headlights................................... 115Headlights when driving abroad 117
Head restraint adjustment .............8
Head restraints ............................ 36
Heated mirrors ............................. 31
Heated rear window ..................... 33
Heated steering wheel .................76
Heated windscreen .......................34
Heating ........................................ 40
Heating and ventilation system . 125
High beam ........................... 97, 117
High beam assist ..................97, 118
Hill start assist ........................... 152
Horn ....................................... 15, 77
I
Identification plate .....................243
Ignition switch positions .............136
Immobiliser ............................ 29, 96
Indicators ...................................... 84
Inductive charging ........................82
Information displays...................... 98
Instrument cluster ........................84
Instrument panel fuse box .........210
Instrument panel illumination .....207
Instrument panel illumination control .................................... 121
Instrument panel overview ........... 10
Interior care ............................... 236
Interior lighting ............................ 121Interior lights ...................... 122, 207
Interior mirrors .............................. 31
Interruption of power supply ......146
Introduction .................................... 3
J
Jump starting ............................. 230
K Key, memorised settings ..............24
Keys ............................................. 22
Keys, locks ................................... 22
L
Lane departure warning .......94, 179
Lashing eyes ............................... 71
Light switch ................................ 115
Load compartment ................27, 67
Load compartment cover .............69
Loading information .....................73
Low fuel ....................................... 96
LPG .............................. 86, 181, 244
M
Malfunction indicator light ............93
Manual anti-dazzle ......................31
Manual mode .....................145, 150
Manual transmission .................. 147
Manual transmission automated 147
Manual windows ..........................32
Memorised settings ......................24Mirror adjustment ........................... 8
Misted light covers .....................121
N
New vehicle running-in ..............136
Number plate light .....................206
O Object detection systems ...........162
Odometer ..................................... 84
Oil, engine .......................... 239, 244
OnStar ........................................ 110
Operate pedal ............................... 94
Outside temperature ....................79
Overrun cut-off ........................... 138
P Parking ................................ 20, 141
Parking assist ............................ 162
Parking brake ............................ 152
Parking lights ............................. 121
Particulate filter ........................... 142
Performance .............................. 249
Performing work ........................193
Pollen filter ................................. 133
Power outlets ............................... 81
Power steering.............................. 94
Power windows ............................ 32
Preheating ................................... 95
Puncture ..................................... 226
