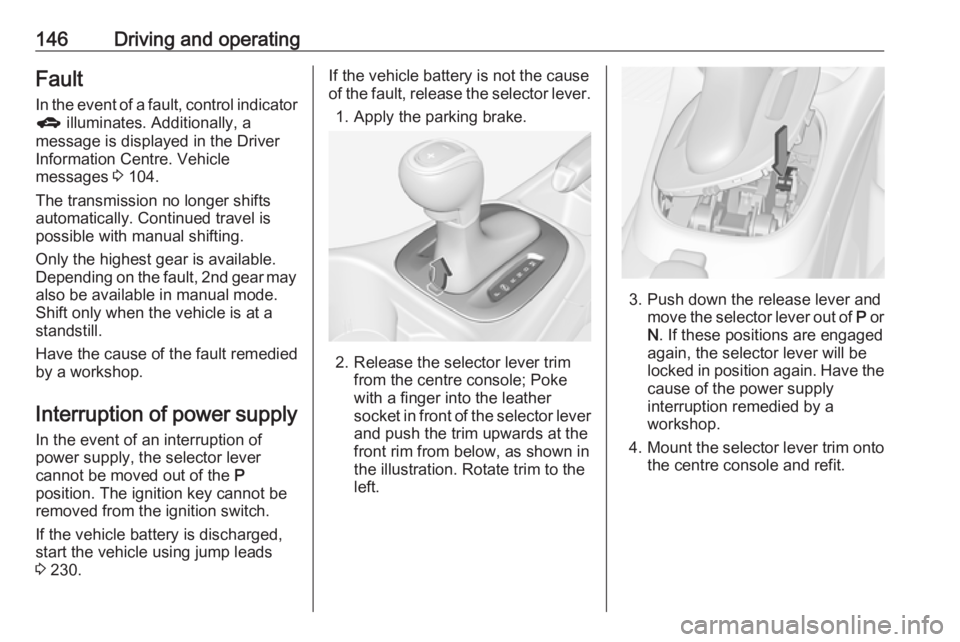

146Driving and operatingFault
In the event of a fault, control indicator g illuminates. Additionally, a
message is displayed in the Driver
Information Centre. Vehicle
messages 3 104.
The transmission no longer shifts automatically. Continued travel is
possible with manual shifting.
Only the highest gear is available.
Depending on the fault, 2nd gear may also be available in manual mode.
Shift only when the vehicle is at a
standstill.
Have the cause of the fault remedied by a workshop.
Interruption of power supply In the event of an interruption of
power supply, the selector lever
cannot be moved out of the P
position. The ignition key cannot be removed from the ignition switch.
If the vehicle battery is discharged,
start the vehicle using jump leads
3 230.If the vehicle battery is not the cause
of the fault, release the selector lever.
1. Apply the parking brake.
2. Release the selector lever trim from the centre console; Poke
with a finger into the leather
socket in front of the selector lever
and push the trim upwards at the
front rim from below, as shown in
the illustration. Rotate trim to the
left.
3. Push down the release lever and move the selector lever out of P or
N . If these positions are engaged
again, the selector lever will be
locked in position again. Have the cause of the power supply
interruption remedied by a
workshop.
4. Mount the selector lever trim onto
the centre console and refit.

Vehicle care191Vehicle careGeneral Information...................192
Accessories and vehicle modifications .......................... 192
Vehicle storage ........................192
End-of-life vehicle recovery .....193
Vehicle checks ........................... 193
Performing work ......................193
Bonnet ..................................... 193
Engine oil ................................. 194
Engine coolant ......................... 195
Washer fluid ............................ 196
Brakes ..................................... 197
Brake fluid ............................... 197
Vehicle battery ......................... 197
Diesel fuel system bleeding .....198
Wiper blade replacement ........199
Bulb replacement .......................199
Halogen headlights ..................199
Xenon headlights .....................202
Fog lights ................................. 203
Front turn signal lights .............203
Tail lights ................................. 204
Side turn signal lights ..............206
Centre high-mounted brake light ......................................... 206Number plate light...................206
Interior lights ............................ 207
Instrument panel illumination ...207
Electrical system ........................207
Fuses ....................................... 207
Engine compartment fuse box . 208
Instrument panel fuse box .......210
Vehicle tools .............................. 212
Tools ........................................ 212
Wheels and tyres .......................213
Winter tyres ............................. 213
Tyre designations ....................214
Tyre pressure .......................... 214
Tyre pressure monitoring system .................................... 215
Tread depth ............................. 219
Changing tyre and wheel size . 220
Wheel covers ........................... 220
Tyre chains .............................. 221
Tyre repair kit .......................... 221
Wheel changing .......................226
Spare wheel ............................ 228
Jump starting ............................. 230
Towing ....................................... 232
Towing the vehicle ...................232
Towing another vehicle ...........233Appearance care .......................234
Exterior care ............................ 234
Interior care ............................. 236

198Vehicle careReplacing the vehicle batteryNote
Any deviation from the instructions
given in this section may lead to
temporary deactivation or
disturbance of the stop-start system.
When the vehicle battery is being
replaced, please ensure that there
are no open ventilation holes in the
vicinity of the positive terminal. If a
ventilation hole is open in this area, it
must be closed off with a dummy cap, and the ventilation in the vicinity of the negative terminal must be opened.
Ensure that the battery is always
replaced by the same type of battery.
We recommend the use of an original Opel battery.
Note
Using an AGM vehicle battery
different from the original Opel
vehicle battery may result in a lower performance.
We recommend that you have the
vehicle battery replaced by a
workshop.Charging the vehicle battery9 Warning
On vehicles with stop-start
system, ensure that the charging potential does not exceed
14.6 volts when using a battery
charger. Otherwise the vehicle
battery might be damaged.
Jump starting 3 230.
Stop-start system 3 138.
Warning label
Meaning of symbols: ● No sparks, naked flames or smoking.
● Always shield eyes. Explosive gases can cause blindness or
injury.
● Keep the vehicle battery out of the reach of children.
● The vehicle battery contains sulfuric acid which could cause
blindness or serious burn
injuries.
● See the Owner's manual for further information.
● Explosive gas may be present in the vicinity of the battery.
Diesel fuel system bleeding
If the tank has been run dry, the diesel
fuel system must be bled. Switch on
the ignition three times for
15 seconds at a time. Then crank the
engine for a maximum of
40 seconds. Repeat this process after
no less than five seconds. If the
engine fails to start, seek the
assistance of a workshop.

230Vehicle careTemporary spare wheelCaution
The use of the temporary spare
wheel could affect driveability.
Have the defective tyre renewed
or repaired as soon as possible.
Only mount one temporary spare
wheel. The permissible maximum
speed on the label on the temporary
spare wheel is only valid for the
factory-fitted tyre size.
If your vehicle gets a flat tyre on the
rear while towing another vehicle,
mount the temporary spare wheel in
the front and the full size tyre in the
rear.
Tyre chains 3 221.
Spare wheel with directional tyre If possible, fit directional tyres such
that they roll in the direction of travel.
The rolling direction is indicated by a
symbol (e.g. an arrow) on the
sidewall.
The following applies to tyres fitted
opposing the rolling direction:
● Driveability may be affected. Have the defective tyre renewed
or repaired as soon as possible
and fit it instead of the spare
wheel.
● Drive particularly carefully on wet
and snow-covered road
surfaces.Jump starting
Do not start with a quick charger.
A vehicle with a discharged vehicle
battery can be started using jump leads and the vehicle battery of
another vehicle.9 Warning
Be extremely careful when starting
with jump leads. Any deviation
from the following instructions can
lead to injuries or damage caused
by battery explosion or damage to the electrical systems of both
vehicles.
9 Warning
Avoid contact of the battery with
eyes, skin, fabrics and painted
surfaces. The fluid contains
sulphuric acid which can cause
injuries and damage in the event
of direct contact.
● Never expose the battery to naked flames or sparks.

Vehicle care231● A discharged vehicle battery canalready freeze at a temperature
of 0 °C. Defrost the frozen battery before connecting jump leads.
● Wear eye protection and protective clothing when
handling a battery.
● Use a booster battery with the same voltage (12 Volts). Its
capacity (Ah) must not be much
less than that of the discharged
vehicle battery.
● Use jump leads with insulated terminals and a cross section of
at least 16 mm 2
(25 mm 2
for
diesel engines).
● Do not disconnect the discharged
vehicle battery from the vehicle.
● Switch off all unnecessary electrical consumers.
● Do not lean over the battery during jump starting.
● Do not allow the terminals of one
lead to touch those of the other
lead.
● The vehicles must not come into contact with each other during
the jump starting process.● Apply the parking brake, transmission in neutral,
automatic transmission in P.
● Open the positive terminal protection caps of both vehiclebatteries.
Lead connection order:
1. Connect the red lead to the positive terminal of the booster
vehicle battery.
2. Connect the other end of the red lead to the positive terminal of the
discharged vehicle battery.
3. Connect the black lead to the negative terminal of the booster
vehicle battery.
4. Connect the other end of the black
lead to a vehicle grounding point,
such as the engine block or an
engine mounting bolt. Connect as far away from the discharged
vehicle battery as possible,
however at least 60 cm.
Route the leads so that they cannot
catch on rotating parts in the engine
compartment.
To start the engine: 1. Start the engine of the vehicle providing the jump.
2. After five minutes, start the other engine. Start attempts should be
made for no longer than
15 seconds at an interval of one
minute.
3. Allow both engines to idle for approx. three minutes with the
leads connected.

232Vehicle care4. Switch on electrical consumers(e.g. headlights, heated rear
window) of the vehicle receiving
the jump start.
5. Reverse above sequence exactly when removing leads.Towing
Towing the vehicle
Insert a screwdriver in the slot at the
lower part of the cap. Release the cap
by carefully moving the screwdriver
downwards.
The towing eye is stowed with the
vehicle tools 3 212.
Screw in the towing eye as far as it will
go until it stops in a horizontal
position.
Attach a tow rope – or better still a tow
rod – to the towing eye.
The towing eye must only be used for
towing and not for recovering the
vehicle.
Switch on ignition to release steering wheel lock and to permit operation of
brake lights, horn and windscreen
wiper.
Switch the selector lever to neutral.
Release the parking brake.

266Headlights................................... 115Headlights when driving abroad 117
Head restraint adjustment .............8
Head restraints ............................ 36
Heated mirrors ............................. 31
Heated rear window ..................... 33
Heated steering wheel .................76
Heated windscreen .......................34
Heating ........................................ 40
Heating and ventilation system . 125
High beam ........................... 97, 117
High beam assist ..................97, 118
Hill start assist ........................... 152
Horn ....................................... 15, 77
I
Identification plate .....................243
Ignition switch positions .............136
Immobiliser ............................ 29, 96
Indicators ...................................... 84
Inductive charging ........................82
Information displays...................... 98
Instrument cluster ........................84
Instrument panel fuse box .........210
Instrument panel illumination .....207
Instrument panel illumination control .................................... 121
Instrument panel overview ........... 10
Interior care ............................... 236
Interior lighting ............................ 121Interior lights ...................... 122, 207
Interior mirrors .............................. 31
Interruption of power supply ......146
Introduction .................................... 3
J
Jump starting ............................. 230
K Key, memorised settings ..............24
Keys ............................................. 22
Keys, locks ................................... 22
L
Lane departure warning .......94, 179
Lashing eyes ............................... 71
Light switch ................................ 115
Load compartment ................27, 67
Load compartment cover .............69
Loading information .....................73
Low fuel ....................................... 96
LPG .............................. 86, 181, 244
M
Malfunction indicator light ............93
Manual anti-dazzle ......................31
Manual mode .....................145, 150
Manual transmission .................. 147
Manual transmission automated 147
Manual windows ..........................32
Memorised settings ......................24Mirror adjustment ........................... 8
Misted light covers .....................121
N
New vehicle running-in ..............136
Number plate light .....................206
O Object detection systems ...........162
Odometer ..................................... 84
Oil, engine .......................... 239, 244
OnStar ........................................ 110
Operate pedal ............................... 94
Outside temperature ....................79
Overrun cut-off ........................... 138
P Parking ................................ 20, 141
Parking assist ............................ 162
Parking brake ............................ 152
Parking lights ............................. 121
Particulate filter ........................... 142
Performance .............................. 249
Performing work ........................193
Pollen filter ................................. 133
Power outlets ............................... 81
Power steering.............................. 94
Power windows ............................ 32
Preheating ................................... 95
Puncture ..................................... 226
