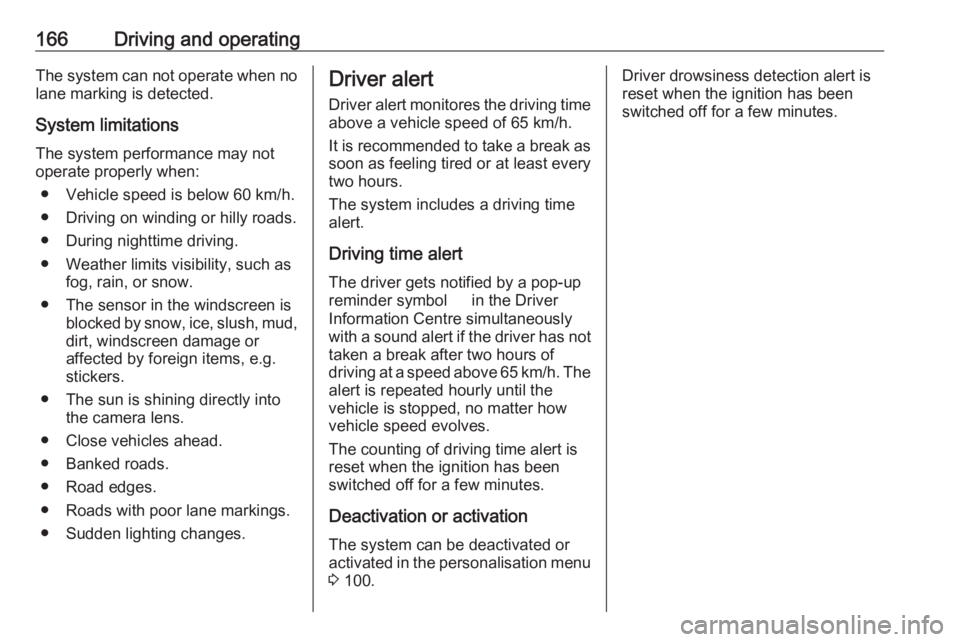

166Driving and operatingThe system can not operate when no
lane marking is detected.
System limitationsThe system performance may not
operate properly when:
● Vehicle speed is below 60 km/h.
● Driving on winding or hilly roads.
● During nighttime driving.
● Weather limits visibility, such as fog, rain, or snow.
● The sensor in the windscreen is blocked by snow, ice, slush, mud,dirt, windscreen damage or
affected by foreign items, e.g.
stickers.
● The sun is shining directly into the camera lens.
● Close vehicles ahead.
● Banked roads.
● Road edges.
● Roads with poor lane markings.
● Sudden lighting changes.Driver alert
Driver alert monitores the driving time above a vehicle speed of 65 km/h.
It is recommended to take a break as soon as feeling tired or at least every
two hours.
The system includes a driving time
alert.
Driving time alert The driver gets notified by a pop-up
reminder symbol ˇ in the Driver
Information Centre simultaneously with a sound alert if the driver has not
taken a break after two hours of
driving at a speed above 65 km/h. The
alert is repeated hourly until the
vehicle is stopped, no matter how
vehicle speed evolves.
The counting of driving time alert is
reset when the ignition has been
switched off for a few minutes.
Deactivation or activation The system can be deactivated or
activated in the personalisation menu
3 100.Driver drowsiness detection alert is
reset when the ignition has been
switched off for a few minutes.

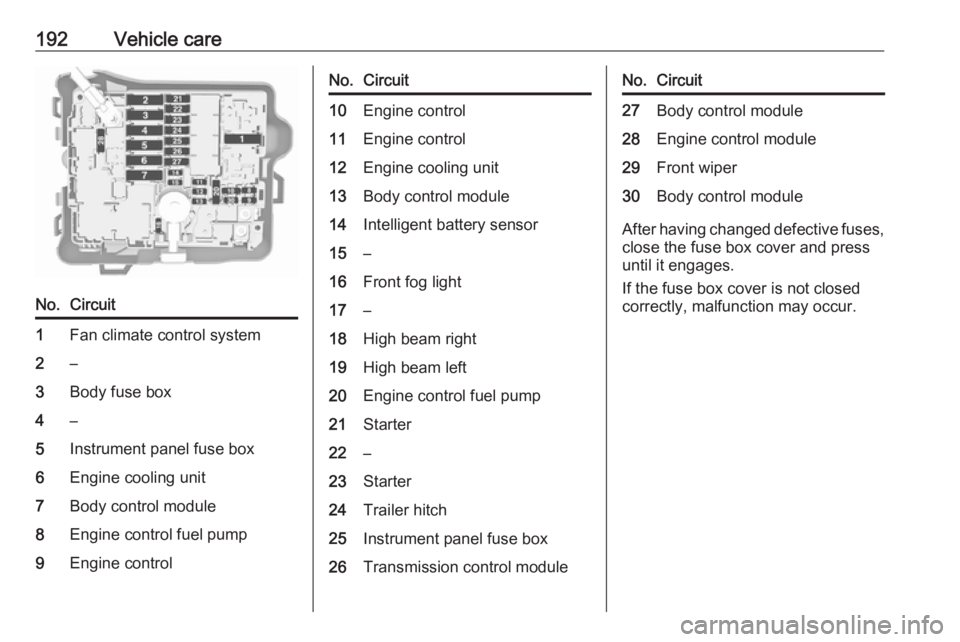

192Vehicle careNo.Circuit1Fan climate control system2–3Body fuse box4–5Instrument panel fuse box6Engine cooling unit7Body control module8Engine control fuel pump9Engine controlNo.Circuit10Engine control11Engine control12Engine cooling unit13Body control module14Intelligent battery sensor15–16Front fog light17–18High beam right19High beam left20Engine control fuel pump21Starter22–23Starter24Trailer hitch25Instrument panel fuse box26Transmission control moduleNo.Circuit27Body control module28Engine control module29Front wiper30Body control module
After having changed defective fuses,
close the fuse box cover and press
until it engages.
If the fuse box cover is not closed
correctly, malfunction may occur.

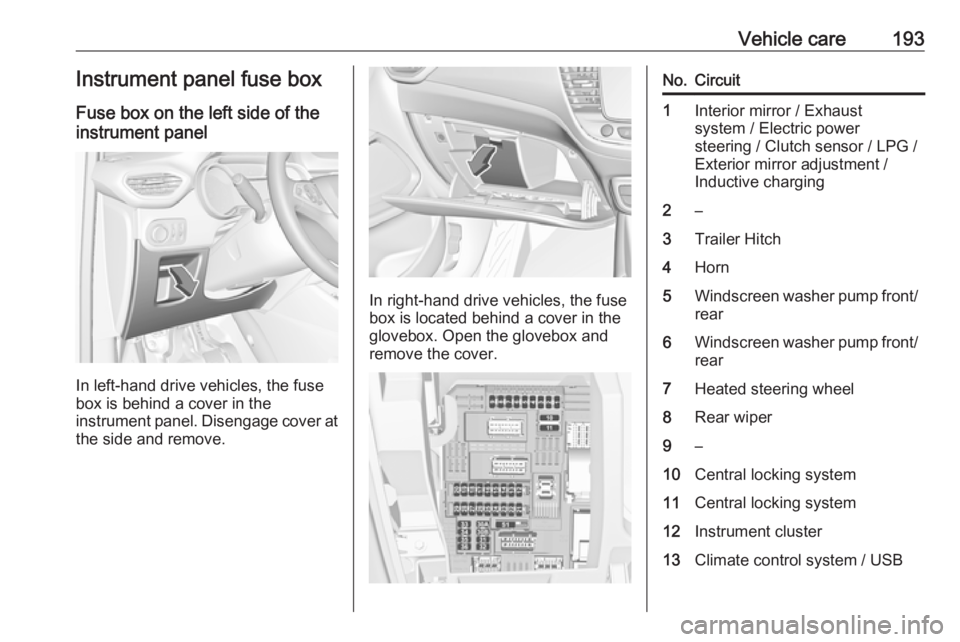

Vehicle care193Instrument panel fuse boxFuse box on the left side of the
instrument panel
In left-hand drive vehicles, the fuse
box is behind a cover in the
instrument panel. Disengage cover at
the side and remove.
In right-hand drive vehicles, the fuse
box is located behind a cover in the
glovebox. Open the glovebox and
remove the cover.
No.Circuit1Interior mirror / Exhaust
system / Electric power
steering / Clutch sensor / LPG /
Exterior mirror adjustment /
Inductive charging2–3Trailer Hitch4Horn5Windscreen washer pump front/
rear6Windscreen washer pump front/ rear7Heated steering wheel8Rear wiper9–10Central locking system11Central locking system12Instrument cluster13Climate control system / USB

194Vehicle careNo.Circuit14OnStar15Instrument cluster / Climate
control system16Brake / Starter / Retained power off17Instrument cluster18Advanced parking assist19Top column module / Trailer
control module20–21Anti-theft alarm system / Start button22Rain sensor / Camera23Door module24Advanced parking assist /
Camera / Infotainment25Airbag26Top column module27Anti-theft alarm systemNo.Circuit28–29Infotainment30–31Infotainment32Power outlet front33–34Heated exterior mirrors / Door
module35Instrument cluster / Light
switch / Advanced parking
assist/ Transmission control
module36Courtesy lights / Sunvisor
lights / Glovebox lightFuse box on the right side of the
instrument panel
In left-hand drive vehicles, the fuse
box is located behind a cover in the
glovebox. Open the glovebox and
remove the cover. Remove the
bracket.

241RRadio Frequency Identification (RFID) ..................................... 237
Radio remote control ...................23
Rain sensor .................................. 92
Reading lights ............................ 113
Rear floor storage cover ..............68
Rear fog light ....................... 92, 111
Rear seats .................................... 48
Rear view camera ...................... 163
Rear window wiper/washer .......... 77 Recommended fluids and lubricants ........................ 215, 220
Refuelling ................................... 168 Registered trademarks ...............235
Reversing lights .........................112
Ride control systems ..................146
Roof .............................................. 41
Roof load ...................................... 71
Roof rack ..................................... 71
S Safety belts ................................... 49
Seat adjustment ....................... 7, 45
Seat belt ........................................ 8
Seat belt reminder .......................87
Seat belts ..................................... 49
Seat heating ................................. 47
Seat position ................................ 44
Selective catalytic reduction .......137Selector lever ............................. 140
Service ............................... 126, 214
Service display ............................ 85
Service information ....................214
Service vehicle soon .................... 88
Side airbag system ......................55
Side blind spot alert ....................159
Sidelights .................................... 107
Side turn signal lights ................189
Software acknowledgement .......233
Software update ......................... 235
Spare wheel ............................... 206
Speed limiter......................... 92, 149
Speedometer ............................... 83
Starting and operating ................128
Starting off ................................... 18
Starting the engine ....................131
Steering ...................................... 128
Steering wheel adjustment ......9, 74
Steering wheel controls ...............74
Stop engine .................................. 88
Stop-start system........................ 132
Storage ......................................... 64
Storage compartments .................64
Sunvisor lights ........................... 113
Sun visors .................................... 41
Symbols ......................................... 4
System check ............................... 89T
Tachometer ................................. 84
Tail lights ................................... 186
Three-point seat belt .................... 50
Tools .......................................... 195
Tow bar....................................... 170
Towing ................................ 170, 209
Towing another vehicle .............210
Towing equipment .....................171
Towing the vehicle .....................209
Traffic sign assistant .....................92
Trailer coupling ........................... 170
Trailer towing ............................. 171
Transmission ............................... 17
Transmission display .................140
Tread depth ............................... 199
Trip odometer .............................. 84
Turn and lane-change signals ...111
Turn signal ................................... 86
Tyre chains ................................ 200
Tyre deflation detection system . 198
Tyre designations ......................196
Tyre pressure ............................ 197
Tyre pressures ........................... 229
Tyre repair kit ............................. 200
U Ultrasonic parking assist............. 151
Upholstery .................................. 213
Using this manual ..........................3
