fuel OPEL CROSSLAND X 2017 Owners Manual

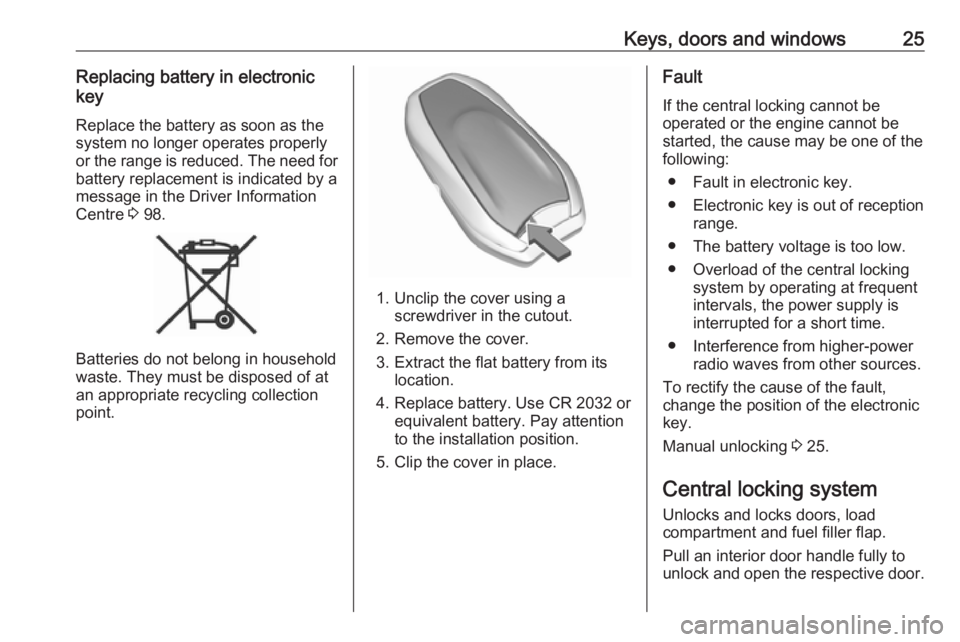

Keys, doors and windows25Replacing battery in electronic
key
Replace the battery as soon as the
system no longer operates properly or the range is reduced. The need for battery replacement is indicated by a
message in the Driver Information
Centre 3 98.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
1. Unclip the cover using a screwdriver in the cutout.
2. Remove the cover.
3. Extract the flat battery from its location.
4. Replace battery. Use CR 2032 or equivalent battery. Pay attention
to the installation position.
5. Clip the cover in place.
Fault
If the central locking cannot be
operated or the engine cannot be
started, the cause may be one of the
following:
● Fault in electronic key.
● Electronic key is out of reception range.
● The battery voltage is too low.
● Overload of the central locking system by operating at frequent
intervals, the power supply is
interrupted for a short time.
● Interference from higher-power radio waves from other sources.
To rectify the cause of the fault,
change the position of the electronic
key.
Manual unlocking 3 25.
Central locking system Unlocks and locks doors, load
compartment and fuel filler flap.
Pull an interior door handle fully to
unlock and open the respective door.

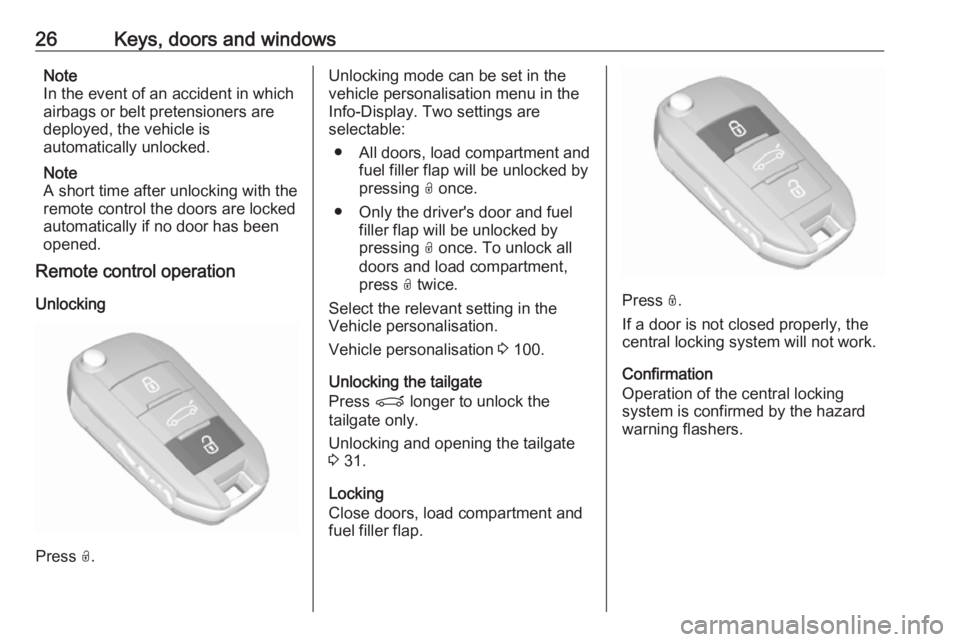

26Keys, doors and windowsNote
In the event of an accident in which
airbags or belt pretensioners are
deployed, the vehicle is
automatically unlocked.
Note
A short time after unlocking with the
remote control the doors are locked
automatically if no door has been
opened.
Remote control operation
Unlocking
Press O.
Unlocking mode can be set in the
vehicle personalisation menu in the
Info-Display. Two settings are
selectable:
● All doors, load compartment and fuel filler flap will be unlocked by
pressing O once.
● Only the driver's door and fuel filler flap will be unlocked by
pressing O once. To unlock all
doors and load compartment,
press O twice.
Select the relevant setting in the
Vehicle personalisation.
Vehicle personalisation 3 100.
Unlocking the tailgate
Press P longer to unlock the
tailgate only.
Unlocking and opening the tailgate
3 31.
Locking
Close doors, load compartment and
fuel filler flap.
Press N.
If a door is not closed properly, the
central locking system will not work.
Confirmation
Operation of the central locking
system is confirmed by the hazard
warning flashers.

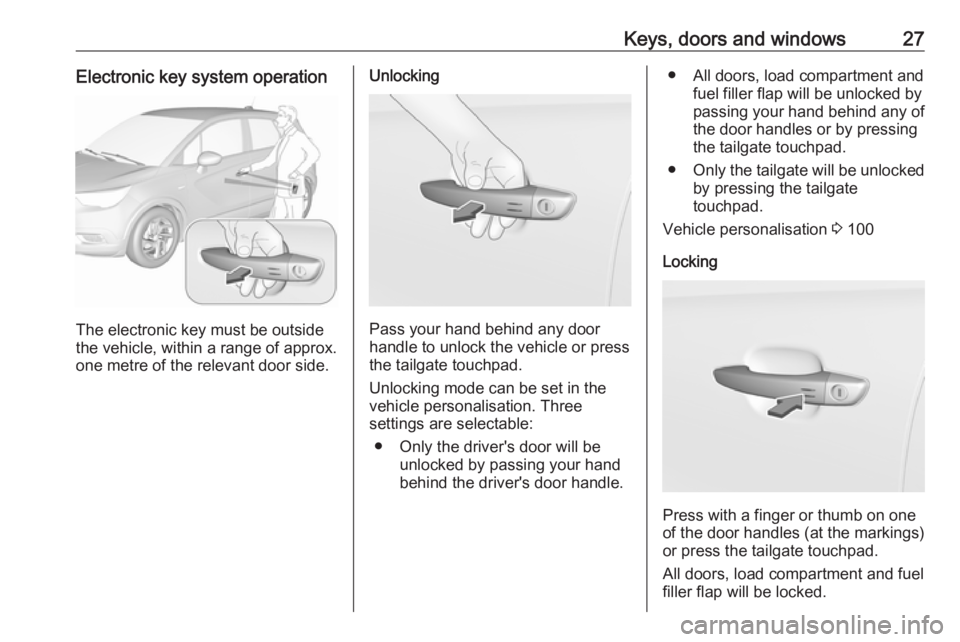

Keys, doors and windows27Electronic key system operation
The electronic key must be outside
the vehicle, within a range of approx. one metre of the relevant door side.
Unlocking
Pass your hand behind any door
handle to unlock the vehicle or press
the tailgate touchpad.
Unlocking mode can be set in the
vehicle personalisation. Three
settings are selectable:
● Only the driver's door will be unlocked by passing your hand
behind the driver's door handle.
● All doors, load compartment and fuel filler flap will be unlocked by
passing your hand behind any of
the door handles or by pressing
the tailgate touchpad.
● Only the tailgate will be unlocked
by pressing the tailgate
touchpad.
Vehicle personalisation 3 100
Locking
Press with a finger or thumb on one
of the door handles (at the markings)
or press the tailgate touchpad.
All doors, load compartment and fuel
filler flap will be locked.

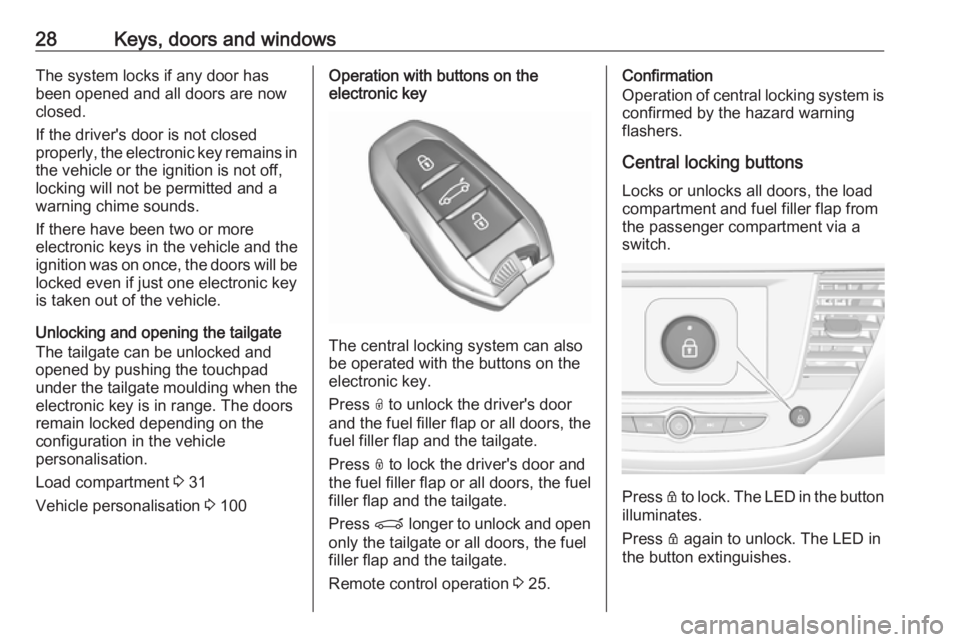

28Keys, doors and windowsThe system locks if any door has
been opened and all doors are now
closed.
If the driver's door is not closed
properly, the electronic key remains in the vehicle or the ignition is not off,
locking will not be permitted and a
warning chime sounds.
If there have been two or more
electronic keys in the vehicle and the
ignition was on once, the doors will be locked even if just one electronic key
is taken out of the vehicle.
Unlocking and opening the tailgate
The tailgate can be unlocked and
opened by pushing the touchpad
under the tailgate moulding when the
electronic key is in range. The doors
remain locked depending on the
configuration in the vehicle
personalisation.
Load compartment 3 31
Vehicle personalisation 3 100Operation with buttons on the
electronic key
The central locking system can also
be operated with the buttons on the
electronic key.
Press O to unlock the driver's door
and the fuel filler flap or all doors, the fuel filler flap and the tailgate.
Press N to lock the driver's door and
the fuel filler flap or all doors, the fuel
filler flap and the tailgate.
Press P longer to unlock and open
only the tailgate or all doors, the fuel
filler flap and the tailgate.
Remote control operation 3 25.
Confirmation
Operation of central locking system is
confirmed by the hazard warning
flashers.
Central locking buttonsLocks or unlocks all doors, the load
compartment and fuel filler flap from
the passenger compartment via a
switch.
Press Q to lock. The LED in the button
illuminates.
Press Q again to unlock. The LED in
the button extinguishes.

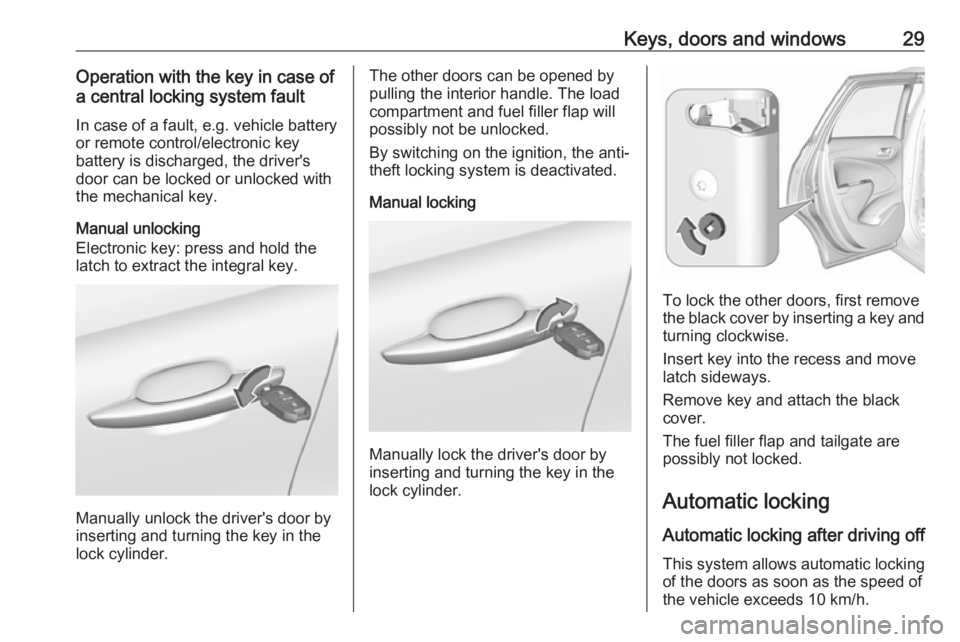

Keys, doors and windows29Operation with the key in case of
a central locking system fault
In case of a fault, e.g. vehicle battery
or remote control/electronic key
battery is discharged, the driver's
door can be locked or unlocked with
the mechanical key.
Manual unlocking
Electronic key: press and hold the
latch to extract the integral key.
Manually unlock the driver's door by
inserting and turning the key in the
lock cylinder.
The other doors can be opened by
pulling the interior handle. The load
compartment and fuel filler flap will
possibly not be unlocked.
By switching on the ignition, the anti- theft locking system is deactivated.
Manual locking
Manually lock the driver's door by
inserting and turning the key in the lock cylinder.
To lock the other doors, first remove
the black cover by inserting a key and turning clockwise.
Insert key into the recess and move
latch sideways.
Remove key and attach the black
cover.
The fuel filler flap and tailgate are
possibly not locked.
Automatic locking Automatic locking after driving off This system allows automatic locking
of the doors as soon as the speed of
the vehicle exceeds 10 km/h.

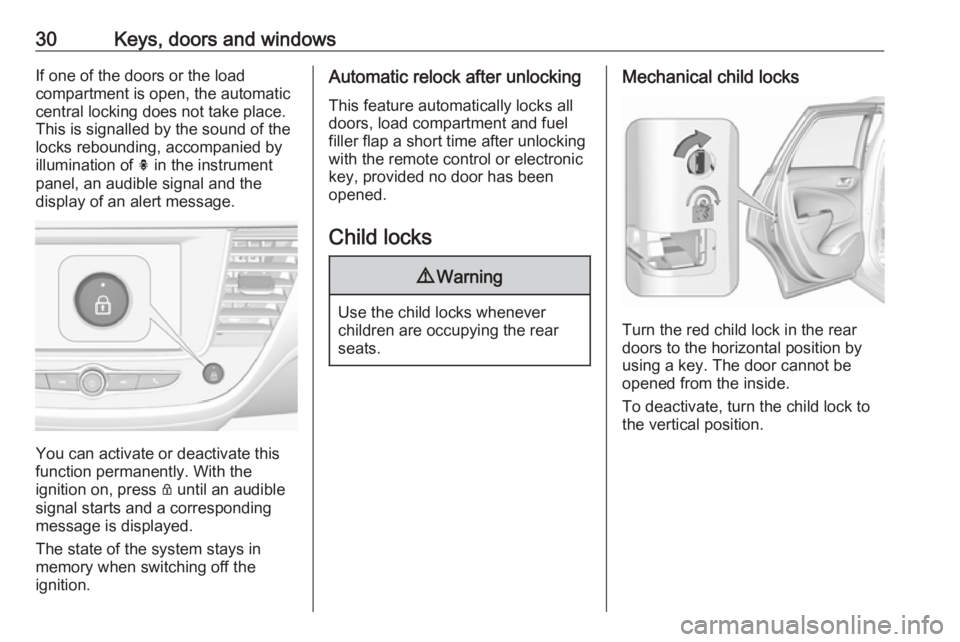

30Keys, doors and windowsIf one of the doors or the load
compartment is open, the automatic
central locking does not take place.
This is signalled by the sound of the
locks rebounding, accompanied by
illumination of h in the instrument
panel, an audible signal and the
display of an alert message.
You can activate or deactivate this
function permanently. With the
ignition on, press Q until an audible
signal starts and a corresponding message is displayed.
The state of the system stays in
memory when switching off the
ignition.
Automatic relock after unlocking
This feature automatically locks all
doors, load compartment and fuel
filler flap a short time after unlocking
with the remote control or electronic
key, provided no door has been
opened.
Child locks9 Warning
Use the child locks whenever
children are occupying the rear
seats.
Mechanical child locks
Turn the red child lock in the rear
doors to the horizontal position by
using a key. The door cannot be
opened from the inside.
To deactivate, turn the child lock to
the vertical position.

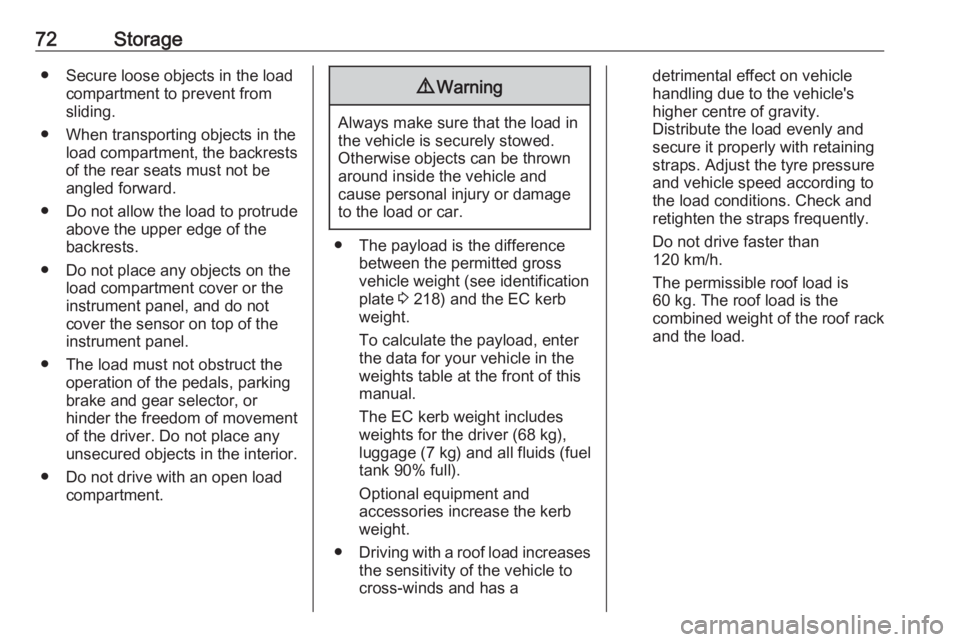

72Storage● Secure loose objects in the loadcompartment to prevent from
sliding.
● When transporting objects in the load compartment, the backrests
of the rear seats must not be
angled forward.
● Do not allow the load to protrude above the upper edge of the
backrests.
● Do not place any objects on the load compartment cover or the
instrument panel, and do not cover the sensor on top of the
instrument panel.
● The load must not obstruct the operation of the pedals, parking
brake and gear selector, or
hinder the freedom of movement of the driver. Do not place any
unsecured objects in the interior.
● Do not drive with an open load compartment.9Warning
Always make sure that the load in
the vehicle is securely stowed.
Otherwise objects can be thrown
around inside the vehicle and
cause personal injury or damage
to the load or car.
● The payload is the difference between the permitted gross
vehicle weight (see identification
plate 3 218) and the EC kerb
weight.
To calculate the payload, enter
the data for your vehicle in the
weights table at the front of this
manual.
The EC kerb weight includes
weights for the driver (68 kg),
luggage (7 kg) and all fluids (fuel
tank 90% full).
Optional equipment and
accessories increase the kerb
weight.
● Driving with a roof load increases
the sensitivity of the vehicle to
cross-winds and has a
detrimental effect on vehicle
handling due to the vehicle's
higher centre of gravity.
Distribute the load evenly and secure it properly with retaining
straps. Adjust the tyre pressure
and vehicle speed according to
the load conditions. Check and
retighten the straps frequently.
Do not drive faster than
120 km/h.
The permissible roof load is
60 kg. The roof load is the
combined weight of the roof rack and the load.

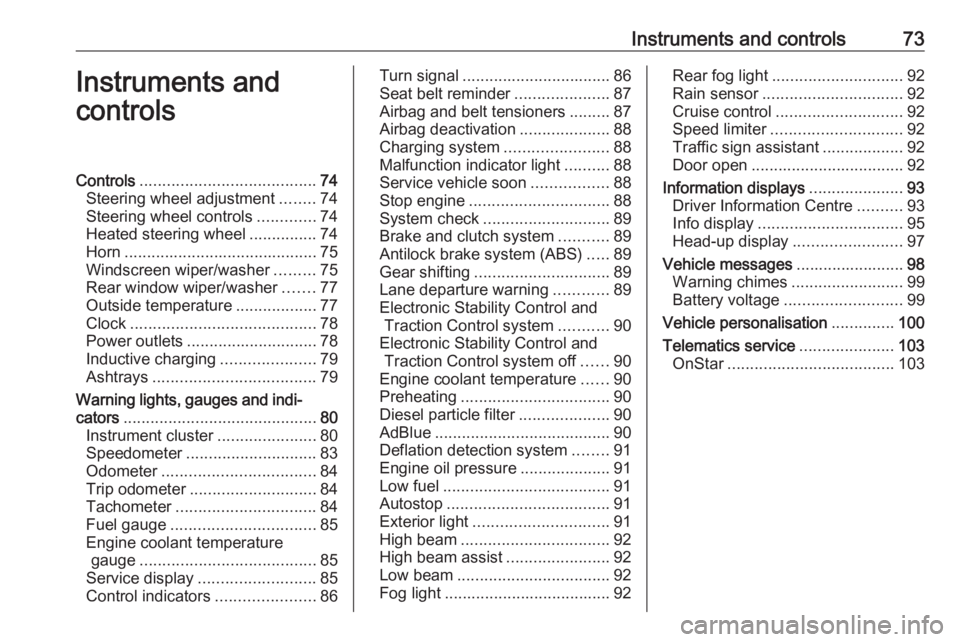

Instruments and controls73Instruments and
controlsControls ....................................... 74
Steering wheel adjustment ........74
Steering wheel controls .............74
Heated steering wheel ...............74
Horn ........................................... 75
Windscreen wiper/washer .........75
Rear window wiper/washer .......77
Outside temperature ..................77
Clock ......................................... 78
Power outlets ............................. 78
Inductive charging .....................79
Ashtrays .................................... 79
Warning lights, gauges and indi‐ cators ........................................... 80
Instrument cluster ......................80
Speedometer ............................. 83
Odometer .................................. 84
Trip odometer ............................ 84
Tachometer ............................... 84
Fuel gauge ................................ 85
Engine coolant temperature gauge ....................................... 85
Service display .......................... 85
Control indicators ......................86Turn signal................................. 86
Seat belt reminder .....................87
Airbag and belt tensioners .........87
Airbag deactivation ....................88
Charging system .......................88
Malfunction indicator light ..........88
Service vehicle soon .................88
Stop engine ............................... 88
System check ............................ 89
Brake and clutch system ...........89
Antilock brake system (ABS) .....89
Gear shifting .............................. 89
Lane departure warning ............89
Electronic Stability Control and Traction Control system ...........90
Electronic Stability Control and Traction Control system off ......90
Engine coolant temperature ......90
Preheating ................................. 90
Diesel particle filter ....................90
AdBlue ....................................... 90
Deflation detection system ........91
Engine oil pressure ....................91
Low fuel ..................................... 91
Autostop .................................... 91
Exterior light .............................. 91
High beam ................................. 92
High beam assist .......................92
Low beam .................................. 92
Fog light ..................................... 92Rear fog light............................. 92
Rain sensor ............................... 92
Cruise control ............................ 92
Speed limiter ............................. 92
Traffic sign assistant ..................92
Door open .................................. 92
Information displays .....................93
Driver Information Centre ..........93
Info display ................................ 95
Head-up display ........................97
Vehicle messages ........................98
Warning chimes .........................99
Battery voltage .......................... 99
Vehicle personalisation ..............100
Telematics service .....................103
OnStar ..................................... 103

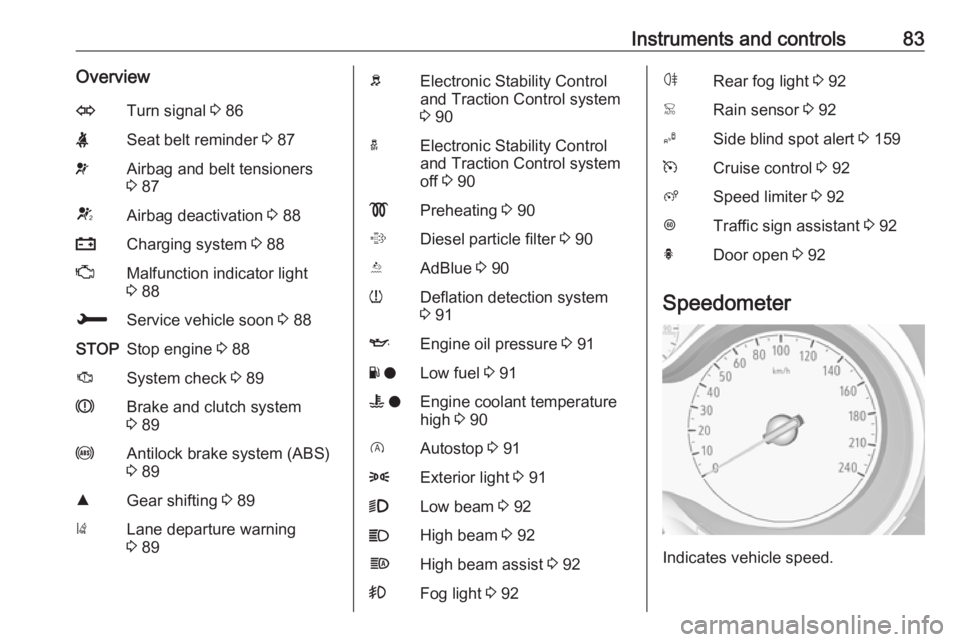

Instruments and controls83OverviewOTurn signal 3 86XSeat belt reminder 3 87vAirbag and belt tensioners
3 87VAirbag deactivation 3 88pCharging system 3 88ZMalfunction indicator light
3 88HService vehicle soon 3 88STOPStop engine 3 88JSystem check 3 89RBrake and clutch system
3 89uAntilock brake system (ABS)
3 89RGear shifting 3 89)Lane departure warning
3 89bElectronic Stability Control
and Traction Control system
3 90aElectronic Stability Control
and Traction Control system
off 3 90!Preheating 3 90%Diesel particle filter 3 90YAdBlue 3 90wDeflation detection system
3 91IEngine oil pressure 3 91Y oLow fuel 3 91W oEngine coolant temperature
high 3 90DAutostop 3 918Exterior light 3 919Low beam 3 92CHigh beam 3 92fHigh beam assist 3 92>Fog light 3 92øRear fog light 3 92 Speedometer
Indicates vehicle speed.

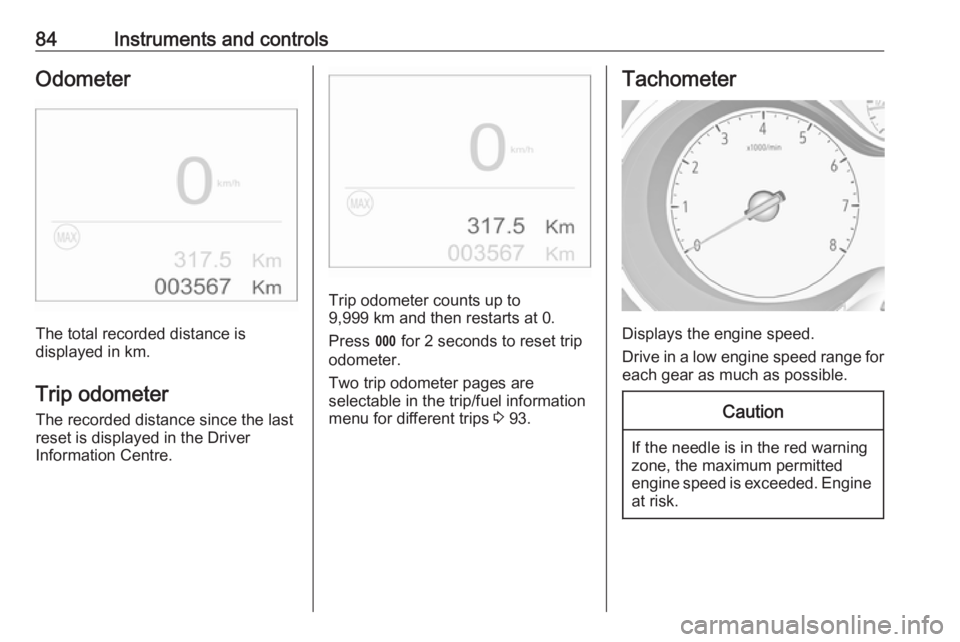

84Instruments and controlsOdometer
The total recorded distance is
displayed in km.
Trip odometer The recorded distance since the last
reset is displayed in the Driver
Information Centre.
Trip odometer counts up to
9,999 km and then restarts at 0.
Press L for 2 seconds to reset trip
odometer.
Two trip odometer pages are
selectable in the trip/fuel information
menu for different trips 3 93.
Tachometer
Displays the engine speed.
Drive in a low engine speed range for each gear as much as possible.
Caution
If the needle is in the red warning
zone, the maximum permitted
engine speed is exceeded. Engine at risk.
