seats OPEL CROSSLAND X 2017 Owners Manual

Introduction.................................... 2
In brief ............................................ 6
Keys, doors and windows ............22
Seats, restraints ........................... 43
Storage ........................................ 64
Instruments and controls .............73
Lighting ...................................... 107
Climate control ........................... 115
Driving and operating .................127
Vehicle care ............................... 175
Service and maintenance ..........214
Technical data ........................... 218
Customer information ................231
Index .......................................... 238Contents

18In brief
To engage reverse on 6-speed
transmission, depress the clutch
pedal, pull the ring under the selector
lever and move the selector lever to
the left and front.
Manual transmission 3 143.
Automatic transmissionP:park positionR:reverseN:neutral modeD:automatic modeM:manual mode<:upshift]:downshift
Automatic transmission 3 140.
Starting off
Check before starting off ● tyre pressure and condition 3 197, 3 229
● Engine oil level and fluid levels 3 178.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors, seats, and seat belts 3 35, 3 44,
3 50.
● Brake function at low speed, particularly if the brakes are wet.

30Keys, doors and windowsIf one of the doors or the load
compartment is open, the automatic
central locking does not take place.
This is signalled by the sound of the
locks rebounding, accompanied by
illumination of h in the instrument
panel, an audible signal and the
display of an alert message.
You can activate or deactivate this
function permanently. With the
ignition on, press Q until an audible
signal starts and a corresponding message is displayed.
The state of the system stays in
memory when switching off the
ignition.
Automatic relock after unlocking
This feature automatically locks all
doors, load compartment and fuel
filler flap a short time after unlocking
with the remote control or electronic
key, provided no door has been
opened.
Child locks9 Warning
Use the child locks whenever
children are occupying the rear
seats.
Mechanical child locks
Turn the red child lock in the rear
doors to the horizontal position by
using a key. The door cannot be
opened from the inside.
To deactivate, turn the child lock to
the vertical position.

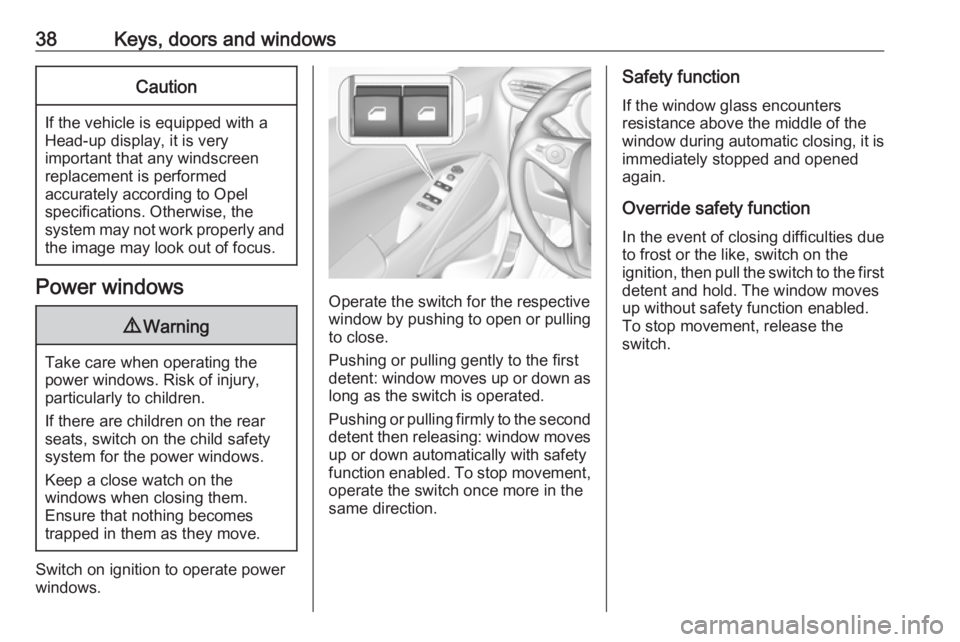

38Keys, doors and windowsCaution
If the vehicle is equipped with a
Head-up display, it is very
important that any windscreen
replacement is performed
accurately according to Opel
specifications. Otherwise, the
system may not work properly and the image may look out of focus.
Power windows
9 Warning
Take care when operating the
power windows. Risk of injury,
particularly to children.
If there are children on the rear seats, switch on the child safety
system for the power windows.
Keep a close watch on the
windows when closing them.
Ensure that nothing becomes
trapped in them as they move.
Switch on ignition to operate power
windows.
Operate the switch for the respective
window by pushing to open or pulling to close.
Pushing or pulling gently to the first
detent: window moves up or down as long as the switch is operated.
Pushing or pulling firmly to the second
detent then releasing: window moves
up or down automatically with safety
function enabled. To stop movement,
operate the switch once more in the
same direction.
Safety function
If the window glass encounters
resistance above the middle of the
window during automatic closing, it is
immediately stopped and opened again.
Override safety function
In the event of closing difficulties due
to frost or the like, switch on the
ignition, then pull the switch to the first
detent and hold. The window moves
up without safety function enabled.
To stop movement, release the
switch.

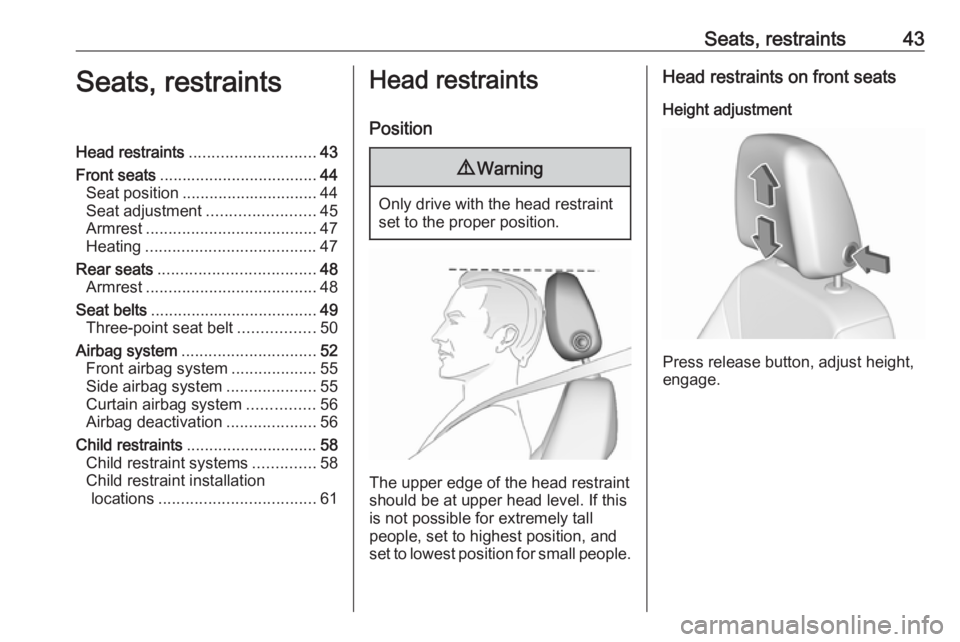

Seats, restraints43Seats, restraintsHead restraints............................ 43
Front seats ................................... 44
Seat position .............................. 44
Seat adjustment ........................45
Armrest ...................................... 47
Heating ...................................... 47
Rear seats ................................... 48
Armrest ...................................... 48
Seat belts ..................................... 49
Three-point seat belt .................50
Airbag system .............................. 52
Front airbag system ...................55
Side airbag system ....................55
Curtain airbag system ...............56
Airbag deactivation ....................56
Child restraints ............................. 58
Child restraint systems ..............58
Child restraint installation locations ................................... 61Head restraints
Position9 Warning
Only drive with the head restraint
set to the proper position.
The upper edge of the head restraint
should be at upper head level. If this
is not possible for extremely tall
people, set to highest position, and
set to lowest position for small people.
Head restraints on front seats
Height adjustment
Press release button, adjust height,
engage.

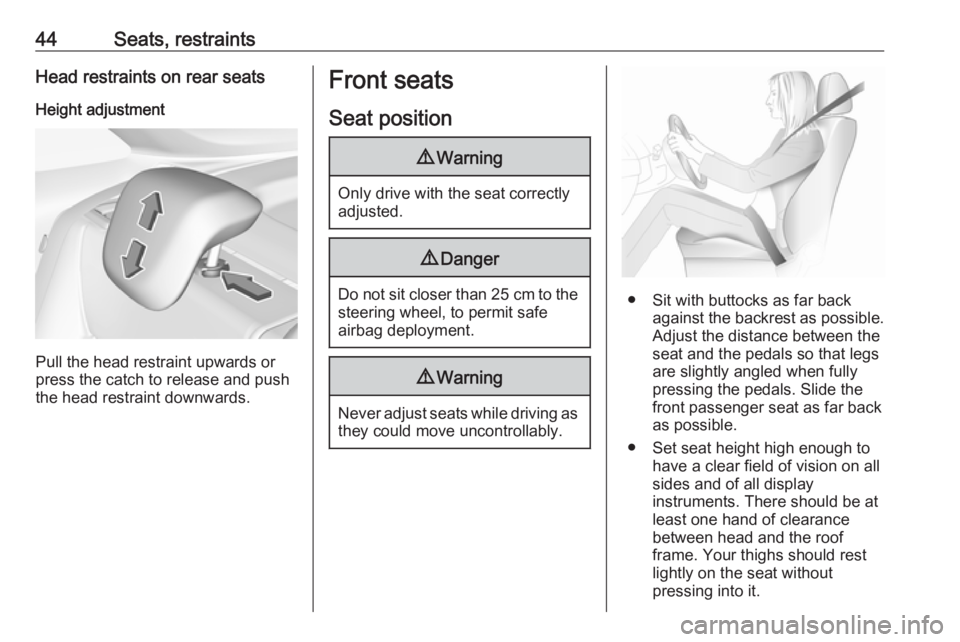

44Seats, restraintsHead restraints on rear seatsHeight adjustment
Pull the head restraint upwards or
press the catch to release and push the head restraint downwards.
Front seats
Seat position9 Warning
Only drive with the seat correctly
adjusted.
9 Danger
Do not sit closer than 25 cm to the
steering wheel, to permit safe
airbag deployment.
9 Warning
Never adjust seats while driving as
they could move uncontrollably.
● Sit with buttocks as far back against the backrest as possible.
Adjust the distance between the
seat and the pedals so that legs
are slightly angled when fully
pressing the pedals. Slide the
front passenger seat as far back
as possible.
● Set seat height high enough to have a clear field of vision on all
sides and of all display
instruments. There should be at
least one hand of clearance
between head and the roof
frame. Your thighs should rest
lightly on the seat without
pressing into it.

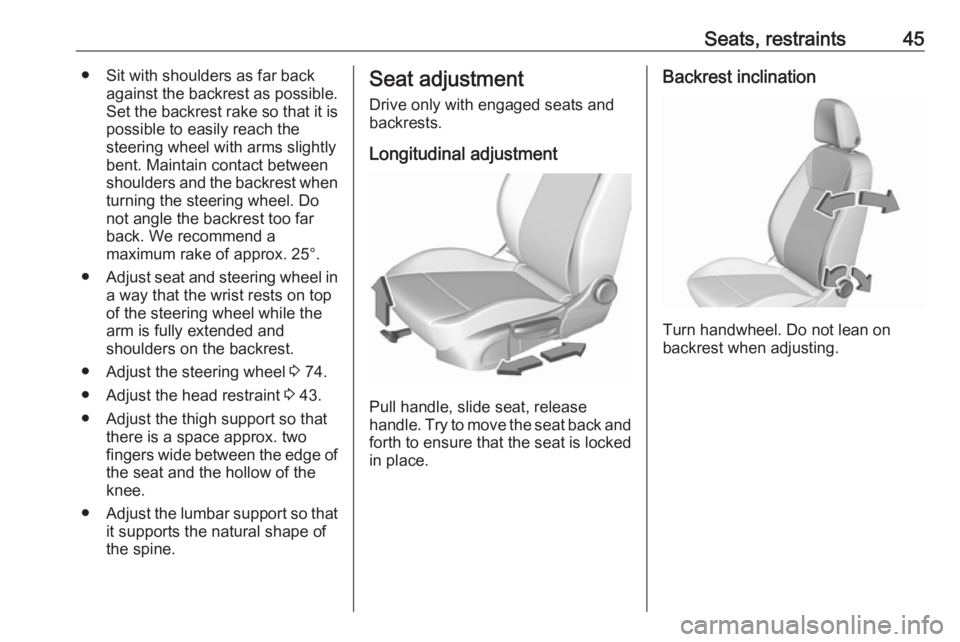

Seats, restraints45● Sit with shoulders as far backagainst the backrest as possible.
Set the backrest rake so that it is possible to easily reach the
steering wheel with arms slightly
bent. Maintain contact between
shoulders and the backrest when turning the steering wheel. Do
not angle the backrest too far
back. We recommend a
maximum rake of approx. 25°.
● Adjust seat and steering wheel in
a way that the wrist rests on top
of the steering wheel while the
arm is fully extended and
shoulders on the backrest.
● Adjust the steering wheel 3 74.
● Adjust the head restraint 3 43.
● Adjust the thigh support so that there is a space approx. two
fingers wide between the edge of the seat and the hollow of the
knee.
● Adjust the lumbar support so that
it supports the natural shape of
the spine.Seat adjustment
Drive only with engaged seats and
backrests.
Longitudinal adjustment
Pull handle, slide seat, release
handle. Try to move the seat back and forth to ensure that the seat is locked
in place.
Backrest inclination
Turn handwheel. Do not lean on
backrest when adjusting.

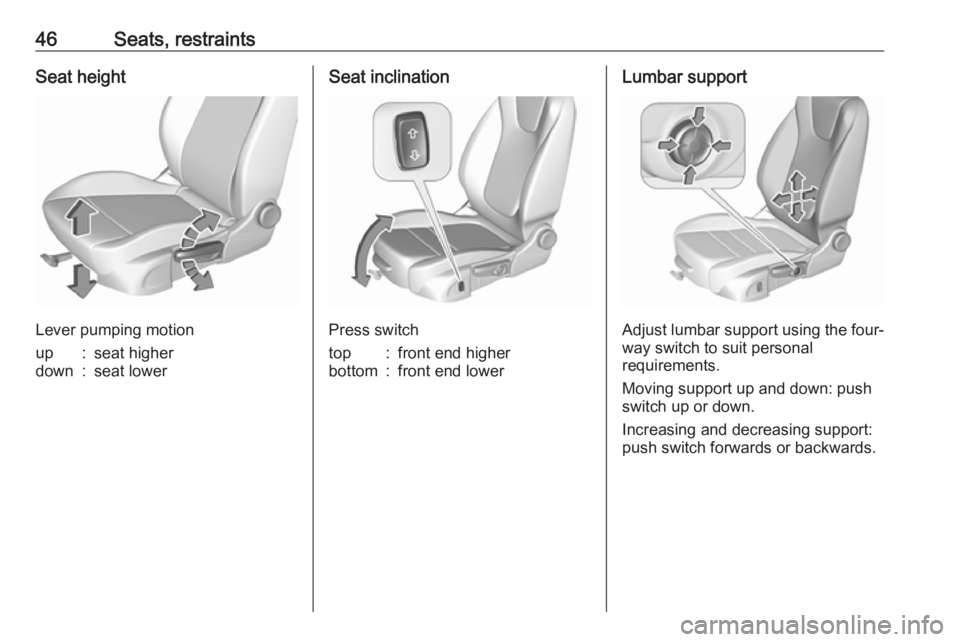

46Seats, restraintsSeat height
Lever pumping motion
up:seat higherdown:seat lowerSeat inclination
Press switch
top:front end higherbottom:front end lowerLumbar support
Adjust lumbar support using the four-way switch to suit personal
requirements.
Moving support up and down: push switch up or down.
Increasing and decreasing support:
push switch forwards or backwards.

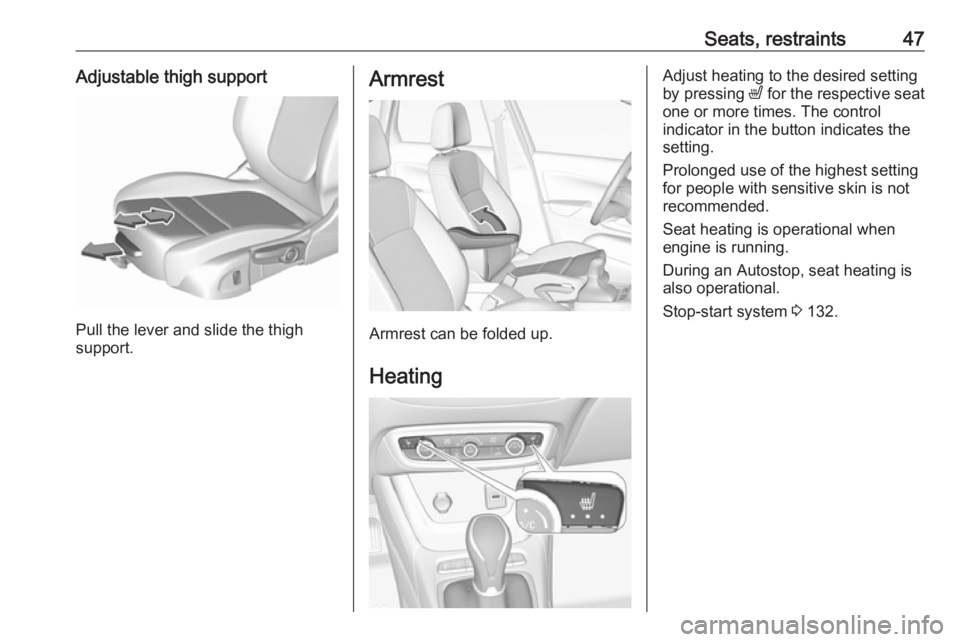

Seats, restraints47Adjustable thigh support
Pull the lever and slide the thigh
support.
Armrest
Armrest can be folded up.
Heating
Adjust heating to the desired setting
by pressing ß for the respective seat
one or more times. The control
indicator in the button indicates the
setting.
Prolonged use of the highest setting
for people with sensitive skin is not
recommended.
Seat heating is operational when
engine is running.
During an Autostop, seat heating is also operational.
Stop-start system 3 132.

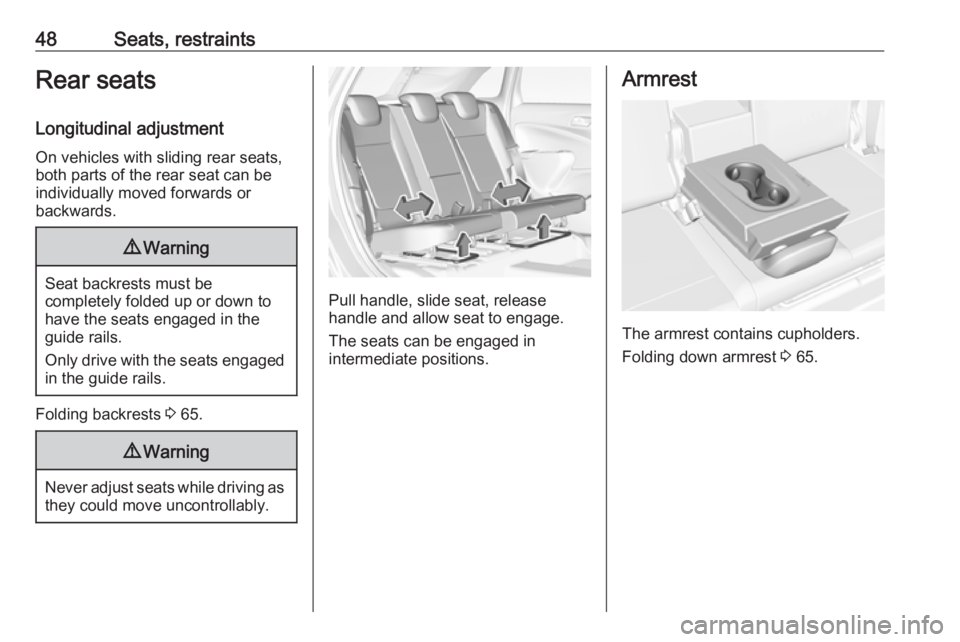

48Seats, restraintsRear seats
Longitudinal adjustment On vehicles with sliding rear seats,both parts of the rear seat can be
individually moved forwards or
backwards.9 Warning
Seat backrests must be
completely folded up or down to
have the seats engaged in the
guide rails.
Only drive with the seats engaged in the guide rails.
Folding backrests 3 65.
9 Warning
Never adjust seats while driving as
they could move uncontrollably.
Pull handle, slide seat, release
handle and allow seat to engage.
The seats can be engaged in
intermediate positions.
Armrest
The armrest contains cupholders.
Folding down armrest 3 65.
