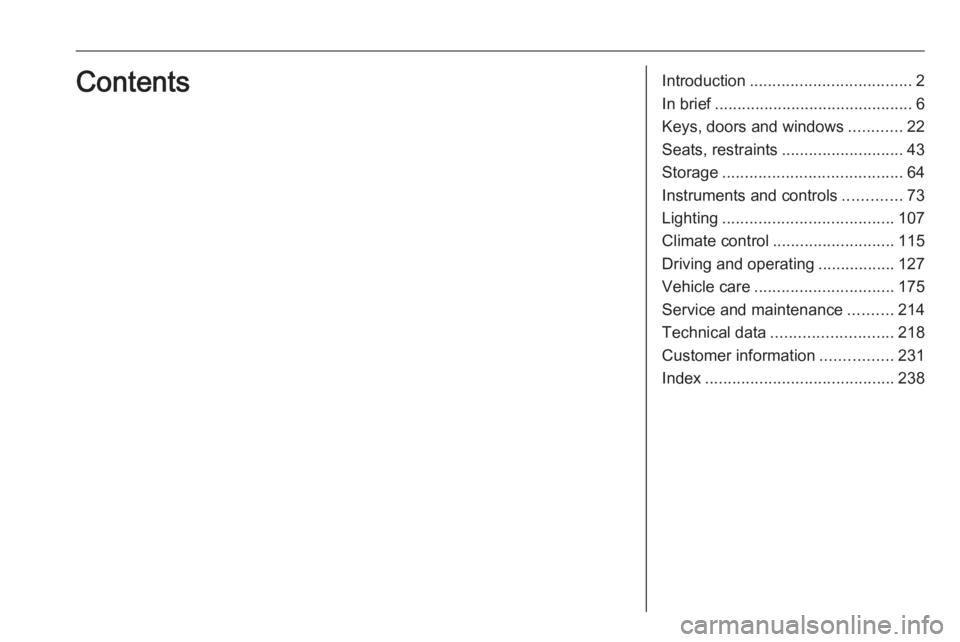

technical data OPEL CROSSLAND X 2017 Owners Manual

Introduction.................................... 2
In brief ............................................ 6
Keys, doors and windows ............22
Seats, restraints ........................... 43
Storage ........................................ 64
Instruments and controls .............73
Lighting ...................................... 107
Climate control ........................... 115
Driving and operating .................127
Vehicle care ............................... 175
Service and maintenance ..........214
Technical data ........................... 218
Customer information ................231
Index .......................................... 238Contents

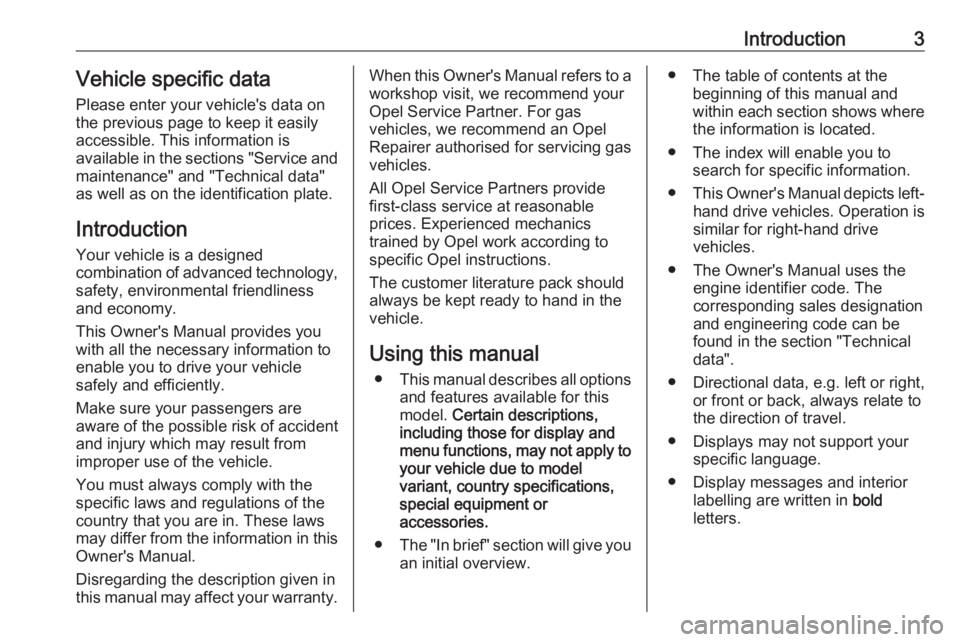

Introduction3Vehicle specific dataPlease enter your vehicle's data on
the previous page to keep it easily
accessible. This information is
available in the sections "Service and
maintenance" and "Technical data"
as well as on the identification plate.
Introduction
Your vehicle is a designed
combination of advanced technology, safety, environmental friendliness
and economy.
This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.
Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.
You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in this Owner's Manual.
Disregarding the description given in
this manual may affect your warranty.When this Owner's Manual refers to a
workshop visit, we recommend your
Opel Service Partner. For gas
vehicles, we recommend an Opel
Repairer authorised for servicing gas
vehicles.
All Opel Service Partners provide first-class service at reasonable
prices. Experienced mechanics
trained by Opel work according to
specific Opel instructions.
The customer literature pack should
always be kept ready to hand in the
vehicle.
Using this manual ● This manual describes all options
and features available for this
model. Certain descriptions,
including those for display and
menu functions, may not apply to
your vehicle due to model
variant, country specifications,
special equipment or
accessories.
● The "In brief" section will give you
an initial overview.● The table of contents at the beginning of this manual and
within each section shows where the information is located.
● The index will enable you to search for specific information.
● This Owner's Manual depicts left-
hand drive vehicles. Operation is similar for right-hand drive
vehicles.
● The Owner's Manual uses the engine identifier code. The
corresponding sales designation
and engineering code can be
found in the section "Technical
data".
● Directional data, e.g. left or right, or front or back, always relate to
the direction of travel.
● Displays may not support your specific language.
● Display messages and interior labelling are written in bold
letters.

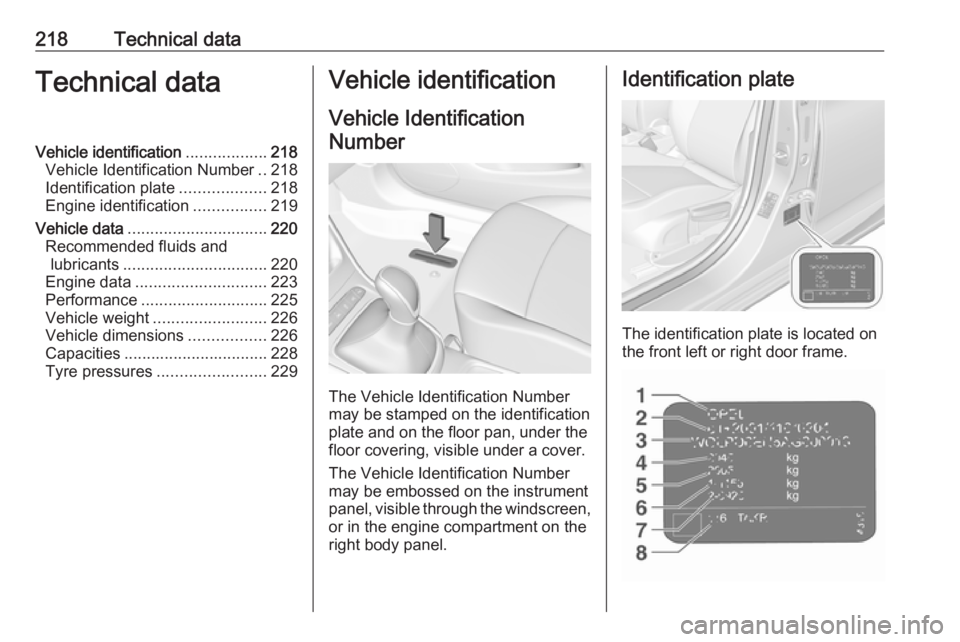

218Technical dataTechnical dataVehicle identification..................218
Vehicle Identification Number ..218
Identification plate ...................218
Engine identification ................219
Vehicle data ............................... 220
Recommended fluids and lubricants ................................ 220
Engine data ............................. 223
Performance ............................ 225
Vehicle weight ......................... 226
Vehicle dimensions .................226
Capacities ................................ 228
Tyre pressures ........................ 229Vehicle identification
Vehicle IdentificationNumber
The Vehicle Identification Number
may be stamped on the identification plate and on the floor pan, under thefloor covering, visible under a cover.
The Vehicle Identification Number
may be embossed on the instrument
panel, visible through the windscreen,
or in the engine compartment on the
right body panel.
Identification plate
The identification plate is located on
the front left or right door frame.

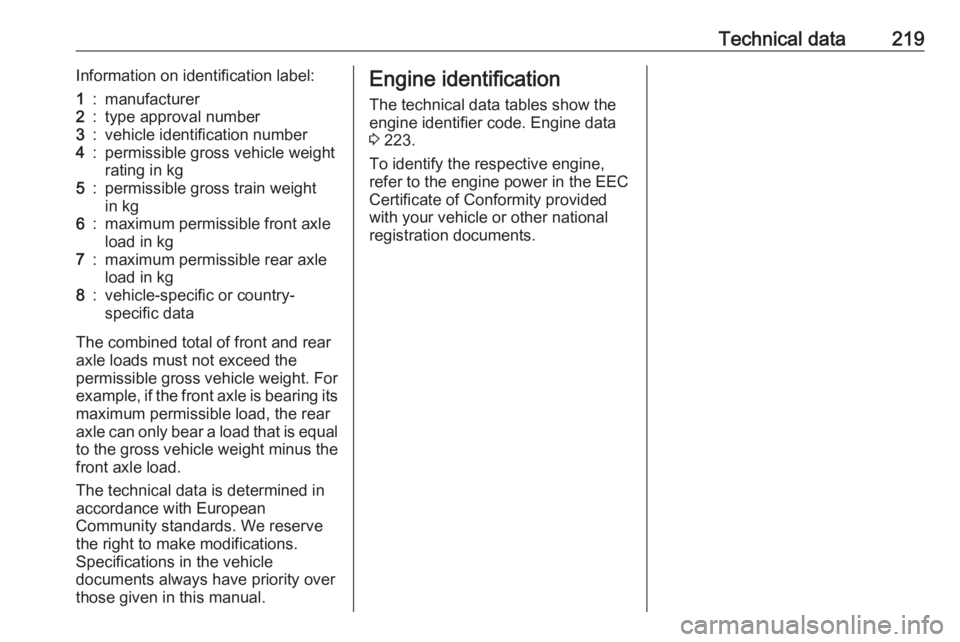

Technical data219Information on identification label:1:manufacturer2:type approval number3:vehicle identification number4:permissible gross vehicle weightrating in kg5:permissible gross train weight
in kg6:maximum permissible front axle
load in kg7:maximum permissible rear axle
load in kg8:vehicle-specific or country-
specific data
The combined total of front and rear
axle loads must not exceed the
permissible gross vehicle weight. For
example, if the front axle is bearing its
maximum permissible load, the rear
axle can only bear a load that is equal
to the gross vehicle weight minus the front axle load.
The technical data is determined in
accordance with European
Community standards. We reserve
the right to make modifications.
Specifications in the vehicle
documents always have priority over
those given in this manual.
Engine identification
The technical data tables show the
engine identifier code. Engine data
3 223.
To identify the respective engine,
refer to the engine power in the EEC
Certificate of Conformity provided
with your vehicle or other national
registration documents.

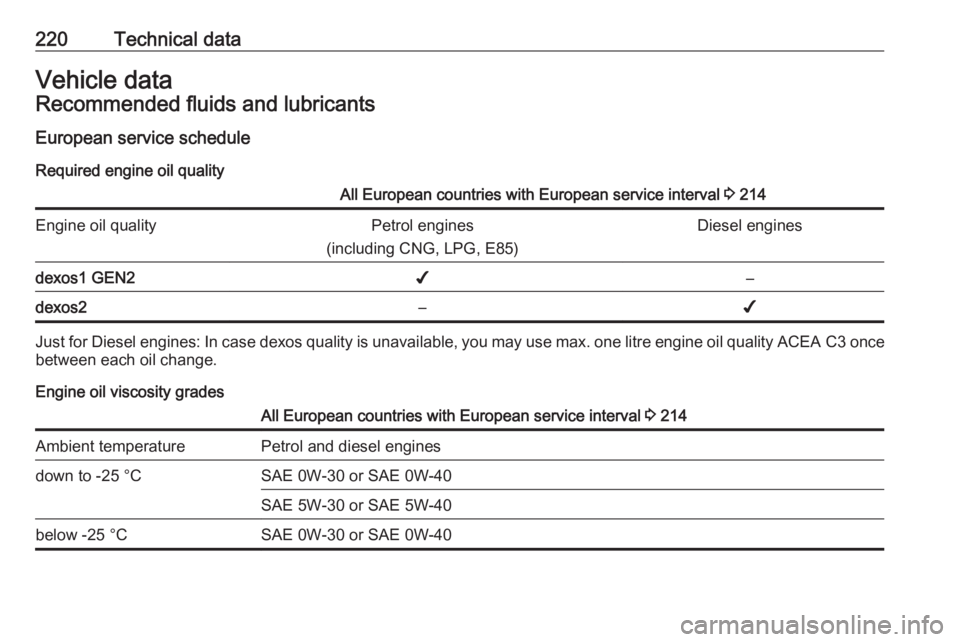

220Technical dataVehicle dataRecommended fluids and lubricantsEuropean service schedule Required engine oil qualityAll European countries with European service interval 3 214Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesdexos1 GEN2✔–dexos2–✔
Just for Diesel engines: In case dexos quality is unavailable, you may use max. one litre engine oil quality ACEA C3 once
between each oil change.
Engine oil viscosity grades
All European countries with European service interval 3 214Ambient temperaturePetrol and diesel enginesdown to -25 °CSAE 0W-30 or SAE 0W-40SAE 5W-30 or SAE 5W-40below -25 °CSAE 0W-30 or SAE 0W-40

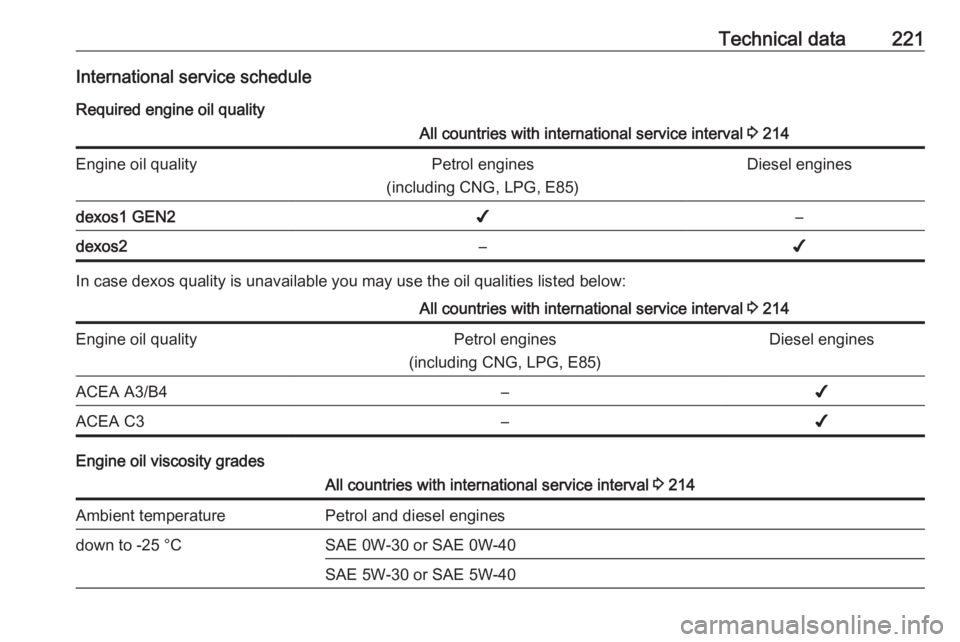

Technical data221International service scheduleRequired engine oil qualityAll countries with international service interval 3 214Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesdexos1 GEN2✔–dexos2–✔
In case dexos quality is unavailable you may use the oil qualities listed below:
All countries with international service interval 3 214Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesACEA A3/B4–✔ACEA C3–✔
Engine oil viscosity grades
All countries with international service interval 3 214Ambient temperaturePetrol and diesel enginesdown to -25 °CSAE 0W-30 or SAE 0W-40SAE 5W-30 or SAE 5W-40

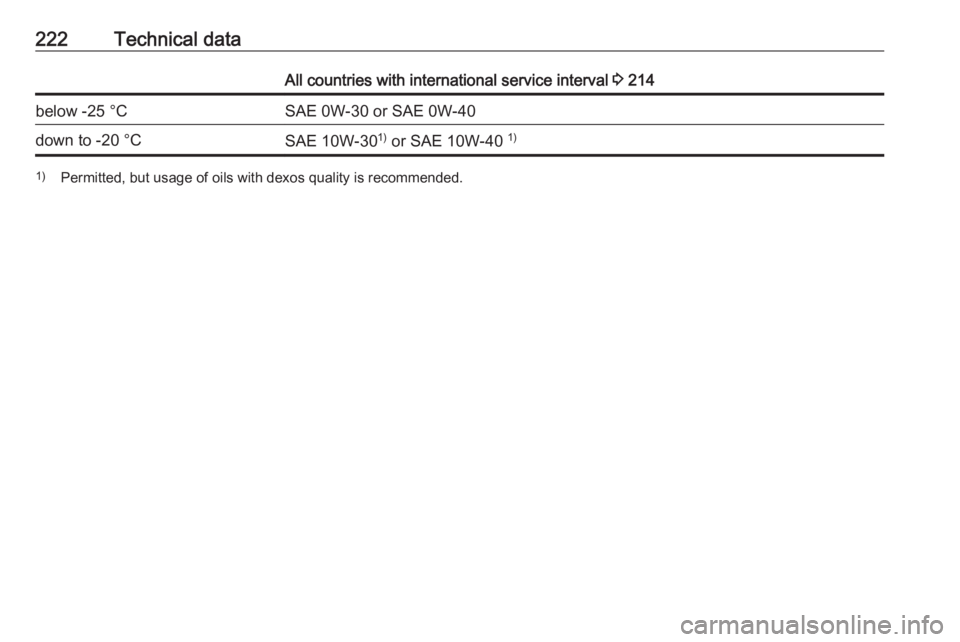

222Technical dataAll countries with international service interval 3 214below -25 °CSAE 0W-30 or SAE 0W-40down to -20 °CSAE 10W-30 1)
or SAE 10W-40 1)1)
Permitted, but usage of oils with dexos quality is recommended.

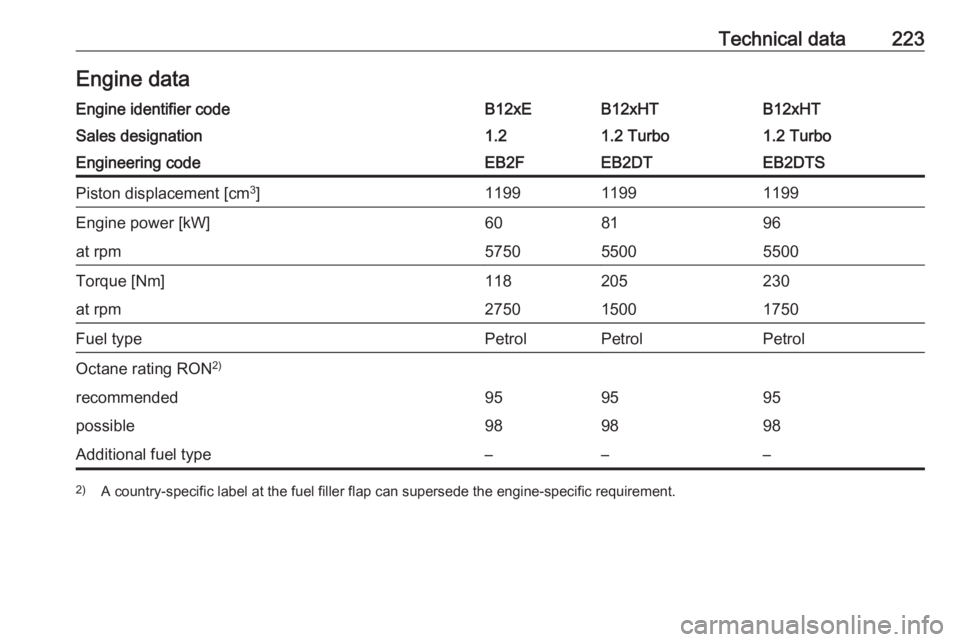

Technical data223Engine dataEngine identifier codeB12xEB12xHTB12xHTSales designation1.21.2 Turbo1.2 TurboEngineering codeEB2FEB2DTEB2DTSPiston displacement [cm3
]119911991199Engine power [kW]608196at rpm575055005500Torque [Nm]118205230at rpm275015001750Fuel typePetrolPetrolPetrolOctane rating RON 2)recommended959595possible989898Additional fuel type–––2)
A country-specific label at the fuel filler flap can supersede the engine-specific requirement.

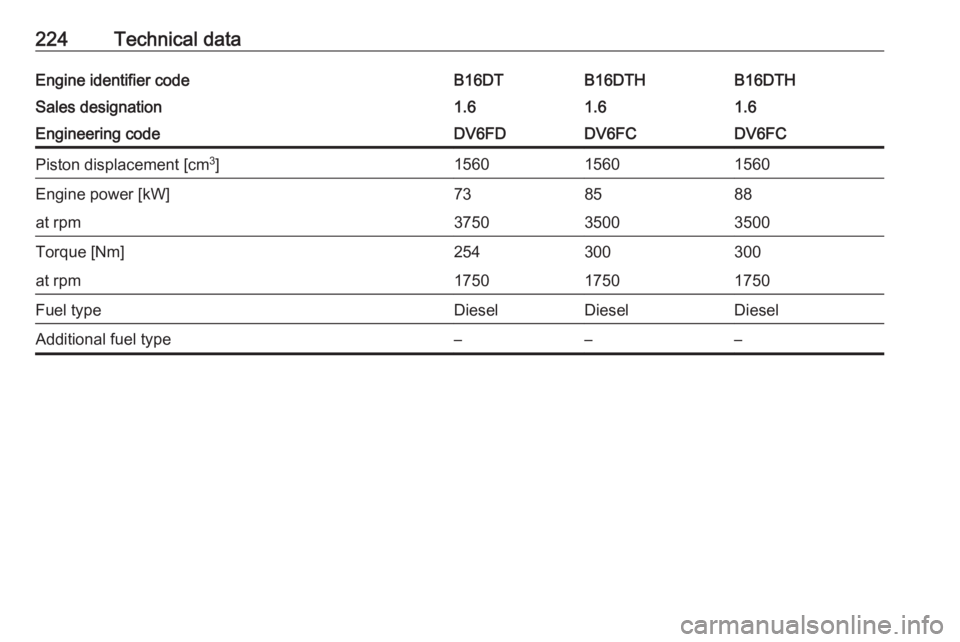

224Technical dataEngine identifier codeB16DTB16DTHB16DTHSales designation1.61.61.6Engineering codeDV6FDDV6FCDV6FCPiston displacement [cm3
]156015601560Engine power [kW]738588at rpm375035003500Torque [Nm]254300300at rpm175017501750Fuel typeDieselDieselDieselAdditional fuel type–––

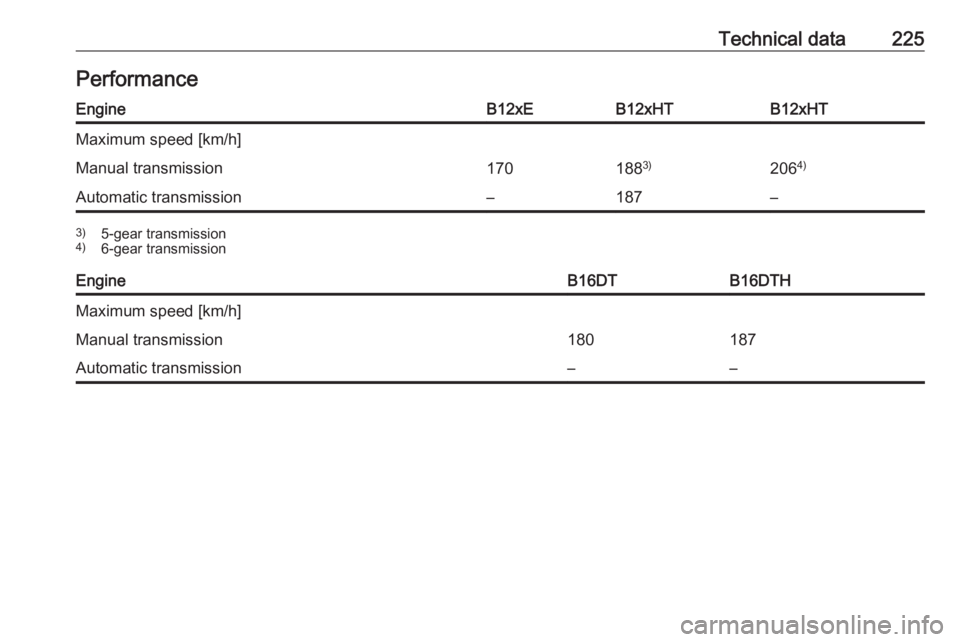

Technical data225PerformanceEngineB12xEB12xHTB12xHTMaximum speed [km/h]Manual transmission1701883)2064)Automatic transmission–187–3)
5-gear transmission
4) 6-gear transmissionEngineB16DTB16DTHMaximum speed [km/h]Manual transmission180187Automatic transmission––
