transmission oil OPEL CROSSLAND X 2017 Owners Manual

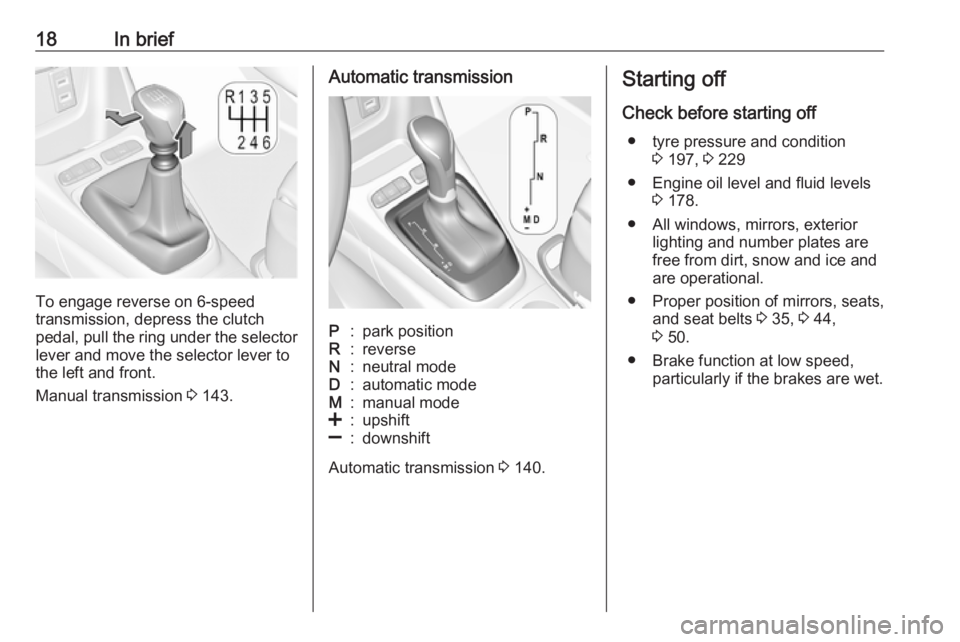

18In brief
To engage reverse on 6-speed
transmission, depress the clutch
pedal, pull the ring under the selector
lever and move the selector lever to
the left and front.
Manual transmission 3 143.
Automatic transmissionP:park positionR:reverseN:neutral modeD:automatic modeM:manual mode<:upshift]:downshift
Automatic transmission 3 140.
Starting off
Check before starting off ● tyre pressure and condition 3 197, 3 229
● Engine oil level and fluid levels 3 178.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors, seats, and seat belts 3 35, 3 44,
3 50.
● Brake function at low speed, particularly if the brakes are wet.

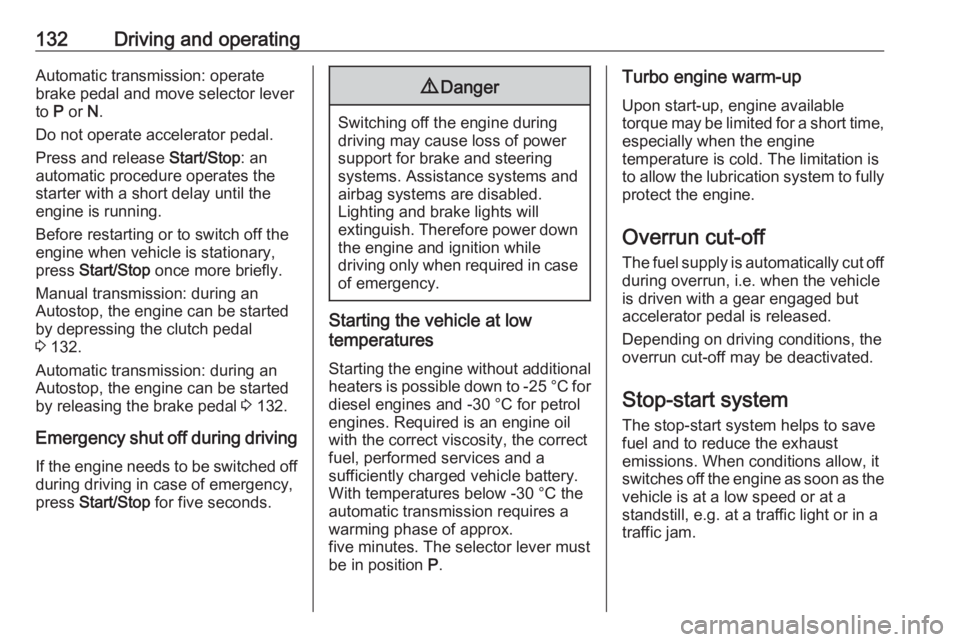

132Driving and operatingAutomatic transmission: operate
brake pedal and move selector lever
to P or N.
Do not operate accelerator pedal.
Press and release Start/Stop: an
automatic procedure operates the
starter with a short delay until the
engine is running.
Before restarting or to switch off the engine when vehicle is stationary, press Start/Stop once more briefly.
Manual transmission: during an
Autostop, the engine can be started
by depressing the clutch pedal
3 132.
Automatic transmission: during an
Autostop, the engine can be started
by releasing the brake pedal 3 132.
Emergency shut off during driving If the engine needs to be switched offduring driving in case of emergency,
press Start/Stop for five seconds.9Danger
Switching off the engine during
driving may cause loss of power
support for brake and steering
systems. Assistance systems and
airbag systems are disabled.
Lighting and brake lights will
extinguish. Therefore power down the engine and ignition while
driving only when required in case of emergency.
Starting the vehicle at low
temperatures
Starting the engine without additional
heaters is possible down to -25 °С for diesel engines and -30 °C for petrol
engines. Required is an engine oil
with the correct viscosity, the correct fuel, performed services and a
sufficiently charged vehicle battery.
With temperatures below -30 °C the
automatic transmission requires a
warming phase of approx.
five minutes. The selector lever must
be in position P.
Turbo engine warm-up
Upon start-up, engine available
torque may be limited for a short time, especially when the engine
temperature is cold. The limitation is
to allow the lubrication system to fully
protect the engine.
Overrun cut-off
The fuel supply is automatically cut off
during overrun, i.e. when the vehicle
is driven with a gear engaged but accelerator pedal is released.
Depending on driving conditions, the
overrun cut-off may be deactivated.
Stop-start system The stop-start system helps to save
fuel and to reduce the exhaust
emissions. When conditions allow, it
switches off the engine as soon as the
vehicle is at a low speed or at a
standstill, e.g. at a traffic light or in a traffic jam.

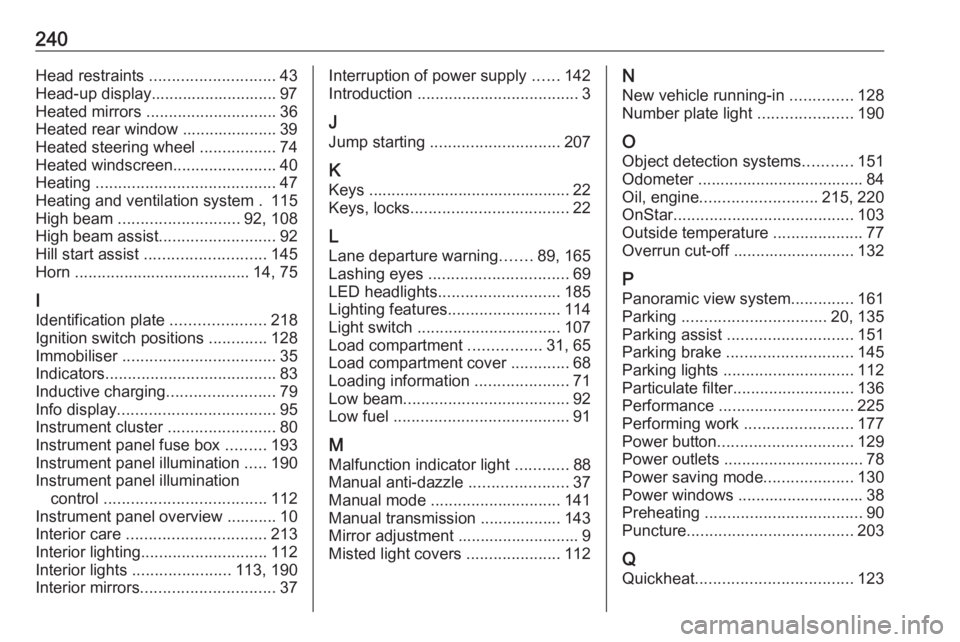

240Head restraints ............................ 43
Head-up display............................ 97
Heated mirrors ............................. 36
Heated rear window ..................... 39
Heated steering wheel .................74
Heated windscreen .......................40
Heating ........................................ 47
Heating and ventilation system . 115
High beam ........................... 92, 108
High beam assist ..........................92
Hill start assist ........................... 145
Horn ....................................... 14, 75
I Identification plate .....................218
Ignition switch positions .............128
Immobiliser .................................. 35
Indicators ...................................... 83
Inductive charging ........................79
Info display ................................... 95
Instrument cluster ........................80
Instrument panel fuse box .........193
Instrument panel illumination .....190
Instrument panel illumination control .................................... 112
Instrument panel overview ........... 10
Interior care ............................... 213
Interior lighting ............................ 112
Interior lights ...................... 113, 190
Interior mirrors .............................. 37Interruption of power supply ......142
Introduction .................................... 3
J
Jump starting ............................. 207
K Keys ............................................. 22
Keys, locks ................................... 22
L Lane departure warning .......89, 165
Lashing eyes ............................... 69
LED headlights ........................... 185
Lighting features .........................114
Light switch ................................ 107
Load compartment ................31, 65
Load compartment cover .............68
Loading information .....................71
Low beam ..................................... 92
Low fuel ....................................... 91
M Malfunction indicator light ............88
Manual anti-dazzle ......................37
Manual mode ............................. 141
Manual transmission .................. 143
Mirror adjustment ........................... 9
Misted light covers .....................112N
New vehicle running-in ..............128
Number plate light .....................190
O Object detection systems ...........151
Odometer ..................................... 84
Oil, engine .......................... 215, 220
OnStar ........................................ 103
Outside temperature ....................77
Overrun cut-off ........................... 132
P Panoramic view system ..............161
Parking ................................ 20, 135
Parking assist ............................ 151
Parking brake ............................ 145
Parking lights ............................. 112
Particulate filter ........................... 136
Performance .............................. 225
Performing work ........................177
Power button .............................. 129
Power outlets ............................... 78
Power saving mode ....................130
Power windows ............................ 38
Preheating ................................... 90
Puncture ..................................... 203
Q Quickheat ................................... 123
