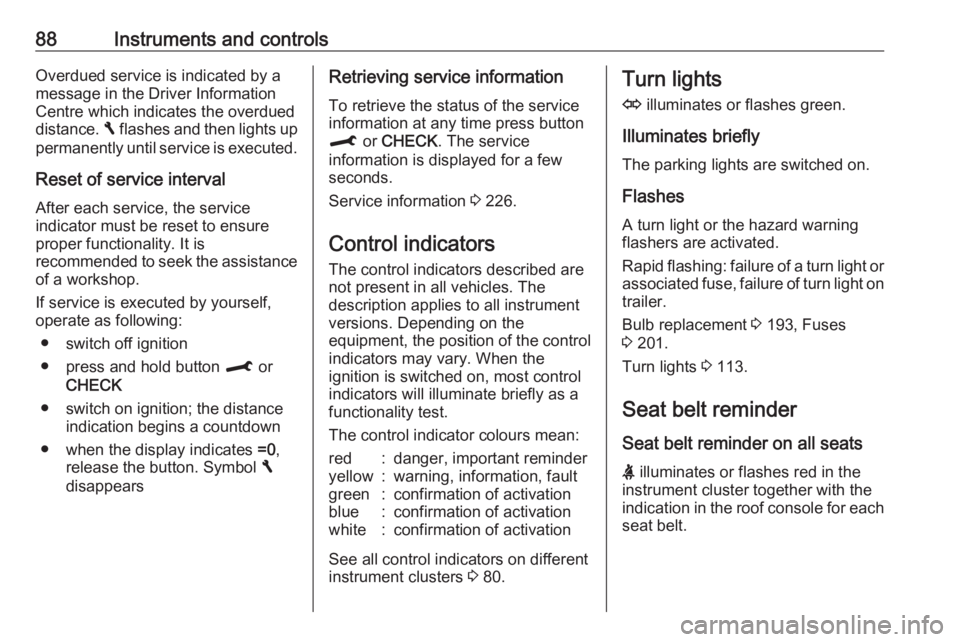

88Instruments and controlsOverdued service is indicated by a
message in the Driver Information
Centre which indicates the overdued
distance. F flashes and then lights up
permanently until service is executed.
Reset of service interval After each service, the service
indicator must be reset to ensure
proper functionality. It is
recommended to seek the assistance
of a workshop.
If service is executed by yourself, operate as following:
● switch off ignition
● press and hold button M or
CHECK
● switch on ignition; the distance indication begins a countdown
● when the display indicates =0,
release the button. Symbol F
disappearsRetrieving service information
To retrieve the status of the service
information at any time press button
M or CHECK . The service
information is displayed for a few
seconds.
Service information 3 226.
Control indicators
The control indicators described are
not present in all vehicles. The
description applies to all instrument
versions. Depending on the
equipment, the position of the control indicators may vary. When the
ignition is switched on, most control
indicators will illuminate briefly as a
functionality test.
The control indicator colours mean:red:danger, important reminderyellow:warning, information, faultgreen:confirmation of activationblue:confirmation of activationwhite:confirmation of activation
See all control indicators on different
instrument clusters 3 80.
Turn lights
O illuminates or flashes green.
Illuminates briefly The parking lights are switched on.
Flashes
A turn light or the hazard warning
flashers are activated.
Rapid flashing: failure of a turn light or associated fuse, failure of turn light on
trailer.
Bulb replacement 3 193, Fuses
3 201.
Turn lights 3 113.
Seat belt reminder
Seat belt reminder on all seats
X illuminates or flashes red in the
instrument cluster together with the
indication in the roof console for each
seat belt.

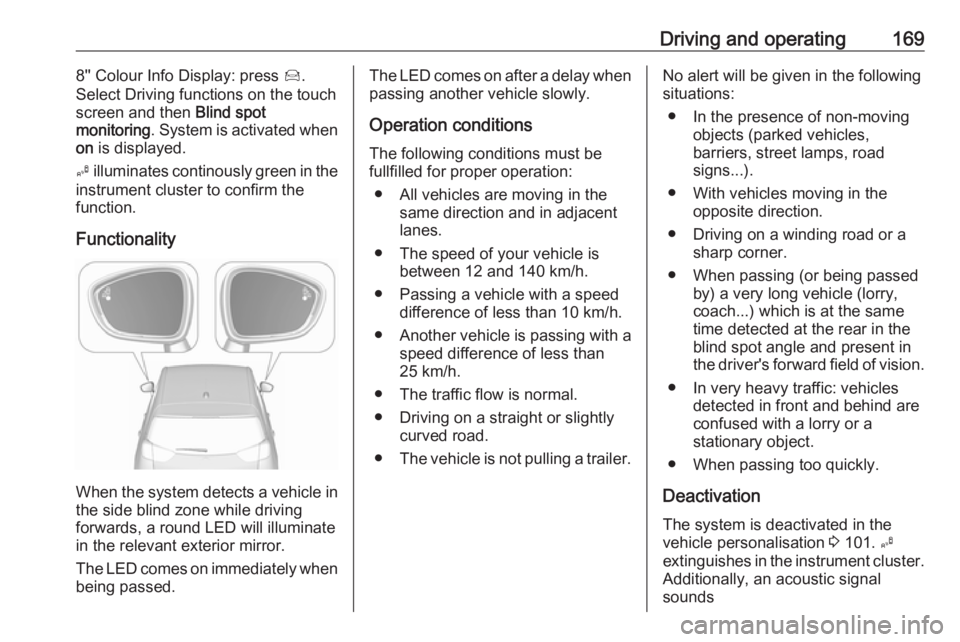

Driving and operating1698'' Colour Info Display: press Í.
Select Driving functions on the touch screen and then Blind spot
monitoring . System is activated when
on is displayed.
B illuminates continously green in the
instrument cluster to confirm the
function.
Functionality
When the system detects a vehicle in the side blind zone while driving
forwards, a round LED will illuminate
in the relevant exterior mirror.
The LED comes on immediately when being passed.
The LED comes on after a delay when
passing another vehicle slowly.
Operation conditions
The following conditions must be
fullfilled for proper operation:
● All vehicles are moving in the same direction and in adjacent
lanes.
● The speed of your vehicle is between 12 and 140 km/h.
● Passing a vehicle with a speed difference of less than 10 km/h.
● Another vehicle is passing with a
speed difference of less than
25 km/h.
● The traffic flow is normal.
● Driving on a straight or slightly curved road.
● The vehicle is not pulling a trailer.No alert will be given in the following
situations:
● In the presence of non-moving objects (parked vehicles,
barriers, street lamps, road
signs...).
● With vehicles moving in the opposite direction.
● Driving on a winding road or a sharp corner.
● When passing (or being passed by) a very long vehicle (lorry,
coach...) which is at the same
time detected at the rear in the
blind spot angle and present in
the driver's forward field of vision.
● In very heavy traffic: vehicles detected in front and behind are
confused with a lorry or a
stationary object.
● When passing too quickly.
Deactivation The system is deactivated in the
vehicle personalisation 3 101. B
extinguishes in the instrument cluster. Additionally, an acoustic signal
sounds

186Vehicle careVehicle careGeneral Information...................186
Accessories and vehicle modifications .......................... 186
Vehicle storage ........................187
End-of-life vehicle recovery .....187
Vehicle checks ........................... 188
Performing work ......................188
Bonnet ..................................... 188
Engine oil ................................. 189
Engine coolant ......................... 190
Washer fluid ............................ 190
Brakes ..................................... 191
Brake fluid ............................... 191
Vehicle battery ......................... 191
Diesel fuel system bleeding .....192
Wiper blade replacement ........193
Bulb replacement .......................193
Halogen headlights ..................193
LED headlights ........................ 196
Fog lights ................................. 196
Tail lights ................................. 196
Side turn lights ......................... 200
Number plate light ...................201
Interior lights ............................ 201
Instrument panel illumination ...201Electrical system ........................201
Fuses ....................................... 201
Engine compartment fuse box . 202
Instrument panel fuse box .......203
Vehicle tools .............................. 206
Tools ........................................ 206
Wheels and tyres .......................207
Winter tyres ............................. 207
Tyre designations ....................207
Tyre pressure .......................... 207
Tyre deflation detection system .................................... 208
Tread depth ............................. 209
Changing tyre and wheel size . 210
Wheel covers ........................... 210
Tyre chains .............................. 211
Tyre repair kit .......................... 211
Wheel changing .......................214
Spare wheel ............................ 215
Jump starting ............................. 219
Towing ....................................... 221
Towing the vehicle ...................221
Towing another vehicle ...........222
Appearance care .......................223
Exterior care ............................ 223
Interior care ............................. 225General Information
Accessories and vehiclemodifications
We recommend the use of genuine
parts and accessories and factory approved parts specific for your
vehicle type. We cannot assess or guarantee reliability of other products
- even if they have a regulatory or
otherwise granted approval.
Any modification, conversion or other changes made to standard vehicle
specifications (including, without
limitation, software modifications,
modifications of the electronic control
units) may invalidate the warranty
offered by Opel. Furthermore, such
changes may affect driver assistance
systems, may impact fuel
consumption, CO 2 emissions and
other emissions of the vehicle and
cause the vehicle to no longer
conform to the operating permit,
impacting the validity of your vehicle
registration.

Vehicle care2014. Insert bulb holder and turnclockwise.
5. Insert left end of the lamp, slide to
the left and insert right end.
Number plate light
The number plate light is designed as LEDs and can not be changed. Incase of defective LEDs, have them
replaced by a workshop.
Interior lights
Courtesy light, reading lights Have bulbs replaced by a workshop.
Load compartment light
Have bulbs replaced by a workshop.
Instrument panelillumination
Have bulbs replaced by a workshop.Electrical system
Fuses Data on the replacement fuse mustmatch the data on the defective fuse.
There are three fuse boxes in the
vehicle:
● engine compartment
● instrument panel
Before replacing a fuse, turn off the
respective switch and the ignition.
A blown fuse can be recognised by its melted wire.Caution
Do not replace the fuse until the
cause of the fault has been
remedied.
Some functions are protected by
several fuses.
Fuses may also be inserted without
existence of a function.
Fuse extractor
A fuse extractor may be located in the
fuse box in the engine compartment.

202Vehicle care
Place the fuse extractor on the
various types of fuse from the top or
side, and withdraw fuse.
Engine compartment fuse
box
The fuse box is in the front left of the
engine compartment.
Disengage the cover and remove it.
No.Circuit1Fan climate control system2–3Body fuse box4–5Instrument panel fuse box6Engine cooling unit7Body control module8Engine control fuel pump9Engine control

Vehicle care203No.Circuit10Engine control11Engine control12Engine cooling unit13Body control module14Intelligent battery sensor15–16Front fog light17–18High beam right19High beam left20Engine control fuel pump21Starter22–23Starter24Trailer hitch25Instrument panel fuse box26Transmission control moduleNo.Circuit27Body control module28Engine control module29Front wiper30Body control module
After having changed defective fuses,
close the fuse box cover and press
until it engages.
If the fuse box cover is not closed
correctly, malfunction may occur.
Instrument panel fuse box
Fuse box on the left side of the
instrument panel
In left-hand drive vehicles, the fuse
box is behind a cover in the
instrument panel. Disengage cover at
the side and remove.

204Vehicle care
In right-hand drive vehicles, the fuse
box is located behind a cover in the
glovebox. Open the glovebox and
remove the cover.
No.Circuit1Interior mirror / Exhaust
system / Electric power
steering / Clutch sensor / LPG /
Exterior mirror adjustment /
Inductive charging2–3Trailer Hitch4Horn5Windscreen washer pump front/
rear6Windscreen washer pump front/ rear7Heated steering wheel8Rear wiper9–10Central locking system11Central locking system12Instrument cluster13Climate control system / USBNo.Circuit14OnStar15Instrument cluster / Climate
control system16Brake / Starter / Retained power off17Instrument cluster18Advanced parking assist19Top column module / Trailer
control module20–21Anti-theft alarm system / Start
button22Rain sensor / Camera23Door module24Advanced parking assist /
Camera / Infotainment25Airbag26Top column module27Anti-theft alarm system

Vehicle care205No.Circuit28–29Infotainment30–31Infotainment32Power outlet front33–34Heated exterior mirrors / Door
module35Instrument cluster / Light
switch / Advanced parking
assist / Transmission control
module36Courtesy lights / Sunvisor
lights / Glovebox lightFuse box on the right side of the
instrument panel
In left-hand drive vehicles, the fuse
box is located behind a cover in the
glovebox. Open the glovebox and
remove the cover. Remove the
bracket.
In right-hand drive vehicles, the fuse
box is behind a cover in the
instrument panel. Disengage cover at
the side and remove.

255Clock............................................. 77
Control indicators.......................... 88
Control of the vehicle .................131
Controls ........................................ 73
Convex shape .............................. 34
Coolant and antifreeze ...............228
Cruise control ...................... 94, 150
Cupholders .................................. 63
Curtain airbag system .................. 55
D Danger, Warnings and Cautions ...4
Daytime running lights ...............111
Declaration of conformity ............243
DEF ............................................ 140
Deflation detection system ...........92
Diesel exhaust fluid ....................140
Diesel fuel system bleeding .......192
Diesel particle filter ...............92, 139
Door open .................................... 94
Doors ............................................ 30
Driver alert .................................. 175
Driver assistance systems ..........150
Driver Information Centre .............94
Driving characteristics and towing tips .............................. 182
Driving hints ................................ 131
E
Electric adjustment ......................34
Electrical system......................... 201Electronic climate control system 122
Electronic driving programmes ..145
Electronic key system ...................23
Electronic Stability Control and Traction Control system ....91, 149
Electronic Stability Control and Traction Control system off .......91
End-of-life vehicle recovery .......187
Engine compartment fuse box ...202
Engine coolant ........................... 190
Engine coolant temperature ........92
Engine coolant temperature gauge ....................................... 86
Engine data ............................... 235
Engine exhaust .......................... 139
Engine identification ...................231
Engine oil ................... 189, 228, 232
Engine oil level monitor ................87
Engine oil pressure ......................92
Entry lighting .............................. 116
Event data recorders ..................249
Exit lighting ................................ 116
Exterior care .............................. 223
Exterior light ................................. 93
Exterior lighting ....................13, 109
Exterior mirrors ............................. 34
F Fault ........................................... 145
First aid ......................................... 69First aid kit ................................... 69
Fixed air vents ........................... 128
Fog light ....................................... 93
Fog lights ................................... 196
Folding mirrors ............................. 35
Forward collision alert................. 155
Front airbag system .....................54
Front fog lights ........................... 113
Front pedestrian protection ........159
Front seats.................................... 43
Fuel............................................. 176
Fuel for diesel engines ..............176
Fuel for liquid gas operation .......177
Fuel for petrol engines ...............176
Fuel gauge ................................... 85
Fuel selector ................................ 85
Fuses ......................................... 201
G Gauges ......................................... 84
Gear shifting ................................. 91
General information ...................181
Glass panel .................................. 40
Glovebox ..................................... 63
H
Halogen headlights ....................193
Hand brake ......................... 147, 148
Hazard warning flashers ............112
Headlight flash ........................... 110
Headlight range adjustment ......111
