OPEL CROSSLAND X 2019.75 User Guide

In brief9Mirror adjustment
Interior mirror
To adjust the mirror, move the mirror
housing in the desired direction.
Manual anti-dazzle interior mirror
3 35.
Automatic anti-dazzle interior mirror 3 35.
Exterior mirrors
Select the relevant exterior mirror by
pushing the mirror button to the left or right. Adjust respective mirror by the
four-way control.
Convex mirrors 3 33.
Electric adjustment 3 33.
Folding mirrors 3 34.
Heated mirrors 3 34.
Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is fully locked. Do not adjust steering
wheel unless vehicle is stationary and steering wheel lock has been
released.
Seat position 3 41.
Ignition switch positions 3 123.
Power button 3 123

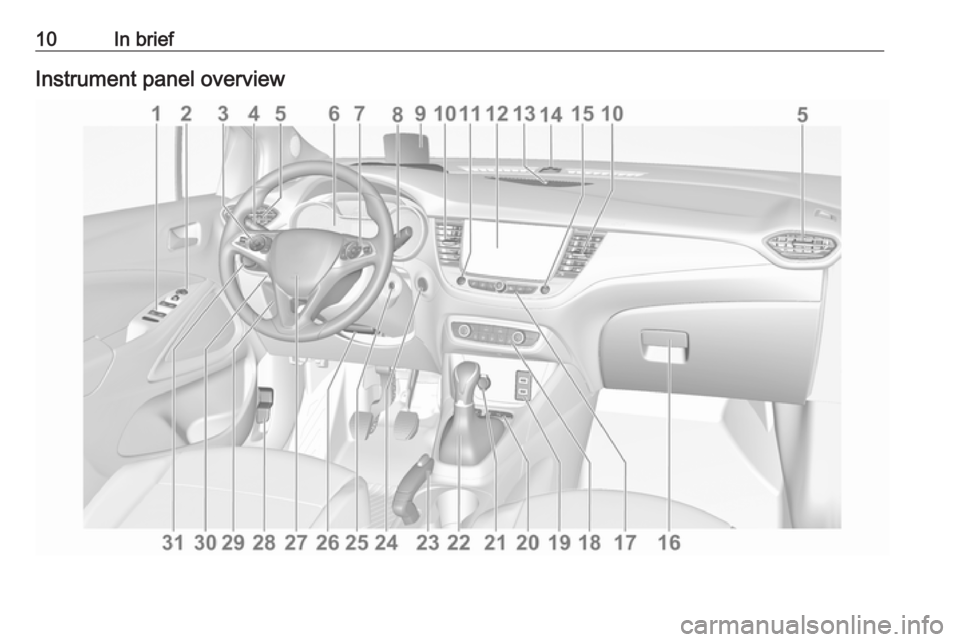

10In briefInstrument panel overview

In brief111Power windows .....................36
2 Exterior mirrors .....................33
3 Cruise control .....................140
Speed limiter ....................... 143
Heated steering wheel .........70
4 Turn lights ........................... 104
Headlight flash ....................102
High beam ........................... 101
High beam assist ...............101
Exit lighting ......................... 107
Parking lights ...................... 105
Buttons for Driver
Information Centre ................88
5 Side air vents ...................... 118
6 Instruments .......................... 77
Driver Information Centre ...... 88
7 Infotainment controls ...........70
8 Windscreen wiper and
washer, rear wiper and
washer ................................. 71
9 Head-up display ....................92
10 Centre air vents .................. 11811Hazard warning flashers ....103
12 Info Display .......................... 90
13 Centre air vent ....................119
14 Light sensor ........................ 101
Rain sensor ........................... 71
Sun sensor .......................... 113
15 Central locking system ..........23
16 Glovebox .............................. 61
Fuse box ............................ 192
17 Controls for Info Display
operation ............................... 90
18 Climate control system ........ 109
19 USB port .............................. 74
20 Electronic Stability Control
and Traction Control ...........139
Lane departure warning .....163
Stop-start system ................126
Parking assist ..................... 150
Advanced parking assist ....153
Electric child locks ................ 28
21 Power outlet .......................... 74
22 Selector lever ...................... 133
23 Parking brake ......................13824Power button ....................... 123
25 Ignition switch .....................123
26 Steering wheel adjustment ..70
27 Horn ..................................... 71
28 Bonnet release lever ..........176
29 Storage ................................. 61
Fuse box ............................ 192
30 Head-up display ....................92
31 Light switch ........................ 100
Headlight range
adjustment ......................... 102
Front fog lights ...................104
Rear fog light ...................... 105
Instrument illumination .......106

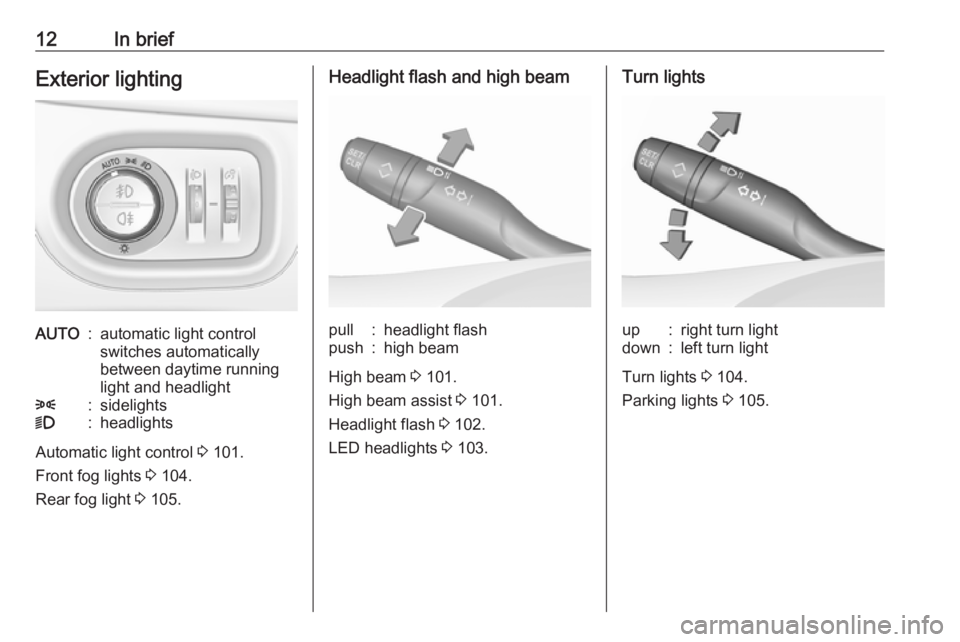

12In briefExterior lightingAUTO:automatic light control
switches automatically
between daytime running
light and headlight8:sidelights9:headlights
Automatic light control 3 101.
Front fog lights 3 104.
Rear fog light 3 105.
Headlight flash and high beampull:headlight flashpush:high beam
High beam 3 101.
High beam assist 3 101.
Headlight flash 3 102.
LED headlights 3 103.
Turn lightsup:right turn lightdown:left turn light
Turn lights 3 104.
Parking lights 3 105.

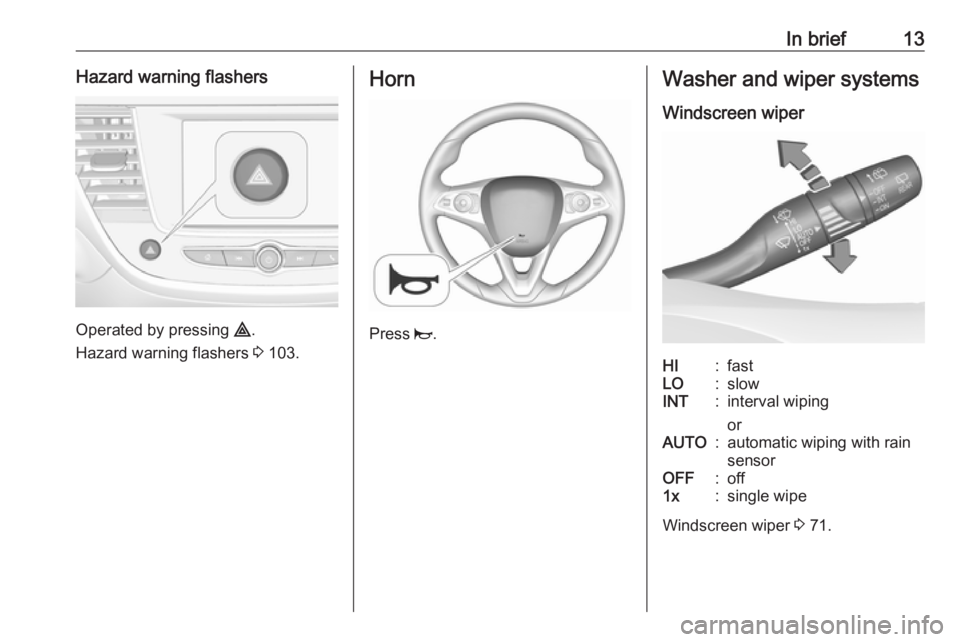

In brief13Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 103.
Horn
Press j.
Washer and wiper systems
Windscreen wiperHI:fastLO:slowINT:interval wiping
orAUTO:automatic wiping with rain
sensorOFF:off1x:single wipe
Windscreen wiper 3 71.

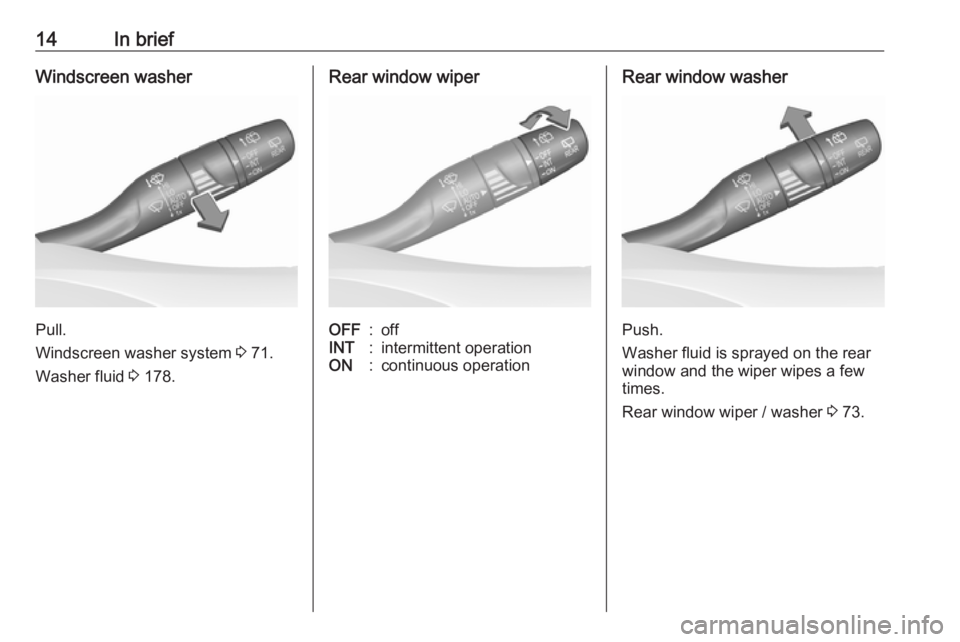

14In briefWindscreen washer
Pull.
Windscreen washer system 3 71.
Washer fluid 3 178.
Rear window wiperOFF:offINT:intermittent operationON:continuous operationRear window washer
Push.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper / washer 3 73.

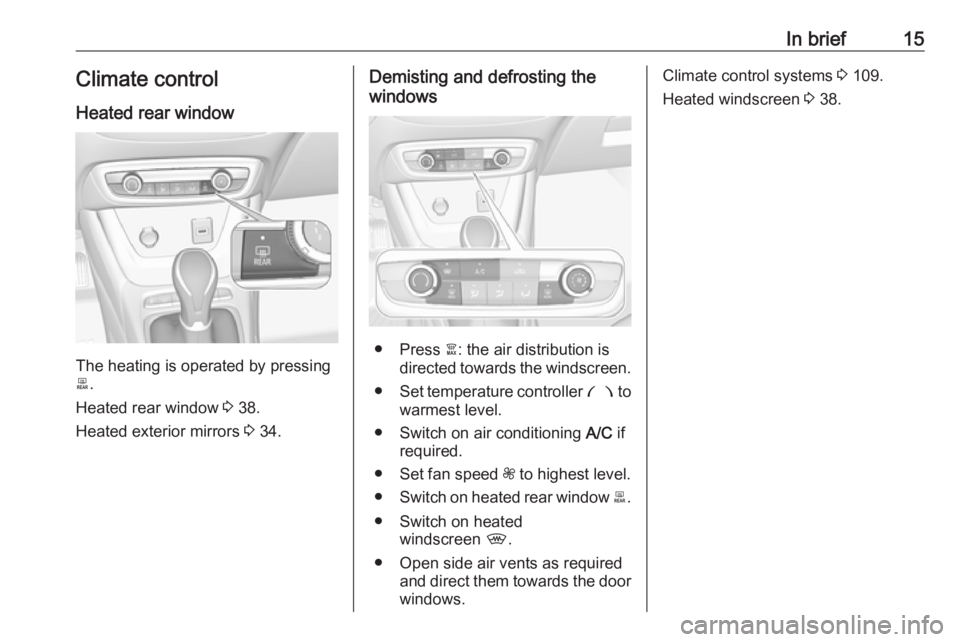

In brief15Climate control
Heated rear window
The heating is operated by pressing
b .
Heated rear window 3 38.
Heated exterior mirrors 3 34.
Demisting and defrosting the
windows
● Press à: the air distribution is
directed towards the windscreen.
● Set temperature controller £ to
warmest level.
● Switch on air conditioning A/C if
required.
● Set fan speed Z to highest level.
● Switch on heated rear window b.
● Switch on heated windscreen ,.
● Open side air vents as required and direct them towards the doorwindows.
Climate control systems 3 109.
Heated windscreen 3 38.

16In briefTransmission
Manual transmission
To engage reverse on 6-speed
transmission, pull the ring.
Manual transmission 3 136.
Automatic transmissionP:park positionR:reverseN:neutral modeD:automatic modeM:manual mode<:upshift]:downshift
Automatic transmission 3 133.
Starting off
Check before starting off ● tyre pressure 3 196 and
condition
● engine oil level and fluid levels 3 177
● all windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational
● proper position of mirrors 3 33,
seats 3 41 and seat belts
3 47
● brake function at low speed, particularly if the brakes are wet

In brief17Starting the engineIgnition switch
● Turn key to position 1.
● Move the steering wheel slightly to release the steering wheel
lock.
● Manual transmission: operate clutch and brake pedal.
Automatic transmission: operate
brake pedal and move selector
lever to P or N.
● Do not operate accelerator pedal.
● Diesel engine: wait until control
indicator ! for preheating
extinguishes.
● Turn key to position 2 and
release after engine has been
started.
Starting the engine 3 124.Power button
● Manual transmission: operate
clutch and brake pedal.
Automatic transmission: operate
brake pedal and move selector
lever to P or N.
● Do not operate accelerator pedal.
● Press Start/Stop button.
● Release button after starting procedure begins.

18In briefStop-start system
If the vehicle is at a low speed or at astandstill and certain conditions are
fulfilled, an Autostop is activated.
An Autostop is indicated by control
indicator D.
Manual transmission: to restart the
engine, depress the clutch pedal
again. Control indicator D
extinguishes.
Automatic transmission: to restart the
engine, release the brake pedal.
Control indicator D extinguishes.
Stop-start system 3 126.
Parking9 Warning
● Do not park the vehicle on an
easily ignitable surface. The
high temperature of the
exhaust system could ignite the
surface.
● Always apply the parking brake. Activate the parking
brake without pressing the
release button. Apply as firmly
as possible on a downhill slope
or uphill slope. Depress brake
pedal at the same time to
reduce operating force.
● Switch off the engine.
● If the vehicle is on a level surface or uphill slope, engage
first gear or set the selector
lever to position P. On an uphill
slope, turn the front wheels
away from the kerb.
If the vehicle is on a downhill
slope, engage reverse gear or
set the selector lever to position
P . Turn the front wheels
towards the kerb.
● Close the windows.
● Remove the ignition key from the ignition switch or switch off
ignition on vehicles with power
button. Turn the steering wheel until the steering wheel lock is
felt to engage.
● Lock the vehicle with e on the
radio remote control.
Or with electronic key system
press marking on front door
handles 3 22.
● Activate the anti-theft alarm system 3 31.
● The engine cooling fans may run
after the engine has been
switched off 3 176.
Caution
After running at high engine
speeds or with high engine loads,
operate the engine briefly at a low load or run in neutral for
