Page 191 of 253

OPEL CROSSLAND X 2019.75  Owners Manual Vehicle care189

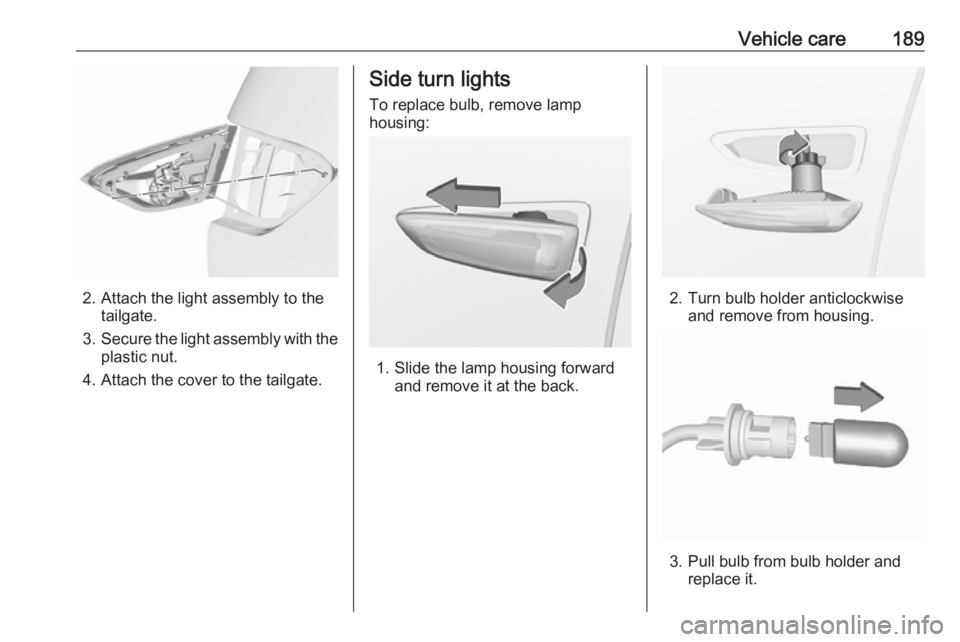

2. Attach the light assembly to thetailgate.
3. Secure the light assembly with the
plastic nut.
4. Attach the cover to the tailgate.
Side turn lights
To replace bulb, remove lamp
housi

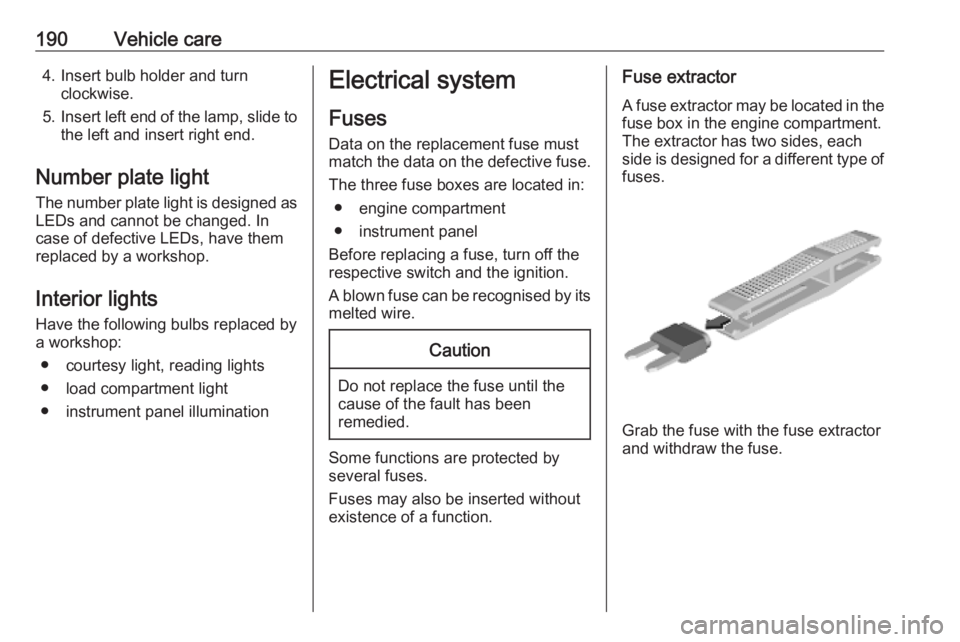

Page 192 of 253

OPEL CROSSLAND X 2019.75  Owners Manual 190Vehicle care4. Insert bulb holder and turnclockwise.
5. Insert left end of the lamp, slide to
the left and insert right end.
Number plate light
The number plate light is designed as
LEDs and cannot

Page 193 of 253

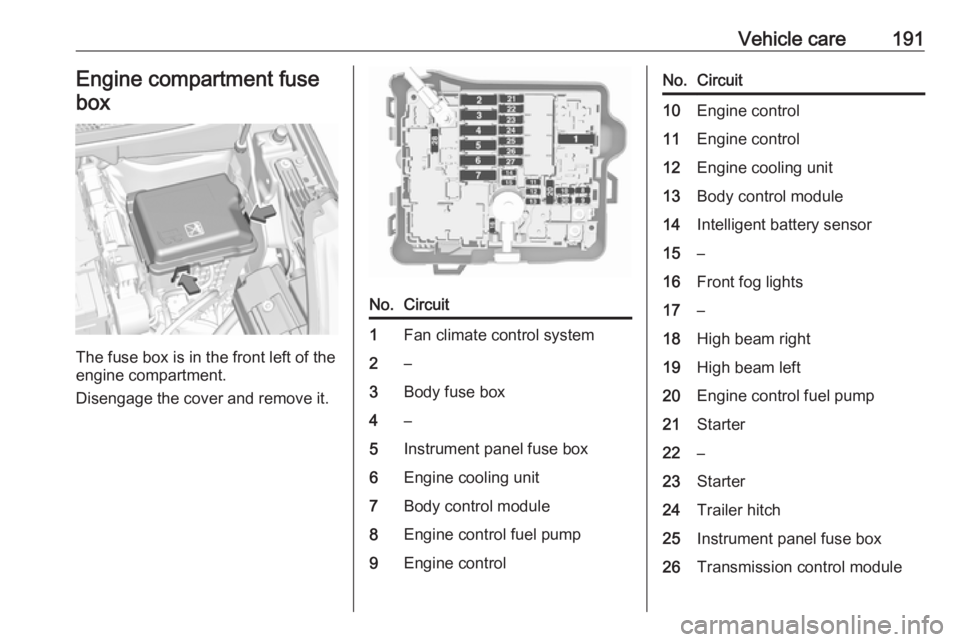

OPEL CROSSLAND X 2019.75  Owners Manual Vehicle care191Engine compartment fusebox
The fuse box is in the front left of the
engine compartment.
Disengage the cover and remove it.
No.Circuit1Fan climate control system2–3Body fuse box4–5In

Page 194 of 253

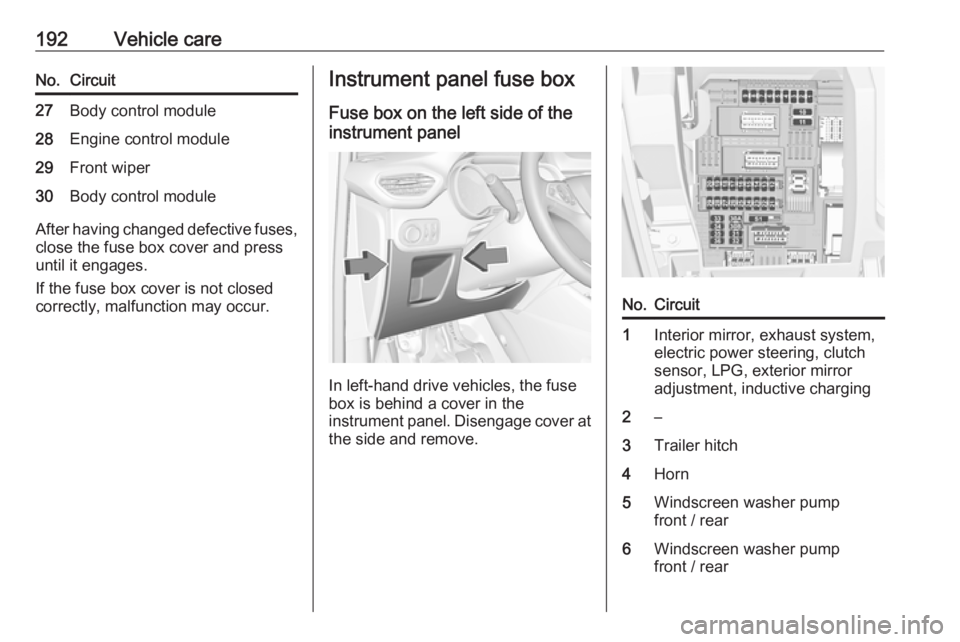

OPEL CROSSLAND X 2019.75  Owners Manual 192Vehicle careNo.Circuit27Body control module28Engine control module29Front wiper30Body control module
After having changed defective fuses,
close the fuse box cover and press
until it engages.
If th

Page 195 of 253

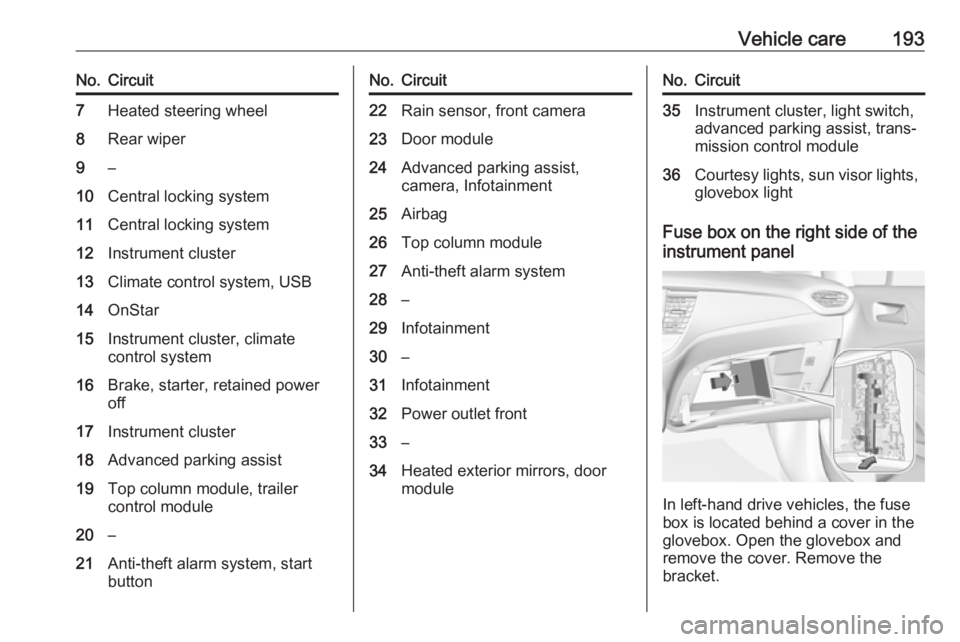

OPEL CROSSLAND X 2019.75  Owners Manual Vehicle care193No.Circuit7Heated steering wheel8Rear wiper9–10Central locking system11Central locking system12Instrument cluster13Climate control system, USB14OnStar15Instrument cluster, climate
con

Page 196 of 253

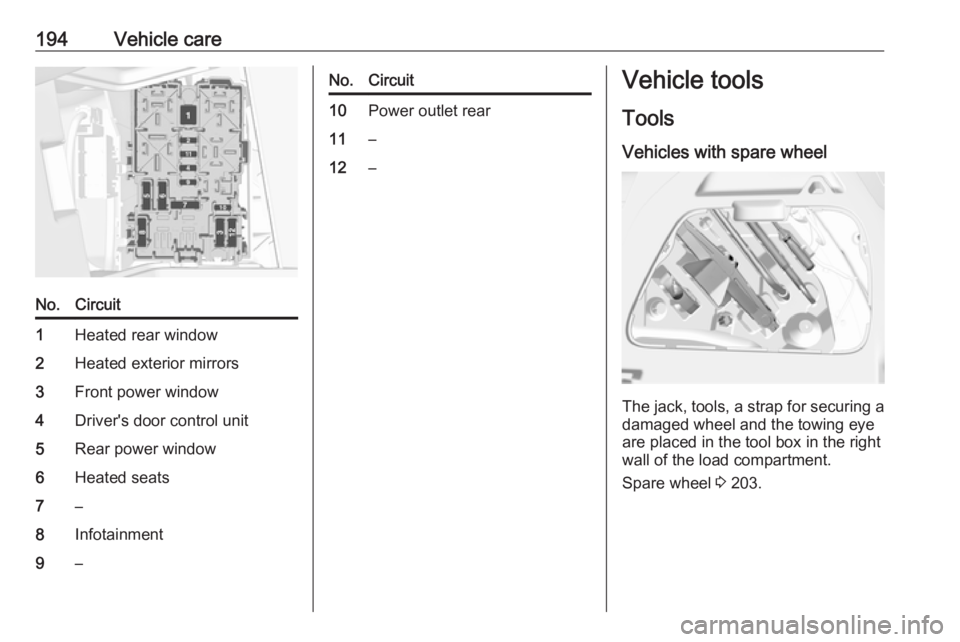

OPEL CROSSLAND X 2019.75  Owners Manual 194Vehicle careNo.Circuit1Heated rear window2Heated exterior mirrors3Front power window4Driver's door control unit5Rear power window6Heated seats7–8Infotainment9–No.Circuit10Power outlet rear1

Page 197 of 253

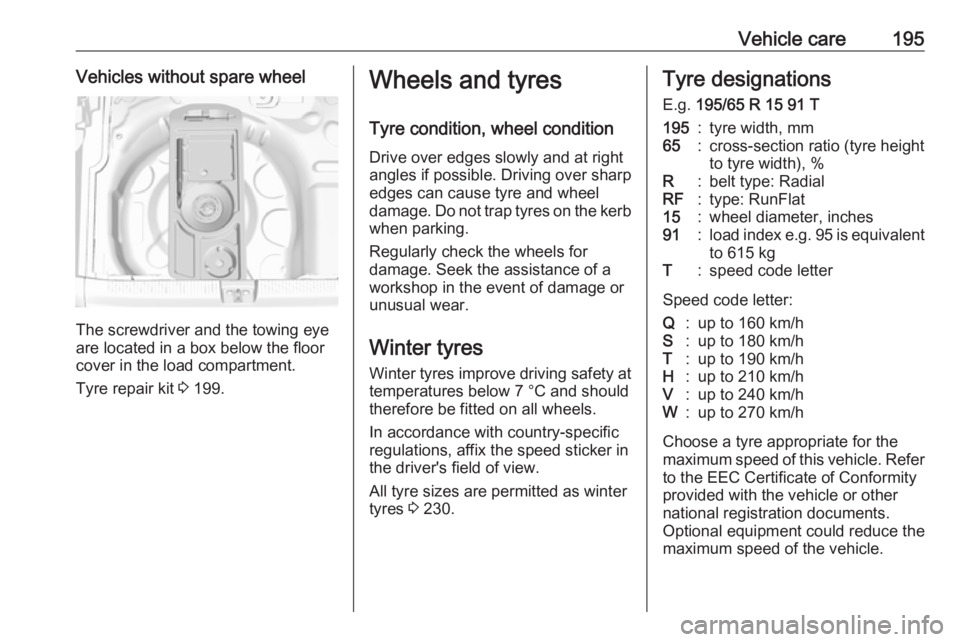

OPEL CROSSLAND X 2019.75  Owners Manual Vehicle care195Vehicles without spare wheel
The screwdriver and the towing eye
are located in a box below the floor
cover in the load compartment.
Tyre repair kit  3 199.
Wheels and tyres
Tyre conditi

Page 198 of 253

OPEL CROSSLAND X 2019.75  Owners Manual 196Vehicle careDirectional tyres
Directional tyres should be mounted so that they rotate in the correct
direction. The proper rotation
direction is indicated by a symbol
(e.g. an arrow) on the sidewal

Page 199 of 253

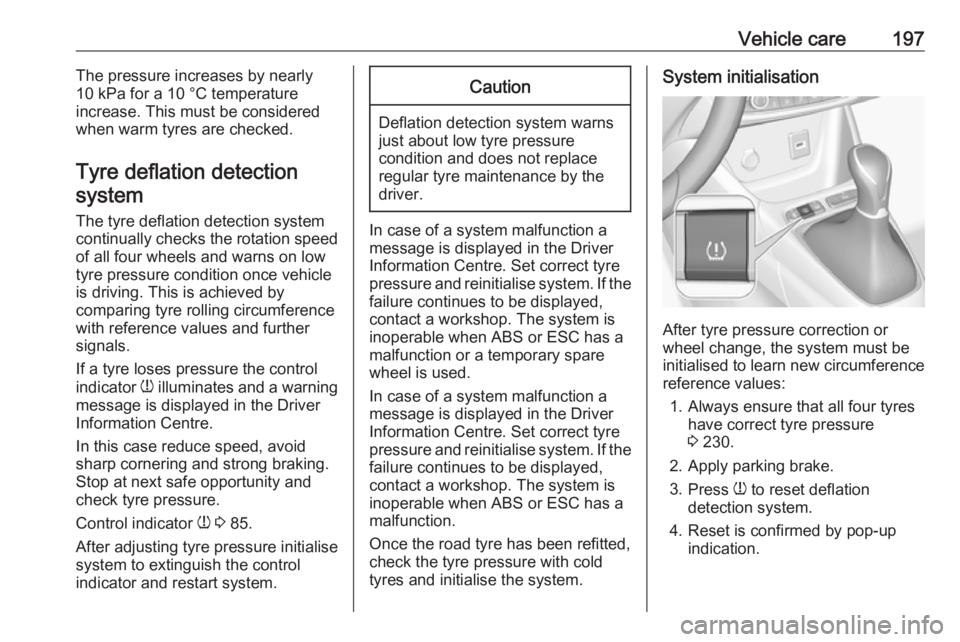

OPEL CROSSLAND X 2019.75  Owners Manual Vehicle care197The pressure increases by nearly
10 kPa for a 10 °C temperature
increase. This must be considered
when warm tyres are checked.
Tyre deflation detectionsystem
The tyre deflation detecti

Page 200 of 253

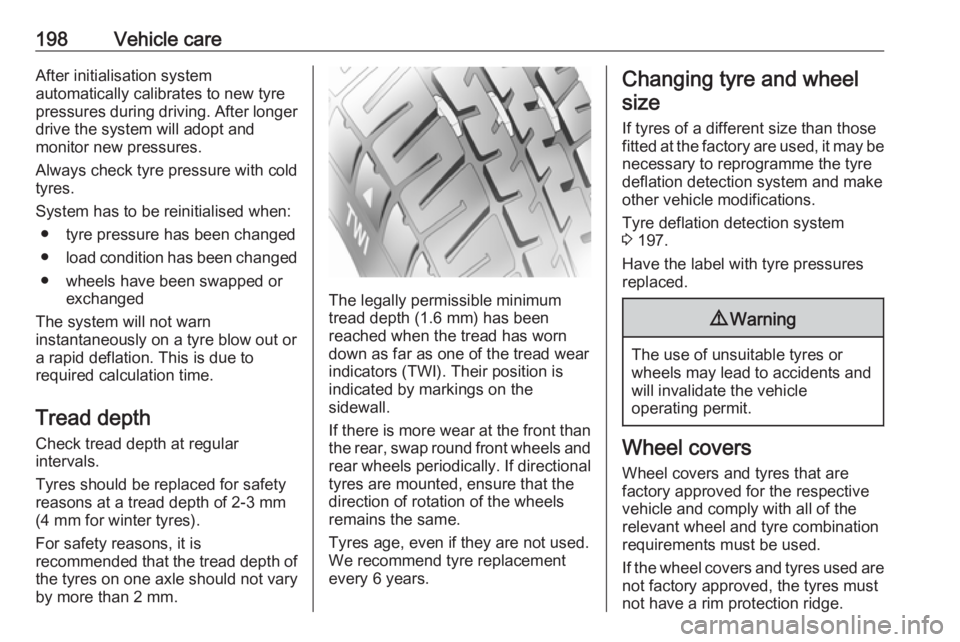

OPEL CROSSLAND X 2019.75  Owners Manual 198Vehicle careAfter initialisation system
automatically calibrates to new tyre
pressures during driving. After longer
drive the system will adopt and
monitor new pressures.
Always check tyre pressure
