18In briefTransmission
Manual transmission
To engage reverse on 6-speed
transmission, depress the clutch
pedal, pull the ring under the selector
lever and move the selector lever
quite to the left and front.
Manual transmission 3 151.
Automatic transmissionP:park positionR:reverseN:neutral modeD:automatic modeM:manual mode<:upshift]:downshift
Automatic transmission 3 148.
Starting off
Check before starting off ● tyre pressure 3 222 and
condition 3 254
● engine oil level and fluid levels 3 205
● all windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational
● proper position of mirrors 3 38,
seats 3 46 and seat belts
3 54
● brake function at low speed, particularly if the brakes are wet

Instruments and controls79Instruments and
controlsControls ....................................... 80
Steering wheel adjustment ........80
Steering wheel controls .............80
Heated steering wheel ...............80
Horn ........................................... 81
Windscreen wiper and washer ..81
Rear window wiper and washer ...................................... 83
Outside temperature ..................83
Clock ......................................... 84
Power outlets ............................. 85
Inductive charging .....................87
Cigarette lighter ......................... 87
Ashtrays .................................... 88
Warning lights, gauges and indi‐ cators ........................................... 88
Instrument cluster ......................88
Speedometer ............................. 90
Odometer .................................. 91
Trip odometer ............................ 91
Tachometer ............................... 91
Fuel gauge ................................ 92
Engine coolant temperature gauge ....................................... 92Engine oil level monitor.............92
Service display .......................... 93
Control indicators ......................94
Turn lights .................................. 94
Seat belt reminder .....................94
Airbag and belt tensioners .........95
Airbag deactivation ....................95
Charging system .......................95
Malfunction indicator light ..........95
Stop engine ............................... 96
System check ............................ 96
Brake and clutch system ...........96
Electric parking brake ................96
Electric parking brake fault ........96
Antilock brake system (ABS) .....97
Gear shifting .............................. 97
Lane departure warning ............97
Lane keep assist .......................97
Electronic Stability Control and Traction Control system ...........97
Engine coolant temperature ......97
Preheating ................................. 98
Diesel particle filter ....................98
AdBlue ....................................... 98
Deflation detection system ........98
Engine oil pressure ....................98
Low fuel ..................................... 99
Autostop .................................... 99
Exterior light .............................. 99
High beam ................................. 99Low beam.................................. 99
High beam assist .......................99
LED headlights .......................... 99
Fog light ................................... 100
Rear fog light ........................... 100
Rain sensor ............................. 100
Cruise control .......................... 100
Adaptive cruise control ............100
Vehicle detected ahead ...........100
Side blind spot alert .................100
Active emergency braking .......100
Speed limiter ........................... 101
Door open ................................ 101
Displays ..................................... 101
Driver Information Centre ........101
Info Display .............................. 103
Vehicle messages ......................105
Warning chimes .......................105
Battery voltage ........................ 105
Vehicle personalisation ..............106
Telematics service .....................109
OnStar ..................................... 109

90Instruments and controlsOverviewOTurn signal 3 94XSeat belt reminder 3 94vAirbag and belt tensioners
3 95VAirbag deactivation 3 95pCharging system 3 95ZMalfunction indicator light
3 95HService vehicle soon 3 93STOPStop engine 3 96JSystem check 3 96RBrake and clutch system
3 96oElectric parking brake
3 96uAntilock brake system (ABS)
3 97RGear shifting 3 97)Lane departure warning
3 97LLane keep assist 3 97bElectronic Stability Control
and Traction Control system
3 97!Preheating 3 98%Diesel particle filter 3 98YAdBlue 3 98wDeflation detection system
3 98IEngine oil pressure 3 98Y oLow fuel 3 99W oEngine coolant temperature
high 3 97DAutostop 3 998Exterior light 3 999Low beam 3 99CHigh beam 3 99fHigh beam assist 3 99>Fog light 3 100øRear fog light 3 100 3 171hDoor open 3 101
Speedometer
Indicates vehicle speed.

92Instruments and controlsFuel gauge
Displays the level in the fuel tank.
Control indicator o illuminates if the
level in the tank is low.
Never run the fuel tank dry.
Because of the fuel remaining in the
tank, the top-up quantity may be less
than the specified fuel tank capacity.
Engine coolant temperature
gauge
Displays the coolant temperature.
50:engine operating temperature
not yet reached90:normal operating temperature130:temperature too high
Control indicator o illuminates if
coolant temperature is too high. Switch off engine immediately.
Caution
If engine coolant temperature is
too high, stop vehicle, switch off
engine. Danger to engine. Check
coolant level.
Engine oil level monitor
The state of the engine oil level is
displayed in the Driver Information
Centre for a few seconds following
the service information after switching
on the ignition.
A proper state of oil level is indicated
by the message Oil level correct.
If oil level is low, I flashes and Oil
level incorrect is indicated,
accompanied by the H indicator.
Confirm oil level by using the oil
dipstick and top up engine oil
respectively.
Engine oil 3 205.
A fault of measurement is indicated
by the message Oil level measurment
invalid . Check oil level manually by
using the dipstick.

Instruments and controls93Service displayThe service system informs when to
change the engine oil and filter or a
vehicle service is required. Based on
driving conditions, the interval at
which an engine oil and filter change
is required can vary considerably.
Service information 3 240.
A required service due is displayed in
the Driver Information Centre forseven seconds after switching on the
ignition.
If no service is required for the next
3000 km or more no service
information appears in the display.
If service is required within the next
3000 km, the remaining distance or
time duration is indicated for several
seconds. Simultaneously symbol F
lights up permanently as reminder.
If service is required in less than 1000 km, F flashes and then lights up
permanently. Remaining distance or
time duration is indicated for several
seconds.
Overdued service is indicated by a
message in the Driver Information
Centre which indicates the overdued
distance. F flashes and then lights up
permanently until service is executed.
Reset of service interval After each service, the service
indicator must be reset to ensure
proper functionality. It is
recommended to seek the assistance
of a workshop.
If service is executed by yourself,
operate as following:
● switch off ignition
● press and hold button F or
CHECK
● switch on ignition, the distance indication begins a countdown
● when the display indicates =0,
release the button
F disappears

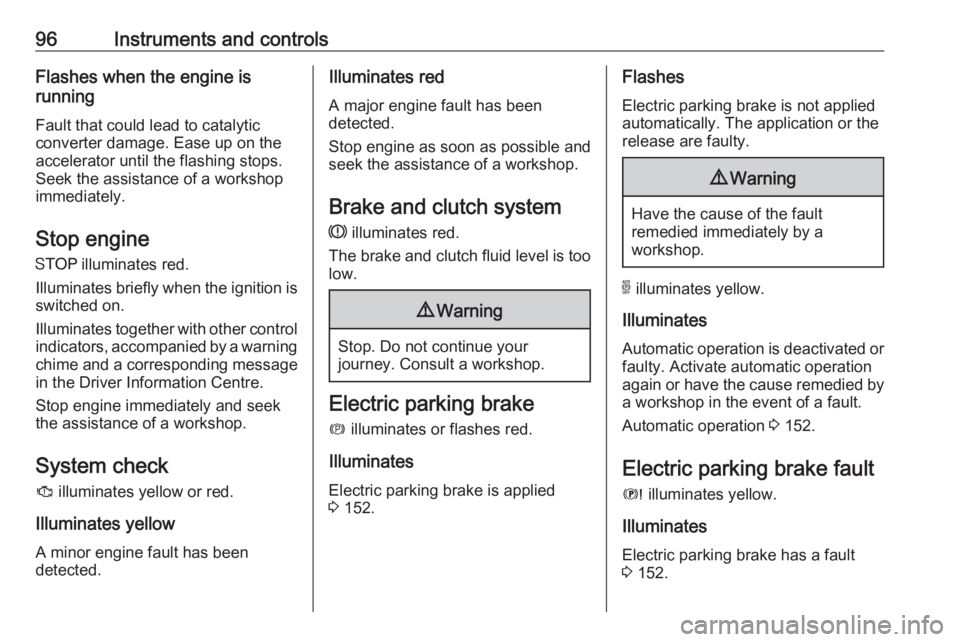

96Instruments and controlsFlashes when the engine is
running
Fault that could lead to catalytic
converter damage. Ease up on the
accelerator until the flashing stops.
Seek the assistance of a workshop
immediately.
Stop engine
Y illuminates red.
Illuminates briefly when the ignition is
switched on.
Illuminates together with other control indicators, accompanied by a warning
chime and a corresponding message in the Driver Information Centre.
Stop engine immediately and seek
the assistance of a workshop.
System check
J illuminates yellow or red.
Illuminates yellow
A minor engine fault has been
detected.Illuminates red
A major engine fault has been
detected.
Stop engine as soon as possible and
seek the assistance of a workshop.
Brake and clutch system
R illuminates red.
The brake and clutch fluid level is too
low.9 Warning
Stop. Do not continue your
journey. Consult a workshop.
Electric parking brake
m illuminates or flashes red.
Illuminates
Electric parking brake is applied
3 152.
Flashes
Electric parking brake is not applied
automatically. The application or the
release are faulty.9 Warning
Have the cause of the fault
remedied immediately by a
workshop.
o illuminates yellow.
Illuminates
Automatic operation is deactivated or
faulty. Activate automatic operation
again or have the cause remedied by a workshop in the event of a fault.
Automatic operation 3 152.
Electric parking brake fault E illuminates yellow.
Illuminates
Electric parking brake has a fault
3 152.

98Instruments and controlsIlluminates when the engine is
running
Stop, switch off engine.Caution
Coolant temperature too high.
Check coolant level immediately
3 206.
If there is sufficient coolant, consult a workshop.
Preheating
! illuminates yellow.
Preheating of diesel engine is
activated. Only activates when
outside temperature is low. Start the
engine when control indicator
extinguishes.
Diesel particle filter % or H illuminates yellow.
The diesel particle filter requires
cleaning.
Continue driving until the control
indicator extinguishes.
Illuminates temporarily Start of saturation of the particle filter.
Start cleaning process as soon as possible by driving at a vehicle speed
of at least 60 km/h.
Illuminates constantlyIndication of a low additive level. Seek
the assistance of a workshop.
Diesel particle filter 3 143.
AdBlue
Y flashes or illuminates yellow.
Illuminates yellow
The remaining driving range is
between 600 km and 2400 km.
Have the AdBlue® topped-up as soon as possible by a qualified workshop.
You can add up to 10 l of AdBlue to its tank.Flashes yellow
The remaining driving range is
between 0 km and 600 km.
Top-up the AdBlue as soon as
possible to avoid a breakdown by a
qualified workshop. You can add up
to 10 l of AdBlue to its tank.
Deflation detection system
w illuminates or flashes yellow.
Illuminates
Tyre pressure loss in one or more
wheels. Stop immediately and check
tyre pressure.
Flashes
Fault in system. Consult a workshop.
Deflation detection system 3 223.
Engine oil pressure I illuminates red.
Illuminates when the ignition is
switched on and extinguishes shortly
after the engine starts.

Instruments and controls99Illuminates when the engine is
runningCaution
Engine lubrication may be
interrupted. This may result in
damage to the engine and / or
locking of the drive wheels.
1. Depress clutch.
2. Select neutral gear, set selector lever to N.
3. Move out of the flow of traffic as quickly as possible without
impeding other vehicles.
4. Switch off ignition.
9 Warning
When the engine is off,
considerably more force is needed
to brake and steer. During an
Autostop the brake servo unit will still be operational.
Do not remove key until vehicle is
stationary, otherwise the steeringwheel lock could engage
unexpectedly.
Check engine oil level before seeking
the assistance of a workshop 3 205.
Low fuel
o illuminates yellow.
Level in fuel tank is too low.
Refuelling 3 195.
Bleeding the diesel fuel system
3 209.
Autostop
D illuminates or flashes green.
Illuminates green
Engine is in an Autostop.
Flashes green
Autostop is temporarily unavailable,
or Autostop mode is invoked
automatically.
Stop-start system 3 140.
Exterior light
8 illuminates green.
The exterior lights are on 3 114.
High beam
C illuminates blue.
Illuminates when high beam is on,
during headlight flash 3 115.
Low beam
9 illuminates green.
Illuminated when low beam is on.
High beam assist f illuminates green.
The high beam assist is activated
3 116.
LED headlights H illuminates and a warning
message is displayed in the Driver
Information Centre.
Seek the assistance of a workshop.

112Instruments and controlsStolen vehicle assistance
If the vehicle is stolen, report the theft
to the authorities and request OnStar
stolen vehicle assistance. Use any
phone to call an advisor. Find the
respective OnStar phone number on
our country-specific website.
OnStar can provide support in
locating and recovering the vehicle.Theft alert
When the anti-theft alarm system is
triggered, a notification is sent to
OnStar. You are then informed about
this event by text message or email.Restart prevention
By sending remote signals, OnStar can prevent the vehicle from
restarting once it has been turned off.
On-demand diagnostics
At any time e.g. if the vehicle displays a vehicle message, press Z to
contact an advisor and ask to
complete a real-time diagnostic check
to directly determine the issue.
Depending on the results, the advisor
will provide further support.
Diagnostic report
The vehicle automatically transmits
diagnostic data to OnStar which
sends a monthly email report to you
and your preferred workshop.
Note
The workshop notification function
can be disabled in your account.
The report contains the status of key
operating systems of the vehicle like
engine, transmission, airbags, ABS,
and other major systems. It also
provides information on possible
maintenance items and tyre pressure (only with tyre pressure monitoring
system).
To look at the information in greater detail, select the link within the email and log in to your account.
OnStar settings
OnStar PIN
To have full access to all OnStar
services, a four-digit PIN is required. The PIN has to be personalised when first talking to an advisor.
To change the PIN, press Z to call an
advisor.Account data
An OnStar subscriber has an account
where all the data is stored. To
request a change of the account
information, press Z and talk to an
advisor or log in to your account.
If the OnStar service is used on
another vehicle, press Z and request
that the account be transferred to the
new vehicle.
Note
In any case, if the vehicle is disposed of, sold or otherwise transferred,
immediately inform OnStar about
the changes and terminate the
OnStar service on this vehicle.
Vehicle location
The vehicle location is transmitted to
OnStar when service is requested or
triggered. A message on the Info Display informs about this
transmission.
To activate or deactivate the
transmission of the vehicle location,
press and hold j until an audio
message is heard.

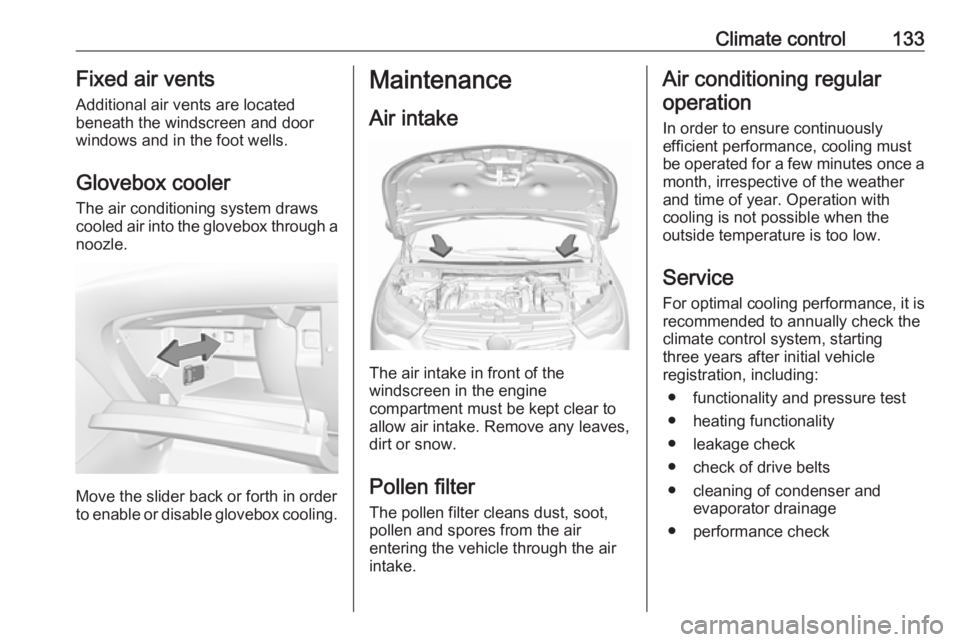

Climate control133Fixed air ventsAdditional air vents are located
beneath the windscreen and door windows and in the foot wells.
Glovebox cooler
The air conditioning system draws
cooled air into the glovebox through a noozle.
Move the slider back or forth in order
to enable or disable glovebox cooling.
Maintenance
Air intake
The air intake in front of the
windscreen in the engine
compartment must be kept clear to
allow air intake. Remove any leaves,
dirt or snow.
Pollen filter The pollen filter cleans dust, soot,
pollen and spores from the air
entering the vehicle through the air
intake.
Air conditioning regular
operation
In order to ensure continuously
efficient performance, cooling must
be operated for a few minutes once a
month, irrespective of the weather
and time of year. Operation with
cooling is not possible when the
outside temperature is too low.
Service For optimal cooling performance, it is recommended to annually check the
climate control system, starting
three years after initial vehicle
registration, including:
● functionality and pressure test
● heating functionality
● leakage check
● check of drive belts
● cleaning of condenser and evaporator drainage
● performance check
